◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50936 - TFR/TFS(AUSTRALIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-82 - BACK GLASS AND WEATHERSTRIP ▶
6-82 — BACK GLASS AND WEATHERSTRIP (#42371) — 10 parça

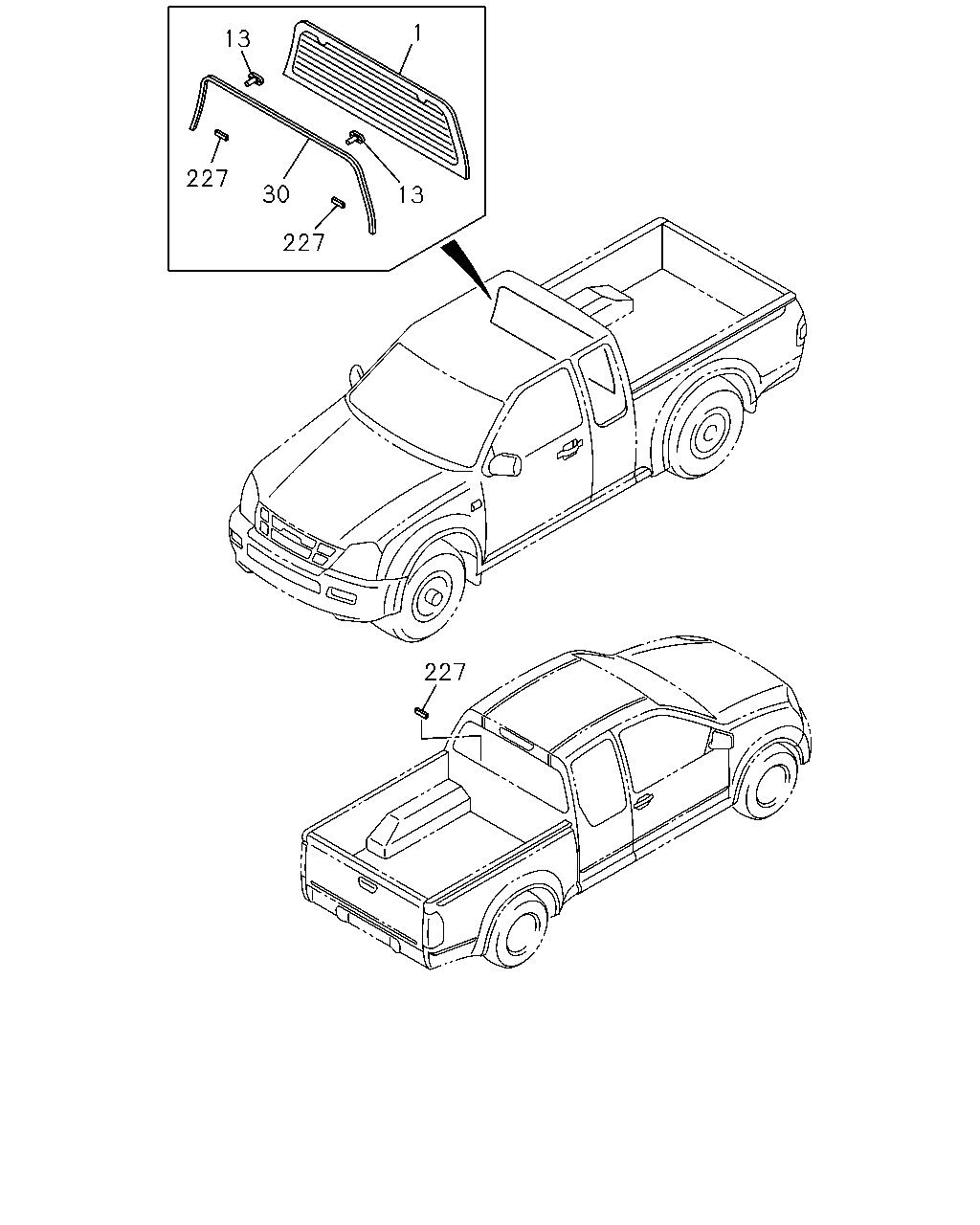

çizim 50467
1 13 227 30 13 227 227
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 16.464 GLASS; BACKLIGHT 8-97331-610-0 01 1 0211- ● ● ● ● ●
1 16.464 GLASS; BACKLIGHT
REAR DEFOGGER<C49> 		8-97331-610-0 01 1 0211- ●
1 16.464 GLASS; BACKLIGHT 8-97331-609-0 01 1 0211- ● ●
1 16.464 GLASS; BACKLIGHT
EXC. REAR DEFOGGER<C49> 		8-97331-609-0 01 1 0211- ●
13 16.464 SUPPORT; BACKLIGHT GLASS 8-97244-819-0 02 1 0211- ● ● ● ● ● ● ● ●
30 16.475 SEAL; BACKLIGHT GLASS 8-97312-630-0 01 1 0211- ● ● ● ● ● ● ● ●
227 16.475 RETAINER; RR WINDOW
16.190 		8-97165-818-0 02 1 0211-0211 ● ● ● ● ● ● ● ●
227 16.475 RETAINER; RR WINDOW
16.190 		8-97165-818-0 02 1 0211-0211 ● ● ● ● ● ● ●
227 16.475 RETAINER; RR WINDOW 8-97362-301-0 02 1 0212- ● ● ● ● ● ● ● ●
227 16.475 RETAINER; RR WINDOW 8-97362-301-0 02 1 0212- ● ● ● ● ● ● ●
