◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50936 - TFR/TFS(AUSTRALIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#42368) — 10 parça

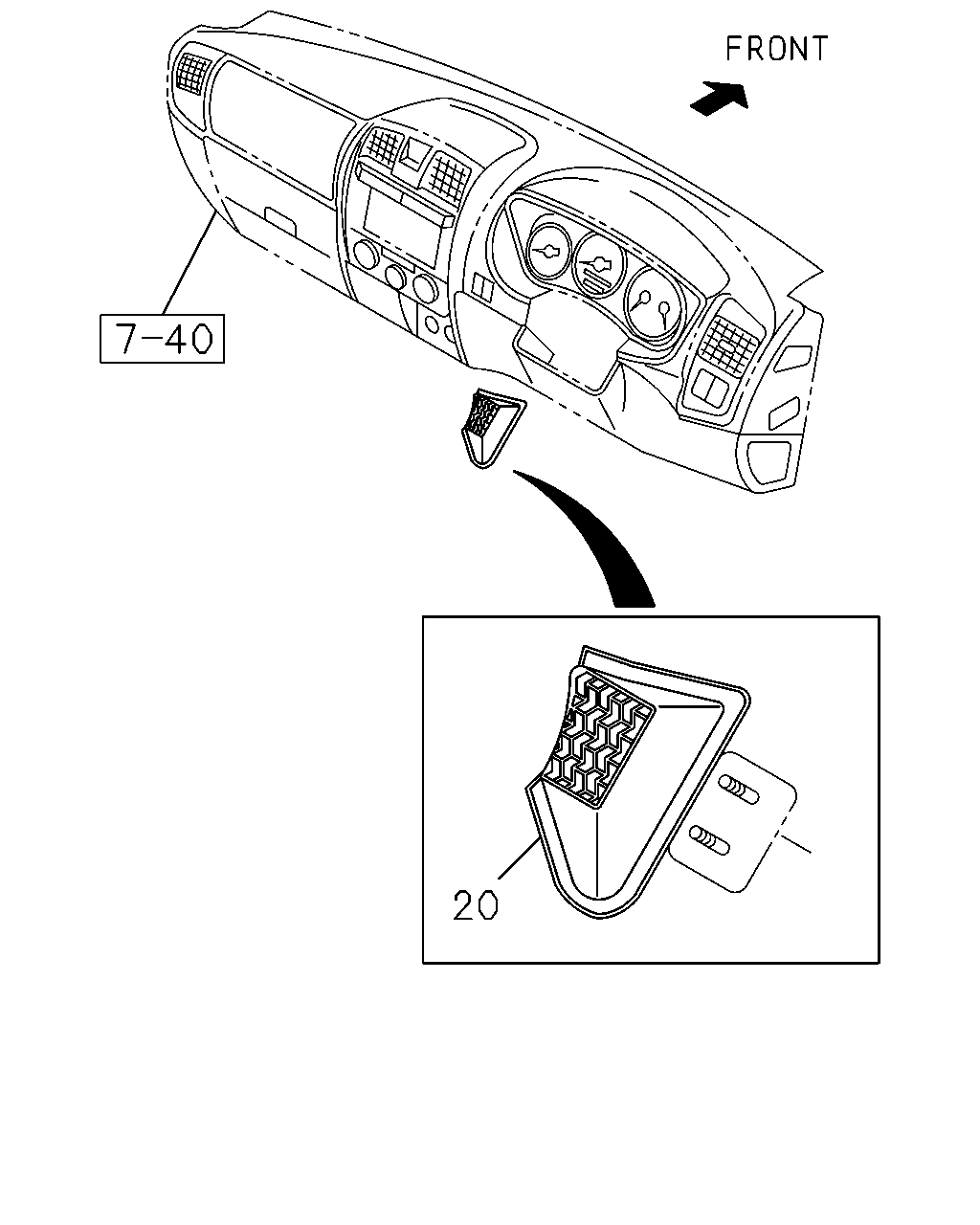

çizim 10302
20
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
20 16.547 REST; FOOT
EXC. PARKING BRAKE FLOOR<7XW> 		8-97365-724-0 01 1 0305- ● ● ● ● ●
20 16.547 REST; FOOT 8-97236-450-1 01 1 0211-0304 ● ● ● ● ● ● ● ●
20 16.547 REST; FOOT 8-97236-450-1 01 1 0305- ● ● ●
20 16.547 REST; FOOT
PARKING BRAKE FLOOR<7XW> 		8-97236-450-1 01 1 0305- ● ● ● ● ●

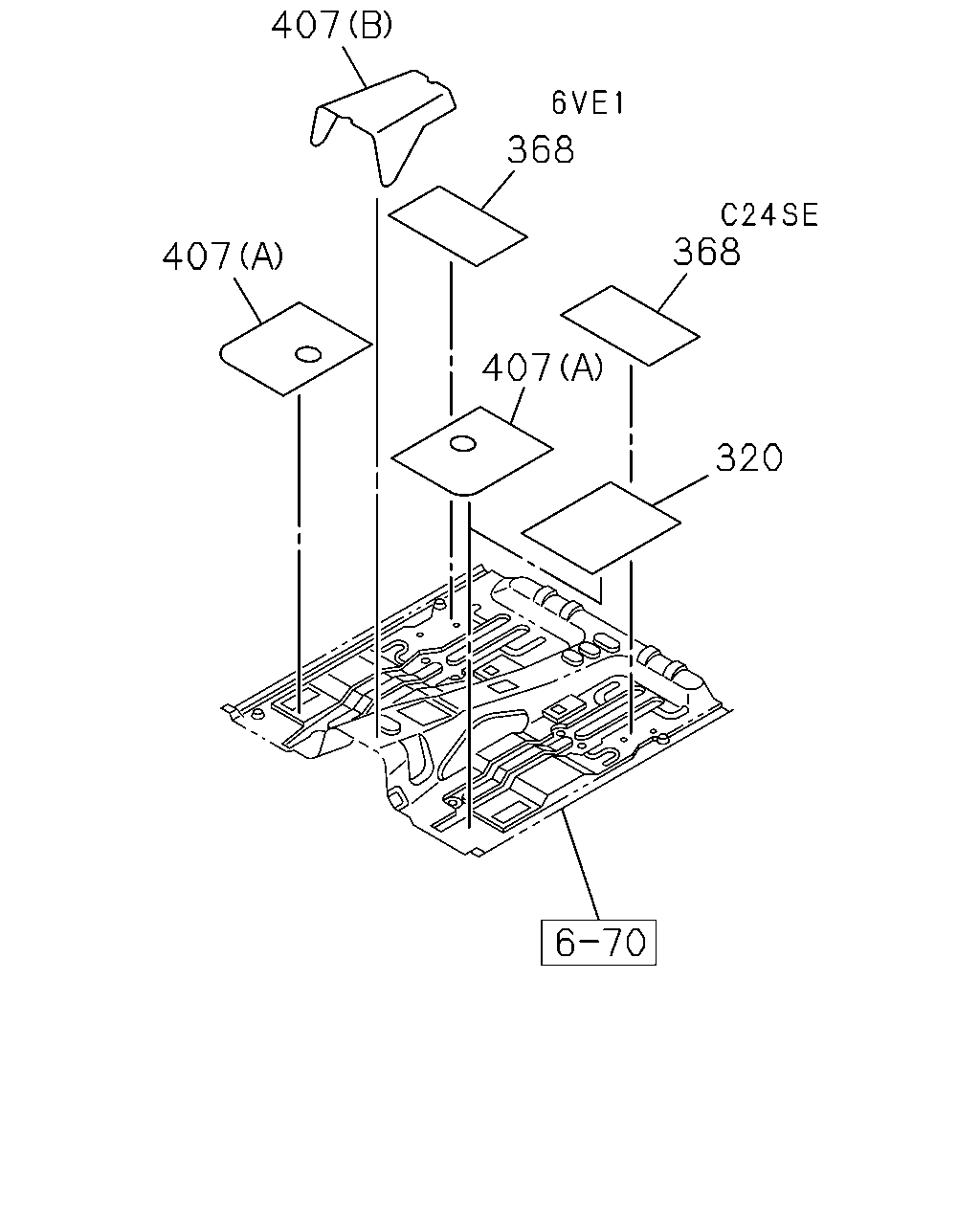

çizim 50433
407 368 368 407 407 320
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
320 16.549 INSULATOR; FLOOR,FRT
C24SE ENG(LG1) 		8-97329-088-1 01 1 0211- ● ●
368 16.549 INSULATOR; FLOOR,RR
C24SE ENG(LG1),6VE1 ENG(RJQ) 		8-97329-089-1 01 1 0211- ● ● ● ● ●
407 16.850 DEADENER; FLOOR PANEL
4JH1-TC ENG(RDM) (A) 		8-97349-432-0 02 1 0211- ● ● ● ● ● ● ●
407 16.850 DEADENER; FLOOR PANEL
(A) 		8-97349-432-0 02 1 0211- ●
407 16.850 DEADENER; FLOOR PANEL
4JH1-TC ENG(RDM) (B) 		8-97349-445-0 01 1 0211- ● ● ● ● ● ● ●
407 16.850 DEADENER; FLOOR PANEL
(B) 		8-97349-445-0 01 1 0211- ●
