6-70 — FLOOR PANEL (#42366) — 113 parça

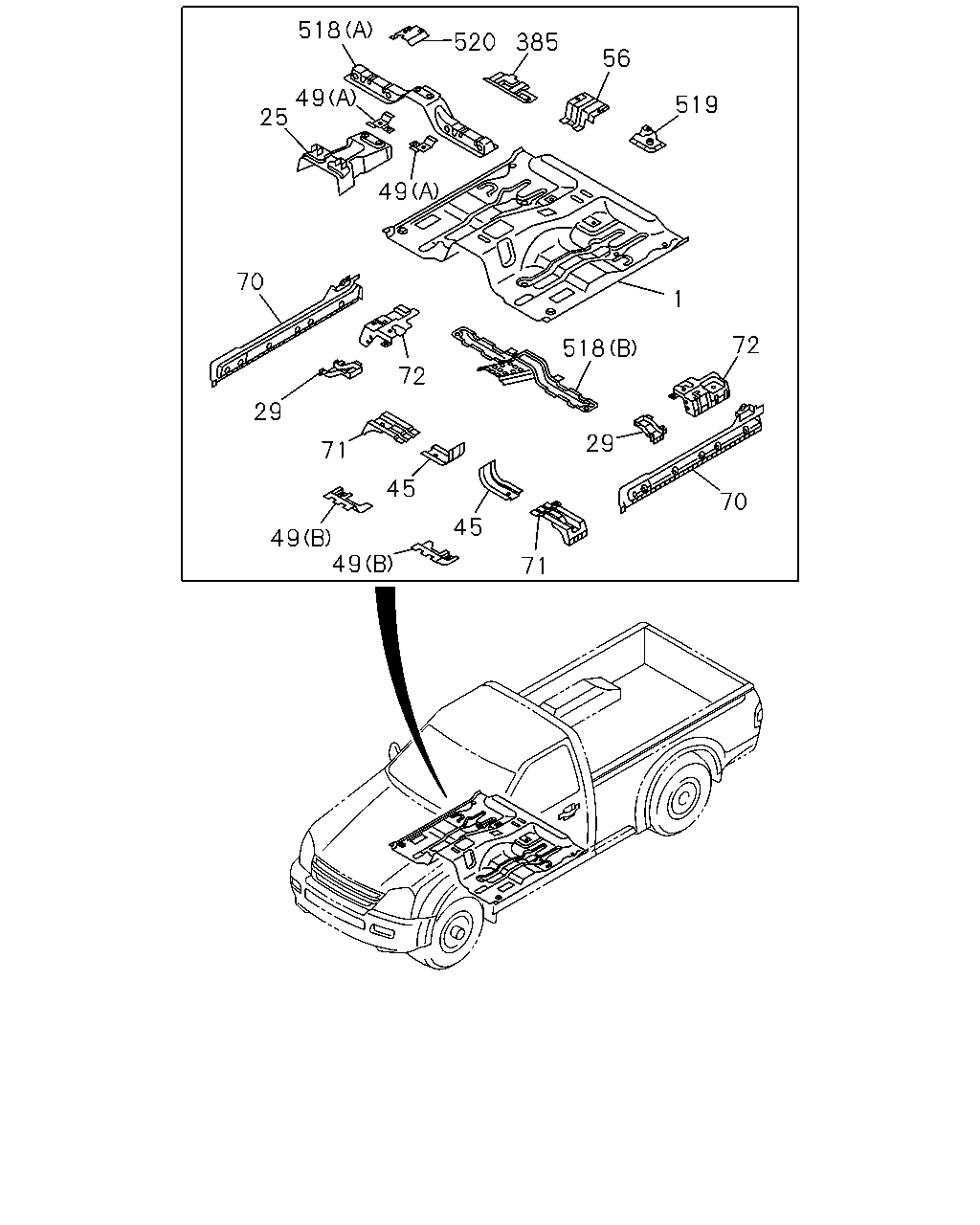

518 520 385 56 49 25 519 49 70 1 72 518 72 29 29 71 45 70 45 49 49 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	16.545 PANEL; FLOOR	8-97357-508-0	01	1	0211-	●	●	●	●
1	16.545 PANEL; FLOOR	8-97357-507-0	01	1	0211-					●	●
1	16.545 PANEL; FLOOR	8-97357-509-0	01	1	0211-							●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97235-751-3	01	1	0211-	●	●	●	●	●	●	●	●
29	16.545 GUSSET	8-97349-433-0	02	1	0211-	●	●	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT	8-97235-810-1	01	1	0211-	●	●	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT	8-97235-811-1	01	1	0211-	●	●	●	●	●	●	●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(RJQ) (A)	8-97333-851-1	02	1	0211-	●	●	●		●	●	●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(RJQ) (B)	8-97334-434-0	01	1	0211-	●	●	●		●	●	●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(RJQ) (B)	8-97334-435-0	01	1	0211-	●	●	●		●	●	●	●
56	08.820 BRACKET; JACK	8-97236-363-2	01	1	0211-					●	●
70	16.545 PANEL; ROCKER INNER	8-93333-637-3	01	1	0211-							●	●
70	16.545 PANEL; ROCKER INNER	8-93333-636-3	01	1	0211-							●	●
70	16.545 PANEL; ROCKER INNER	8-97235-543-4	01	1	0211-	●	●	●	●
70	16.545 PANEL; ROCKER INNER	8-97235-547-4	01	1	0211-	●	●	●	●
70	16.545 PANEL; ROCKER INNER	8-97235-542-4	01	1	0211-					●	●
70	16.545 PANEL; ROCKER INNER	8-97235-546-4	01	1	0211-					●	●
71	16.545 BRACKET; CAB MTG,CENTER	8-97235-857-4	01	1	0211-	●	●	●	●	●	●	●	●
71	16.545 BRACKET; CAB MTG,CENTER	8-97235-861-3	01	1	0211-	●	●	●	●	●	●	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-859-3	01	1	0211-	●	●	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-883-3	01	1	0211-	●	●	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-871-4	01	1	0211-					●	●	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97248-001-4	01	1	0211-					●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-858-4	01	1	0211-							●	●
385	16.545 BRACKET	8-97326-676-2	01	1	0211-	●	●	●	●	●	●	●	●
518	16.576 SILL; FLOOR (B)	8-97235-819-4	01	1	0211-	●	●	●	●	●	●	●	●
518	16.576 SILL; FLOOR (C)	8-97236-099-4	01	1	0211-	●	●	●	●
518	16.576 SILL; FLOOR (A)	8-97235-794-3	01	1	0211-0212	●	●	●	●				●
518	16.576 SILL; FLOOR EXC. BENCH SEAT<A52> (A)	8-97235-794-3	01	1	0211-0212					●	●	●
518	16.576 SILL; FLOOR (A)	8-97235-794-3	01	1	0301-	●	●	●	●
518	16.576 SILL; FLOOR BENCH SEAT<A52> (A)	8-97327-504-2	01	1	0211-0212					●	●	●
518	16.576 SILL; FLOOR (A)	8-97327-504-2	01	1	0301-					●	●	●	●
519	16.545 BRACKET; CONTROLLER 4WD	8-97326-395-2	01	1	0211-	●	●	●	●	●	●	●	●
520	16.545 BRACKET; FUEL LID OPENER	8-97236-152-2	01	1	0211-	●	●	●	●	●	●	●	●

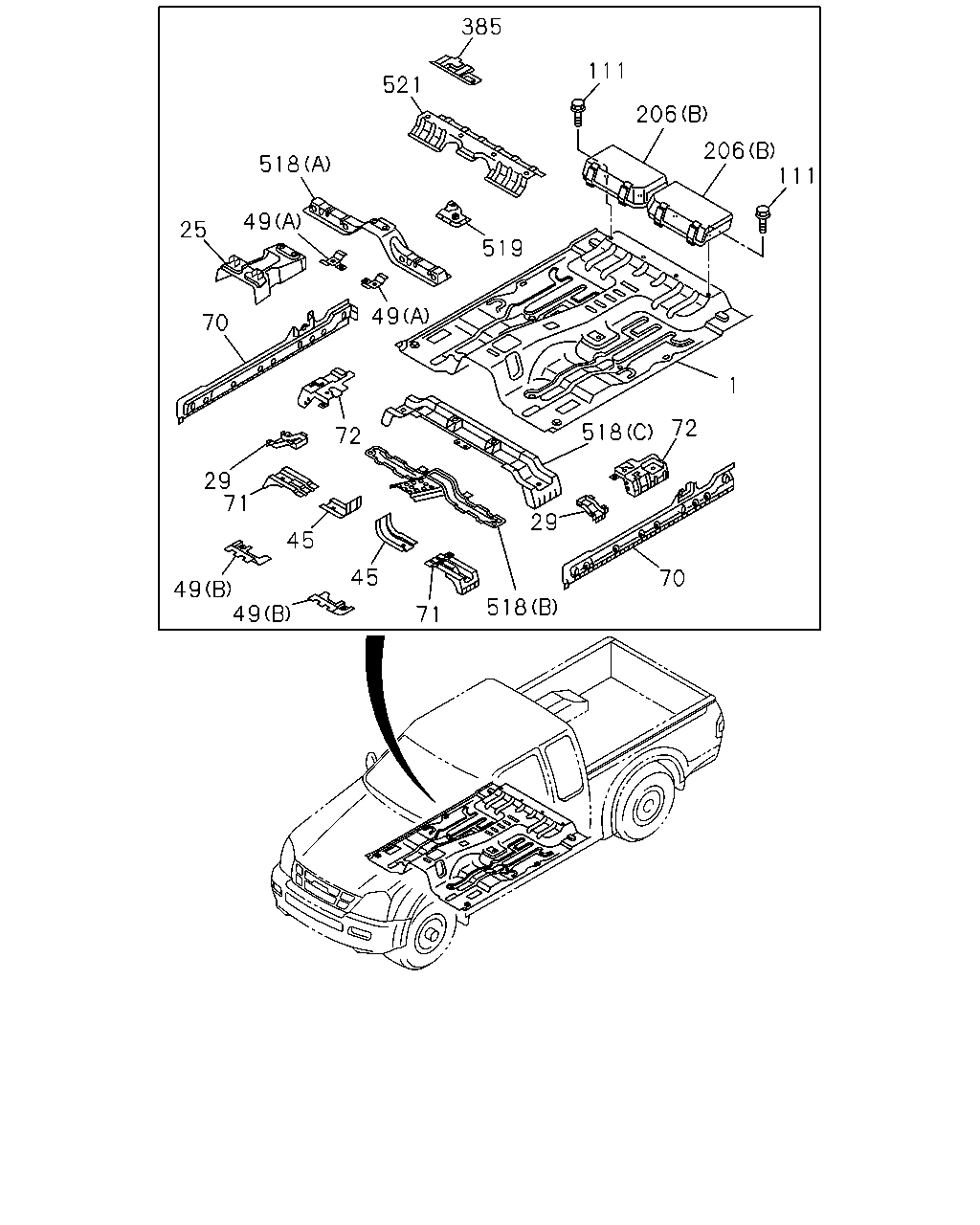

385 111 521 206 206 111 518 49 25 519 49 70 1 72 518 72 29 71 29 45 45 70 49 49 518 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	16.545 PANEL; FLOOR	8-97357-508-0	01	1	0211-	●	●	●	●
1	16.545 PANEL; FLOOR	8-97357-507-0	01	1	0211-					●	●
1	16.545 PANEL; FLOOR	8-97357-509-0	01	1	0211-							●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97235-751-3	01	1	0211-	●	●	●	●	●	●	●	●
29	16.545 GUSSET	8-97349-433-0	02	1	0211-	●	●	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT	8-97235-810-1	01	1	0211-	●	●	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT	8-97235-811-1	01	1	0211-	●	●	●	●	●	●	●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(RJQ) (A)	8-97333-851-1	02	1	0211-	●	●	●		●	●	●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(RJQ) (B)	8-97334-434-0	01	1	0211-	●	●	●		●	●	●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(RJQ) (B)	8-97334-435-0	01	1	0211-	●	●	●		●	●	●	●
70	16.545 PANEL; ROCKER INNER	8-93333-637-3	01	1	0211-							●	●
70	16.545 PANEL; ROCKER INNER	8-93333-636-3	01	1	0211-							●	●
70	16.545 PANEL; ROCKER INNER	8-97235-543-4	01	1	0211-	●	●	●	●
70	16.545 PANEL; ROCKER INNER	8-97235-547-4	01	1	0211-	●	●	●	●
70	16.545 PANEL; ROCKER INNER	8-97235-542-4	01	1	0211-					●	●
70	16.545 PANEL; ROCKER INNER	8-97235-546-4	01	1	0211-					●	●
71	16.545 BRACKET; CAB MTG,CENTER	8-97235-857-4	01	1	0211-	●	●	●	●	●	●	●	●
71	16.545 BRACKET; CAB MTG,CENTER	8-97235-861-3	01	1	0211-	●	●	●	●	●	●	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-859-3	01	1	0211-	●	●	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-883-3	01	1	0211-	●	●	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-871-4	01	1	0211-					●	●	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97248-001-4	01	1	0211-					●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-858-4	01	1	0211-							●	●
111	16.549 BOLT; PANEL JUMP SEAT<AJ2> 16.545 M6X20 W/PL WASHER	8-97808-622-0	04	1	0211-0212			●
111	16.549 BOLT; PANEL JUMP SEAT<AJ2> 02.762 M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0301-			●
206	16.545 PANEL; FLOOR BOARD RR (A)	8-97324-176-4	01	1	0211-							●	●
206	16.545 PANEL; FLOOR BOARD RR JUMP SEAT<AJ2> (B) DARK GRAY	8-97391-542-1	01	1	0211-0211			●
206	16.545 PANEL; FLOOR BOARD RR JUMP SEAT<AJ2> (B)	8-97360-813-0	01	1	0212-			●
206	16.545 PANEL; FLOOR BOARD RR JUMP SEAT<AJ2> (B) DARK GRAY	8-97391-541-1	01	1	0211-0211			●
206	16.545 PANEL; FLOOR BOARD RR JUMP SEAT<AJ2> (B)	8-97360-814-0	01	1	0212-			●
385	16.545 BRACKET	8-97326-676-2	01	1	0211-	●	●	●	●	●	●	●	●
518	16.576 SILL; FLOOR (B)	8-97235-819-4	01	1	0211-	●	●	●	●	●	●	●	●
518	16.576 SILL; FLOOR (C)	8-97236-099-4	01	1	0211-	●	●	●	●
518	16.576 SILL; FLOOR (A)	8-97235-794-3	01	1	0211-0212	●	●	●	●				●
518	16.576 SILL; FLOOR EXC. BENCH SEAT<A52> (A)	8-97235-794-3	01	1	0211-0212					●	●	●
518	16.576 SILL; FLOOR (A)	8-97235-794-3	01	1	0301-	●	●	●	●
518	16.576 SILL; FLOOR BENCH SEAT<A52> (A)	8-97327-504-2	01	1	0211-0212					●	●	●
518	16.576 SILL; FLOOR (A)	8-97327-504-2	01	1	0301-					●	●	●	●
519	16.545 BRACKET; CONTROLLER 4WD	8-97326-395-2	01	1	0211-	●	●	●	●	●	●	●	●
521	16.545 BRACKET; RR STORAGE	8-97259-225-3	01	1	0211-	●	●	●	●

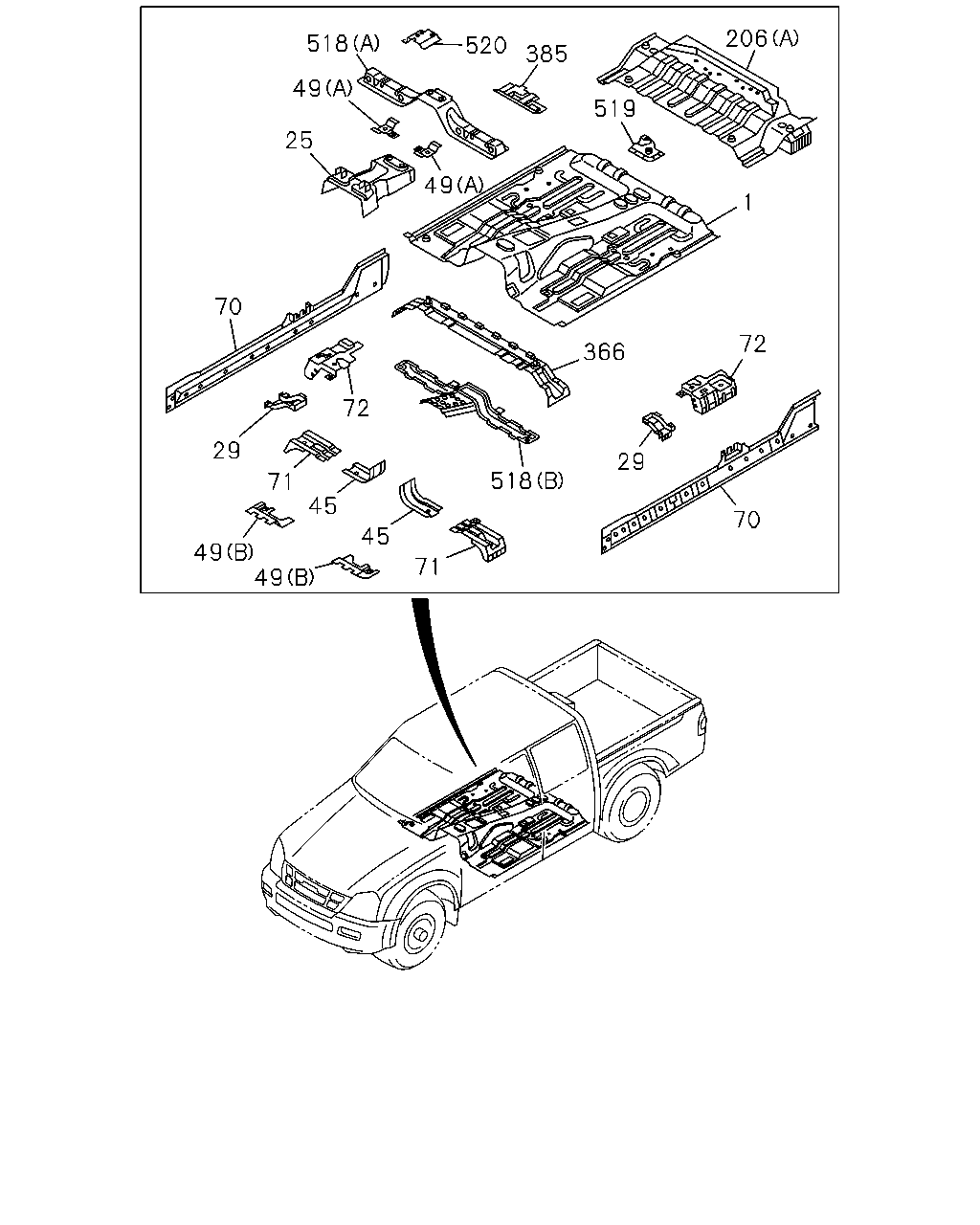

206 518 520 385 49 519 25 49 1 70 72 366 72 29 29 518 71 45 70 45 49 49 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	16.545 PANEL; FLOOR	8-97357-508-0	01	1	0211-	●	●	●	●
1	16.545 PANEL; FLOOR	8-97357-507-0	01	1	0211-					●	●
1	16.545 PANEL; FLOOR	8-97357-509-0	01	1	0211-							●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97235-751-3	01	1	0211-	●	●	●	●	●	●	●	●
29	16.545 GUSSET	8-97349-433-0	02	1	0211-	●	●	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT	8-97235-810-1	01	1	0211-	●	●	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT	8-97235-811-1	01	1	0211-	●	●	●	●	●	●	●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(RJQ) (A)	8-97333-851-1	02	1	0211-	●	●	●		●	●	●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(RJQ) (B)	8-97334-434-0	01	1	0211-	●	●	●		●	●	●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 6VE1 ENG(RJQ) (B)	8-97334-435-0	01	1	0211-	●	●	●		●	●	●	●
70	16.545 PANEL; ROCKER INNER	8-93333-637-3	01	1	0211-							●	●
70	16.545 PANEL; ROCKER INNER	8-93333-636-3	01	1	0211-							●	●
70	16.545 PANEL; ROCKER INNER	8-97235-543-4	01	1	0211-	●	●	●	●
70	16.545 PANEL; ROCKER INNER	8-97235-547-4	01	1	0211-	●	●	●	●
70	16.545 PANEL; ROCKER INNER	8-97235-542-4	01	1	0211-					●	●
70	16.545 PANEL; ROCKER INNER	8-97235-546-4	01	1	0211-					●	●
71	16.545 BRACKET; CAB MTG,CENTER	8-97235-857-4	01	1	0211-	●	●	●	●	●	●	●	●
71	16.545 BRACKET; CAB MTG,CENTER	8-97235-861-3	01	1	0211-	●	●	●	●	●	●	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-859-3	01	1	0211-	●	●	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-883-3	01	1	0211-	●	●	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-871-4	01	1	0211-					●	●	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97248-001-4	01	1	0211-					●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-858-4	01	1	0211-							●	●
206	16.545 PANEL; FLOOR BOARD RR (A)	8-97324-176-4	01	1	0211-							●	●
206	16.545 PANEL; FLOOR BOARD RR JUMP SEAT<AJ2> (B) DARK GRAY	8-97391-542-1	01	1	0211-0211			●
206	16.545 PANEL; FLOOR BOARD RR JUMP SEAT<AJ2> (B)	8-97360-813-0	01	1	0212-			●
206	16.545 PANEL; FLOOR BOARD RR JUMP SEAT<AJ2> (B) DARK GRAY	8-97391-541-1	01	1	0211-0211			●
206	16.545 PANEL; FLOOR BOARD RR JUMP SEAT<AJ2> (B)	8-97360-814-0	01	1	0212-			●
366	16.674 BAR ASM; FRT SEAT MTG	8-93333-631-2	01	1	0211-							●	●
385	16.545 BRACKET	8-97326-676-2	01	1	0211-	●	●	●	●	●	●	●	●
518	16.576 SILL; FLOOR (B)	8-97235-819-4	01	1	0211-	●	●	●	●	●	●	●	●
518	16.576 SILL; FLOOR (C)	8-97236-099-4	01	1	0211-	●	●	●	●
518	16.576 SILL; FLOOR (A)	8-97235-794-3	01	1	0211-0212	●	●	●	●				●
518	16.576 SILL; FLOOR EXC. BENCH SEAT<A52> (A)	8-97235-794-3	01	1	0211-0212					●	●	●
518	16.576 SILL; FLOOR (A)	8-97235-794-3	01	1	0301-	●	●	●	●
518	16.576 SILL; FLOOR BENCH SEAT<A52> (A)	8-97327-504-2	01	1	0211-0212					●	●	●
518	16.576 SILL; FLOOR (A)	8-97327-504-2	01	1	0301-					●	●	●	●
519	16.545 BRACKET; CONTROLLER 4WD	8-97326-395-2	01	1	0211-	●	●	●	●	●	●	●	●
520	16.545 BRACKET; FUEL LID OPENER	8-97236-152-2	01	1	0211-	●	●	●	●	●	●	●	●
