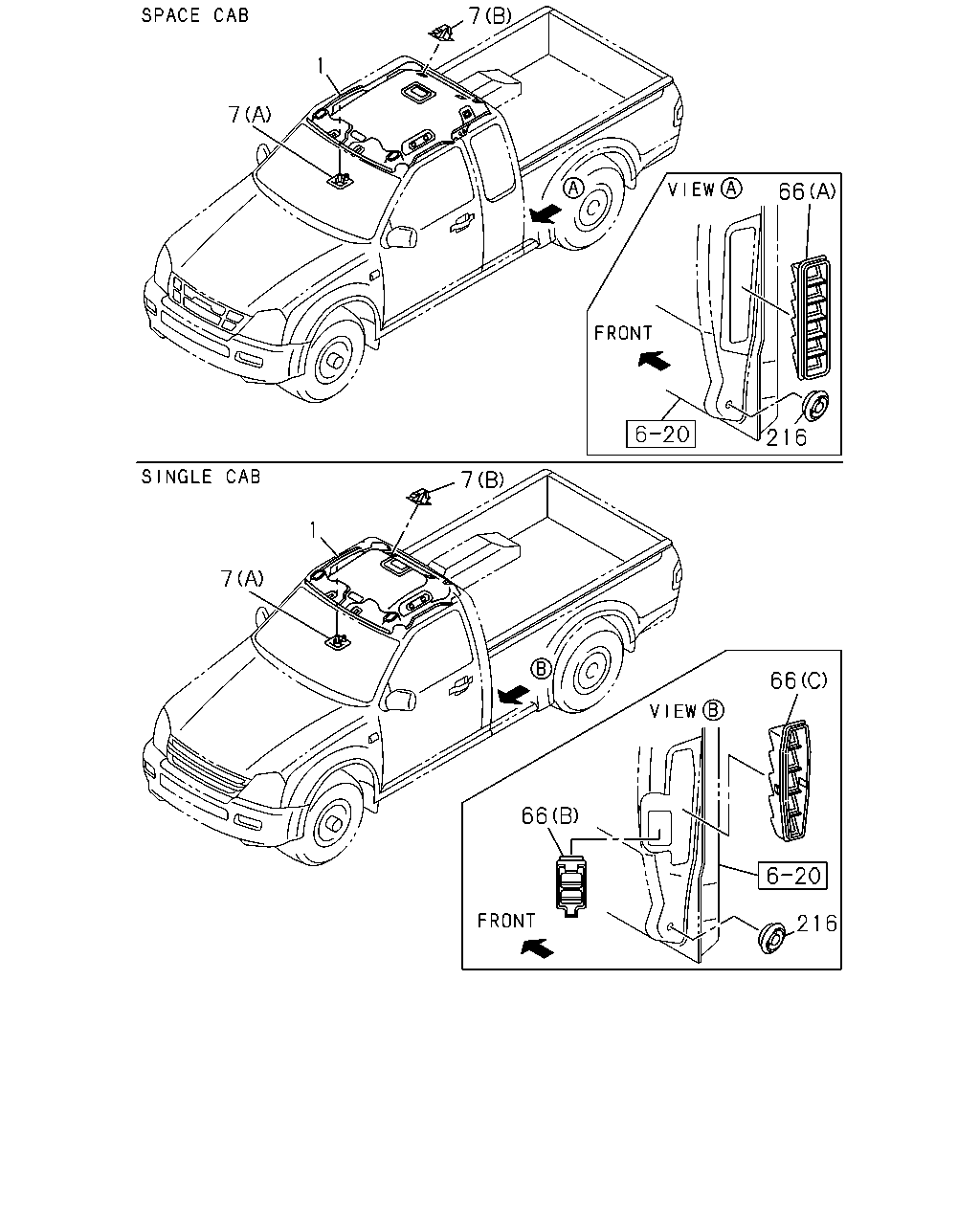

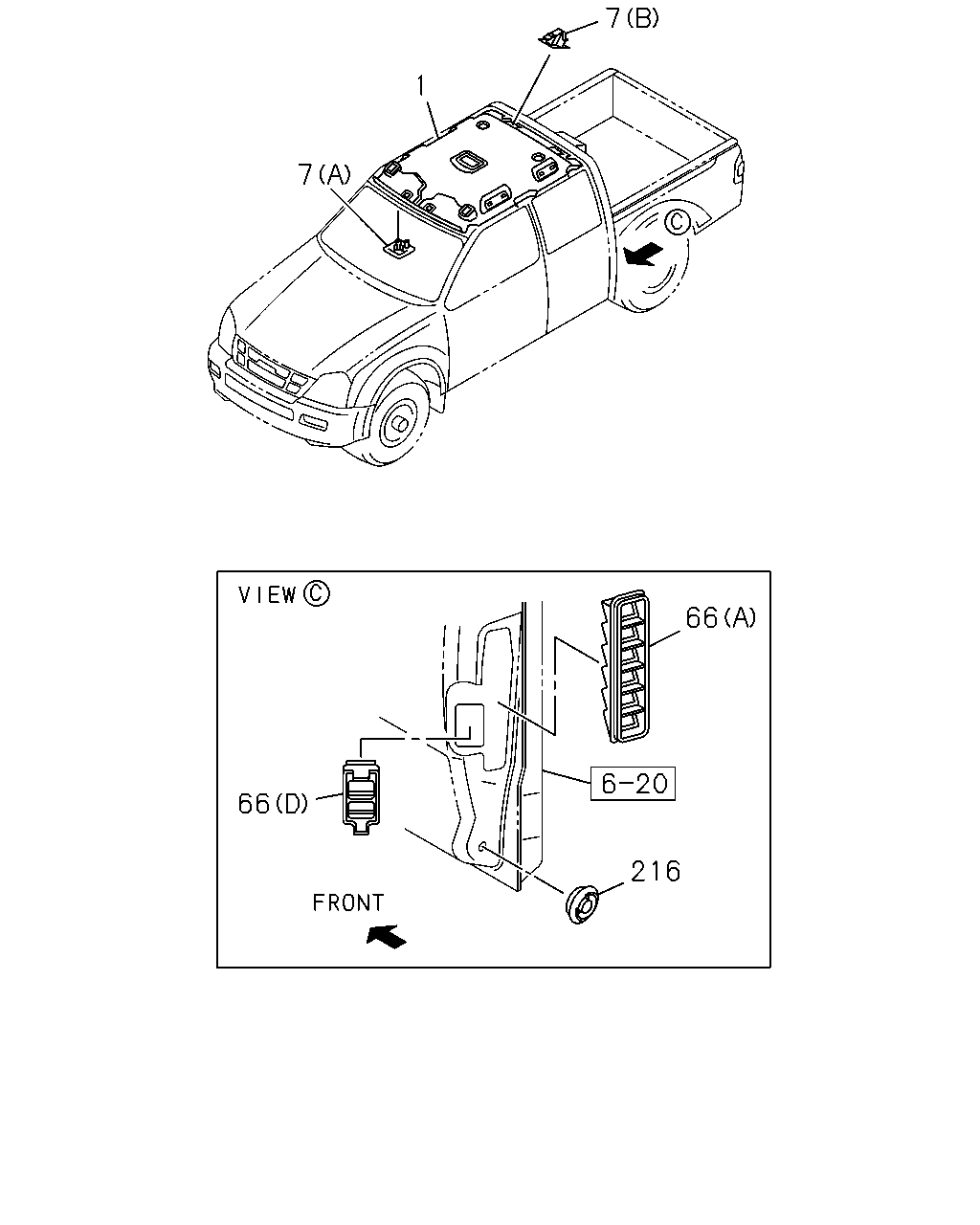

6-66 — HEAD LINING AND TRIM (#42365) — 42 parça

7 1 7 66 216 7 1 7 66 66 216

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	16.742 LINING; HD LIGHT GRAY	8-97298-437-3	01	1	0211-	●	●	●
1	16.742 LINING; HD EXC. MAP LAMP<UF3> LIGHT GRAY	8-97298-437-3	01	1	0211-				●
1	16.742 LINING; HD LIGHT GRAY	8-97298-439-3	01	1	0211-					●	●
1	16.742 LINING; HD MAP LAMP<UF3> LIGHT GRAY	8-97298-441-5	01	1	0211-							●
1	16.742 LINING; HD 4X4 CREW CAB LONG(TFS*WF) MAP LAMP<UF3> LIGHT GRAY	8-97298-441-5	01	1	0211-								●
1	16.742 LINING; HD EXC. MAP LAMP<UF3> LIGHT GRAY	8-97298-440-5	01	1	0211-							●
1	16.742 LINING; HD 4X4 CREW CAB LONG(TFS*WF) EXC. MAP LAMP<UF3> LIGHT GRAY	8-97298-440-5	01	1	0211-								●
1	16.742 LINING; HD CREW CAB EXTRA LONG(TF**WK) LIGHT GRAY	8-97298-440-5	01	1	0211-								●
1	16.742 LINING; HD MAP LAMP<UF3> LIGHT GRAY	8-97298-438-3	01	1	0211-				●
7	16.742 RETAINER; HEADLINING RAIL (A) LIGHT GRAY	8-97298-442-0	02	1	0211-	●	●	●	●	●	●	●	●
7	16.742 RETAINER; HEADLINING RAIL EXC. ASSIST GRIP PASSENGER<EG5> (A) LIGHT GRAY	8-97298-442-0	02	1	0211-					●		●
7	16.742 RETAINER; HEADLINING RAIL (B)	8-97301-381-1	02	1	0211-	●	●	●	●	●	●	●	●
66	16.576 GRILLE; AIR OUTLET (A)	8-97361-477-0	02	1	0212-							●	●
66	16.576 GRILLE; AIR OUTLET (A)	8-97235-353-2	02	1	0211-0211	●	●	●	●			●	●
66	16.576 GRILLE; AIR OUTLET (A)	8-97361-476-0	02	1	0212-	●	●	●	●
66	16.576 GRILLE; AIR OUTLET (B)	8-97251-682-1	02	1	0211-					●	●
66	16.576 GRILLE; AIR OUTLET (C)	8-97311-440-2	02	1	0211-					●	●
66	16.576 GRILLE; AIR OUTLET (D)	8-97251-688-2	02	1	0211-0301							●	●
66	16.576 GRILLE; AIR OUTLET (D)	8-97365-208-0	02	1	0302-							●	●
216	16.576 GROMMET; HOLE 09.003 OD=19	8-94279-055-0	02	1	0211-0305	●	●	●	●	●	●	●	●
216	16.576 GROMMET; HOLE 16.575 OD=19	8-97365-823-0	02	1	0306-	●	●	●	●	●	●	●	●

7 1 7 66 66 216

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	16.742 LINING; HD LIGHT GRAY	8-97298-437-3	01	1	0211-	●	●	●
1	16.742 LINING; HD EXC. MAP LAMP<UF3> LIGHT GRAY	8-97298-437-3	01	1	0211-				●
1	16.742 LINING; HD LIGHT GRAY	8-97298-439-3	01	1	0211-					●	●
1	16.742 LINING; HD MAP LAMP<UF3> LIGHT GRAY	8-97298-441-5	01	1	0211-							●
1	16.742 LINING; HD 4X4 CREW CAB LONG(TFS*WF) MAP LAMP<UF3> LIGHT GRAY	8-97298-441-5	01	1	0211-								●
1	16.742 LINING; HD EXC. MAP LAMP<UF3> LIGHT GRAY	8-97298-440-5	01	1	0211-							●
1	16.742 LINING; HD 4X4 CREW CAB LONG(TFS*WF) EXC. MAP LAMP<UF3> LIGHT GRAY	8-97298-440-5	01	1	0211-								●
1	16.742 LINING; HD CREW CAB EXTRA LONG(TF**WK) LIGHT GRAY	8-97298-440-5	01	1	0211-								●
1	16.742 LINING; HD MAP LAMP<UF3> LIGHT GRAY	8-97298-438-3	01	1	0211-				●
7	16.742 RETAINER; HEADLINING RAIL (A) LIGHT GRAY	8-97298-442-0	02	1	0211-	●	●	●	●	●	●	●	●
7	16.742 RETAINER; HEADLINING RAIL EXC. ASSIST GRIP PASSENGER<EG5> (A) LIGHT GRAY	8-97298-442-0	02	1	0211-					●		●
7	16.742 RETAINER; HEADLINING RAIL (B)	8-97301-381-1	02	1	0211-	●	●	●	●	●	●	●	●
66	16.576 GRILLE; AIR OUTLET (A)	8-97361-477-0	02	1	0212-							●	●
66	16.576 GRILLE; AIR OUTLET (A)	8-97235-353-2	02	1	0211-0211	●	●	●	●			●	●
66	16.576 GRILLE; AIR OUTLET (A)	8-97361-476-0	02	1	0212-	●	●	●	●
66	16.576 GRILLE; AIR OUTLET (B)	8-97251-682-1	02	1	0211-					●	●
66	16.576 GRILLE; AIR OUTLET (C)	8-97311-440-2	02	1	0211-					●	●
66	16.576 GRILLE; AIR OUTLET (D)	8-97251-688-2	02	1	0211-0301							●	●
66	16.576 GRILLE; AIR OUTLET (D)	8-97365-208-0	02	1	0302-							●	●
216	16.576 GROMMET; HOLE 09.003 OD=19	8-94279-055-0	02	1	0211-0305	●	●	●	●	●	●	●	●
216	16.576 GROMMET; HOLE 16.575 OD=19	8-97365-823-0	02	1	0306-	●	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
