◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50936 - TFR/TFS(AUSTRALIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-55 - REAR DOOR TRIM ▶
6-55 — REAR DOOR TRIM (#42363) — 55 parça

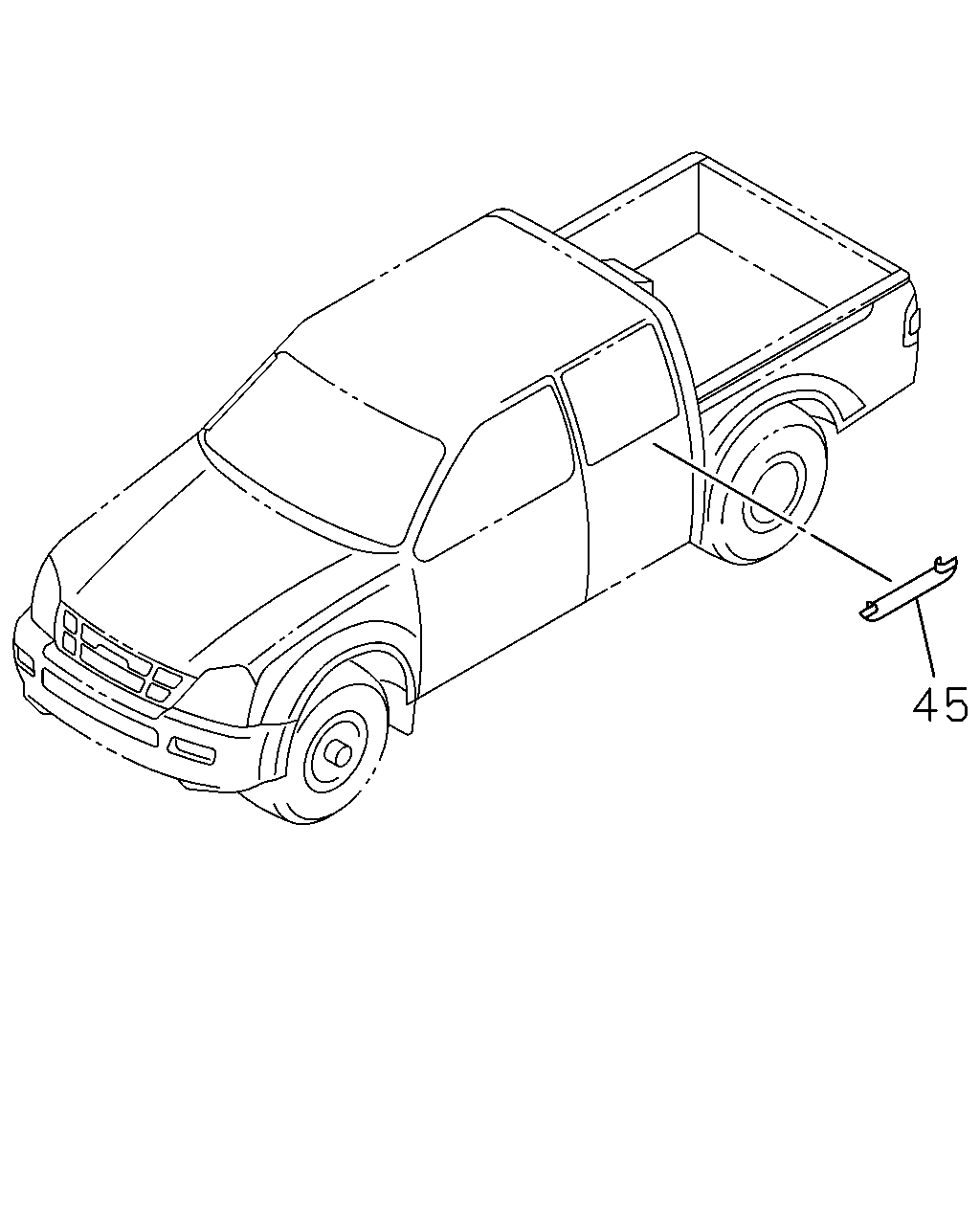

çizim 12287
45
BalonParca AdiParca NoAdetTipApplied Date A B C
45 16.183 FINISHER; RR DOOR
CREW CAB(TF**W*) 		8-93291-085-3 01 1 0211-0302 ● ● ●
45 16.183 FINISHER; RR DOOR
CREW CAB(TF**W*) 		8-97364-722-0 01 1 0303- ● ● ●
45 16.183 FINISHER; RR DOOR
CREW CAB(TF**W*) 		8-93334-747-3 01 1 0211-0302 ● ● ●
45 16.183 FINISHER; RR DOOR
CREW CAB(TF**W*) 		8-97364-721-0 01 1 0303- ● ● ●

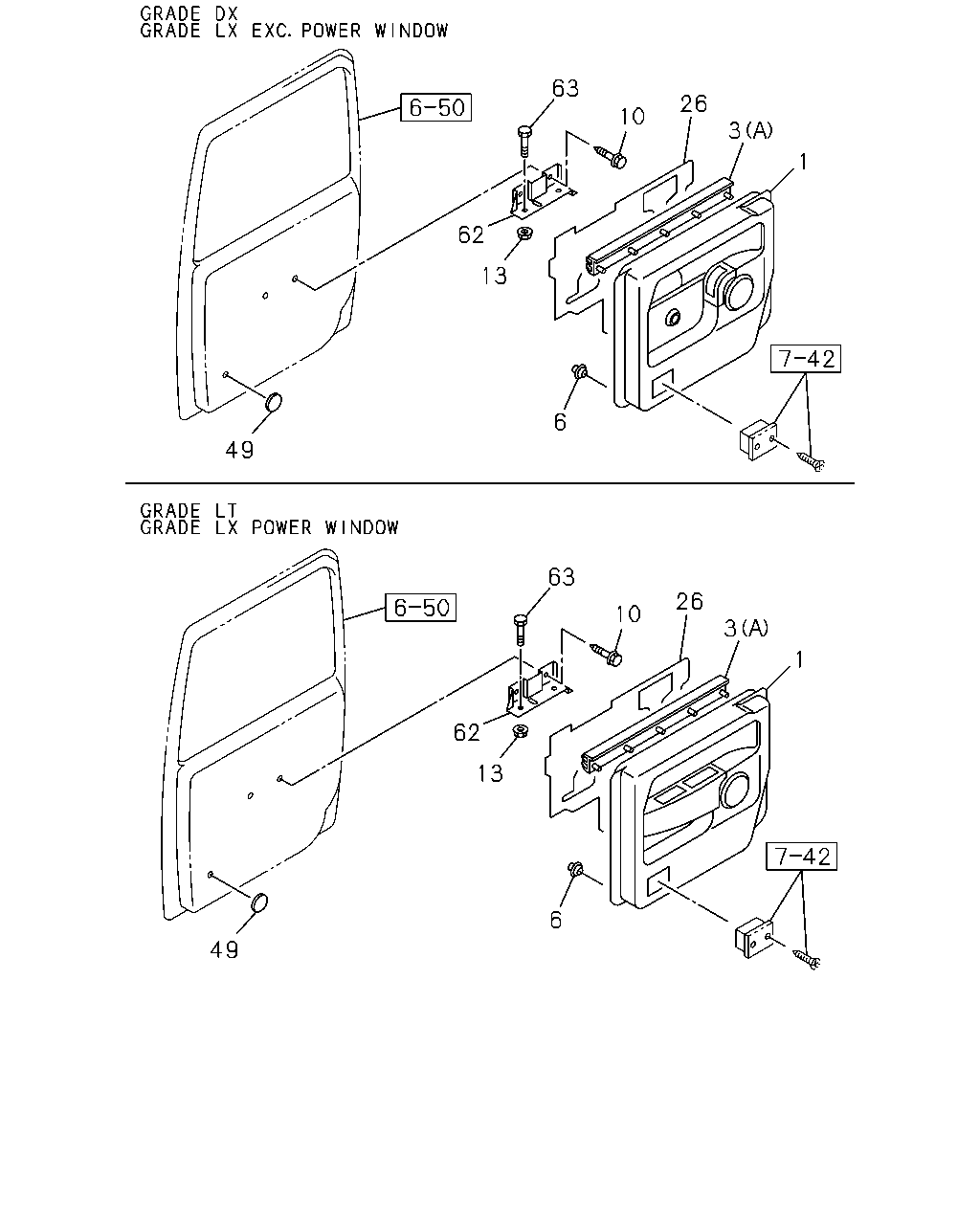

çizim 48358
63 26 10 3 1 62 13 6 49 63 26 10 3 1 62 13 6 49
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.165 PAD; TRIM,RR DOOR
CREW CAB(TF**W*) DARK GRAY 		8-97394-037-3 01 1 0211- ●
1 16.165 PAD; TRIM,RR DOOR
CREW CAB(TF**W*) DARK GRAY 		8-97394-036-3 01 1 0211- ●
1 16.165 PAD; TRIM,RR DOOR
POWER WINDOW<A30> DARK GRAY 		8-97393-947-3 01 1 0211- ●
1 16.165 PAD; TRIM,RR DOOR
POWER WINDOW<A30> DARK GRAY 		8-97393-948-3 01 1 0211- ●
1 16.165 PAD; TRIM,RR DOOR
EXC. POWER WINDOW<A30> DARK GRAY 		8-97393-949-3 01 1 0211-0302 ●
1 16.165 PAD; TRIM,RR DOOR
EXC. POWER WINDOW<A30> DARK GRAY 		8-97393-949-3 01 1 0303- ●
1 16.165 PAD; TRIM,RR DOOR
EXC. POWER WINDOW<A30> DARK GRAY 		8-97393-950-3 01 1 0211-0302 ●
1 16.165 PAD; TRIM,RR DOOR
EXC. POWER WINDOW<A30> DARK GRAY 		8-97393-950-3 01 1 0303- ●
1 16.165 PAD; TRIM,RR DOOR
CREW CAB LONG(TF**WF) DARK GRAY 		8-97299-316-3 01 1 0211-0302 ●
1 16.165 PAD; TRIM,RR DOOR
CREW CAB LONG(TF**WF) DARK GRAY 		8-97396-939-0 01 1 0303- ●
1 16.165 PAD; TRIM,RR DOOR
CREW CAB LONG(TF**WF) DARK GRAY 		8-97299-314-3 01 1 0211-0302 ●
1 16.165 PAD; TRIM,RR DOOR
CREW CAB LONG(TF**WF) DARK GRAY 		8-97396-938-0 01 1 0303- ●
3 16.225 WEATHERSTRIP; RR DOOR
CREW CAB(TF**W*) (D) 		8-93291-091-2 01 1 0211- ● ● ●
3 16.225 WEATHERSTRIP; RR DOOR
CREW CAB(TF**W*) (D) 		8-93291-092-2 01 1 0211- ● ● ●
3 16.225 WEATHERSTRIP; RR DOOR
4X2 CREW CAB(TFB*W*) (B) DARK GRAY 		8-97294-034-2 01 1 0211-0304 ●
3 16.225 WEATHERSTRIP; RR DOOR
4X2 CREW CAB(TFB*W*) (B) DARK GRAY 		8-97294-035-2 01 1 0211-0304 ●
3 16.225 WEATHERSTRIP; RR DOOR
CREW CAB(TF**W*) (C) 		8-93291-078-2 01 1 0211- ● ● ●
3 16.225 WEATHERSTRIP; RR DOOR
CREW CAB(TF**W*) (A) 		8-93295-308-2 01 1 0211-0302 ● ● ●
3 16.225 WEATHERSTRIP; RR DOOR
CREW CAB(TF**W*) (A) 		8-97364-724-0 01 1 0303- ● ● ●
3 16.225 WEATHERSTRIP; RR DOOR
CREW CAB(TF**W*) (C) 		8-93291-079-2 01 1 0211- ● ● ●
3 16.225 WEATHERSTRIP; RR DOOR
CREW CAB(TF**W*) (A) 		8-93295-309-2 01 1 0211-0302 ● ● ●
3 16.225 WEATHERSTRIP; RR DOOR
CREW CAB(TF**W*) (A) 		8-97364-725-0 01 1 0303- ● ● ●
3 16.225 WEATHERSTRIP; RR DOOR
CREW CAB(TF**W*) (B) DARK GRAY 		8-97294-032-2 01 1 0211-0304 ● ●
3 16.225 WEATHERSTRIP; RR DOOR
CREW CAB(TF**W*) (B) DARK GRAY 		8-97294-032-2 01 1 0305- ● ● ●
3 16.225 WEATHERSTRIP; RR DOOR
CREW CAB(TF**W*) (B) DARK GRAY 		8-97294-033-2 01 1 0211-0304 ● ●
3 16.225 WEATHERSTRIP; RR DOOR
CREW CAB(TF**W*) (B) DARK GRAY 		8-97294-033-2 01 1 0305- ● ● ●
6 16.165 CLIP; DOOR PAD
CREW CAB(TF**W*) H=16.7 		8-97022-017-0 14 1 0211- ● ● ●
10 16.155 SCREW; ARM REST
CREW CAB(TF**W*) 12.182 M5X14 		8-94152-495-0 04 1 0211- ● ● ●
13 16.165 GROMMET; SCREW,ARM REST
CREW CAB(TF**W*) 10.565 		8-94152-494-0 04 1 0211- ● ● ●
26 16.165 SEAL; WAIST,RR DOOR INNER
CREW CAB(TF**W*) 		8-93299-862-1 01 1 0211-0211 ● ● ●
26 16.165 SEAL; WAIST,RR DOOR INNER
CREW CAB(TF**W*) 		8-97360-890-0 01 1 0212- ● ● ●
26 16.165 SEAL; WAIST,RR DOOR INNER
CREW CAB(TF**W*) 		8-93299-863-1 01 1 0211-0211 ● ● ●
26 16.165 SEAL; WAIST,RR DOOR INNER
CREW CAB(TF**W*) 		8-97360-889-0 01 1 0212- ● ● ●
49 16.165 SEAL; DOOR
CREW CAB LONG(TF**WF) EXC. AUTO DOOR LOCK<AU4> OD=25 BLACK 		1-76798-019-0 02 1 0211- ● ● ●
62 16.165 BRACKET
CREW CAB(TF**W*) 		8-93358-284-2 01 1 0211- ● ● ●
62 16.165 BRACKET
CREW CAB(TF**W*) 		8-93358-285-2 01 1 0211- ● ● ●
63 16.165 BOLT
CREW CAB(TF**W*) 12.182 M5X14 		8-94152-495-0 04 1 0211- ● ● ●
çizim 50463
3 3 3
BalonParca AdiParca NoAdetTipApplied Date A B C
3 16.225 WEATHERSTRIP; RR DOOR
CREW CAB(TF**W*) (D) 		8-93291-091-2 01 1 0211- ● ● ●
3 16.225 WEATHERSTRIP; RR DOOR
CREW CAB(TF**W*) (D) 		8-93291-092-2 01 1 0211- ● ● ●
3 16.225 WEATHERSTRIP; RR DOOR
4X2 CREW CAB(TFB*W*) (B) DARK GRAY 		8-97294-034-2 01 1 0211-0304 ●
3 16.225 WEATHERSTRIP; RR DOOR
4X2 CREW CAB(TFB*W*) (B) DARK GRAY 		8-97294-035-2 01 1 0211-0304 ●
3 16.225 WEATHERSTRIP; RR DOOR
CREW CAB(TF**W*) (C) 		8-93291-078-2 01 1 0211- ● ● ●
3 16.225 WEATHERSTRIP; RR DOOR
CREW CAB(TF**W*) (A) 		8-93295-308-2 01 1 0211-0302 ● ● ●
3 16.225 WEATHERSTRIP; RR DOOR
CREW CAB(TF**W*) (A) 		8-97364-724-0 01 1 0303- ● ● ●
3 16.225 WEATHERSTRIP; RR DOOR
CREW CAB(TF**W*) (C) 		8-93291-079-2 01 1 0211- ● ● ●
3 16.225 WEATHERSTRIP; RR DOOR
CREW CAB(TF**W*) (A) 		8-93295-309-2 01 1 0211-0302 ● ● ●
3 16.225 WEATHERSTRIP; RR DOOR
CREW CAB(TF**W*) (A) 		8-97364-725-0 01 1 0303- ● ● ●
3 16.225 WEATHERSTRIP; RR DOOR
CREW CAB(TF**W*) (B) DARK GRAY 		8-97294-032-2 01 1 0211-0304 ● ●
3 16.225 WEATHERSTRIP; RR DOOR
CREW CAB(TF**W*) (B) DARK GRAY 		8-97294-032-2 01 1 0305- ● ● ●
3 16.225 WEATHERSTRIP; RR DOOR
CREW CAB(TF**W*) (B) DARK GRAY 		8-97294-033-2 01 1 0211-0304 ● ●
3 16.225 WEATHERSTRIP; RR DOOR
CREW CAB(TF**W*) (B) DARK GRAY 		8-97294-033-2 01 1 0305- ● ● ●
