6-52 — REAR DOOR LOCK AND HANDLE (#42362) — 47 parça

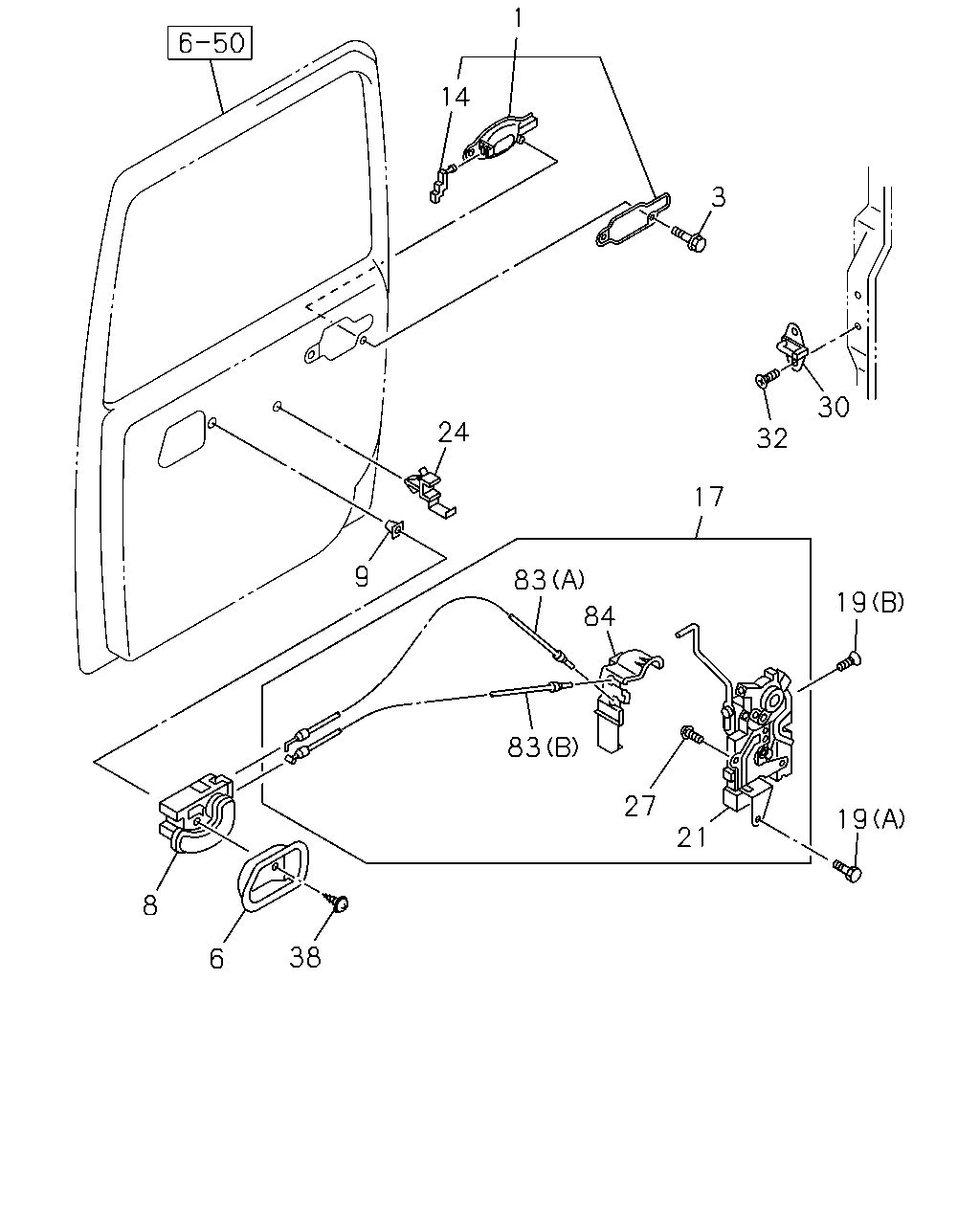

çizim 49582
1 14 3 30 24 32 17 9 83 19 84 83 27 19 21 8 38 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.360 HANDLE; OUTSIDE,RR DOOR
BODY COLOR ALPINE WHITE(877) OUTSIDE HANDLE BRIGHT<7WM> WHITE 		8-97296-143-1 01 1 0211- ● ●
1 16.360 HANDLE; OUTSIDE,RR DOOR
BODY COLOR ALPINE WHITE(877) OUTSIDE HANDLE BRIGHT<7WM> WHITE 		8-97296-146-1 01 1 0211- ● ●
1 16.360 HANDLE; OUTSIDE,RR DOOR
BODY COLOR ASTRAL SILVER(718) OUTSIDE HANDLE BRIGHT<7WM> LIGHT SILVER 		8-97392-531-1 01 1 0211- ● ●
1 16.360 HANDLE; OUTSIDE,RR DOOR
BODY COLOR ASTRAL SILVER(718) OUTSIDE HANDLE BRIGHT<7WM> LIGHT SILVER 		8-97392-533-1 01 1 0211- ● ●
1 16.360 HANDLE; OUTSIDE,RR DOOR
BODY COLOR CAPE BLUE MET(612) OUTSIDE HANDLE BRIGHT<7WM> BLUE 		8-97392-530-1 01 1 0211- ● ●
1 16.360 HANDLE; OUTSIDE,RR DOOR
BODY COLOR CAPE BLUE MET(612) OUTSIDE HANDLE BRIGHT<7WM> BLUE 		8-97392-532-1 01 1 0211- ● ●
1 16.360 HANDLE; OUTSIDE,RR DOOR
BODY COLOR CHAMONIX GREEN MET(644) OUTSIDE HANDLE BRIGHT<7WM> GREEN 		8-97298-568-1 01 1 0211- ● ●
1 16.360 HANDLE; OUTSIDE,RR DOOR
BODY COLOR CHAMONIX GREEN MET(644) OUTSIDE HANDLE BRIGHT<7WM> GREEN 		8-97298-576-1 01 1 0211- ● ●
1 16.360 HANDLE; OUTSIDE,RR DOOR
BODY COLOR FOXFIRE RED MICA(658) OUTSIDE HANDLE BRIGHT<7WM> RED 		8-97298-572-1 01 1 0211- ● ●
1 16.360 HANDLE; OUTSIDE,RR DOOR
BODY COLOR FOXFIRE RED MICA(658) OUTSIDE HANDLE BRIGHT<7WM> RED 		8-97298-580-1 01 1 0211- ● ●
1 16.360 HANDLE; OUTSIDE,RR DOOR
BODY COLOR GLACIER BLUE MET(645) OUTSIDE HANDLE BRIGHT<7WM> BLUE 		8-97298-569-1 01 1 0211- ● ●
1 16.360 HANDLE; OUTSIDE,RR DOOR
BODY COLOR GLACIER BLUE MET(645) OUTSIDE HANDLE BRIGHT<7WM> BLUE 		8-97298-577-1 01 1 0211- ● ●
1 16.360 HANDLE; OUTSIDE,RR DOOR
BODY COLOR QUARTS GRAY MET(642) OUTSIDE HANDLE BRIGHT<7WM> LIGHT GRAY 		8-97298-566-1 01 1 0211- ● ●
1 16.360 HANDLE; OUTSIDE,RR DOOR
BODY COLOR QUARTS GRAY MET(642) OUTSIDE HANDLE BRIGHT<7WM> LIGHT GRAY 		8-97298-574-1 01 1 0211- ● ●
1 16.360 HANDLE; OUTSIDE,RR DOOR
BODY COLOR SANDAL WOOD MET(643) OUTSIDE HANDLE BRIGHT<7WM> WHITE 		8-97298-567-1 01 1 0211- ● ●
1 16.360 HANDLE; OUTSIDE,RR DOOR
BODY COLOR SANDAL WOOD MET(643) OUTSIDE HANDLE BRIGHT<7WM> WHITE 		8-97298-575-1 01 1 0211- ● ●
1 16.360 HANDLE; OUTSIDE,RR DOOR
BODY COLOR STEEL BLACK MET(641) OUTSIDE HANDLE BRIGHT<7WM> BLACK 		8-97298-565-1 01 1 0211- ● ●
1 16.360 HANDLE; OUTSIDE,RR DOOR
BODY COLOR STEEL BLACK MET(641) OUTSIDE HANDLE BRIGHT<7WM> BLACK 		8-97298-573-1 01 1 0211- ● ●
1 16.360 HANDLE; OUTSIDE,RR DOOR
EXC. OUTSIDE HANDLE BRIGHT<7WM> BLACK 		8-93295-314-1 01 1 0211- ● ●
1 16.360 HANDLE; OUTSIDE,RR DOOR
EXC. OUTSIDE HANDLE BRIGHT<7WM> BLACK 		8-93291-102-1 01 1 0211- ● ●
3 16.350 BOLT; DOOR OUTSIDE HANDLE
10.701 M6X8 		8-94155-893-0 04 1 0211- ● ●
6 16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
DARK GRAY 		8-97294-000-1 01 1 0211- ● ●
6 16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
DARK GRAY 		8-97293-999-1 01 1 0211- ● ●
8 16.345 HANDLE; INSIDE,RR DOOR
DARK GRAY 		8-97293-998-1 01 1 0211- ● ●
8 16.345 HANDLE; INSIDE,RR DOOR
DARK GRAY 		8-97293-997-1 01 1 0211- ● ●
9 16.345 GROMMET; SCREW,INSIDE HANDLE
10.565 		8-94152-494-0 02 1 0211- ● ●
14 16.330 HOLDER; DOOR LK ROD
YELLOW 		8-97333-304-0 01 1 0211- ● ●
14 16.330 HOLDER; DOOR LK ROD
WHITE 		8-97333-303-0 01 1 0211- ● ●
17 16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> 		8-93298-372-0 01 1 0211- ● ●
17 16.330 LOCK; DOOR,RR DOOR
AUTO DOOR LOCK<AU4> 		8-93298-373-0 01 1 0211- ● ●
17 16.330 LOCK; DOOR,RR DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-93295-306-0 01 1 0211- ● ●
17 16.330 LOCK; DOOR,RR DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-93295-307-0 01 1 0211- ● ●
19 16.345 BOLT; RR DOOR LOCK
16.069 (B) M6X20 		1-09981-494-0 06 1 0211- ● ●
19 16.345 BOLT; RR DOOR LOCK
AUTO DOOR LOCK<AU4> 10.701 (A) M6X8 		8-94155-893-0 02 1 0211- ● ●
21 16.345 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> 		8-97351-081-0 01 1 0211- ● ●
21 16.345 ACTUATOR; RR DOOR LOCK
AUTO DOOR LOCK<AU4> 		8-97351-082-0 01 1 0211- ● ●
24 16.345 ANTIRATTLER; DOOR INSIDE HANDLE 8-97251-932-0 02 1 0211- ● ●
27 16.330 SCREW; RR DOOR LOCK
AUTO DOOR LOCK<AU4> 		8-97349-997-0 04 1 0211- ● ●
30 16.335 STRIKER; RR DOOR 8-97235-985-1 02 1 0211- ● ●
32 16.335 SCREW; DOOR STRIKER
M8X35 		8-97324-511-0 04 1 0211- ● ●
38 16.345 SCREW; INSIDE LEVER,RR DOOR LK
12.182 M5X14 		8-94152-495-0 02 1 0211- ● ●
83 16.341 CABLE ASM; LOCK CONTROL
(A) 		8-97351-075-0 01 1 0211- ● ●
83 16.341 CABLE ASM; LOCK CONTROL
(B) 		8-97351-077-0 01 1 0211- ● ●
83 16.341 CABLE ASM; LOCK CONTROL
(A) 		8-97351-076-0 01 1 0211- ● ●
83 16.341 CABLE ASM; LOCK CONTROL
(B) 		8-97351-078-0 01 1 0211- ● ●
84 16.270 COVER; DOOR LOCK 8-97351-079-0 01 1 0211- ● ●
84 16.270 COVER; DOOR LOCK 8-97351-080-0 01 1 0211- ● ●
