◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50936 - TFR/TFS(AUSTRALIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-51 - REAR DOOR GLASS AND REGULATOR ▶
6-51 — REAR DOOR GLASS AND REGULATOR (#42361) — 16 parça

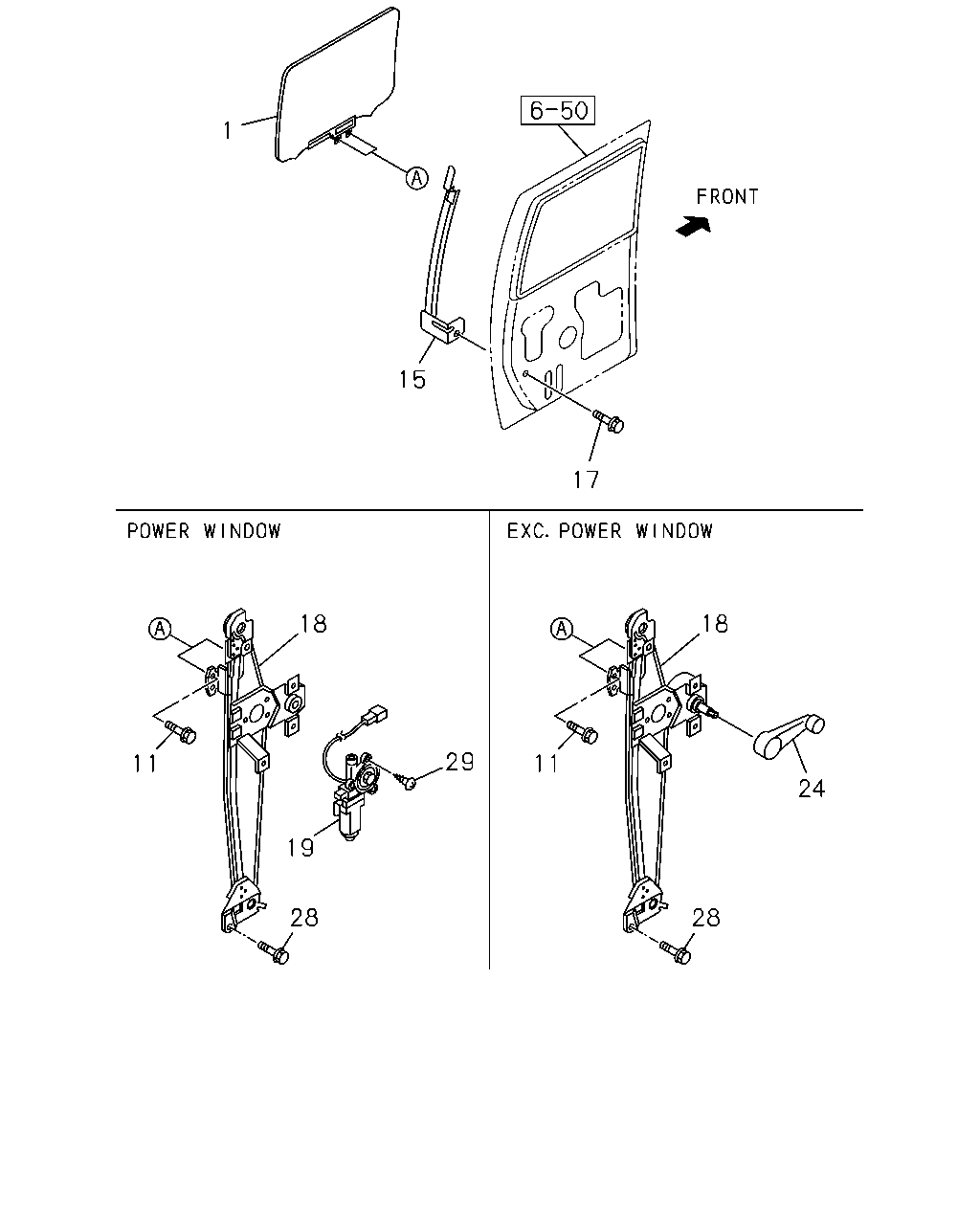

çizim 52920
1 15 17 18 18 29 11 11 24 19 28 28
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.180 GLASS; RR DOOR 8-93297-658-1 01 1 0211- ● ●
1 16.180 GLASS; RR DOOR 8-93297-659-1 01 1 0211- ● ●
11 16.183 BOLT; GLASS
04.439 M6X16 FLANGE 		0-28680-616-0 04 1 0211- ● ●
15 16.190 RAIL; RR GUIDE,RR DOOR 8-93298-412-0 01 1 0211- ● ●
15 16.190 RAIL; RR GUIDE,RR DOOR 8-93298-413-0 01 1 0211- ● ●
17 10.765 BOLT; RR GUIDE RAIL
10.701 M6X8 		8-94155-893-0 02 1 0211- ● ●
18 16.260 REGULATOR; WINDOW,RR DOOR
POWER WINDOW<A30> 		8-97352-746-0 01 1 0211- ● ●
18 16.260 REGULATOR; WINDOW,RR DOOR
POWER WINDOW<A30> 		8-97352-747-0 01 1 0211- ● ●
18 16.260 REGULATOR; WINDOW,RR DOOR
EXC. POWER WINDOW<A30> 		8-93290-871-2 01 1 0211- ● ●
18 16.260 REGULATOR; WINDOW,RR DOOR
EXC. POWER WINDOW<A30> 		8-93290-872-2 01 1 0211- ● ●
19 16.263 MOTOR; POWER WINDOW REG,RR DOOR
POWER WINDOW<A30> 		8-97352-748-0 01 1 0211- ● ●
19 16.263 MOTOR; POWER WINDOW REG,RR DOOR
POWER WINDOW<A30> 		8-97352-749-0 01 1 0211- ● ●
24 16.270 HANDLE; WINDOW REG,RR DOOR
EXC. POWER WINDOW<A30> DARK GRAY 		8-97298-454-3 02 1 0211- ● ●
28 16.181 BOLT; WINDOW REG
POWER WINDOW<A30> 10.701 M6X8 		8-94155-893-0 06 1 0211- ● ●
28 16.181 BOLT; WINDOW REG
EXC. POWER WINDOW<A30> 10.701 M6X8 		8-94155-893-0 08 1 0211- ● ●
29 16.270 SCREW; WINDOW REG
POWER WINDOW<A30> 		8-97351-770-0 06 1 0211- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
