◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50936 - TFR/TFS(AUSTRALIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-50 - REAR DOOR AND HINGE ▶
6-50 — REAR DOOR AND HINGE (#42360) — 20 parça

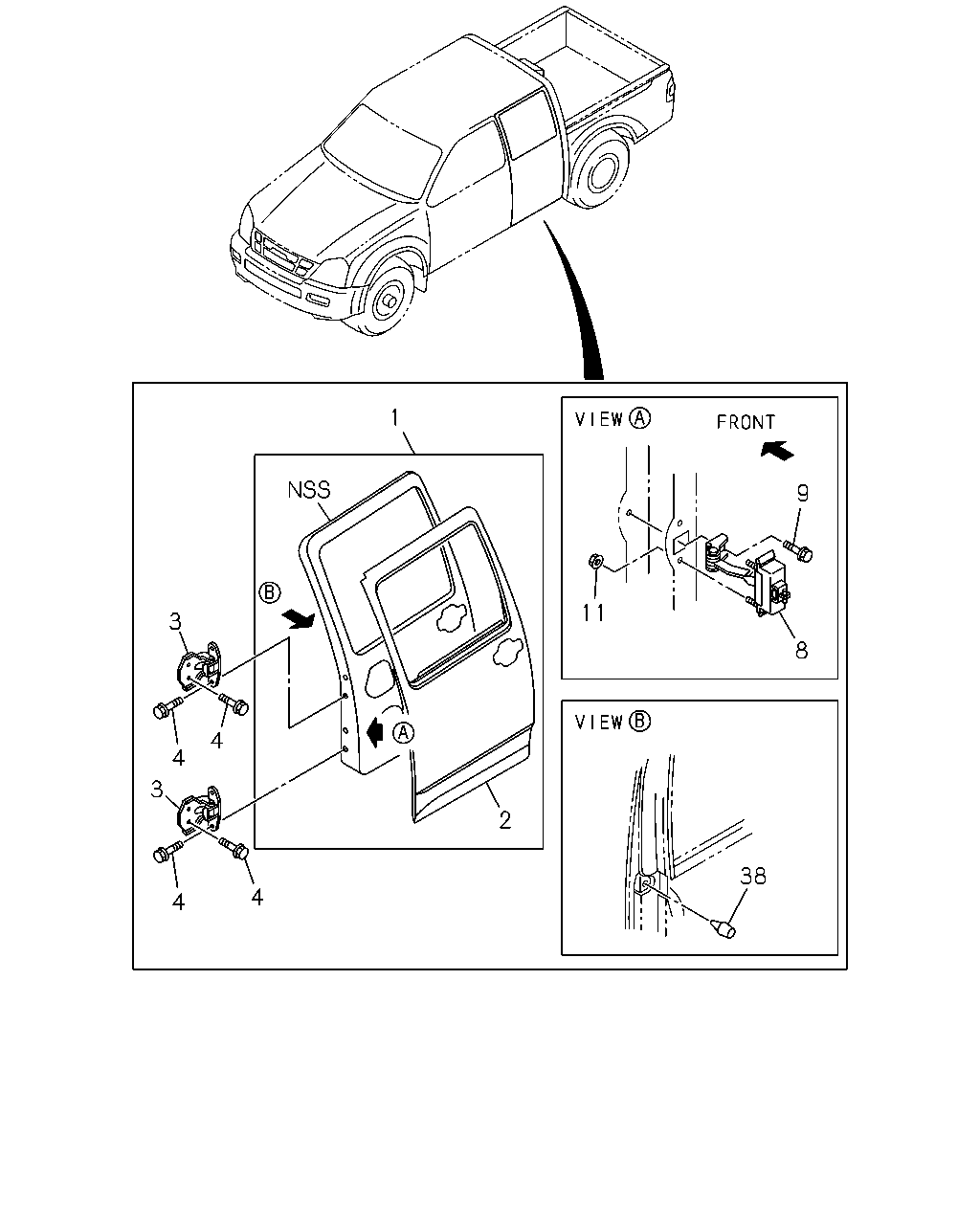

çizim 50572
1 9 11 3 8 4 4 3 2 38 4 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.150 DOOR ASM; REAR
BODY SIDE MOLDING(B84) 		8-97322-287-1 01 1 0211-0212 ● ●
1 16.150 DOOR ASM; REAR
BODY SIDE MOLDING(B84) 		8-97359-169-0 01 1 0301- ● ●
1 16.150 DOOR ASM; REAR
BODY SIDE MOLDING(B84) 		8-97322-288-1 01 1 0211-0212 ● ●
1 16.150 DOOR ASM; REAR
BODY SIDE MOLDING(B84) 		8-97359-168-0 01 1 0301- ● ●
1 16.150 DOOR ASM; REAR
EXC. BODY SIDE MOLDING(B84) 		8-93333-709-2 01 1 0211-0212 ● ●
1 16.150 DOOR ASM; REAR
EXC. BODY SIDE MOLDING(B84) 		8-97359-171-0 01 1 0301- ● ●
1 16.150 DOOR ASM; REAR
EXC. BODY SIDE MOLDING(B84) 		8-93333-710-2 01 1 0211-0212 ● ●
1 16.150 DOOR ASM; REAR
EXC. BODY SIDE MOLDING(B84) 		8-97359-170-0 01 1 0301- ● ●
2 16.152 PANEL; RR DOOR OUTER
BODY SIDE MOLDING(B84) 		8-97306-621-5 01 1 0211- ● ●
2 16.152 PANEL; RR DOOR OUTER
BODY SIDE MOLDING(B84) 		8-97306-620-5 01 1 0211- ● ●
2 16.152 PANEL; RR DOOR OUTER
EXC. BODY SIDE MOLDING(B84) 		8-93291-097-6 01 1 0211- ● ●
2 16.152 PANEL; RR DOOR OUTER
EXC. BODY SIDE MOLDING(B84) 		8-93291-098-6 01 1 0211- ● ●
3 16.335 HINGE; RR DOOR
LH UPPER,RH LOWER 		8-93299-816-2 02 1 0211- ● ●
3 16.335 HINGE; RR DOOR
LH LOWER,RH UPPER 		8-93299-817-2 02 1 0211- ● ●
4 16.335 BOLT; HINGE
10.463 M8X23 FLANGE 		8-94174-559-2 08 1 0211- ● ●
4 16.335 BOLT; HINGE
CREW CAB EXTRA LONG(TF**WK) 10.463 M8X23 FLANGE 		8-94174-559-2 08 1 0211- ●
8 16.320 ARM; CHECK,RR DOOR 8-93290-877-1 02 1 0211- ● ●
9 16.323 BOLT; CHECK ARM
M8X23 		8-97310-216-1 02 1 0211- ● ●
11 16.320 NUT
M6 FLANGE 		8-97943-101-0 04 1 0211- ● ●
38 16.152 PROTECTOR; RR DOOR
16.165 		8-97301-795-1 02 1 0211- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
