◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50936 - TFR/TFS(AUSTRALIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#42359) — 44 parça

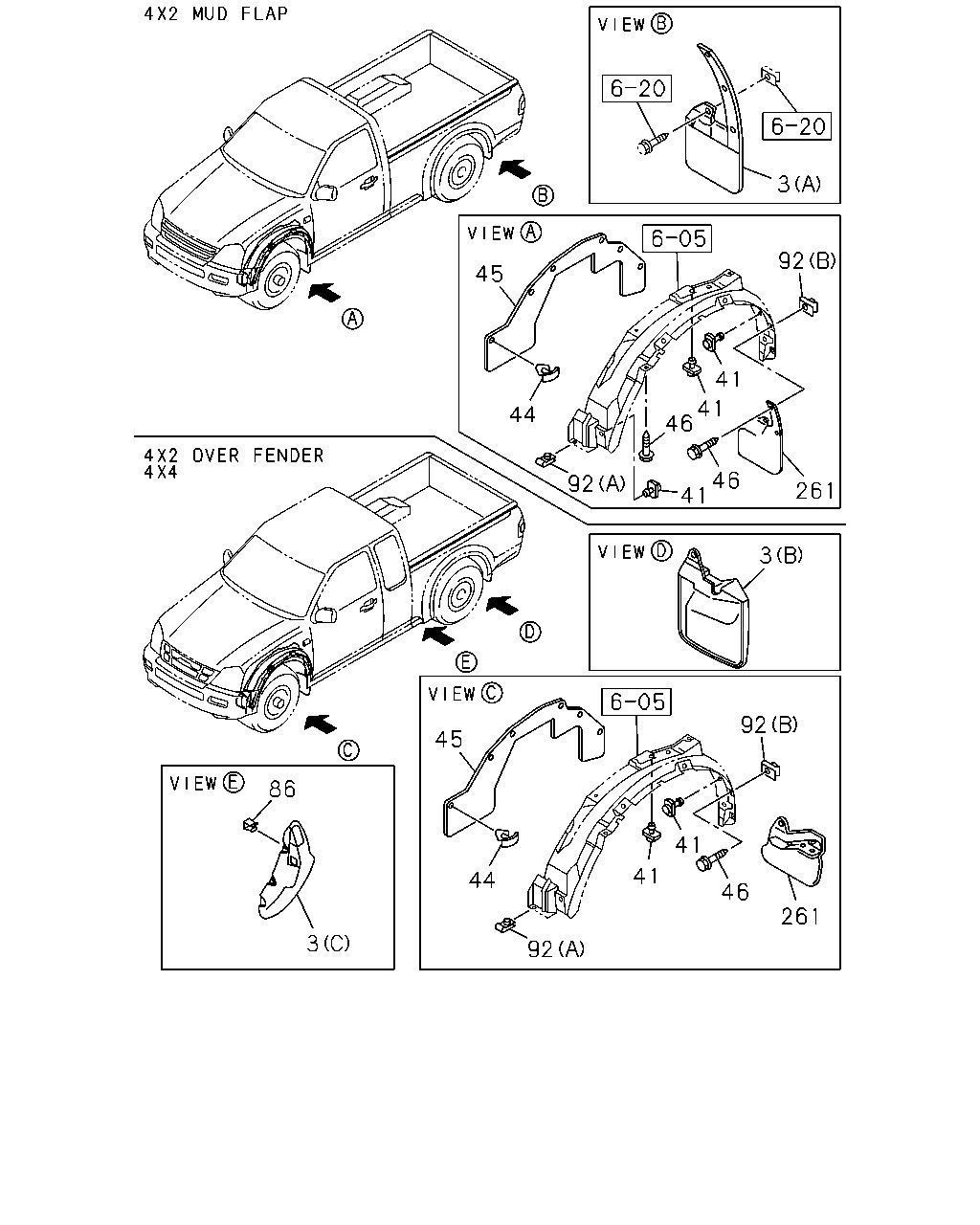

çizim 50464
3 92 45 41 41 46 44 46 41 92 261 3 92 45 86 41 41 44 46 261 3 92
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
3 08.153 GUARD; MUD,RR
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) MUD FLAP<VH4> (A) 		8-97235-419-1 01 1 0211- ● ●
3 08.153 GUARD; MUD,RR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) MUD FLAP<VH4> (A) 		8-97235-419-1 01 1 0211- ●
3 08.153 GUARD; MUD,RR
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) MUD FLAP<VH4> (A) 		8-97235-418-1 01 1 0211- ● ●
3 08.153 GUARD; MUD,RR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) MUD FLAP<VH4> (A) 		8-97235-418-1 01 1 0211- ●
3 08.153 GUARD; MUD,RR
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) OVER FENDER<6GH> (B) 		8-97331-837-0 01 1 0211-0211 ● ●
3 08.153 GUARD; MUD,RR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) OVER FENDER<6GH> (B) 		8-97331-837-0 01 1 0211-0211 ●
3 08.153 GUARD; MUD,RR
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) OVER FENDER<6GH> (B) 		8-97331-837-1 01 1 0212- ● ●
3 08.153 GUARD; MUD,RR
SINGLE CAB LONG(TF**SF) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) OVER FENDER<6GH> (B) 		8-97331-837-1 01 1 0212- ●
3 08.153 GUARD; MUD,RR
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (B) 		8-97331-837-1 01 1 0212- ●
3 08.153 GUARD; MUD,RR
4X4 CREW CAB LONG(TFS*WF) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (B) 		8-97331-837-1 01 1 0212- ●
3 08.153 GUARD; MUD,RR
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) OVER FENDER<6GH> (B) 		8-97331-836-0 01 1 0211-0211 ● ●
3 08.153 GUARD; MUD,RR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) OVER FENDER<6GH> (B) 		8-97331-836-0 01 1 0211-0211 ●
3 08.153 GUARD; MUD,RR
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) OVER FENDER<6GH> (B) 		8-97331-836-1 01 1 0212- ● ●
3 08.153 GUARD; MUD,RR
SINGLE CAB LONG(TF**SF) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) OVER FENDER<6GH> (B) 		8-97331-836-1 01 1 0212- ●
3 08.153 GUARD; MUD,RR
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (B) 		8-97331-836-1 01 1 0212- ●
3 08.153 GUARD; MUD,RR
4X4 CREW CAB LONG(TFS*WF) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (B) 		8-97331-836-1 01 1 0212- ●
3 08.153 GUARD; MUD,RR
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) OVER FENDER<6GH> (B) 		8-97350-477-0 01 1 0211-0211 ●
3 08.153 GUARD; MUD,RR
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (B) 		8-97350-477-0 01 1 0211-0211 ●
3 08.153 GUARD; MUD,RR
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) OVER FENDER<6GH> (C) 		8-97350-479-1 01 1 0211- ●
3 08.153 GUARD; MUD,RR
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (C) 		8-97350-479-1 01 1 0211- ●
3 08.153 GUARD; MUD,RR
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) OVER FENDER<6GH> (B) 		8-97350-476-0 01 1 0211-0211 ●
3 08.153 GUARD; MUD,RR
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (B) 		8-97350-476-0 01 1 0211-0211 ●
3 08.153 GUARD; MUD,RR
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) OVER FENDER<6GH> (C) 		8-97350-478-1 01 1 0211- ●
3 08.153 GUARD; MUD,RR
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (C) 		8-97350-478-1 01 1 0211- ●
41 08.155 RIVET; INNER LINER
08.154 		8-94221-150-0 14 1 0211- ● ● ● ● ● ● ● ●
44 08.154 CLIP; ANCHOR
OD=22 L=10.7 		8-94215-211-0 12 1 0211- ● ● ● ● ● ● ● ●
45 08.153 COVER; MUD,FENDER SKIRT
HIGH RIDE SUSPENSION(7YC) 		8-97235-462-0 01 1 0211- ● ● ● ●
45 08.153 COVER; MUD,FENDER SKIRT 8-97235-462-0 01 1 0211- ● ● ● ●
45 08.153 COVER; MUD,FENDER SKIRT
HIGH RIDE SUSPENSION(7YC) 		8-97235-460-1 01 1 0211- ● ● ● ●
45 08.153 COVER; MUD,FENDER SKIRT 8-97235-460-1 01 1 0211- ● ● ● ●
45 08.153 COVER; MUD,FENDER SKIRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97235-457-2 01 1 0211- ● ● ● ●
45 08.153 COVER; MUD,FENDER SKIRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97235-458-1 01 1 0211- ● ● ● ●
46 08.155 SCREW; INNER LINER
M6X20 W/PL WASHER TAPPING 		8-94321-767-1 12 1 0211- ● ● ● ● ● ● ● ●
86 08.154 CLIP; MUD GUARD
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) OVER FENDER<6GH> 		8-97352-535-0 01 1 0211- ●
86 08.154 CLIP; MUD GUARD
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97352-535-0 01 1 0211- ●
92 08.155 NUT; MUD COVER
(A) ID=5.2 H=10 		8-97032-135-0 02 1 0211-0302 ● ● ● ● ● ● ● ●
92 08.155 NUT; MUD COVER
(B) 		8-97125-519-0 12 1 0211-0302 ● ● ● ● ● ● ● ●
92 08.155 NUT; MUD COVER
(A),(B) 		8-97125-519-0 14 1 0303- ● ● ● ● ● ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD
MUD FLAP<VH4> 		8-97235-472-1 01 1 0211- ● ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD
MUD FLAP<VH4> 		8-97235-471-1 01 1 0211- ● ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD
OVER FENDER<6GH> 		8-97331-845-0 01 1 0211- ● ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD 8-97331-845-0 01 1 0211- ● ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD
OVER FENDER<6GH> 		8-97331-844-0 01 1 0211- ● ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD 8-97331-844-0 01 1 0211- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
