◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50936 - TFR/TFS(AUSTRALIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#42357) — 106 parça

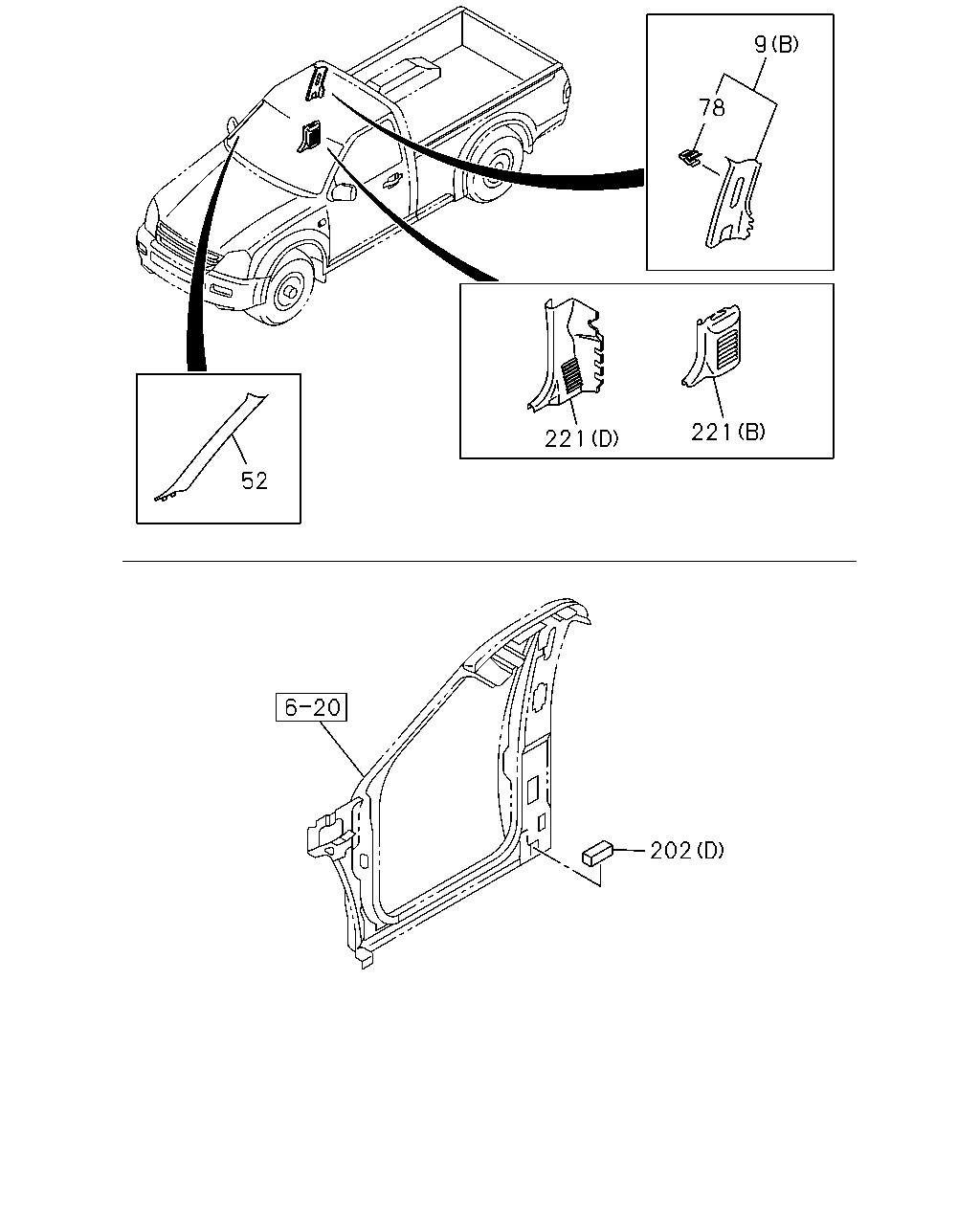

çizim 11992
9 78 221 221 52 202
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
9 16.575 TRIM; SIDE PANEL,UPR
(A) DARK GRAY 		8-97298-452-5 01 1 0211- ● ● ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(A) DARK GRAY 		8-97298-453-5 01 1 0211- ● ● ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(B) DARK GRAY 		8-97298-449-5 01 1 0211- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(B) DARK GRAY 		8-97298-450-5 01 1 0211- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(C) DARK GRAY 		8-97293-973-2 01 1 0211- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(C) DARK GRAY 		8-97293-974-2 01 1 0211- ● ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY 		8-97298-426-5 01 1 0211- ● ● ● ● ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY 		8-97298-427-5 01 1 0211- ● ● ● ● ● ● ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL 8-97319-704-0 14 1 0211- ● ● ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL 8-97319-704-0 06 1 0211- ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL 8-97319-704-0 12 1 0211- ● ●
202 16.575 SEAL; CENTER PILLAR
(D) 		8-97350-306-0 02 1 0211-0211 ● ● ● ● ● ● ● ●
202 16.575 SEAL; CENTER PILLAR
(D) 		8-97362-561-0 02 1 0212- ● ● ● ● ● ● ● ●
202 16.575 SEAL; CENTER PILLAR
(A) 		8-97252-082-1 02 1 0211-0211 ● ● ● ●
202 16.575 SEAL; CENTER PILLAR
(A) 		8-97362-560-0 02 1 0212- ● ● ● ●
202 16.575 SEAL; CENTER PILLAR
(C) 		8-97252-083-1 02 1 0211- ● ● ● ●
202 16.575 SEAL; CENTER PILLAR
(B) 		8-97351-018-0 04 1 0211-0211 ● ●
202 16.575 SEAL; CENTER PILLAR
(B) 		8-97362-563-0 04 1 0212- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(A) DARK GRAY 		8-97293-981-2 01 1 0211- ● ● ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(A) DARK GRAY 		8-97293-982-2 01 1 0211- ● ● ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE DX(RBA) (B) DARK GRAY 		8-97293-987-1 01 1 0211- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE DX(RBA) (B) DARK GRAY 		8-97293-988-1 01 1 0211- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE LX(RBB) (D) DARK GRAY 		8-97293-985-1 01 1 0211- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE LX(RBB) (D) DARK GRAY 		8-97293-986-1 01 1 0211- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE DX(RBA) (E) DARK GRAY 		8-97293-977-1 01 1 0211-0304 ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE DX(RBA) (E) DARK GRAY 		8-97293-978-1 01 1 0211-0304 ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE LX(RBB),GRADE LT(RBD) (C) DARK GRAY 		8-97293-979-1 01 1 0211-0304 ●
221 16.592 TRIM; SIDE PANEL,LOWER
(C) DARK GRAY 		8-97293-979-1 01 1 0211-0304 ●
221 16.592 TRIM; SIDE PANEL,LOWER
(C) DARK GRAY 		8-97293-979-1 01 1 0305- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE LX(RBB),GRADE LT(RBD) (C) DARK GRAY 		8-97293-980-1 01 1 0211-0304 ●
221 16.592 TRIM; SIDE PANEL,LOWER
(C) DARK GRAY 		8-97293-980-1 01 1 0211-0304 ●
221 16.592 TRIM; SIDE PANEL,LOWER
(C) DARK GRAY 		8-97293-980-1 01 1 0305- ● ●

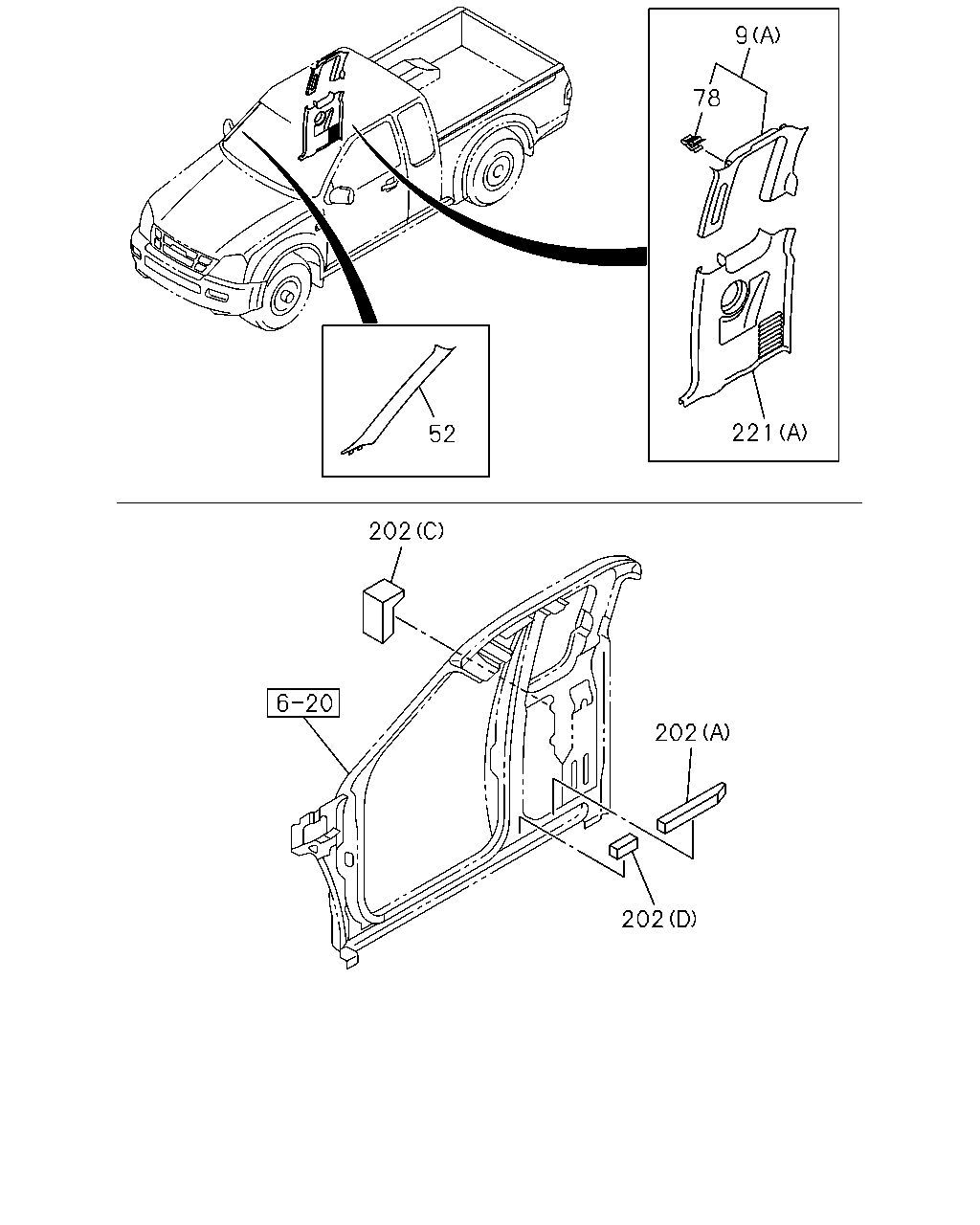

çizim 49855
9 78 221 52 202 202 202
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
9 16.575 TRIM; SIDE PANEL,UPR
(A) DARK GRAY 		8-97298-452-5 01 1 0211- ● ● ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(A) DARK GRAY 		8-97298-453-5 01 1 0211- ● ● ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(B) DARK GRAY 		8-97298-449-5 01 1 0211- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(B) DARK GRAY 		8-97298-450-5 01 1 0211- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(C) DARK GRAY 		8-97293-973-2 01 1 0211- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(C) DARK GRAY 		8-97293-974-2 01 1 0211- ● ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY 		8-97298-426-5 01 1 0211- ● ● ● ● ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY 		8-97298-427-5 01 1 0211- ● ● ● ● ● ● ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL 8-97319-704-0 14 1 0211- ● ● ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL 8-97319-704-0 06 1 0211- ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL 8-97319-704-0 12 1 0211- ● ●
202 16.575 SEAL; CENTER PILLAR
(D) 		8-97350-306-0 02 1 0211-0211 ● ● ● ● ● ● ● ●
202 16.575 SEAL; CENTER PILLAR
(D) 		8-97362-561-0 02 1 0212- ● ● ● ● ● ● ● ●
202 16.575 SEAL; CENTER PILLAR
(A) 		8-97252-082-1 02 1 0211-0211 ● ● ● ●
202 16.575 SEAL; CENTER PILLAR
(A) 		8-97362-560-0 02 1 0212- ● ● ● ●
202 16.575 SEAL; CENTER PILLAR
(C) 		8-97252-083-1 02 1 0211- ● ● ● ●
202 16.575 SEAL; CENTER PILLAR
(B) 		8-97351-018-0 04 1 0211-0211 ● ●
202 16.575 SEAL; CENTER PILLAR
(B) 		8-97362-563-0 04 1 0212- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(A) DARK GRAY 		8-97293-981-2 01 1 0211- ● ● ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(A) DARK GRAY 		8-97293-982-2 01 1 0211- ● ● ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE DX(RBA) (B) DARK GRAY 		8-97293-987-1 01 1 0211- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE DX(RBA) (B) DARK GRAY 		8-97293-988-1 01 1 0211- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE LX(RBB) (D) DARK GRAY 		8-97293-985-1 01 1 0211- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE LX(RBB) (D) DARK GRAY 		8-97293-986-1 01 1 0211- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE DX(RBA) (E) DARK GRAY 		8-97293-977-1 01 1 0211-0304 ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE DX(RBA) (E) DARK GRAY 		8-97293-978-1 01 1 0211-0304 ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE LX(RBB),GRADE LT(RBD) (C) DARK GRAY 		8-97293-979-1 01 1 0211-0304 ●
221 16.592 TRIM; SIDE PANEL,LOWER
(C) DARK GRAY 		8-97293-979-1 01 1 0211-0304 ●
221 16.592 TRIM; SIDE PANEL,LOWER
(C) DARK GRAY 		8-97293-979-1 01 1 0305- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE LX(RBB),GRADE LT(RBD) (C) DARK GRAY 		8-97293-980-1 01 1 0211-0304 ●
221 16.592 TRIM; SIDE PANEL,LOWER
(C) DARK GRAY 		8-97293-980-1 01 1 0211-0304 ●
221 16.592 TRIM; SIDE PANEL,LOWER
(C) DARK GRAY 		8-97293-980-1 01 1 0305- ● ●

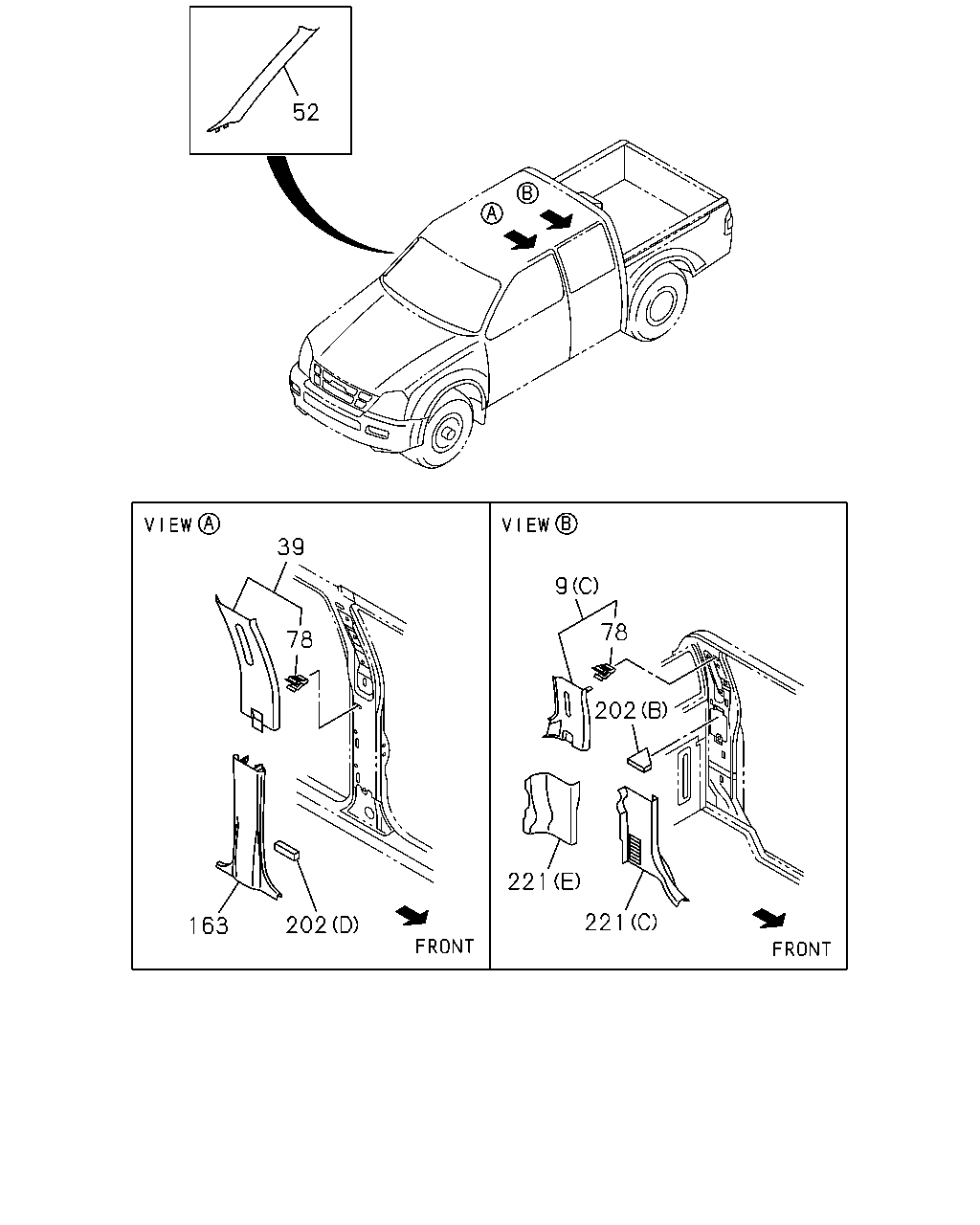

çizim 52887
52 39 9 78 78 202 221 221 202 163
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
9 16.575 TRIM; SIDE PANEL,UPR
(A) DARK GRAY 		8-97298-452-5 01 1 0211- ● ● ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(A) DARK GRAY 		8-97298-453-5 01 1 0211- ● ● ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(B) DARK GRAY 		8-97298-449-5 01 1 0211- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(B) DARK GRAY 		8-97298-450-5 01 1 0211- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(C) DARK GRAY 		8-97293-973-2 01 1 0211- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(C) DARK GRAY 		8-97293-974-2 01 1 0211- ● ●
39 16.575 COVER; TRIM,CENTER PILLAR
DARK GRAY 		8-97298-447-1 01 1 0211- ● ●
39 16.575 COVER; TRIM,CENTER PILLAR
DARK GRAY 		8-97298-448-1 01 1 0211- ● ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY 		8-97298-426-5 01 1 0211- ● ● ● ● ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY 		8-97298-427-5 01 1 0211- ● ● ● ● ● ● ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL 8-97319-704-0 14 1 0211- ● ● ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL 8-97319-704-0 06 1 0211- ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL 8-97319-704-0 12 1 0211- ● ●
163 16.575 COVER; TRIM,CENTER PILLAR,LWR
GRADE DX(RBA) DARK GRAY 		8-97293-935-1 01 1 0211-0304 ●
163 16.575 COVER; TRIM,CENTER PILLAR,LWR
GRADE DX(RBA) DARK GRAY 		8-97293-954-1 01 1 0211-0304 ●
163 16.575 COVER; TRIM,CENTER PILLAR,LWR
GRADE LX(RBB),GRADE LT(RBD) DARK GRAY 		8-97298-445-3 01 1 0211-0304 ●
163 16.575 COVER; TRIM,CENTER PILLAR,LWR
DARK GRAY 		8-97298-445-3 01 1 0211-0304 ●
163 16.575 COVER; TRIM,CENTER PILLAR,LWR
DARK GRAY 		8-97298-445-3 01 1 0305- ● ●
163 16.575 COVER; TRIM,CENTER PILLAR,LWR
GRADE LX(RBB),GRADE LT(RBD) DARK GRAY 		8-97298-446-3 01 1 0211-0304 ●
163 16.575 COVER; TRIM,CENTER PILLAR,LWR
DARK GRAY 		8-97298-446-3 01 1 0211-0304 ●
163 16.575 COVER; TRIM,CENTER PILLAR,LWR
DARK GRAY 		8-97298-446-3 01 1 0305- ● ●
202 16.575 SEAL; CENTER PILLAR
(D) 		8-97350-306-0 02 1 0211-0211 ● ● ● ● ● ● ● ●
202 16.575 SEAL; CENTER PILLAR
(D) 		8-97362-561-0 02 1 0212- ● ● ● ● ● ● ● ●
202 16.575 SEAL; CENTER PILLAR
(A) 		8-97252-082-1 02 1 0211-0211 ● ● ● ●
202 16.575 SEAL; CENTER PILLAR
(A) 		8-97362-560-0 02 1 0212- ● ● ● ●
202 16.575 SEAL; CENTER PILLAR
(C) 		8-97252-083-1 02 1 0211- ● ● ● ●
202 16.575 SEAL; CENTER PILLAR
(B) 		8-97351-018-0 04 1 0211-0211 ● ●
202 16.575 SEAL; CENTER PILLAR
(B) 		8-97362-563-0 04 1 0212- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(A) DARK GRAY 		8-97293-981-2 01 1 0211- ● ● ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(A) DARK GRAY 		8-97293-982-2 01 1 0211- ● ● ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE DX(RBA) (B) DARK GRAY 		8-97293-987-1 01 1 0211- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE DX(RBA) (B) DARK GRAY 		8-97293-988-1 01 1 0211- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE LX(RBB) (D) DARK GRAY 		8-97293-985-1 01 1 0211- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE LX(RBB) (D) DARK GRAY 		8-97293-986-1 01 1 0211- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE DX(RBA) (E) DARK GRAY 		8-97293-977-1 01 1 0211-0304 ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE DX(RBA) (E) DARK GRAY 		8-97293-978-1 01 1 0211-0304 ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE LX(RBB),GRADE LT(RBD) (C) DARK GRAY 		8-97293-979-1 01 1 0211-0304 ●
221 16.592 TRIM; SIDE PANEL,LOWER
(C) DARK GRAY 		8-97293-979-1 01 1 0211-0304 ●
221 16.592 TRIM; SIDE PANEL,LOWER
(C) DARK GRAY 		8-97293-979-1 01 1 0305- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE LX(RBB),GRADE LT(RBD) (C) DARK GRAY 		8-97293-980-1 01 1 0211-0304 ●
221 16.592 TRIM; SIDE PANEL,LOWER
(C) DARK GRAY 		8-97293-980-1 01 1 0211-0304 ●
221 16.592 TRIM; SIDE PANEL,LOWER
(C) DARK GRAY 		8-97293-980-1 01 1 0305- ● ●
