◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50936 - TFR/TFS(AUSTRALIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#42355) — 50 parça

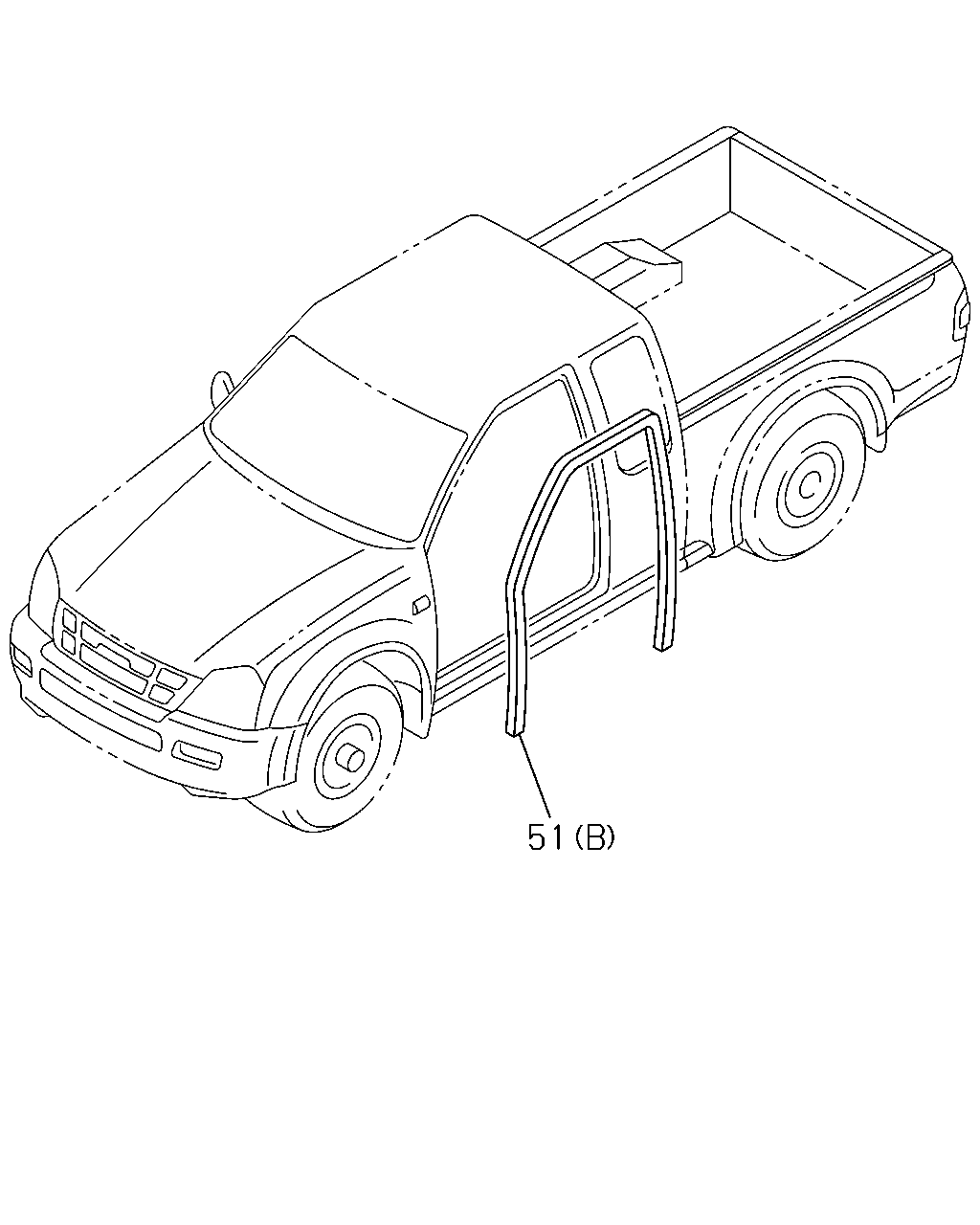

çizim 11991
51
BalonParca AdiParca NoAdetTipApplied Date A B C
51 16.225 WEATHERSTRIP; FRONT DOOR
(B) DARK GRAY 		8-97294-031-1 02 1 0211- ●
51 16.225 WEATHERSTRIP; FRONT DOOR
(A) 		8-97236-130-3 01 1 0211-0302 ● ● ●
51 16.225 WEATHERSTRIP; FRONT DOOR
(A) 		8-97364-719-0 01 1 0303- ● ● ●
51 16.225 WEATHERSTRIP; FRONT DOOR
(A) 		8-97236-129-3 01 1 0211-0302 ● ● ●
51 16.225 WEATHERSTRIP; FRONT DOOR
(A) 		8-97364-718-0 01 1 0303- ● ● ●
51 16.225 WEATHERSTRIP; FRONT DOOR
(B) DARK GRAY 		8-97294-029-1 02 1 0211- ● ●

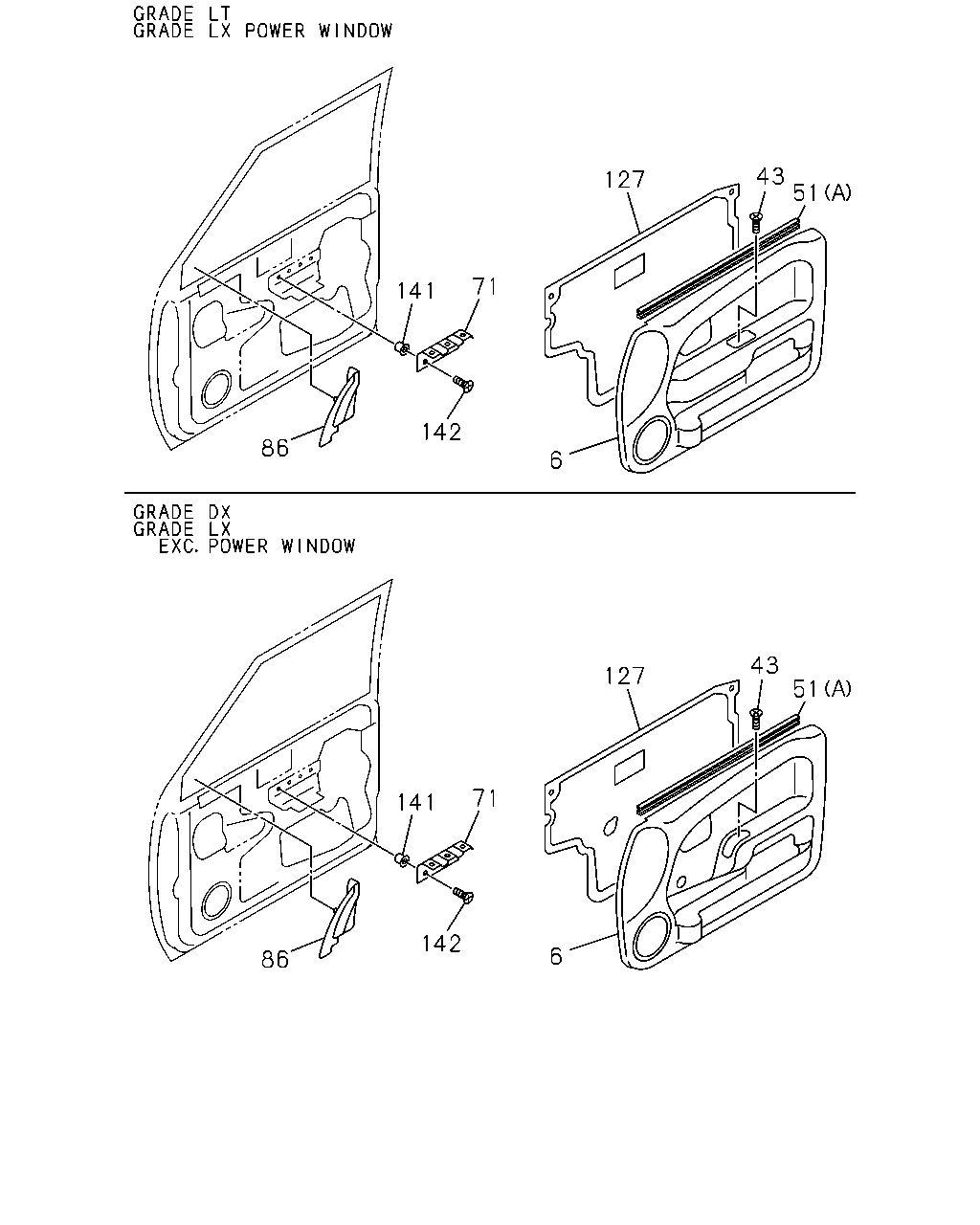

çizim 49854
43 51 127 71 141 142 86 6 43 127 51 71 141 142 6 86
BalonParca AdiParca NoAdetTipApplied Date A B C
6 16.165 TRIM; DOOR,UPR
DARK GRAY 		8-97294-511-3 01 1 0211-0302 ●
6 16.165 TRIM; DOOR,UPR
DARK GRAY 		8-97396-566-0 01 1 0303- ●
6 16.165 TRIM; DOOR,UPR
DARK GRAY 		8-97294-510-3 01 1 0211-0302 ●
6 16.165 TRIM; DOOR,UPR
DARK GRAY 		8-97396-565-0 01 1 0303- ●
6 16.165 TRIM; DOOR,UPR
POWER WINDOW<A30> DARK GRAY 		8-97294-505-2 01 1 0211-0302 ●
6 16.165 TRIM; DOOR,UPR
POWER WINDOW<A30> DARK GRAY 		8-97396-572-0 01 1 0303- ●
6 16.165 TRIM; DOOR,UPR
POWER WINDOW<A30> DARK GRAY 		8-97294-504-2 01 1 0211-0302 ●
6 16.165 TRIM; DOOR,UPR
POWER WINDOW<A30> DARK GRAY 		8-97396-571-0 01 1 0303- ●
6 16.165 TRIM; DOOR,UPR
EXC. POWER WINDOW<A30> DARK GRAY 		8-97294-507-2 01 1 0211-0302 ●
6 16.165 TRIM; DOOR,UPR
EXC. POWER WINDOW<A30> DARK GRAY 		8-97396-568-0 01 1 0303- ●
6 16.165 TRIM; DOOR,UPR
EXC. POWER WINDOW<A30> DARK GRAY 		8-97294-506-2 01 1 0211-0302 ●
6 16.165 TRIM; DOOR,UPR
EXC. POWER WINDOW<A30> DARK GRAY 		8-97396-567-0 01 1 0303- ●
6 16.165 TRIM; DOOR,UPR
DARK GRAY 		8-97294-503-3 01 1 0211-0302 ●
6 16.165 TRIM; DOOR,UPR
DARK GRAY 		8-97396-574-0 01 1 0303- ●
6 16.165 TRIM; DOOR,UPR
DARK GRAY 		8-97294-502-3 01 1 0211-0302 ●
6 16.165 TRIM; DOOR,UPR
DARK GRAY 		8-97396-573-0 01 1 0303- ●
43 16.165 SCREW; DOOR POCKET
12.182 M5X14 		8-94152-495-0 04 1 0211- ● ● ●
51 16.225 WEATHERSTRIP; FRONT DOOR
(B) DARK GRAY 		8-97294-031-1 02 1 0211- ●
51 16.225 WEATHERSTRIP; FRONT DOOR
(A) 		8-97236-130-3 01 1 0211-0302 ● ● ●
51 16.225 WEATHERSTRIP; FRONT DOOR
(A) 		8-97364-719-0 01 1 0303- ● ● ●
51 16.225 WEATHERSTRIP; FRONT DOOR
(A) 		8-97236-129-3 01 1 0211-0302 ● ● ●
51 16.225 WEATHERSTRIP; FRONT DOOR
(A) 		8-97364-718-0 01 1 0303- ● ● ●
51 16.225 WEATHERSTRIP; FRONT DOOR
(B) DARK GRAY 		8-97294-029-1 02 1 0211- ● ●
71 14.690 BRACKET; ARM REST
16.165 		8-97238-106-2 02 1 0211- ● ● ●
86 16.155 COVER ASM; DOOR POCKET
BLACK 		8-97298-456-2 01 1 0211- ● ● ●
86 16.155 COVER ASM; DOOR POCKET
BLACK 		8-97298-455-2 01 1 0211- ● ● ●
127 16.183 SEAL; DOOR INNER 8-97236-534-1 01 1 0211-0211 ●
127 16.183 SEAL; DOOR INNER
EXC. POWER WINDOW<A30> 		8-97236-534-1 01 1 0211-0211 ●
127 16.183 SEAL; DOOR INNER 8-97360-883-0 01 1 0212- ●
127 16.183 SEAL; DOOR INNER
EXC. POWER WINDOW<A30> 		8-97360-883-0 01 1 0212- ●
127 16.183 SEAL; DOOR INNER 8-97236-533-1 01 1 0211-0211 ●
127 16.183 SEAL; DOOR INNER
EXC. POWER WINDOW<A30> 		8-97236-533-1 01 1 0211-0211 ●
127 16.183 SEAL; DOOR INNER 8-97360-882-0 01 1 0212- ●
127 16.183 SEAL; DOOR INNER
EXC. POWER WINDOW<A30> 		8-97360-882-0 01 1 0212- ●
127 16.183 SEAL; DOOR INNER
POWER WINDOW<A30> 		8-97236-535-1 01 1 0211-0211 ●
127 16.183 SEAL; DOOR INNER 8-97236-535-1 01 1 0211-0211 ●
127 16.183 SEAL; DOOR INNER
POWER WINDOW<A30> 		8-97360-885-0 01 1 0212- ●
127 16.183 SEAL; DOOR INNER 8-97360-885-0 01 1 0212- ●
127 16.183 SEAL; DOOR INNER
POWER WINDOW<A30> 		8-97236-536-1 01 1 0211-0211 ●
127 16.183 SEAL; DOOR INNER 8-97236-536-1 01 1 0211-0211 ●
127 16.183 SEAL; DOOR INNER
POWER WINDOW<A30> 		8-97360-884-0 01 1 0212- ●
127 16.183 SEAL; DOOR INNER 8-97360-884-0 01 1 0212- ●
141 16.165 GROMMET; SCREW,LWR COVER
10.565 		8-94152-494-0 04 1 0211- ● ● ●
142 16.165 SCREW; LWR COVER,DOOR TRIM
12.182 M5X14 		8-94152-495-0 04 1 0211- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
