6-32 — FRONT DOOR LOCK AND HANDLE (#42354) — 63 parça

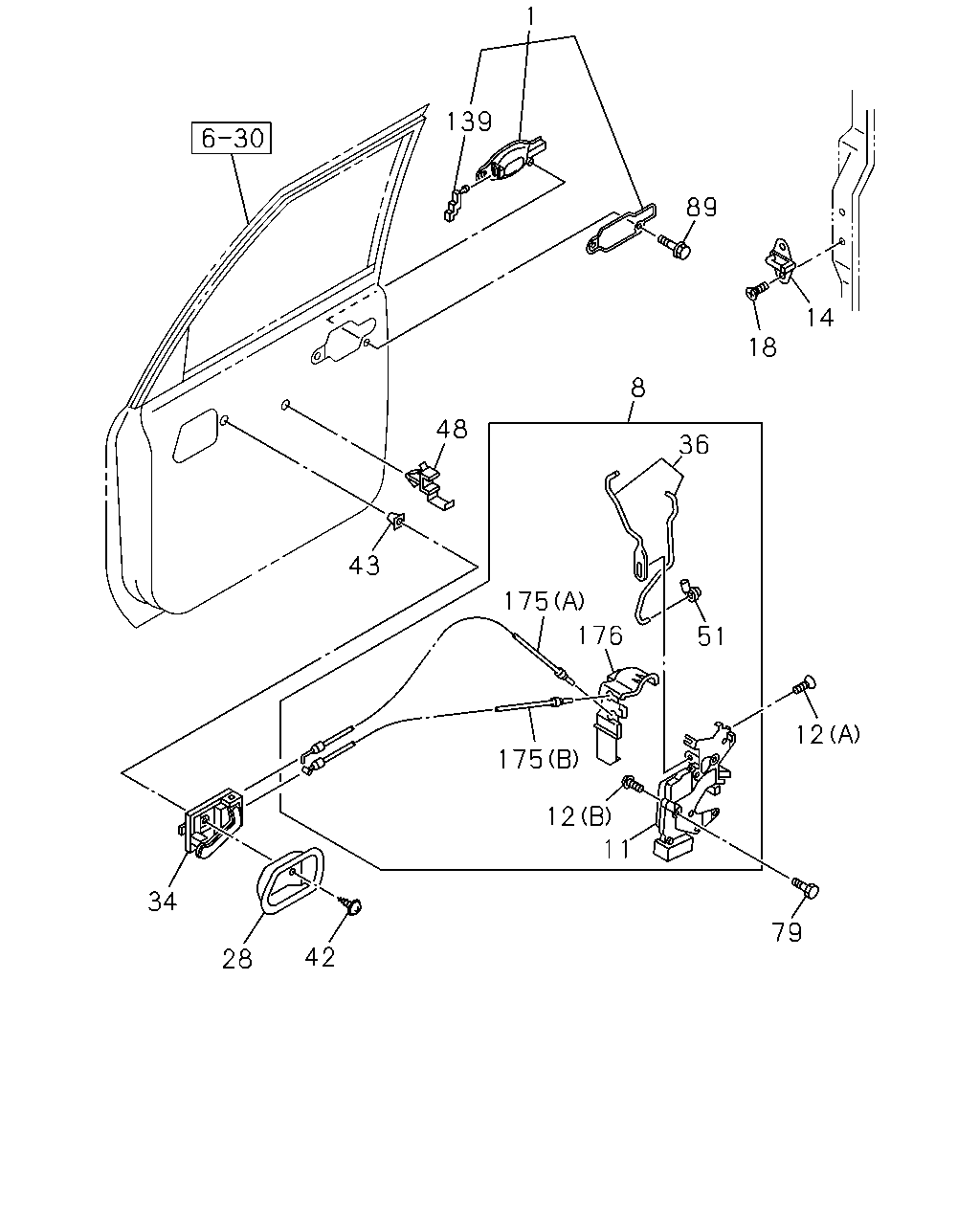

çizim 49992
1 139 89 14 18 8 48 36 43 175 176 51 12 175 12 11 34 79 42 28
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BLACK 		8-97235-975-1 01 1 0211- ● ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
EXC. OUTSIDE HANDLE BRIGHT<7WM> BLACK 		8-97235-975-1 01 1 0211- ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BLACK 		8-97235-959-1 01 1 0211- ● ● ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
EXC. OUTSIDE HANDLE BRIGHT<7WM> BLACK 		8-97235-959-1 01 1 0211- ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ALPINE WHITE(877) OUTSIDE HANDLE BRIGHT<7WM> WHITE 		8-97293-684-1 01 1 0211- ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ALPINE WHITE(877) OUTSIDE HANDLE BRIGHT<7WM> WHITE 		8-97293-681-1 01 1 0211- ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ASTRAL SILVER(718) OUTSIDE HANDLE BRIGHT<7WM> LIGHT SILVER 		8-97392-529-1 01 1 0211- ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR ASTRAL SILVER(718) OUTSIDE HANDLE BRIGHT<7WM> LIGHT SILVER 		8-97392-527-1 01 1 0211- ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR CAPE BLUE MET(612) OUTSIDE HANDLE BRIGHT<7WM> BLUE 		8-97392-528-1 01 1 0211- ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR CAPE BLUE MET(612) OUTSIDE HANDLE BRIGHT<7WM> BLUE 		8-97392-526-1 01 1 0211- ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR CHAMONIX GREEN MET(644) OUTSIDE HANDLE BRIGHT<7WM> GREEN 		8-97298-546-1 01 1 0211- ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR CHAMONIX GREEN MET(644) OUTSIDE HANDLE BRIGHT<7WM> GREEN 		8-97298-538-1 01 1 0211- ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR FOXFIRE RED MICA(658) OUTSIDE HANDLE BRIGHT<7WM> RED 		8-97298-550-1 01 1 0211- ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR FOXFIRE RED MICA(658) OUTSIDE HANDLE BRIGHT<7WM> RED 		8-97298-542-1 01 1 0211- ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR GLACIER BLUE MET(645) OUTSIDE HANDLE BRIGHT<7WM> BLUE 		8-97298-547-1 01 1 0211- ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR GLACIER BLUE MET(645) OUTSIDE HANDLE BRIGHT<7WM> BLUE 		8-97298-539-1 01 1 0211- ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR QUARTS GRAY MET(642) OUTSIDE HANDLE BRIGHT<7WM> LIGHT GRAY 		8-97298-544-1 01 1 0211- ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR QUARTS GRAY MET(642) OUTSIDE HANDLE BRIGHT<7WM> LIGHT GRAY 		8-97298-536-1 01 1 0211- ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR SANDAL WOOD MET(643) OUTSIDE HANDLE BRIGHT<7WM> WHITE 		8-97298-545-1 01 1 0211- ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR SANDAL WOOD MET(643) OUTSIDE HANDLE BRIGHT<7WM> WHITE 		8-97298-537-1 01 1 0211- ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR STEEL BLACK MET(641) OUTSIDE HANDLE BRIGHT<7WM> BLACK 		8-97298-543-1 01 1 0211- ● ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
BODY COLOR STEEL BLACK MET(641) OUTSIDE HANDLE BRIGHT<7WM> BLACK 		8-97298-535-1 01 1 0211- ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR 8-97236-074-1 01 1 0211- ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> 		8-97236-074-1 01 1 0211- ● ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR 8-97301-790-1 01 1 0211-0303 ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> 		8-97301-790-1 01 1 0211-0303 ● ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR 8-97236-073-0 01 1 0304- ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> 		8-97236-073-0 01 1 0304- ● ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-97236-072-1 01 1 0211- ● ● ● ● ●
8 16.330 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-97236-071-1 01 1 0211- ● ● ● ● ●
11 16.263 ACTUATOR; DOOR LK,FRT 8-97349-993-0 01 1 0211- ● ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> 		8-97349-993-0 01 1 0211- ● ● ● ● ●
11 16.263 ACTUATOR; DOOR LK,FRT 8-97349-995-0 01 1 0211-0303 ● ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> 		8-97349-995-0 01 1 0211-0303 ● ● ● ● ●
11 16.263 ACTUATOR; DOOR LK,FRT 8-97351-085-0 01 1 0304- ● ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
AUTO DOOR LOCK<AU4> 		8-97351-085-0 01 1 0304- ● ● ● ● ●
12 16.330 SCREW; DOOR LK
16.069 (A) M6X20 		1-09981-494-0 06 1 0211- ● ● ● ● ● ● ● ●
12 16.330 SCREW; DOOR LK
(B) 		8-97349-997-0 04 1 0211- ● ● ●
12 16.330 SCREW; DOOR LK
AUTO DOOR LOCK<AU4> (B) 		8-97349-997-0 04 1 0211- ● ● ● ● ●
14 16.335 STRIKER; FRT DOOR 8-97235-985-1 02 1 0211- ● ● ● ● ● ● ● ●
18 16.335 SCREW; DOOR STRIKER
M8X35 		8-97324-511-0 04 1 0211- ● ● ● ● ● ● ● ●
28 16.345 BEZEL; INSIDE LEVER,FRT DOOR
DARK GRAY 		8-97294-000-1 01 1 0211- ● ● ● ● ● ● ● ●
28 16.345 BEZEL; INSIDE LEVER,FRT DOOR
DARK GRAY 		8-97293-999-1 01 1 0211- ● ● ● ● ● ● ● ●
34 16.345 HANDLE; INSIDE,FRT DOOR
DARK GRAY 		8-97293-998-1 01 1 0211- ● ● ● ● ● ● ● ●
34 16.345 HANDLE; INSIDE,FRT DOOR
DARK GRAY 		8-97293-997-1 01 1 0211- ● ● ● ● ● ● ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE 8-97349-983-0 01 1 0211- ● ● ● ● ● ● ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE 8-97349-984-0 01 1 0211- ● ● ● ● ● ● ● ●
42 16.345 SCREW; TAPPING,INSIDE LEVER
12.182 M5X14 		8-94152-495-0 02 1 0211- ● ● ● ● ● ● ● ●
43 16.345 GROMMET; SCREW,INSIDE LEVER,DOOR
10.565 		8-94152-494-0 02 1 0211- ● ● ● ● ● ● ● ●
48 16.345 ANTIRATTLER; DOOR LINK 8-97251-932-0 02 1 0211- ● ● ● ● ● ● ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD 8-97349-985-0 01 1 0211- ● ● ● ● ● ● ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD 8-97349-986-0 01 1 0211- ● ● ● ● ● ● ● ●
79 16.263 BOLT; DOOR LK ACTUATOR
10.701 M6X8 		8-94155-893-0 02 1 0211- ● ● ●
79 16.263 BOLT; DOOR LK ACTUATOR
AUTO DOOR LOCK<AU4> 10.701 M6X8 		8-94155-893-0 02 1 0211- ● ● ● ● ●
89 16.350 BOLT; DOOR OUTSIDE HANDLE
10.701 M6X8 		8-94155-893-0 04 1 0211- ● ● ● ● ● ● ● ●
139 16.350 HOLDER; ROD,DOOR HANDLE
16.330 YELLOW 		8-97333-304-0 01 1 0211- ● ● ● ● ● ● ● ●
139 16.350 HOLDER; ROD,DOOR HANDLE
16.330 WHITE 		8-97333-303-0 01 1 0211- ● ● ● ● ● ● ● ●
175 16.341 CABLE ASM; LOCK CONTROL
(A) 		8-97349-987-0 01 1 0211- ● ● ● ● ● ● ● ●
175 16.341 CABLE ASM; LOCK CONTROL
(B) 		8-97349-989-0 01 1 0211- ● ● ● ● ● ● ● ●
175 16.341 CABLE ASM; LOCK CONTROL
(A) 		8-97349-988-0 01 1 0211- ● ● ● ● ● ● ● ●
175 16.341 CABLE ASM; LOCK CONTROL
(B) 		8-97349-990-0 01 1 0211- ● ● ● ● ● ● ● ●
176 16.270 COVER; DOOR LOCK 8-97349-991-0 01 1 0211- ● ● ● ● ● ● ● ●
176 16.270 COVER; DOOR LOCK 8-97349-992-0 01 1 0211- ● ● ● ● ● ● ● ●
