◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50936 - TFR/TFS(AUSTRALIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶
6-31 — FRONT DOOR GLASS AND REGULATOR (#42353) — 44 parça

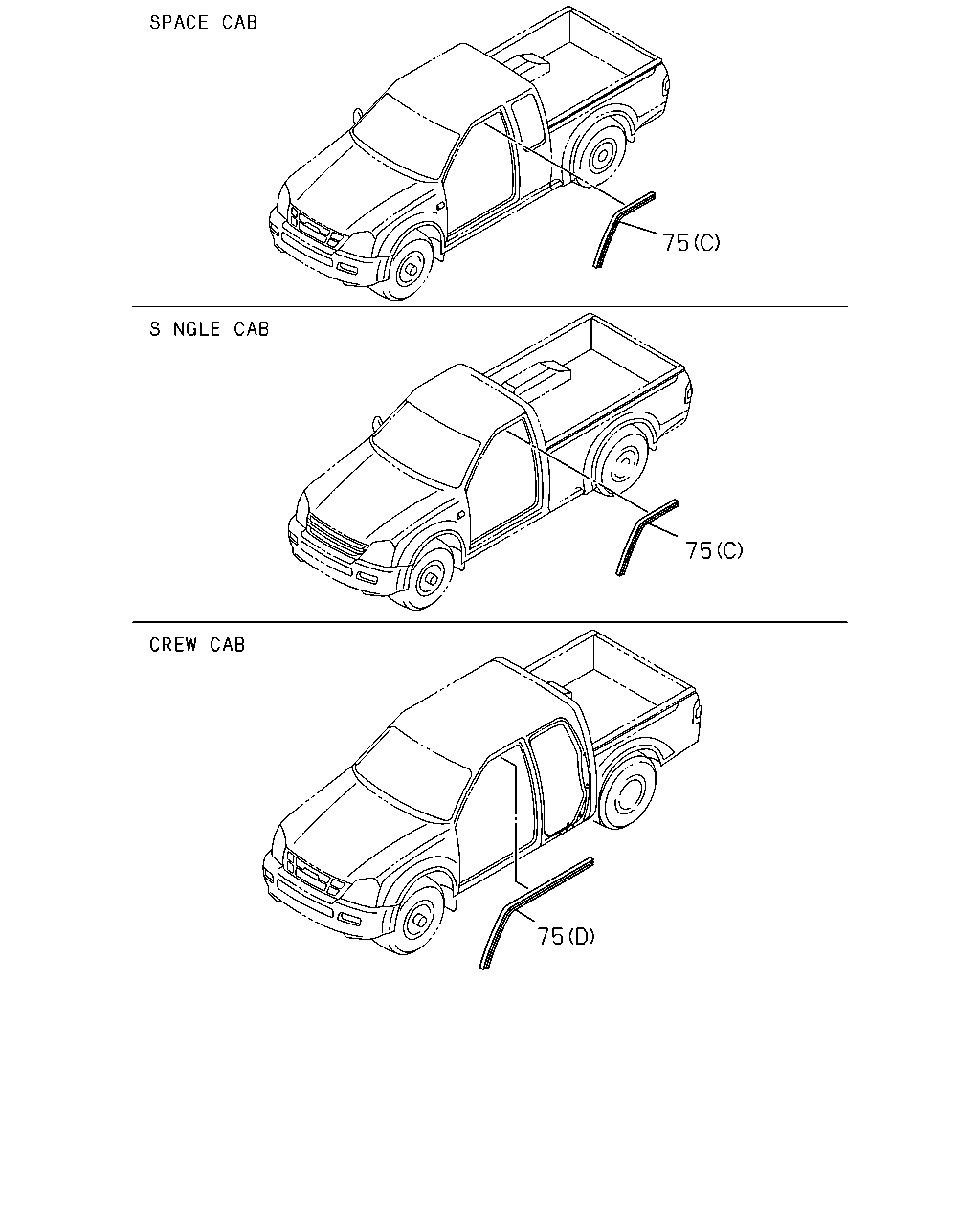

çizim 12361
75 75 75
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-97236-117-1 01 1 0211- ● ● ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(B) 		8-97236-154-2 01 1 0211- ● ● ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-97236-116-1 01 1 0211- ● ● ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(B) 		8-97236-153-2 01 1 0211- ● ● ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(C) 		8-97236-112-2 01 1 0211- ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(C) 		8-97236-110-2 01 1 0211- ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(D) 		8-93291-058-3 01 1 0211- ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(D) 		8-93296-881-3 01 1 0211- ● ●

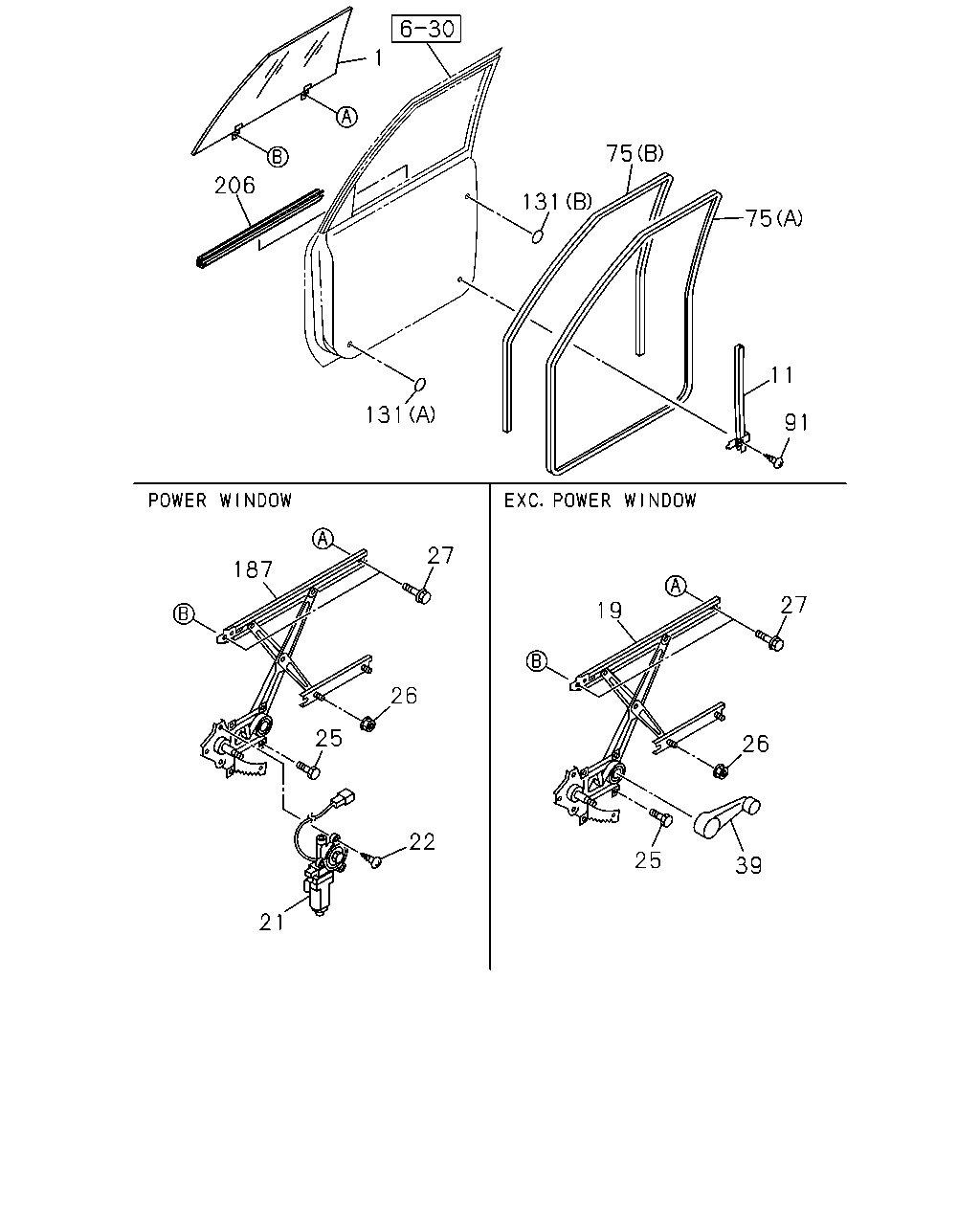

çizim 50993
1 75 206 131 75 11 131 91 27 187 27 19 26 25 26 22 25 39 21
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 16.180 GLASS; FRT DOOR 8-97236-032-2 01 1 0211- ● ● ● ● ● ● ● ●
1 16.180 GLASS; FRT DOOR 8-97236-028-2 01 1 0211- ● ● ● ● ● ● ● ●
11 16.183 RAIL; RR GUIDE,FRT DOOR 8-97315-864-1 01 1 0304- ● ● ●
11 16.183 RAIL; RR GUIDE,FRT DOOR
AUTO DOOR LOCK<AU4> 		8-97315-864-1 01 1 0304- ● ● ● ● ●
11 16.183 RAIL; RR GUIDE,FRT DOOR 8-97241-127-1 01 1 0211- ● ● ● ● ● ● ● ●
11 16.183 RAIL; RR GUIDE,FRT DOOR 8-97241-126-1 01 1 0211-0303 ● ● ● ● ● ● ● ●
11 16.183 RAIL; RR GUIDE,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-97241-126-1 01 1 0304- ● ● ● ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR 8-97235-875-2 01 1 0211- ● ● ● ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		8-97235-875-2 01 1 0211- ● ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR 8-97235-873-2 01 1 0211- ● ● ● ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		8-97235-873-2 01 1 0211- ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		8-97358-233-0 01 1 0211- ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		8-97358-232-0 01 1 0211- ● ● ●
22 16.270 SCREW; POWER WINDOW MOTOR
POWER WINDOW<A30> 		8-97351-770-0 06 1 0211- ● ● ●
25 16.270 BOLT; WINDOW REG
10.701 M6X8 		8-94155-893-0 06 1 0211- ● ● ● ● ● ● ● ●
26 16.270 NUT; FLANGE,WINDOW REG
16.320 M6 FLANGE 		8-97943-101-0 04 1 0211- ● ● ● ● ● ● ● ●
27 16.270 BOLT; GLASS FIX
10.701 M6X8 		8-94155-893-0 04 1 0211- ● ● ● ● ● ● ● ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
DARK GRAY 		8-97298-454-3 02 1 0211- ● ● ● ● ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW<A30> DARK GRAY 		8-97298-454-3 02 1 0211- ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-97236-117-1 01 1 0211- ● ● ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(B) 		8-97236-154-2 01 1 0211- ● ● ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-97236-116-1 01 1 0211- ● ● ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(B) 		8-97236-153-2 01 1 0211- ● ● ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(C) 		8-97236-112-2 01 1 0211- ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(C) 		8-97236-110-2 01 1 0211- ● ● ● ● ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(D) 		8-93291-058-3 01 1 0211- ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(D) 		8-93296-881-3 01 1 0211- ● ●
91 16.183 BOLT; GUIDE RAIL TO DOOR
10.701 M6X8 		8-94155-893-0 02 1 0211- ● ● ● ● ● ● ● ●
131 16.183 SEAL; FRT DOOR
16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 0211- ● ● ● ● ● ● ● ●
131 16.183 SEAL; FRT DOOR
02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0211- ● ● ● ● ● ● ● ●
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		8-97350-002-0 01 1 0211- ● ● ●
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		8-97350-004-0 01 1 0211- ● ● ●
206 16.183 WEATHERSTRIP; FRT DOOR GLASS 8-97236-102-0 01 1 0211-0302 ● ● ● ● ● ● ● ●
206 16.183 WEATHERSTRIP; FRT DOOR GLASS 8-97364-716-0 01 1 0303- ● ● ● ● ● ● ● ●
206 16.183 WEATHERSTRIP; FRT DOOR GLASS 8-97236-100-0 01 1 0211-0302 ● ● ● ● ● ● ● ●
206 16.183 WEATHERSTRIP; FRT DOOR GLASS 8-97364-715-0 01 1 0303- ● ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
