6-30 — FRONT DOOR AND HINGE (#42352) — 70 parça

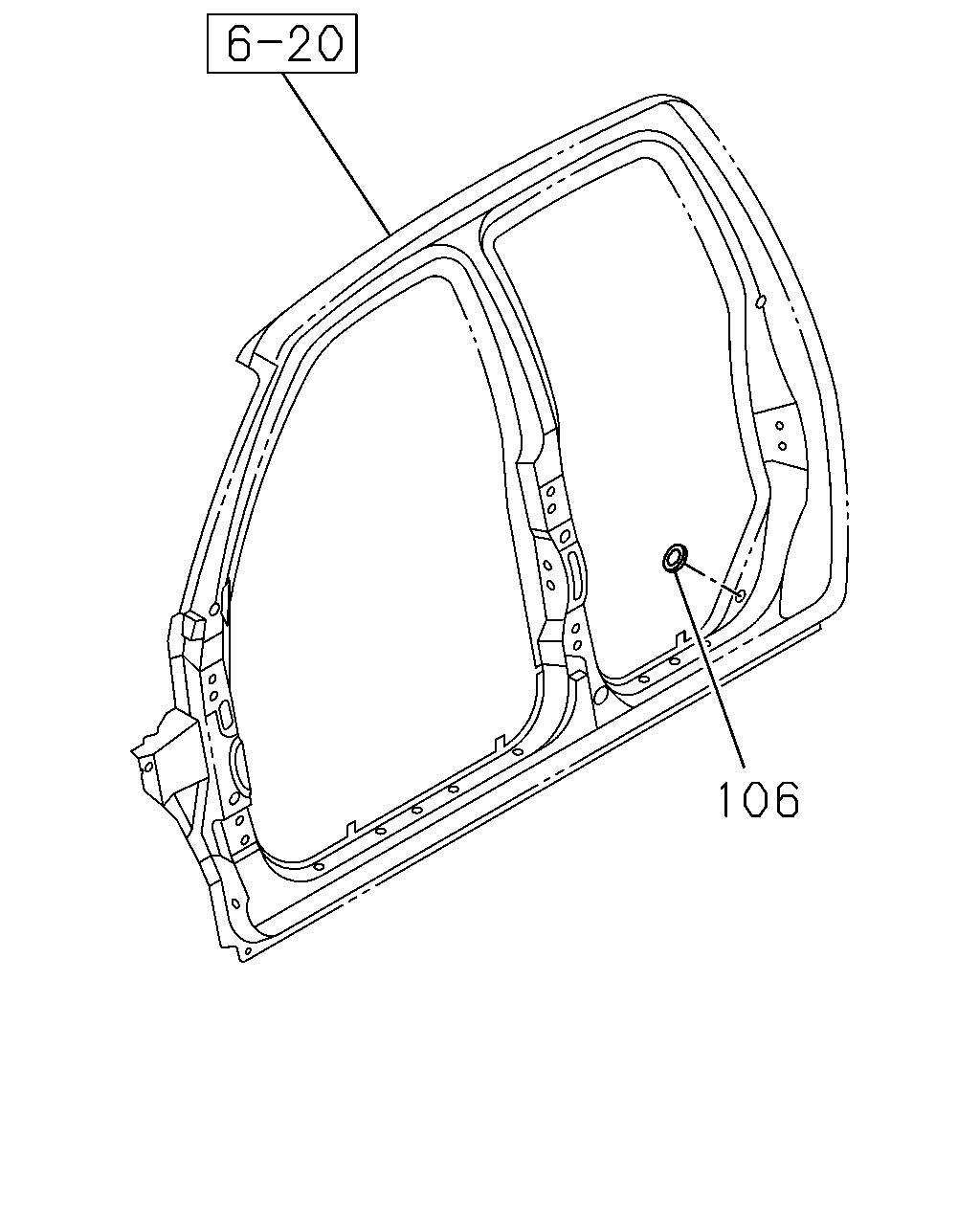

çizim 12364
106
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
106 16.165 GROMMET; PROTECTOR
16.570 		8-94279-724-0 02 1 0211- ● ●

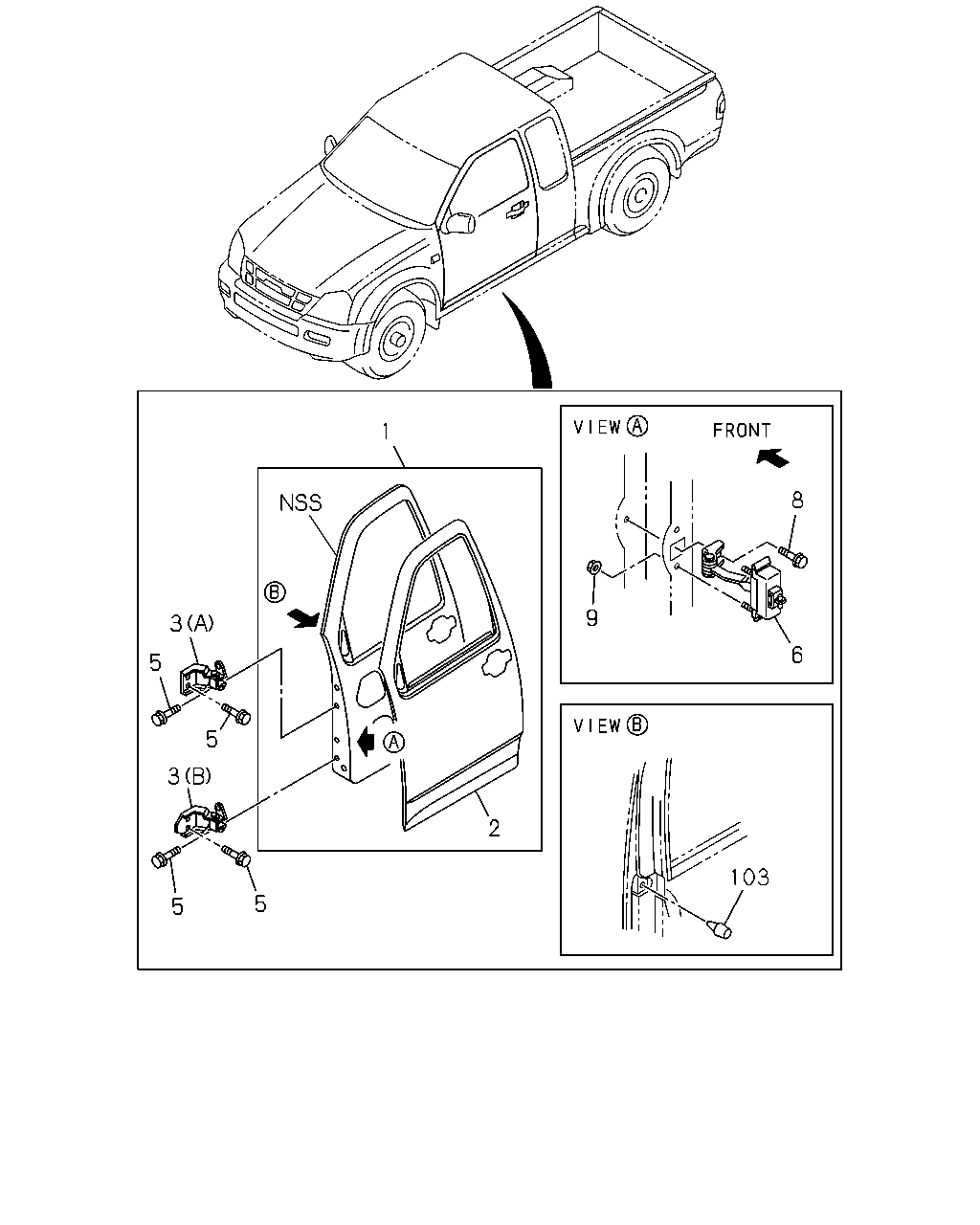

çizim 50871
1 8 9 3 6 5 5 3 2 103 5 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 16.150 DOOR ASM; FRT,WO/TRIM 8-97365-979-0 01 1 0302- ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
BODY SIDE MOLDING(B84) 		8-97365-979-0 01 1 0302- ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM 8-97365-980-0 01 1 0302- ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
BODY SIDE MOLDING(B84) 		8-97365-980-0 01 1 0302- ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. BODY SIDE MOLDING(B84) 		8-97365-975-0 01 1 0302- ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. BODY SIDE MOLDING(B84) 		8-97365-976-0 01 1 0302- ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
BODY SIDE MOLDING(B84) 		8-97365-981-0 01 1 0302- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
BODY SIDE MOLDING(B84) 		8-97365-982-0 01 1 0302- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. BODY SIDE MOLDING(B84) 		8-97365-977-0 01 1 0302- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. BODY SIDE MOLDING(B84) 		8-97365-978-0 01 1 0302- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM 8-97332-556-0 01 1 0211-0212 ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
BODY SIDE MOLDING(B84) 		8-97332-556-0 01 1 0211-0212 ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM 8-97359-160-0 01 1 0301-0301 ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
BODY SIDE MOLDING(B84) 		8-97359-160-0 01 1 0301-0301 ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM 8-97332-555-0 01 1 0211-0212 ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
BODY SIDE MOLDING(B84) 		8-97332-555-0 01 1 0211-0212 ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM 8-97359-159-0 01 1 0301-0301 ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
BODY SIDE MOLDING(B84) 		8-97359-159-0 01 1 0301-0301 ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. BODY SIDE MOLDING(B84) 		8-97332-553-0 01 1 0211-0212 ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. BODY SIDE MOLDING(B84) 		8-97359-156-0 01 1 0301-0301 ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. BODY SIDE MOLDING(B84) 		8-97332-552-0 01 1 0211-0212 ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. BODY SIDE MOLDING(B84) 		8-97359-155-0 01 1 0301-0301 ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
BODY SIDE MOLDING(B84) 		8-97332-560-0 01 1 0211-0212 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
BODY SIDE MOLDING(B84) 		8-97359-162-0 01 1 0301-0301 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
BODY SIDE MOLDING(B84) 		8-97332-559-0 01 1 0211-0212 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
BODY SIDE MOLDING(B84) 		8-97359-161-0 01 1 0301-0301 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. BODY SIDE MOLDING(B84) 		8-97332-558-0 01 1 0211-0212 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. BODY SIDE MOLDING(B84) 		8-97359-158-0 01 1 0301-0301 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. BODY SIDE MOLDING(B84) 		8-97332-557-0 01 1 0211-0212 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. BODY SIDE MOLDING(B84) 		8-97359-157-0 01 1 0301-0301 ● ●
2 16.152 PANEL; FRT DOOR OUTER 8-97365-988-0 01 1 0302- ● ● ●
2 16.152 PANEL; FRT DOOR OUTER
BODY SIDE MOLDING(B84) 		8-97365-988-0 01 1 0302- ● ● ●
2 16.152 PANEL; FRT DOOR OUTER 8-97365-989-0 01 1 0302- ● ● ●
2 16.152 PANEL; FRT DOOR OUTER
BODY SIDE MOLDING(B84) 		8-97365-989-0 01 1 0302- ● ● ●
2 16.152 PANEL; FRT DOOR OUTER
EXC. BODY SIDE MOLDING(B84) 		8-97365-984-0 01 1 0302- ● ● ●
2 16.152 PANEL; FRT DOOR OUTER
EXC. BODY SIDE MOLDING(B84) 		8-97365-985-0 01 1 0302- ● ● ●
2 16.152 PANEL; FRT DOOR OUTER
BODY SIDE MOLDING(B84) 		8-97365-990-0 01 1 0302- ● ●
2 16.152 PANEL; FRT DOOR OUTER
BODY SIDE MOLDING(B84) 		8-97365-991-0 01 1 0302- ● ●
2 16.152 PANEL; FRT DOOR OUTER
EXC. BODY SIDE MOLDING(B84) 		8-97365-986-0 01 1 0302- ● ●
2 16.152 PANEL; FRT DOOR OUTER
EXC. BODY SIDE MOLDING(B84) 		8-97365-987-0 01 1 0302- ● ●
2 16.152 PANEL; FRT DOOR OUTER 8-97250-088-2 01 1 0211-0301 ● ● ●
2 16.152 PANEL; FRT DOOR OUTER
BODY SIDE MOLDING(B84) 		8-97250-088-2 01 1 0211-0301 ● ● ●
2 16.152 PANEL; FRT DOOR OUTER 8-97250-087-2 01 1 0211-0301 ● ● ●
2 16.152 PANEL; FRT DOOR OUTER
BODY SIDE MOLDING(B84) 		8-97250-087-2 01 1 0211-0301 ● ● ●
2 16.152 PANEL; FRT DOOR OUTER
EXC. BODY SIDE MOLDING(B84) 		8-97235-452-2 01 1 0211-0301 ● ● ●
2 16.152 PANEL; FRT DOOR OUTER
EXC. BODY SIDE MOLDING(B84) 		8-97235-451-2 01 1 0211-0301 ● ● ●
2 16.152 PANEL; FRT DOOR OUTER
BODY SIDE MOLDING(B84) 		8-97250-090-2 01 1 0211-0301 ● ●
2 16.152 PANEL; FRT DOOR OUTER
BODY SIDE MOLDING(B84) 		8-97250-089-2 01 1 0211-0301 ● ●
2 16.152 PANEL; FRT DOOR OUTER
EXC. BODY SIDE MOLDING(B84) 		8-97235-325-2 01 1 0211-0301 ● ●
2 16.152 PANEL; FRT DOOR OUTER
EXC. BODY SIDE MOLDING(B84) 		8-97235-323-2 01 1 0211-0301 ● ●
3 16.320 HINGE; DOOR FRT
(A) 		8-97235-960-1 01 1 0302- ● ● ● ● ● ● ● ●
3 16.320 HINGE; DOOR FRT
(A) 		8-97235-961-1 01 1 0302- ● ● ● ● ● ● ● ●
3 16.320 HINGE; DOOR FRT
(B) 		8-97235-982-1 01 1 0302- ● ● ● ● ● ● ● ●
3 16.320 HINGE; DOOR FRT
(B) 		8-97235-984-1 01 1 0302- ● ● ● ● ● ● ● ●
3 16.320 HINGE; DOOR FRT
(A) 		8-97235-961-1 01 1 0211-0301 ● ● ● ● ● ● ● ●
3 16.320 HINGE; DOOR FRT
(B) 		8-97235-984-1 01 1 0211-0301 ● ● ● ● ● ● ● ●
3 16.320 HINGE; DOOR FRT
(A) 		8-97235-960-1 01 1 0211-0301 ● ● ● ● ● ● ● ●
3 16.320 HINGE; DOOR FRT
(B) 		8-97235-982-1 01 1 0211-0301 ● ● ● ● ● ● ● ●
5 16.320 BOLT; HINGE
10.463 M8X23 FLANGE 		8-94174-559-2 08 1 0211-0301 ● ● ● ● ● ● ● ●
5 16.320 BOLT; HINGE
10.463 M8X23 FLANGE 		8-94174-559-2 08 1 0211-0301 ● ● ●
5 16.320 BOLT; HINGE
CREW CAB EXTRA LONG(TF**WK) 10.463 M8X23 FLANGE 		8-94174-559-2 08 1 0211-0301 ●
5 16.320 BOLT; HINGE
10.463 M8X23 FLANGE 		8-94174-559-2 08 1 0302-0302 ● ● ● ● ● ● ● ●
5 16.320 BOLT; HINGE
10.463 M8X23 FLANGE 		8-94174-559-2 08 1 0303- ● ● ● ● ● ● ● ●
5 16.320 BOLT; HINGE
10.463 M8X23 FLANGE 		8-94174-559-2 08 1 0303- ● ● ●
5 16.320 BOLT; HINGE
CREW CAB EXTRA LONG(TF**WK) 10.463 M8X23 FLANGE 		8-94174-559-2 08 1 0303- ●
6 16.320 ARM; CHECK,FRT DOOR 8-97236-169-1 02 1 0211- ● ● ● ● ● ● ● ●
8 16.320 BOLT; CHECK ARM
16.323 M8X23 		8-97310-216-1 02 1 0211- ● ● ● ● ● ● ● ●
9 16.320 NUT; CHECK ARM
M6 FLANGE 		8-97943-101-0 04 1 0211- ● ● ● ● ● ● ● ●
103 16.165 PROTECTOR; FRT DOOR 8-97301-795-1 02 1 0211- ● ● ● ● ● ● ● ●
