◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50936 - TFR/TFS(AUSTRALIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#42351) — 165 parça

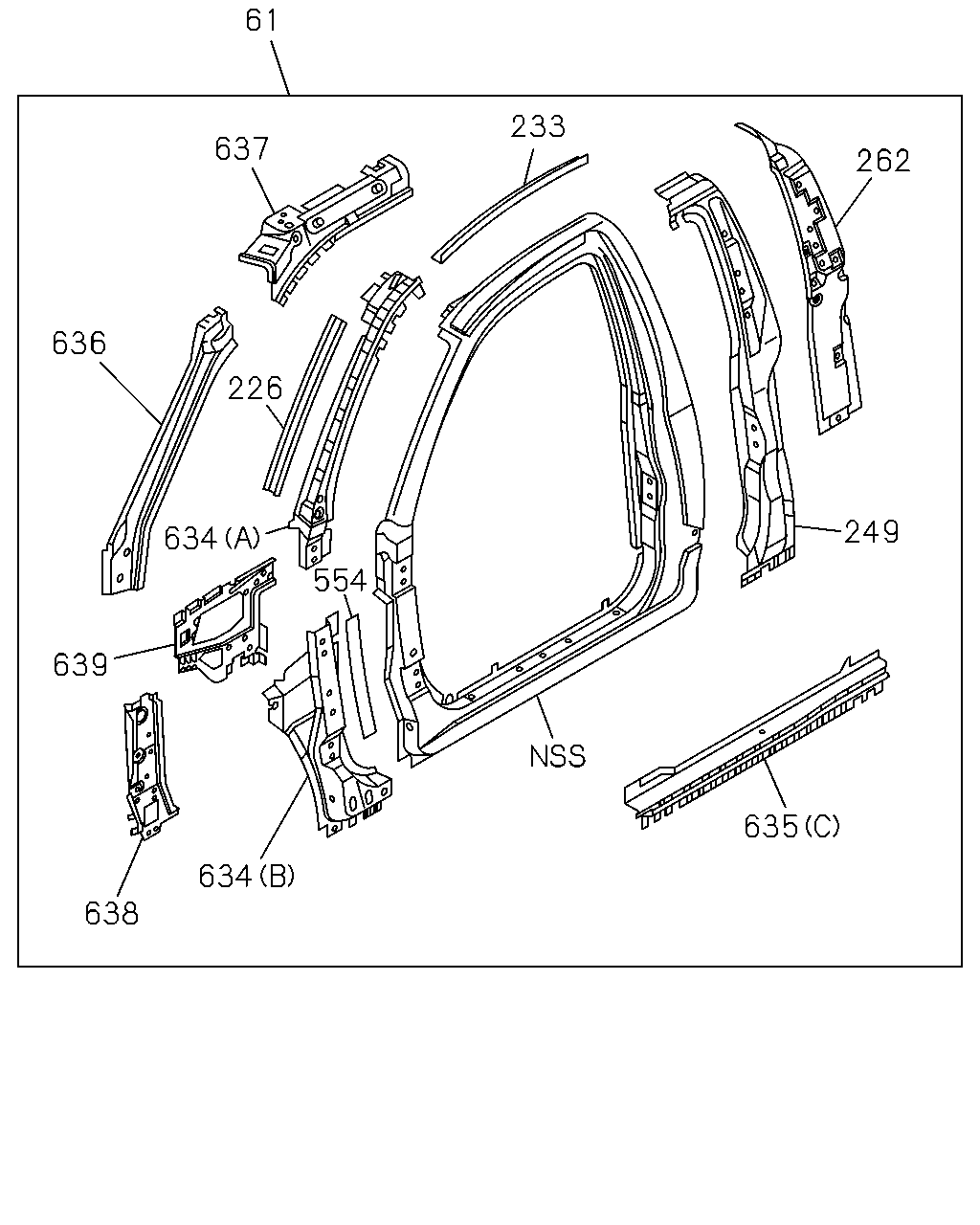

çizim 49853
61 233 637 262 636 226 249 634 554 639 635 634 638
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
61 16.570 PANEL; SIDE OUTER 8-97289-584-2 01 1 0211- ● ● ●
61 16.570 PANEL; SIDE OUTER
BODY SIDE MOLDING(B84) 		8-97289-584-2 01 1 0211- ●
61 16.570 PANEL; SIDE OUTER 8-97289-583-2 01 1 0211- ● ● ●
61 16.570 PANEL; SIDE OUTER
BODY SIDE MOLDING(B84) 		8-97289-583-2 01 1 0211- ●
61 16.570 PANEL; SIDE OUTER
BODY SIDE MOLDING(B84) 		8-97250-173-2 01 1 0211- ● ●
61 16.570 PANEL; SIDE OUTER
BODY SIDE MOLDING(B84) 		8-97250-172-2 01 1 0211- ● ●
61 16.570 PANEL; SIDE OUTER
EXC. BODY SIDE MOLDING(B84) 		8-97235-287-2 01 1 0211- ● ●
61 16.570 PANEL; SIDE OUTER
EXC. BODY SIDE MOLDING(B84) 		8-97235-286-2 01 1 0211- ● ●
61 16.570 PANEL; SIDE OUTER 8-97235-845-2 01 1 0211- ● ●
61 16.570 PANEL; SIDE OUTER 8-97235-843-2 01 1 0211- ● ●
61 16.570 PANEL; SIDE OUTER
EXC. BODY SIDE MOLDING(B84) 		8-97289-571-2 01 1 0211- ●
61 16.570 PANEL; SIDE OUTER
EXC. BODY SIDE MOLDING(B84) 		8-97289-570-2 01 1 0211- ●
226 16.585 RAIL; DRIP,FRT PILLAR 8-97235-067-2 01 1 0211- ● ● ● ● ● ● ● ●
226 16.585 RAIL; DRIP,FRT PILLAR 8-97235-066-2 01 1 0211- ● ● ● ● ● ● ● ●
233 16.585 RAIL; RR ROOF 8-97235-068-1 01 1 0211- ● ● ● ● ● ●
233 16.585 RAIL; RR ROOF 8-97235-069-1 01 1 0211- ● ● ● ● ● ●
233 16.585 RAIL; RR ROOF 8-93291-057-3 01 1 0211- ● ●
233 16.585 RAIL; RR ROOF 8-93367-929-3 01 1 0211- ● ●
249 16.674 REINFORCEMENT; RR PILLAR 8-97235-849-3 01 1 0211- ● ●
249 16.674 REINFORCEMENT; RR PILLAR 8-97235-848-3 01 1 0211- ● ●
262 16.575 PANEL; PILLAR 8-97235-308-6 01 1 0211- ● ●
262 16.575 PANEL; PILLAR 8-97235-309-6 01 1 0211- ● ●
554 16.570 SEAL; INNER BODY 8-94199-115-0 02 1 0211- ● ● ● ● ● ● ● ●
634 16.570 REINFORCEMENT; BODY SIDE INNER
(B) 		8-97234-979-1 01 1 0211- ● ● ● ● ● ● ● ●
634 16.570 REINFORCEMENT; BODY SIDE INNER
(A) 		8-97236-794-1 01 1 0211- ● ● ● ● ● ● ● ●
634 16.570 REINFORCEMENT; BODY SIDE INNER
(B) 		8-97234-978-1 01 1 0211- ● ● ● ● ● ● ● ●
634 16.570 REINFORCEMENT; BODY SIDE INNER
(A) 		8-97236-793-1 01 1 0211- ● ● ● ● ● ● ● ●
635 16.570 REINFORCEMENT; ROCKER
(B) 		8-97235-054-1 01 1 0211- ● ● ● ● ● ●
635 16.570 REINFORCEMENT; ROCKER
(B) 		8-97235-045-1 01 1 0211- ● ● ● ● ● ●
635 16.570 REINFORCEMENT; ROCKER
(A) 		8-97235-048-1 01 1 0211- ● ● ● ●
635 16.570 REINFORCEMENT; ROCKER
(A) 		8-97235-042-1 01 1 0211- ● ● ● ●
635 16.570 REINFORCEMENT; ROCKER
(C) 		8-97235-311-0 01 1 0211- ● ●
635 16.570 REINFORCEMENT; ROCKER
(C) 		8-97235-310-0 01 1 0211- ● ●
635 16.570 REINFORCEMENT; ROCKER
(D) 		8-97324-190-1 01 1 0211- ● ●
635 16.570 REINFORCEMENT; ROCKER
(D) 		8-97324-189-1 01 1 0211- ● ●
636 16.570 PANEL; FRONT PILLAR INNER 8-97235-072-4 01 1 0211- ● ● ● ● ● ● ● ●
636 16.570 PANEL; FRONT PILLAR INNER 8-97235-070-4 01 1 0211- ● ● ● ● ● ● ● ●
637 16.570 PANEL; ROOF SIDE INNER 8-97235-079-3 01 1 0211- ● ● ● ● ● ● ● ●
637 16.570 PANEL; ROOF SIDE INNER 8-97235-078-3 01 1 0211- ● ● ● ● ● ● ● ●
638 16.570 PANEL; DASH SIDE INNER 8-97235-085-1 01 1 0211- ● ● ● ● ● ● ● ●
638 16.570 PANEL; DASH SIDE INNER 8-97235-084-1 01 1 0211- ● ● ● ● ● ● ● ●
639 16.570 REINFORCEMENT; COWL SIDE 8-97235-058-2 01 1 0211- ● ● ● ● ● ● ● ●
639 16.570 REINFORCEMENT; COWL SIDE 8-97235-057-2 01 1 0211- ● ● ● ● ● ● ● ●

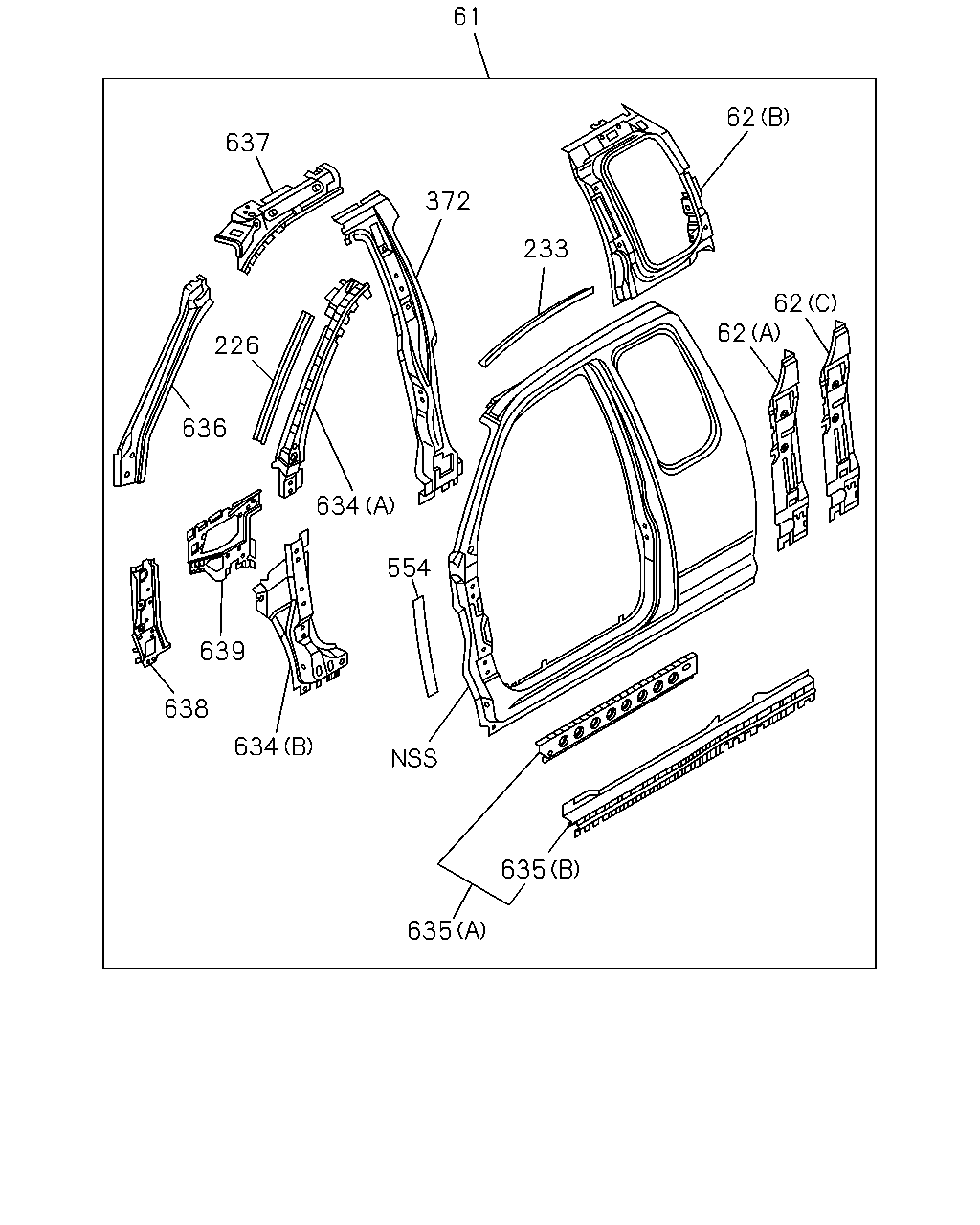

çizim 49910
61 62 637 372 233 62 62 226 636 634 554 639 638 634 635 635
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
61 16.570 PANEL; SIDE OUTER 8-97289-584-2 01 1 0211- ● ● ●
61 16.570 PANEL; SIDE OUTER
BODY SIDE MOLDING(B84) 		8-97289-584-2 01 1 0211- ●
61 16.570 PANEL; SIDE OUTER 8-97289-583-2 01 1 0211- ● ● ●
61 16.570 PANEL; SIDE OUTER
BODY SIDE MOLDING(B84) 		8-97289-583-2 01 1 0211- ●
61 16.570 PANEL; SIDE OUTER
BODY SIDE MOLDING(B84) 		8-97250-173-2 01 1 0211- ● ●
61 16.570 PANEL; SIDE OUTER
BODY SIDE MOLDING(B84) 		8-97250-172-2 01 1 0211- ● ●
61 16.570 PANEL; SIDE OUTER
EXC. BODY SIDE MOLDING(B84) 		8-97235-287-2 01 1 0211- ● ●
61 16.570 PANEL; SIDE OUTER
EXC. BODY SIDE MOLDING(B84) 		8-97235-286-2 01 1 0211- ● ●
61 16.570 PANEL; SIDE OUTER 8-97235-845-2 01 1 0211- ● ●
61 16.570 PANEL; SIDE OUTER 8-97235-843-2 01 1 0211- ● ●
61 16.570 PANEL; SIDE OUTER
EXC. BODY SIDE MOLDING(B84) 		8-97289-571-2 01 1 0211- ●
61 16.570 PANEL; SIDE OUTER
EXC. BODY SIDE MOLDING(B84) 		8-97289-570-2 01 1 0211- ●
62 16.570 PANEL; BODY SIDE INNER
(C) 		8-97233-438-5 01 1 0211- ● ● ● ●
62 16.570 PANEL; BODY SIDE INNER
16.550 (C) 		8-97233-439-5 01 1 0211- ● ● ● ●
62 16.570 PANEL; BODY SIDE INNER
(B) 		8-97325-897-3 01 1 0211-0211 ● ● ● ●
62 16.570 PANEL; BODY SIDE INNER
(B) 		8-97357-972-0 01 1 0211- ● ● ● ●
62 16.570 PANEL; BODY SIDE INNER
(B) 		8-97325-898-3 01 1 0211-0211 ● ● ● ●
62 16.570 PANEL; BODY SIDE INNER
(B) 		8-97357-973-0 01 1 0211- ● ● ● ●
62 16.570 PANEL; BODY SIDE INNER
(A) 		8-97235-775-3 01 1 0211- ● ● ● ●
62 16.570 PANEL; BODY SIDE INNER
(A) 		8-97235-774-3 01 1 0211- ● ● ● ●
226 16.585 RAIL; DRIP,FRT PILLAR 8-97235-067-2 01 1 0211- ● ● ● ● ● ● ● ●
226 16.585 RAIL; DRIP,FRT PILLAR 8-97235-066-2 01 1 0211- ● ● ● ● ● ● ● ●
233 16.585 RAIL; RR ROOF 8-97235-068-1 01 1 0211- ● ● ● ● ● ●
233 16.585 RAIL; RR ROOF 8-97235-069-1 01 1 0211- ● ● ● ● ● ●
233 16.585 RAIL; RR ROOF 8-93291-057-3 01 1 0211- ● ●
233 16.585 RAIL; RR ROOF 8-93367-929-3 01 1 0211- ● ●
372 16.575 REINFORCEMENT; CENTER PILLAR 8-97235-022-3 01 1 0211- ● ● ● ●
372 16.575 REINFORCEMENT; CENTER PILLAR 8-97235-021-3 01 1 0211- ● ● ● ●
372 16.575 REINFORCEMENT; CENTER PILLAR 8-93333-501-5 01 1 0211- ● ●
372 16.575 REINFORCEMENT; CENTER PILLAR 8-93333-502-5 01 1 0211- ● ●
554 16.570 SEAL; INNER BODY 8-94199-115-0 02 1 0211- ● ● ● ● ● ● ● ●
634 16.570 REINFORCEMENT; BODY SIDE INNER
(B) 		8-97234-979-1 01 1 0211- ● ● ● ● ● ● ● ●
634 16.570 REINFORCEMENT; BODY SIDE INNER
(A) 		8-97236-794-1 01 1 0211- ● ● ● ● ● ● ● ●
634 16.570 REINFORCEMENT; BODY SIDE INNER
(B) 		8-97234-978-1 01 1 0211- ● ● ● ● ● ● ● ●
634 16.570 REINFORCEMENT; BODY SIDE INNER
(A) 		8-97236-793-1 01 1 0211- ● ● ● ● ● ● ● ●
635 16.570 REINFORCEMENT; ROCKER
(B) 		8-97235-054-1 01 1 0211- ● ● ● ● ● ●
635 16.570 REINFORCEMENT; ROCKER
(B) 		8-97235-045-1 01 1 0211- ● ● ● ● ● ●
635 16.570 REINFORCEMENT; ROCKER
(A) 		8-97235-048-1 01 1 0211- ● ● ● ●
635 16.570 REINFORCEMENT; ROCKER
(A) 		8-97235-042-1 01 1 0211- ● ● ● ●
635 16.570 REINFORCEMENT; ROCKER
(C) 		8-97235-311-0 01 1 0211- ● ●
635 16.570 REINFORCEMENT; ROCKER
(C) 		8-97235-310-0 01 1 0211- ● ●
635 16.570 REINFORCEMENT; ROCKER
(D) 		8-97324-190-1 01 1 0211- ● ●
635 16.570 REINFORCEMENT; ROCKER
(D) 		8-97324-189-1 01 1 0211- ● ●
636 16.570 PANEL; FRONT PILLAR INNER 8-97235-072-4 01 1 0211- ● ● ● ● ● ● ● ●
636 16.570 PANEL; FRONT PILLAR INNER 8-97235-070-4 01 1 0211- ● ● ● ● ● ● ● ●
637 16.570 PANEL; ROOF SIDE INNER 8-97235-079-3 01 1 0211- ● ● ● ● ● ● ● ●
637 16.570 PANEL; ROOF SIDE INNER 8-97235-078-3 01 1 0211- ● ● ● ● ● ● ● ●
638 16.570 PANEL; DASH SIDE INNER 8-97235-085-1 01 1 0211- ● ● ● ● ● ● ● ●
638 16.570 PANEL; DASH SIDE INNER 8-97235-084-1 01 1 0211- ● ● ● ● ● ● ● ●
639 16.570 REINFORCEMENT; COWL SIDE 8-97235-058-2 01 1 0211- ● ● ● ● ● ● ● ●
639 16.570 REINFORCEMENT; COWL SIDE 8-97235-057-2 01 1 0211- ● ● ● ● ● ● ● ●

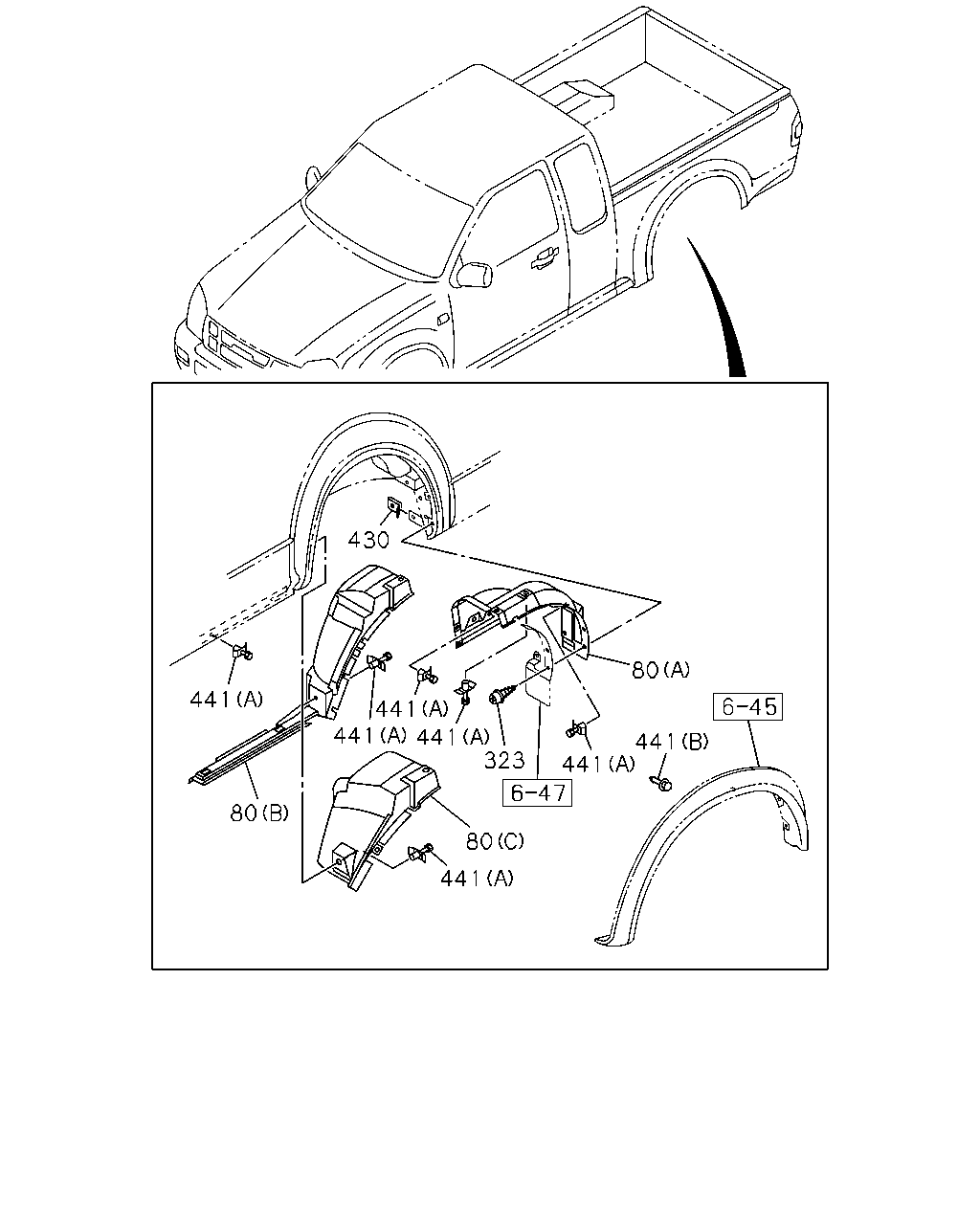

çizim 50988
430 80 441 441 323 441 441 80 80 441 441 441
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
80 08.153 PANEL; WHEEL HOUSE,INNER
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (A) 		8-97234-864-1 01 1 0211- ● ● ● ●
80 08.153 PANEL; WHEEL HOUSE,INNER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (A) 		8-97234-864-1 01 1 0211- ●
80 08.153 PANEL; WHEEL HOUSE,INNER
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (A) 		8-97234-863-1 01 1 0211- ● ● ● ●
80 08.153 PANEL; WHEEL HOUSE,INNER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (A) 		8-97234-863-1 01 1 0211- ●
80 08.153 PANEL; WHEEL HOUSE,INNER
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 17.455 (B) 		8-97234-872-2 01 1 0211- ● ●
80 08.153 PANEL; WHEEL HOUSE,INNER
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 17.455 (B) 		8-97234-870-3 01 1 0211- ● ●
80 08.153 PANEL; WHEEL HOUSE,INNER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 17.455 (B) 		8-97234-867-2 01 1 0211- ●
80 08.153 PANEL; WHEEL HOUSE,INNER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 17.455 (B) 		8-97234-866-3 01 1 0211- ●
80 08.153 PANEL; WHEEL HOUSE,INNER
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 17.455 (C) 		8-97234-875-1 01 1 0211- ● ●
80 08.153 PANEL; WHEEL HOUSE,INNER
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 17.455 (C) 		8-97234-874-1 01 1 0211- ● ●
323 08.155 SCREW; SET
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) M6X20 W/PL WASHER TAPPING 		8-94321-767-1 08 1 0211- ● ● ● ●
323 08.155 SCREW; SET
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) M6X20 W/PL WASHER TAPPING 		8-94321-767-1 08 1 0211- ●
430 16.570 NUT; PANEL
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 08.155 		8-97125-519-0 08 1 0211- ● ● ● ●
430 16.570 NUT; PANEL
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 08.155 		8-97125-519-0 08 1 0211- ●
441 07.829 CLIP
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 08.154 (A) 		8-94221-150-0 06 1 0211- ● ● ● ●
441 07.829 CLIP
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 08.154 (A) 		8-94221-150-0 06 1 0211- ●
441 07.829 CLIP
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 08.154 (A) 		8-94221-150-0 12 1 0211- ● ●
441 07.829 CLIP
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 08.154 (A) 		8-94221-150-0 14 1 0211- ●
441 07.829 CLIP
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) OVER FENDER<6GH> (B) 		8-97117-942-0 10 1 0211- ●
441 07.829 CLIP
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (B) 		8-97117-942-0 10 1 0211- ●
441 07.829 CLIP
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 08.154 (A) 		8-94221-150-0 10 1 0211- ● ●

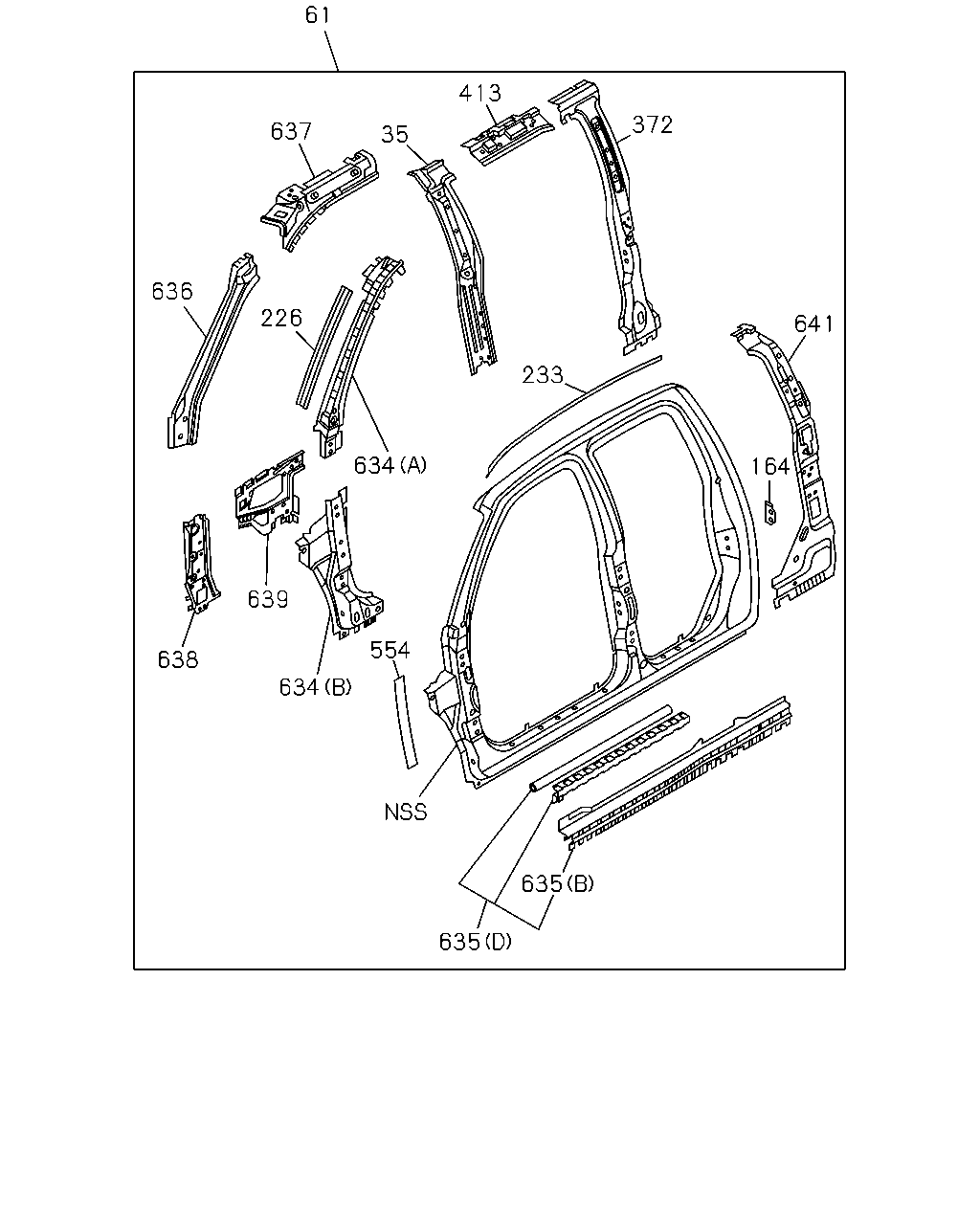

çizim 53354
61 413 372 637 35 636 226 641 233 634 164 639 554 638 634 635 635
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
35 16.570 PANEL; CENTER PILLAR,INNER 8-93291-049-3 01 1 0211- ● ●
35 16.570 PANEL; CENTER PILLAR,INNER 8-93291-050-3 01 1 0211- ● ●
61 16.570 PANEL; SIDE OUTER 8-97289-584-2 01 1 0211- ● ● ●
61 16.570 PANEL; SIDE OUTER
BODY SIDE MOLDING(B84) 		8-97289-584-2 01 1 0211- ●
61 16.570 PANEL; SIDE OUTER 8-97289-583-2 01 1 0211- ● ● ●
61 16.570 PANEL; SIDE OUTER
BODY SIDE MOLDING(B84) 		8-97289-583-2 01 1 0211- ●
61 16.570 PANEL; SIDE OUTER
BODY SIDE MOLDING(B84) 		8-97250-173-2 01 1 0211- ● ●
61 16.570 PANEL; SIDE OUTER
BODY SIDE MOLDING(B84) 		8-97250-172-2 01 1 0211- ● ●
61 16.570 PANEL; SIDE OUTER
EXC. BODY SIDE MOLDING(B84) 		8-97235-287-2 01 1 0211- ● ●
61 16.570 PANEL; SIDE OUTER
EXC. BODY SIDE MOLDING(B84) 		8-97235-286-2 01 1 0211- ● ●
61 16.570 PANEL; SIDE OUTER 8-97235-845-2 01 1 0211- ● ●
61 16.570 PANEL; SIDE OUTER 8-97235-843-2 01 1 0211- ● ●
61 16.570 PANEL; SIDE OUTER
EXC. BODY SIDE MOLDING(B84) 		8-97289-571-2 01 1 0211- ●
61 16.570 PANEL; SIDE OUTER
EXC. BODY SIDE MOLDING(B84) 		8-97289-570-2 01 1 0211- ●
164 16.570 PLATE; SIDE PNL OUTER 8-93297-532-1 02 1 0211- ● ●
226 16.585 RAIL; DRIP,FRT PILLAR 8-97235-067-2 01 1 0211- ● ● ● ● ● ● ● ●
226 16.585 RAIL; DRIP,FRT PILLAR 8-97235-066-2 01 1 0211- ● ● ● ● ● ● ● ●
233 16.585 RAIL; RR ROOF 8-97235-068-1 01 1 0211- ● ● ● ● ● ●
233 16.585 RAIL; RR ROOF 8-97235-069-1 01 1 0211- ● ● ● ● ● ●
233 16.585 RAIL; RR ROOF 8-93291-057-3 01 1 0211- ● ●
233 16.585 RAIL; RR ROOF 8-93367-929-3 01 1 0211- ● ●
372 16.575 REINFORCEMENT; CENTER PILLAR 8-97235-022-3 01 1 0211- ● ● ● ●
372 16.575 REINFORCEMENT; CENTER PILLAR 8-97235-021-3 01 1 0211- ● ● ● ●
372 16.575 REINFORCEMENT; CENTER PILLAR 8-93333-501-5 01 1 0211- ● ●
372 16.575 REINFORCEMENT; CENTER PILLAR 8-93333-502-5 01 1 0211- ● ●
413 16.570 PANEL; RR SIDE 8-93297-655-2 01 1 0211- ● ●
413 16.570 PANEL; RR SIDE 8-93297-656-2 01 1 0211- ● ●
554 16.570 SEAL; INNER BODY 8-94199-115-0 02 1 0211- ● ● ● ● ● ● ● ●
634 16.570 REINFORCEMENT; BODY SIDE INNER
(B) 		8-97234-979-1 01 1 0211- ● ● ● ● ● ● ● ●
634 16.570 REINFORCEMENT; BODY SIDE INNER
(A) 		8-97236-794-1 01 1 0211- ● ● ● ● ● ● ● ●
634 16.570 REINFORCEMENT; BODY SIDE INNER
(B) 		8-97234-978-1 01 1 0211- ● ● ● ● ● ● ● ●
634 16.570 REINFORCEMENT; BODY SIDE INNER
(A) 		8-97236-793-1 01 1 0211- ● ● ● ● ● ● ● ●
635 16.570 REINFORCEMENT; ROCKER
(B) 		8-97235-054-1 01 1 0211- ● ● ● ● ● ●
635 16.570 REINFORCEMENT; ROCKER
(B) 		8-97235-045-1 01 1 0211- ● ● ● ● ● ●
635 16.570 REINFORCEMENT; ROCKER
(A) 		8-97235-048-1 01 1 0211- ● ● ● ●
635 16.570 REINFORCEMENT; ROCKER
(A) 		8-97235-042-1 01 1 0211- ● ● ● ●
635 16.570 REINFORCEMENT; ROCKER
(C) 		8-97235-311-0 01 1 0211- ● ●
635 16.570 REINFORCEMENT; ROCKER
(C) 		8-97235-310-0 01 1 0211- ● ●
635 16.570 REINFORCEMENT; ROCKER
(D) 		8-97324-190-1 01 1 0211- ● ●
635 16.570 REINFORCEMENT; ROCKER
(D) 		8-97324-189-1 01 1 0211- ● ●
636 16.570 PANEL; FRONT PILLAR INNER 8-97235-072-4 01 1 0211- ● ● ● ● ● ● ● ●
636 16.570 PANEL; FRONT PILLAR INNER 8-97235-070-4 01 1 0211- ● ● ● ● ● ● ● ●
637 16.570 PANEL; ROOF SIDE INNER 8-97235-079-3 01 1 0211- ● ● ● ● ● ● ● ●
637 16.570 PANEL; ROOF SIDE INNER 8-97235-078-3 01 1 0211- ● ● ● ● ● ● ● ●
638 16.570 PANEL; DASH SIDE INNER 8-97235-085-1 01 1 0211- ● ● ● ● ● ● ● ●
638 16.570 PANEL; DASH SIDE INNER 8-97235-084-1 01 1 0211- ● ● ● ● ● ● ● ●
639 16.570 REINFORCEMENT; COWL SIDE 8-97235-058-2 01 1 0211- ● ● ● ● ● ● ● ●
639 16.570 REINFORCEMENT; COWL SIDE 8-97235-057-2 01 1 0211- ● ● ● ● ● ● ● ●
641 16.570 PANEL; BACK BODY PILLER 8-97357-963-0 02 1 0211- ● ●
641 16.570 PANEL; BACK BODY PILLER 8-97357-964-0 02 1 0211- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
