0-30A — WATER PUMP AND CORROSION RESISTOR (#4235) — 86 parça

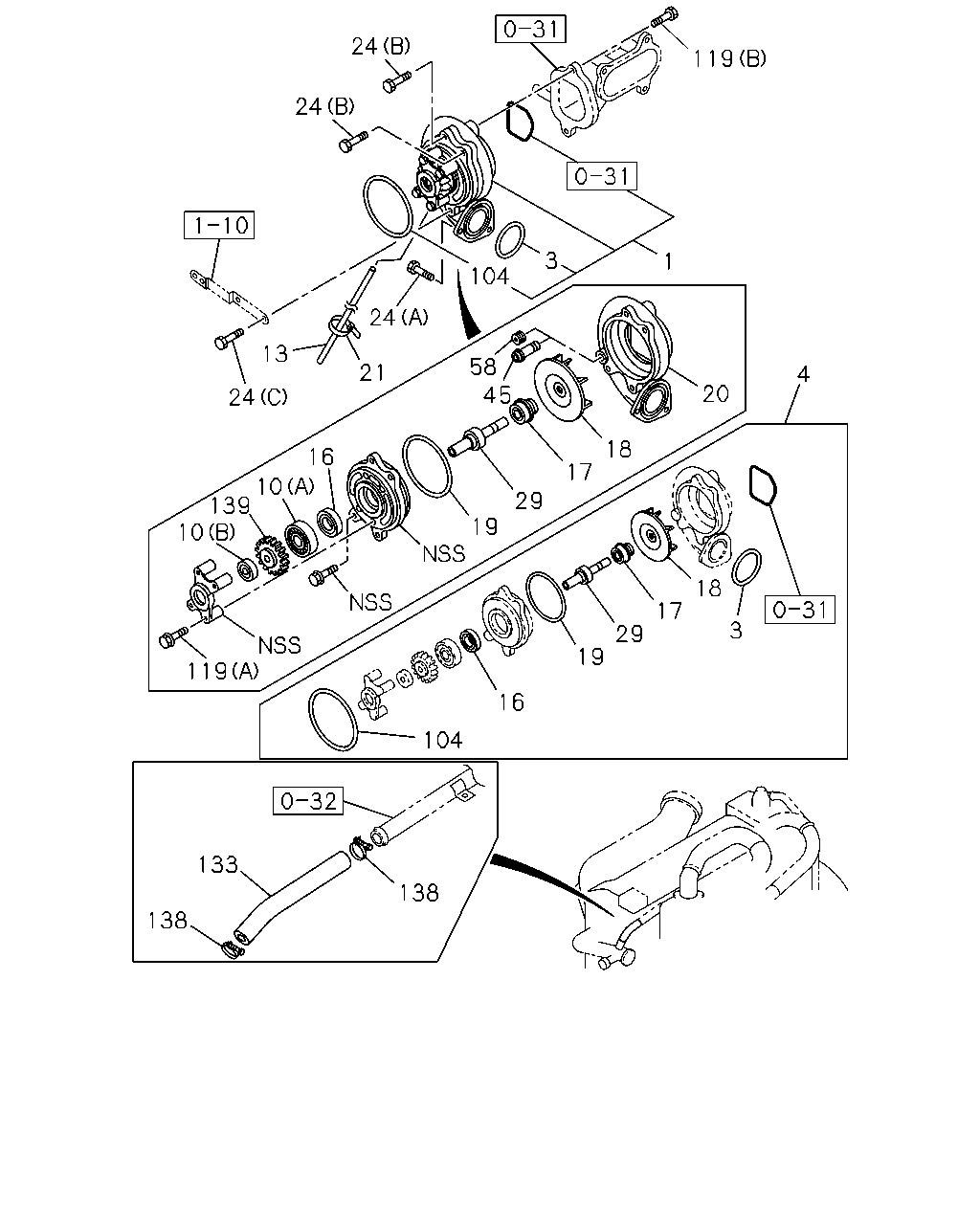

çizim 39767
24 119 24 3 1 104 24 13 58 45 21 4 20 24 18 16 17 10 139 10 29 19 18 17 3 29 19 119 16 104 133 138 138
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 PUMP ASM; WATER,W/GASKET
HEATER & DEFROSTER(C41) 		1-13650-006-0 01 1 9603-9706 ●
1 PUMP ASM; WATER,W/GASKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13650-006-0 01 1 9707-9711 ●
1 PUMP ASM; WATER,W/GASKET 1-13650-006-0 01 1 9707-9711 ●
1 PUMP ASM; WATER,W/GASKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13650-057-0 01 1 9712-9904 ●
1 PUMP ASM; WATER,W/GASKET 1-13650-057-0 01 1 9712-9904 ●
1 PUMP ASM; WATER,W/GASKET 1-13650-057-2 01 1 9905- ● ● ●
1 PUMP ASM; WATER,W/GASKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13650-057-2 01 1 9905- ●
1 PUMP ASM; WATER,W/GASKET
EXC. HEATER & DEFROSTER(C41) 		1-13650-007-0 01 1 9603-9711 ●
1 PUMP ASM; WATER,W/GASKET
EXC. HEATER & DEFROSTER(C41) 		1-13650-058-0 01 1 9712-9904 ●
1 PUMP ASM; WATER,W/GASKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13650-058-2 01 1 9905- ●
3 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-586-1 01 1 9603-9706 ●
3 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-586-1 01 1 9707-9904 ● ●
3 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-586-1 01 1 9905- ● ● ● ●
4 REPAIR KIT; WATER PUMP 1-87811-065-1 01 1 9603-9706 ●
4 REPAIR KIT; WATER PUMP 1-87811-065-1 01 1 9707-9711 ● ●
4 REPAIR KIT; WATER PUMP 1-87811-843-0 01 1 9712-9904 ● ●
4 REPAIR KIT; WATER PUMP 1-87811-843-0 01 1 9905- ● ● ● ●
10 BEARING; WATER PUMP
(A) 		1-09800-252-0 01 1 9603-9706 ●
10 BEARING; WATER PUMP
(A) 		1-09800-252-0 01 1 9707-9904 ● ●
10 BEARING; WATER PUMP
(A) 		1-09800-252-0 01 1 9905- ● ● ● ●
10 BEARING; WATER PUMP
(B) 		1-09800-253-0 01 1 9603-9706 ●
10 BEARING; WATER PUMP
(B) 		1-09800-253-0 01 1 9707-9904 ● ●
10 BEARING; WATER PUMP
(B) 		1-09800-253-0 01 1 9905- ● ● ● ●
13 HOSE; FLEX
L=520 SERVICED BY L=10000 		9-09914-909-0 01 1 9603-9706 ●
13 HOSE; FLEX
L=520 SERVICED BY L=10000 		9-09914-909-0 01 1 9707-9904 ● ●
13 HOSE; FLEX
L=520 SERVICED BY L=10000 		9-09914-909-0 01 1 9905-0003 ● ● ● ●
16 SEAL; OIL,WATER PUMP 1-09625-551-0 01 1 9603-9706 ●
16 SEAL; OIL,WATER PUMP 1-09625-551-0 01 1 9707-9904 ● ●
16 SEAL; OIL,WATER PUMP 1-09625-551-0 01 1 9905- ● ● ● ●
17 SEAL UNIT; WATER PUMP 8-94395-036-0 01 1 9603-9706 ●
17 SEAL UNIT; WATER PUMP 8-94395-036-0 01 1 9707-9711 ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 9712-9812 ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 9901-9904 ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 9905- ● ● ● ●
18 IMPELLER; WATER PUMP 1-13621-049-0 01 1 9603-9706 ●
18 IMPELLER; WATER PUMP 1-13621-049-0 01 1 9707-9904 ● ●
18 IMPELLER; WATER PUMP 1-13621-049-0 01 1 9905- ● ● ● ●
19 GASKET; COVER TO BODY 1-09623-587-0 01 1 9603-9706 ●
19 GASKET; COVER TO BODY 1-09623-587-0 01 1 9707-9904 ● ●
19 GASKET; COVER TO BODY 1-09623-587-0 01 1 9905- ● ● ● ●
20 COVER; WATER PUMP 1-13612-041-0 01 1 9603-9706 ●
20 COVER; WATER PUMP 1-13612-041-0 01 1 9707-9904 ● ●
20 COVER; WATER PUMP 1-13612-041-1 01 1 9905- ● ● ● ●
21 CLIP; FLEX HOSE,W/PUMP
L=140 		5-09707-031-0 01 1 9603-9706 ●
21 CLIP; FLEX HOSE,W/PUMP
L=140 		5-09707-031-1 01 1 9707-9904 ● ●
21 CLIP; FLEX HOSE,W/PUMP
L=140 		5-09707-031-1 01 1 9905-0003 ● ● ● ●
24 BOLT; WATER PUMP
(A) M10X25 FLANGE 		0-28181-025-0 02 1 9603-9706 ●
24 BOLT; WATER PUMP
(A) M10X25 FLANGE 		0-28181-025-0 02 1 9707-9904 ● ●
24 BOLT; WATER PUMP
(A) M10X25 FLANGE 		0-28181-025-0 02 1 9905- ● ● ● ●
24 BOLT; WATER PUMP
(B) M10X90 FLANGE 		0-28181-090-0 02 1 9603-9706 ●
24 BOLT; WATER PUMP
(B) M10X90 FLANGE 		0-28181-090-0 02 1 9707-9904 ● ●
24 BOLT; WATER PUMP
(B) M10X90 FLANGE 		0-28181-090-0 02 1 9905- ● ● ● ●
24 BOLT; WATER PUMP
(C) M10X95 FLANGE 		8-94397-027-1 02 1 9603-9706 ●
24 BOLT; WATER PUMP
(C) M10X95 FLANGE 		8-94397-027-1 02 1 9707-9904 ● ●
24 BOLT; WATER PUMP
(C) M10X95 FLANGE 		8-94397-027-1 02 1 9905- ● ● ● ●
29 SHAFT; WATER PUMP 1-13631-078-1 01 1 9603-9706 ●
29 SHAFT; WATER PUMP 1-13631-078-1 01 1 9707-9904 ● ●
29 SHAFT; WATER PUMP 1-13631-078-1 01 1 9905- ● ● ● ●
45 JOINT; HTR HOSE,WATER PUMP
HEATER & DEFROSTER(C41) PT3/8 & OD=18.3 L=47 		9-09903-631-0 01 1 9603-9706 ●
45 JOINT; HTR HOSE,WATER PUMP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) PT3/8 & OD=18.3 L=47 		9-09903-631-0 01 1 9707-9904 ●
45 JOINT; HTR HOSE,WATER PUMP
PT3/8 & OD=18.3 L=47 		9-09903-631-0 01 1 9707-9904 ●
45 JOINT; HTR HOSE,WATER PUMP
PT3/8 & OD=18.3 L=47 		9-09903-631-0 01 1 9905- ● ● ●
45 JOINT; HTR HOSE,WATER PUMP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) PT3/8 & OD=18.3 L=47 		9-09903-631-0 01 1 9905- ●
58 PLUG; HTR
EXC. HEATER & DEFROSTER(C41) PT3/8 		9-99205-517-0 01 1 9603-9904 ●
58 PLUG; HTR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) PT3/8 		9-99205-517-0 01 1 9908-0003 ●
58 PLUG; HTR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) PT3/8 		5-09605-005-0 01 1 0004- ●
104 GASKET; WATER PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-494-0 01 1 9603-9706 ●
104 GASKET; WATER PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-494-0 01 1 9707-9904 ● ●
104 GASKET; WATER PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-494-0 01 1 9905- ● ● ● ●
119 BOLT; PUMP COVER
(A) M8X40 FLANGE 		0-28080-840-0 04 1 9603-9706 ●
119 BOLT; PUMP COVER
(A) M8X40 FLANGE 		0-28080-840-0 04 1 9707-9904 ● ●
119 BOLT; PUMP COVER
(A) M8X40 FLANGE 		0-28080-840-0 04 1 9905- ● ● ● ●
119 BOLT; PUMP COVER
(B) M10X25 W/LK&PL WASHER 		0-50151-025-0 01 1 9603-9706 ●
119 BOLT; PUMP COVER
(B) M10X25 W/LK&PL WASHER 		0-50151-025-0 01 1 9707-9904 ● ●
119 BOLT; PUMP COVER
(B) M10X25 W/LK&PL WASHER 		0-50151-025-0 01 1 9905-0003 ● ● ● ●
119 BOLT; PUMP COVER
(B) M10X20 		0-23801-020-0 01 1 0004- ● ● ● ●
133 HOSE; RUBBER,WATER PIPE
L=270 		0-03230-270-0 01 1 9603-9706 ●
133 HOSE; RUBBER,WATER PIPE
L=270 		0-03230-270-0 01 1 9707-9904 ● ●
133 HOSE; RUBBER,WATER PIPE
L=270 		0-03230-270-0 01 1 9905-0103 ● ● ● ●
133 HOSE; RUBBER,WATER PIPE
L=270 SERVICED BY L=3000 		0-03580-300-0 01 1 0104- ● ● ● ●
138 CLIP; RUBBER HOSE
ID=44 		1-09704-077-0 02 1 9603-9706 ●
138 CLIP; RUBBER HOSE
ID=44 		1-09704-077-0 02 1 9707-9904 ● ●
138 CLIP; RUBBER HOSE
ID=44 		1-09704-077-0 02 1 9905- ● ● ● ●
139 GEAR; WATER PUMP,DRIVE 1-13641-168-0 01 1 9603-9706 ●
139 GEAR; WATER PUMP,DRIVE 1-13641-168-0 01 1 9707-9904 ● ●
139 GEAR; WATER PUMP,DRIVE 1-13641-168-0 01 1 9905- ● ● ● ●
