6-05 — FRONT PANEL (#42347) — 30 parça

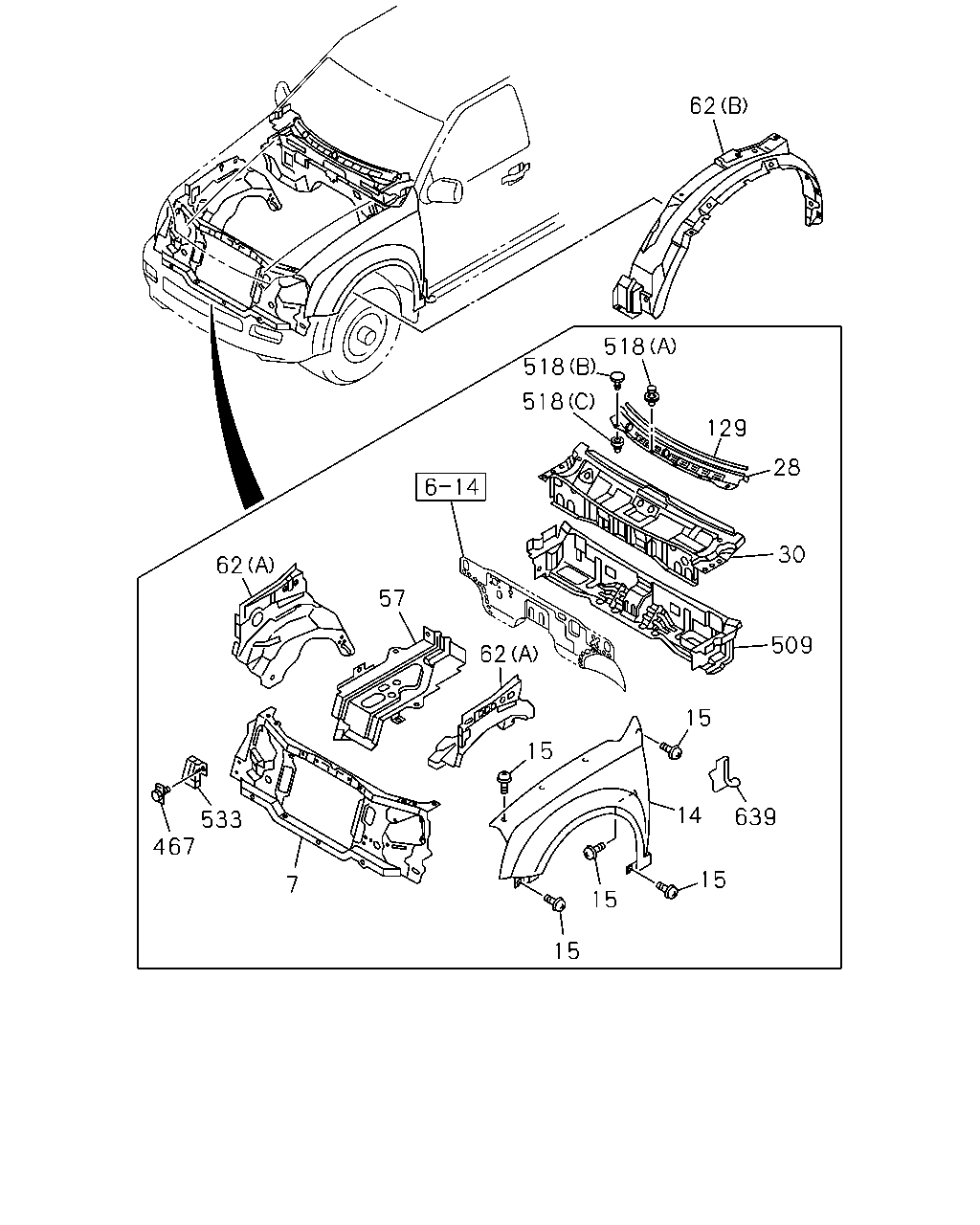

çizim 51031
62 518 518 518 129 28 30 62 57 509 62 15 15 533 467 14 639 15 7 15 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
7 01.271 PANEL; DEFLECTOR 8-97234-873-4 01 1 0211-0302 ● ● ● ● ● ● ● ●
7 01.271 PANEL; DEFLECTOR 8-97366-938-0 01 1 0303- ● ● ● ● ● ● ● ●
14 08.130 FENDER; FRT
OVER FENDER<6GH> 		8-97234-755-6 01 1 0211- ● ● ● ●
14 08.130 FENDER; FRT 8-97234-755-6 01 1 0211- ● ● ● ●
14 08.130 FENDER; FRT
OVER FENDER<6GH> 		8-97234-754-6 01 1 0211- ● ● ● ●
14 08.130 FENDER; FRT 8-97234-754-6 01 1 0211- ● ● ● ●
14 08.130 FENDER; FRT
EXC. OVER FENDER<6GH> 		8-97234-753-6 01 1 0211- ● ● ● ●
14 08.130 FENDER; FRT
EXC. OVER FENDER<6GH> 		8-97234-752-6 01 1 0211- ● ● ● ●
15 08.143 BOLT; FENDER
M6X15 W/LK&PL WASHER 		8-97172-961-1 16 1 0211- ● ● ● ● ● ● ● ●
28 16.125 COVER; DASH COWL 8-97333-288-0 01 1 0211-0211 ● ● ● ● ● ● ● ●
28 16.125 COVER; DASH COWL 8-97363-072-0 01 1 0212- ● ● ● ● ● ● ● ●
30 16.125 PANEL; COWL UPR 8-97234-339-4 01 1 0211- ● ● ● ● ● ● ● ●
57 02.333 TRAY; BATTERY 8-97326-537-1 01 1 0211-0212 ● ● ● ● ● ● ● ●
57 02.333 TRAY; BATTERY 8-97326-537-1 01 1 0301- ● ● ● ● ● ● ● ●
62 08.153 PANEL; WHEEL HOUSE
OVER FENDER<6GH> (B) 		8-97353-569-0 01 1 0211- ● ● ● ●
62 08.153 PANEL; WHEEL HOUSE
(B) 		8-97353-569-0 01 1 0211- ● ● ● ●
62 08.153 PANEL; WHEEL HOUSE
EXC. OVER FENDER<6GH> (B) 		8-97313-150-2 01 1 0211- ● ● ● ●
62 08.153 PANEL; WHEEL HOUSE
(B) 		8-97235-443-1 01 1 0211- ● ● ● ● ● ● ● ●
62 08.153 PANEL; WHEEL HOUSE
(A) 		8-97358-317-0 01 1 0211-0212 ● ● ● ● ● ● ● ●
62 08.153 PANEL; WHEEL HOUSE
(A) 		8-97363-273-0 01 1 0301- ● ● ● ● ● ● ● ●
62 08.153 PANEL; WHEEL HOUSE
(A) 		8-97234-964-4 01 1 0211- ● ● ● ● ● ● ● ●
129 16.125 FINISHER; COWL COVER 8-97333-282-1 01 1 0211- ● ● ● ● ● ● ● ●
467 08.309 RIVET; PLASTIC,DRIP MOLDING
08.154 		8-94221-150-0 01 1 0211- ● ● ● ● ● ● ● ●
509 16.550 PANEL; DASH 8-97234-356-2 01 1 0211- ● ● ● ● ● ● ● ●
518 16.125 SCREW; BRKT,COWL COVER
03.015 (A) 		8-97013-997-0 05 1 0211- ● ● ● ● ● ● ● ●
518 16.125 SCREW; BRKT,COWL COVER
(B) 		8-97329-760-0 01 1 0211- ● ● ● ● ● ● ● ●
518 16.125 SCREW; BRKT,COWL COVER
(C) 		8-97329-761-0 01 1 0211- ● ● ● ● ● ● ● ●
533 08.143 SEAL; FRT PANEL 8-97316-861-0 01 1 0211- ● ● ● ● ● ● ● ●
639 16.550 PANEL; BODY HINGE PILLAR
DARK GRAY 		8-97396-086-0 01 1 0211- ● ● ● ● ● ● ● ●
639 16.550 PANEL; BODY HINGE PILLAR
DARK GRAY 		8-97396-087-0 01 1 0211- ● ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
