◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50936 - TFR/TFS(AUSTRALIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-03 - RADIATOR GRILLE ▶
6-03 — RADIATOR GRILLE (#42346) — 14 parça
çizim 50377
3 90 1 9 179
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 01.266 GRILLE; RAD
PRIMER PLEASE PAINT TO MATCH BODY COLOR 		8-97331-848-1 01 1 0211- ● ● ● ● ● ● ● ●
3 01.269 CLIP; GRILLE 8-97350-903-0 04 1 0211- ● ● ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
08.900 M5X16 		8-94380-268-0 01 1 0211- ● ● ● ● ● ● ● ●
90 01.269 NUT; RAD GRILLE
02.726 D=7X7 L=7.5 		8-94291-927-0 01 1 0211- ● ● ● ● ● ● ● ●
179 01.269 RETAINER; GRILLE,RAD 8-97350-904-0 02 1 0211- ● ● ● ● ● ● ● ●

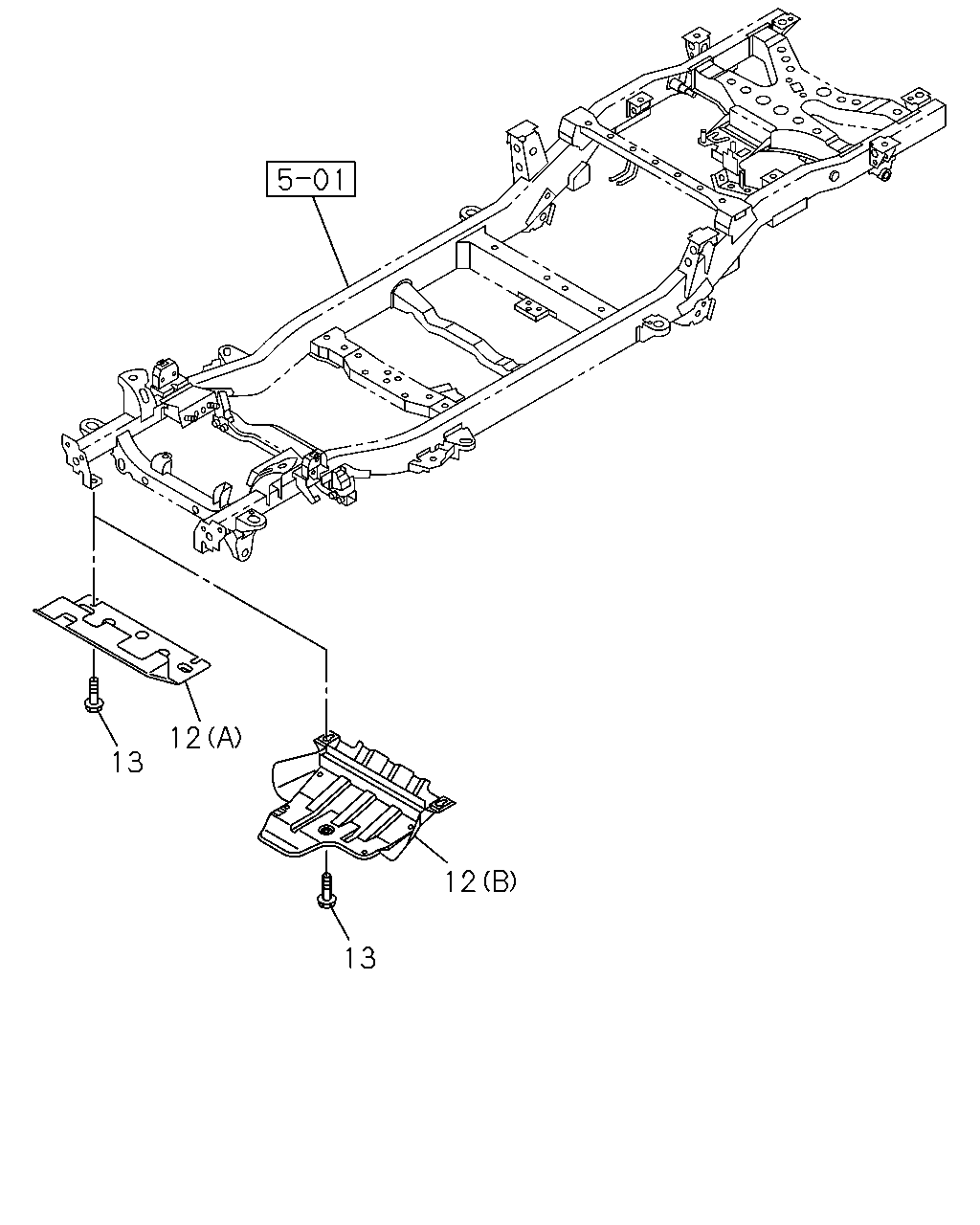

çizim 51103
12 13 12 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
12 01.274 PLATE; SKID,RAD
SKID PLATE<7WE> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97942-919-0 01 1 0211- ● ● ● ●
12 01.274 PLATE; SKID,RAD
HIGH RIDE SUSPENSION(7YC) (B) 		8-97942-947-1 01 1 0211-0211 ● ● ● ●
12 01.274 PLATE; SKID,RAD
(B) 		8-97942-947-1 01 1 0211-0211 ● ● ● ●
12 01.274 PLATE; SKID,RAD
HIGH RIDE SUSPENSION(7YC) (B) 		8-97943-353-0 01 1 0212- ● ● ● ●
12 01.274 PLATE; SKID,RAD
(B) 		8-97943-353-0 01 1 0212- ● ● ● ●
13 01.267 BOLT; RAD SKID PLATE
SKID PLATE<7WE> EXC. HIGH RIDE SUSPENSION(7YC) 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-1 02 1 0211-0211 ● ● ● ●
13 01.267 BOLT; RAD SKID PLATE
SKID PLATE<7WE> EXC. HIGH RIDE SUSPENSION(7YC) M10X28 W/LK&PL WASHER 		8-97943-077-0 02 1 0212- ● ● ● ●
13 01.267 BOLT; RAD SKID PLATE
HIGH RIDE SUSPENSION(7YC) 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-1 04 1 0211- ● ● ● ●
13 01.267 BOLT; RAD SKID PLATE
03.690 M10X28 W/LK&PL WASHER 		8-97104-788-1 04 1 0211- ● ● ● ●
