6-01 — FRONT BUMPER (#42345) — 63 parça

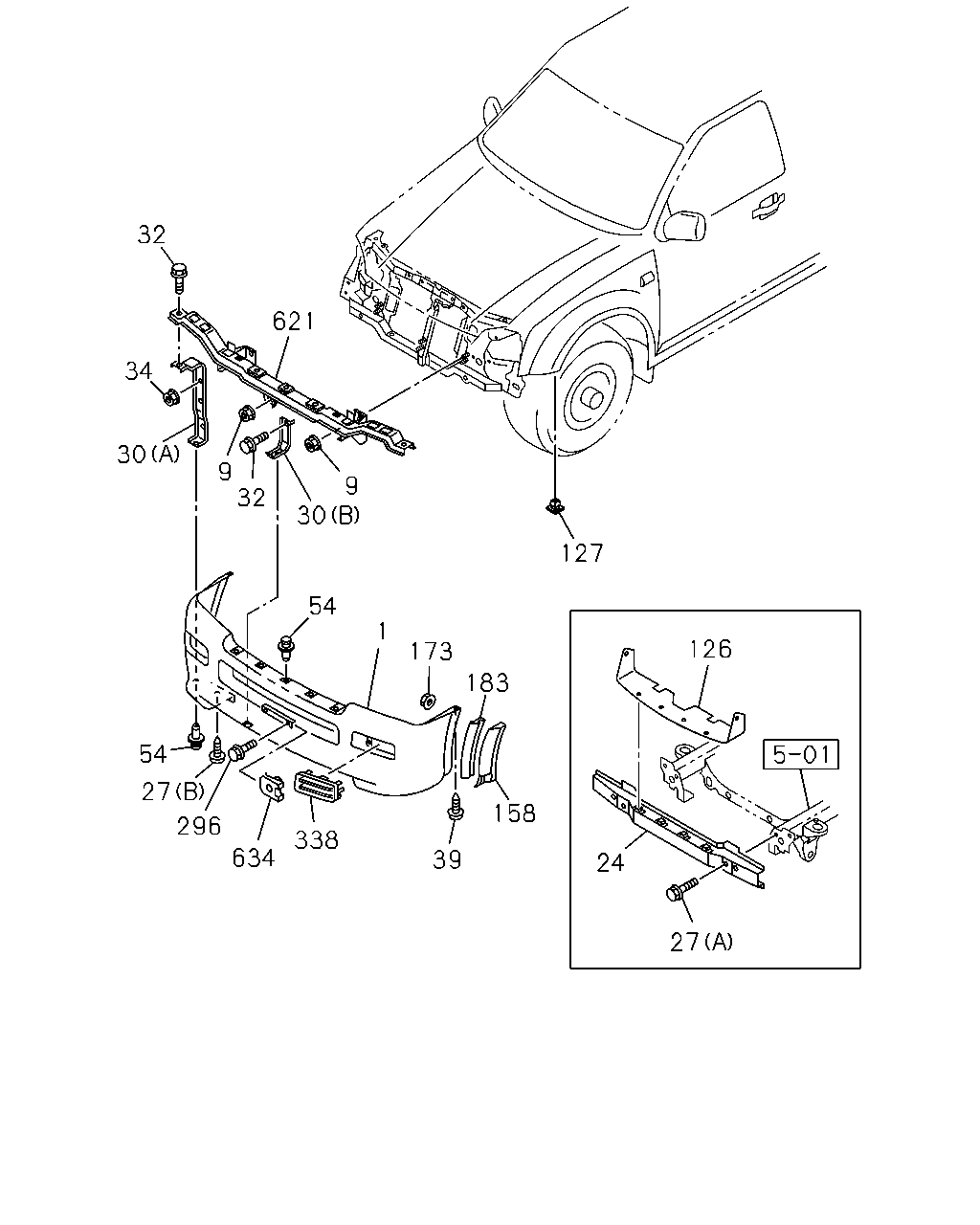

çizim 50407
32 621 34 30 9 32 9 30 127 54 1 126 173 183 54 27 158 296 338 634 39 24 27
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 07.831 BUMPER ASM; FRT
BODY COLOR CAPE BLUE MET(612) COLOR KEYED BUMPER(S4H) OVER FENDER<6GH> PLEASE PAINT TO MATCH BODY COLOR 		8-97330-923-0 01 1 0211- ●
1 07.831 BUMPER ASM; FRT
BODY COLOR CAPE BLUE MET(612) COLOR KEYED BUMPER(S4H) PLEASE PAINT TO MATCH BODY COLOR 		8-97330-923-0 01 1 0211- ● ●
1 07.831 BUMPER ASM; FRT
BODY COLOR CAPE BLUE MET(612) COLOR KEYED BUMPER(S4H) EXC. OVER FENDER<6GH> PLEASE PAINT TO MATCH BODY COLOR 		8-97330-921-0 01 1 0211- ●
1 07.831 BUMPER ASM; FRT
BODY COLOR STEEL BLACK MET(641) COLOR KEYED BUMPER(S4H) OVER FENDER<6GH> PLEASE PAINT TO MATCH BODY COLOR 		8-97330-923-0 01 1 0211- ●
1 07.831 BUMPER ASM; FRT
BODY COLOR STEEL BLACK MET(641) COLOR KEYED BUMPER(S4H) PLEASE PAINT TO MATCH BODY COLOR 		8-97330-923-0 01 1 0211- ● ●
1 07.831 BUMPER ASM; FRT
BODY COLOR STEEL BLACK MET(641) COLOR KEYED BUMPER(S4H) EXC. OVER FENDER<6GH> PLEASE PAINT TO MATCH BODY COLOR 		8-97330-921-0 01 1 0211- ●
1 07.831 BUMPER ASM; FRT
BODY COLOR QUARTS GRAY MET(642) COLOR KEYED BUMPER(S4H) OVER FENDER<6GH> PLEASE PAINT TO MATCH BODY COLOR 		8-97330-923-0 01 1 0211- ●
1 07.831 BUMPER ASM; FRT
BODY COLOR QUARTS GRAY MET(642) COLOR KEYED BUMPER(S4H) PLEASE PAINT TO MATCH BODY COLOR 		8-97330-923-0 01 1 0211- ● ●
1 07.831 BUMPER ASM; FRT
BODY COLOR QUARTS GRAY MET(642) COLOR KEYED BUMPER(S4H) EXC. OVER FENDER<6GH> PLEASE PAINT TO MATCH BODY COLOR 		8-97330-921-0 01 1 0211- ●
1 07.831 BUMPER ASM; FRT
BODY COLOR SANDAL WOOD MET(643) COLOR KEYED BUMPER(S4H) OVER FENDER<6GH> PLEASE PAINT TO MATCH BODY COLOR 		8-97330-923-0 01 1 0211- ● ● ●
1 07.831 BUMPER ASM; FRT
BODY COLOR SANDAL WOOD MET(643) COLOR KEYED BUMPER(S4H) EXC. OVER FENDER<6GH> PLEASE PAINT TO MATCH BODY COLOR 		8-97330-921-0 01 1 0211- ●
1 07.831 BUMPER ASM; FRT
BODY COLOR CHAMONIX GREEN MET(644) COLOR KEYED BUMPER(S4H) OVER FENDER<6GH> PLEASE PAINT TO MATCH BODY COLOR 		8-97330-923-0 01 1 0211- ●
1 07.831 BUMPER ASM; FRT
BODY COLOR CHAMONIX GREEN MET(644) COLOR KEYED BUMPER(S4H) PLEASE PAINT TO MATCH BODY COLOR 		8-97330-923-0 01 1 0211- ● ●
1 07.831 BUMPER ASM; FRT
BODY COLOR CHAMONIX GREEN MET(644) COLOR KEYED BUMPER(S4H) EXC. OVER FENDER<6GH> PLEASE PAINT TO MATCH BODY COLOR 		8-97330-921-0 01 1 0211- ●
1 07.831 BUMPER ASM; FRT
BODY COLOR GLACIER BLUE MET(645) COLOR KEYED BUMPER(S4H) OVER FENDER<6GH> PLEASE PAINT TO MATCH BODY COLOR 		8-97330-923-0 01 1 0211- ●
1 07.831 BUMPER ASM; FRT
BODY COLOR GLACIER BLUE MET(645) COLOR KEYED BUMPER(S4H) PLEASE PAINT TO MATCH BODY COLOR 		8-97330-923-0 01 1 0211- ● ●
1 07.831 BUMPER ASM; FRT
BODY COLOR GLACIER BLUE MET(645) COLOR KEYED BUMPER(S4H) EXC. OVER FENDER<6GH> PLEASE PAINT TO MATCH BODY COLOR 		8-97330-921-0 01 1 0211- ●
1 07.831 BUMPER ASM; FRT
BODY COLOR FOXFIRE RED MICA(658) COLOR KEYED BUMPER(S4H) OVER FENDER<6GH> PLEASE PAINT TO MATCH BODY COLOR 		8-97330-923-0 01 1 0211- ●
1 07.831 BUMPER ASM; FRT
BODY COLOR FOXFIRE RED MICA(658) COLOR KEYED BUMPER(S4H) PLEASE PAINT TO MATCH BODY COLOR 		8-97330-923-0 01 1 0211- ● ●
1 07.831 BUMPER ASM; FRT
BODY COLOR FOXFIRE RED MICA(658) COLOR KEYED BUMPER(S4H) EXC. OVER FENDER<6GH> PLEASE PAINT TO MATCH BODY COLOR 		8-97330-921-0 01 1 0211- ●
1 07.831 BUMPER ASM; FRT
BODY COLOR ASTRAL SILVER(718) COLOR KEYED BUMPER(S4H) OVER FENDER<6GH> PLEASE PAINT TO MATCH BODY COLOR 		8-97330-923-0 01 1 0211- ●
1 07.831 BUMPER ASM; FRT
BODY COLOR ASTRAL SILVER(718) COLOR KEYED BUMPER(S4H) PLEASE PAINT TO MATCH BODY COLOR 		8-97330-923-0 01 1 0211- ● ●
1 07.831 BUMPER ASM; FRT
BODY COLOR ASTRAL SILVER(718) COLOR KEYED BUMPER(S4H) EXC. OVER FENDER<6GH> PLEASE PAINT TO MATCH BODY COLOR 		8-97330-921-0 01 1 0211- ●
1 07.831 BUMPER ASM; FRT
BODY COLOR ALPINE WHITE(877) COLOR KEYED BUMPER(S4H) OVER FENDER<6GH> PLEASE PAINT TO MATCH BODY COLOR 		8-97330-923-0 01 1 0211- ●
1 07.831 BUMPER ASM; FRT
BODY COLOR ALPINE WHITE(877) COLOR KEYED BUMPER(S4H) PLEASE PAINT TO MATCH BODY COLOR 		8-97330-923-0 01 1 0211- ● ●
1 07.831 BUMPER ASM; FRT
BODY COLOR ALPINE WHITE(877) COLOR KEYED BUMPER(S4H) EXC. OVER FENDER<6GH> PLEASE PAINT TO MATCH BODY COLOR 		8-97330-921-0 01 1 0211- ●
1 07.831 BUMPER ASM; FRT
FRT BUMPER DARK GRAY(EQ9) OVER FENDER<6GH> GRAY 		8-97235-966-2 01 1 0211- ● ● ● ● ● ● ● ●
1 07.831 BUMPER ASM; FRT
EXC. OVER FENDER<6GH> GRAY 		8-97235-962-2 01 1 0211- ● ● ●
1 07.831 BUMPER ASM; FRT
FRT BUMPER DARK GRAY(EQ9) EXC. OVER FENDER<6GH> GRAY 		8-97235-962-2 01 1 0211- ●
9 07.840 NUT; REINF,FRT BUMPER
01.062 M6 FLANGE 		0-91180-106-0 06 1 0211- ● ● ● ● ● ● ● ●
24 07.869 BAR; FRT BUMPER
AIR CONDITIONER MANUAL CONT(C60) 		8-97351-934-0 01 1 0211- ● ● ● ● ● ● ● ●
24 07.869 BAR; FRT BUMPER
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97235-867-2 01 1 0211- ● ● ● ● ● ● ● ●
27 07.833 BOLT; BUMPER TO BACK BAR
(A) M10X25 FLANGE 		0-28661-025-0 04 1 0211- ● ● ● ● ● ● ● ●
27 07.833 BOLT; BUMPER TO BACK BAR
08.155 (B) M6X20 W/PL WASHER TAPPING 		8-94321-767-1 02 1 0211- ● ● ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER
(A) 		8-97236-049-0 02 1 0211- ● ● ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER
(B) 		8-97236-050-1 02 1 0211- ● ● ● ● ● ● ● ●
32 07.874 BOLT; BRKT,BUMPER
02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0211- ● ● ● ● ● ● ● ●
32 07.874 BOLT; BRKT,BUMPER
02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0211- ● ● ● ● ● ● ● ●
34 07.874 NUT; BRKT,BUMPER
01.062 M6 FLANGE 		0-91180-106-0 04 1 0211- ● ● ● ● ● ● ● ●
39 07.874 BOLT; BUMPER TO BODY
08.155 M6X20 W/PL WASHER TAPPING 		8-94321-767-1 02 1 0211- ● ● ● ● ● ● ● ●
54 07.832 RETAINER; FRT BUMPER 8-97301-188-0 09 1 0211- ● ● ● ● ● ● ● ●
126 07.831 SEAL; BUMPER
AIR CONDITIONER MANUAL CONT(C60) 		8-97334-385-0 01 1 0211- ● ● ● ● ● ● ● ●
127 07.829 NUT; FRT BUMPER
09.190 D=9.7X9.7 L=8 		8-94222-314-0 02 1 0211- ● ● ● ● ● ● ● ●
158 07.833 EXTENSION; FRT BUMPER
OVER FENDER<6GH> EXC. COLOR KEYED BUMPER(S4H) GRAY 		8-97331-863-1 01 1 0211- ● ● ● ● ● ●
158 07.833 EXTENSION; FRT BUMPER
GRAY 		8-97331-863-1 01 1 0211- ● ●
158 07.833 EXTENSION; FRT BUMPER
OVER FENDER<6GH> EXC. COLOR KEYED BUMPER(S4H) GRAY 		8-97331-862-1 01 1 0211- ● ● ● ● ● ●
158 07.833 EXTENSION; FRT BUMPER
GRAY 		8-97331-862-1 01 1 0211- ● ●
158 07.833 EXTENSION; FRT BUMPER
COLOR KEYED BUMPER(S4H) OVER FENDER<6GH> PRIMER 		8-97331-852-1 01 1 0211- ● ● ●
158 07.833 EXTENSION; FRT BUMPER
COLOR KEYED BUMPER(S4H) OVER FENDER<6GH> PRIMER 		8-97331-851-1 01 1 0211- ● ● ●
173 07.874 NUT; EXT
OVER FENDER<6GH> 01.062 M6 FLANGE 		0-91180-106-0 06 1 0211- ● ● ● ●
173 07.874 NUT; EXT
01.062 M6 FLANGE 		0-91180-106-0 06 1 0211- ● ● ● ●
183 07.832 FINISHER; FRT BUMPER
BODY COLOR CAPE BLUE MET(612),BODY COLOR STEEL BLACK MET(641),BODY COLOR CHAMONIX GREEN MET(644),BODY COL OR GLACIER BLUE MET(645),BODY COLORFOXFIRE RED MICA(658),BODY COLOR A STRAL SILVER(718) COLOR KEYED BUMPER(S4H) OVER FENDER<6GH> DARK GRAY 		8-97393-892-0 02 1 0211- ● ● ●
183 07.832 FINISHER; FRT BUMPER
BODY COLOR QUARTS GRAY MET(642), BODY COLOR ALPINE WHITE(877) COLOR KEYED BUMPER(S4H) OVER FENDER<6GH> LIGHT GRAY 		8-97396-033-0 02 1 0211- ● ● ●
183 07.832 FINISHER; FRT BUMPER
BODY COLOR SANDAL WOOD MET(643) COLOR KEYED BUMPER(S4H) OVER FENDER<6GH> BEIGE 		8-97393-894-0 02 1 0211- ● ● ●
183 07.832 FINISHER; FRT BUMPER
OVER FENDER<6GH> EXC. COLOR KEYED BUMPER(S4H) GRAY 		8-97331-850-0 02 1 0211- ● ● ● ● ● ●
183 07.832 FINISHER; FRT BUMPER
GRAY 		8-97331-850-0 02 1 0211- ● ●
296 07.800 BOLT; LICENSE PLATE,FRT
00.738 M6X16 FLANGE 		0-28080-616-0 02 1 0211- ● ● ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP 8-97302-015-1 01 1 0211- ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
EXC. FOG LAMP<T96> 		8-97302-015-1 01 1 0211- ● ● ●
338 07.832 BEZEL; FOG LAMP 8-97302-014-1 01 1 0211- ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
EXC. FOG LAMP<T96> 		8-97302-014-1 01 1 0211- ● ● ●
621 07.831 SUPPORT; FRT BUMPER 8-97235-872-3 01 1 0211- ● ● ● ● ● ● ● ●
634 07.831 NUT; LICENCE PLATE
07.829 		8-94342-576-1 02 1 0211- ● ● ● ● ● ● ● ●
