◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50936 - TFR/TFS(AUSTRALIA) ▶ 5 - Frame, Cab Mounting ▶ 5-40 - ENGINE ROOM INSULATOR ▶
5-40 — ENGINE ROOM INSULATOR (#42344) — 13 parça

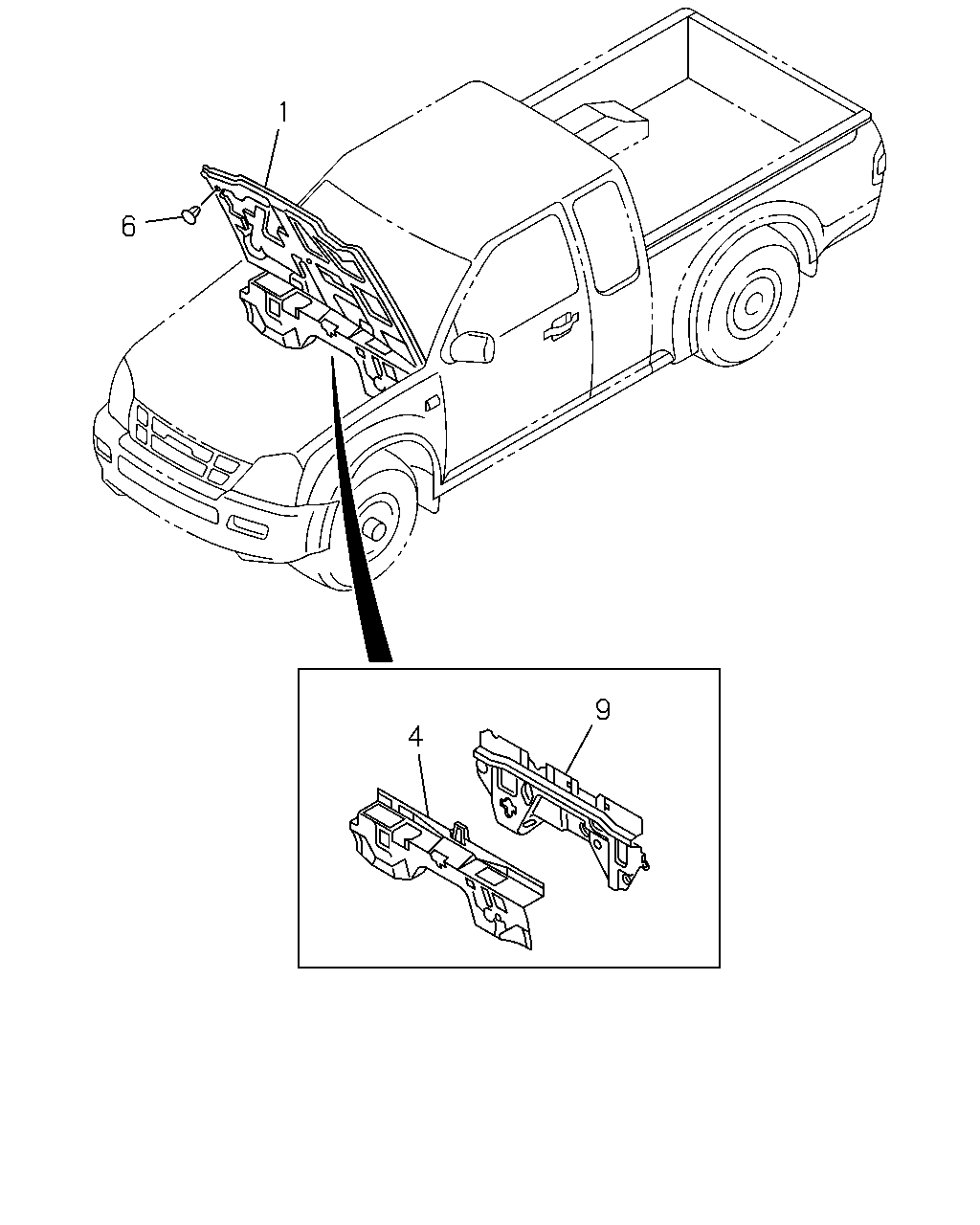

çizim 11248
1 6 9 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 08.021 INSULATION; ENG HOOD
4JH1-TC ENG(RDM) 		8-97235-431-3 01 1 0211-0301 ● ● ● ● ● ● ●
1 08.021 INSULATION; ENG HOOD 8-97235-431-3 01 1 0211-0301 ●
1 08.021 INSULATION; ENG HOOD
4JH1-TC ENG(RDM) 		8-97361-321-0 01 1 0302- ● ● ● ● ● ● ●
1 08.021 INSULATION; ENG HOOD 8-97361-321-0 01 1 0302- ●
4 08.021 INSULATION; DASH PNL,INNER
C24SE ENG(LG1),6VE1 ENG(RJQ) 		8-97238-108-3 01 1 0211- ● ● ● ● ● ● ●
4 08.021 INSULATION; DASH PNL,INNER
4JH1-TC ENG(RDM) 		8-97333-785-1 01 1 0211- ● ● ● ● ● ● ●
4 08.021 INSULATION; DASH PNL,INNER 8-97333-785-1 01 1 0211- ●
6 08.021 CLIP; ENG HOOD INSULATION
4JH1-TC ENG(RDM) ID=6.2 L=11.4 		8-97808-623-0 12 1 0211- ● ● ● ● ● ● ●
6 08.021 CLIP; ENG HOOD INSULATION
ID=6.2 L=11.4 		8-97808-623-0 12 1 0211- ●
9 08.021 INSULATION; DASH ENG ROOM
4JH1-TC ENG(RDM) 		8-97357-839-0 01 1 0211-0306 ● ● ● ● ● ● ●
9 08.021 INSULATION; DASH ENG ROOM 8-97357-839-0 01 1 0211-0306 ●
9 08.021 INSULATION; DASH ENG ROOM
4JH1-TC ENG(RDM) 		8-97368-041-0 01 1 0307- ● ● ● ● ● ● ●
9 08.021 INSULATION; DASH ENG ROOM 8-97368-041-0 01 1 0307- ●
