◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50936 - TFR/TFS(AUSTRALIA) ▶ 5 - Frame, Cab Mounting ▶ 5-30 - SPARE TIRE CARRIER AND COVER ▶
5-30 — SPARE TIRE CARRIER AND COVER (#42343) — 10 parça

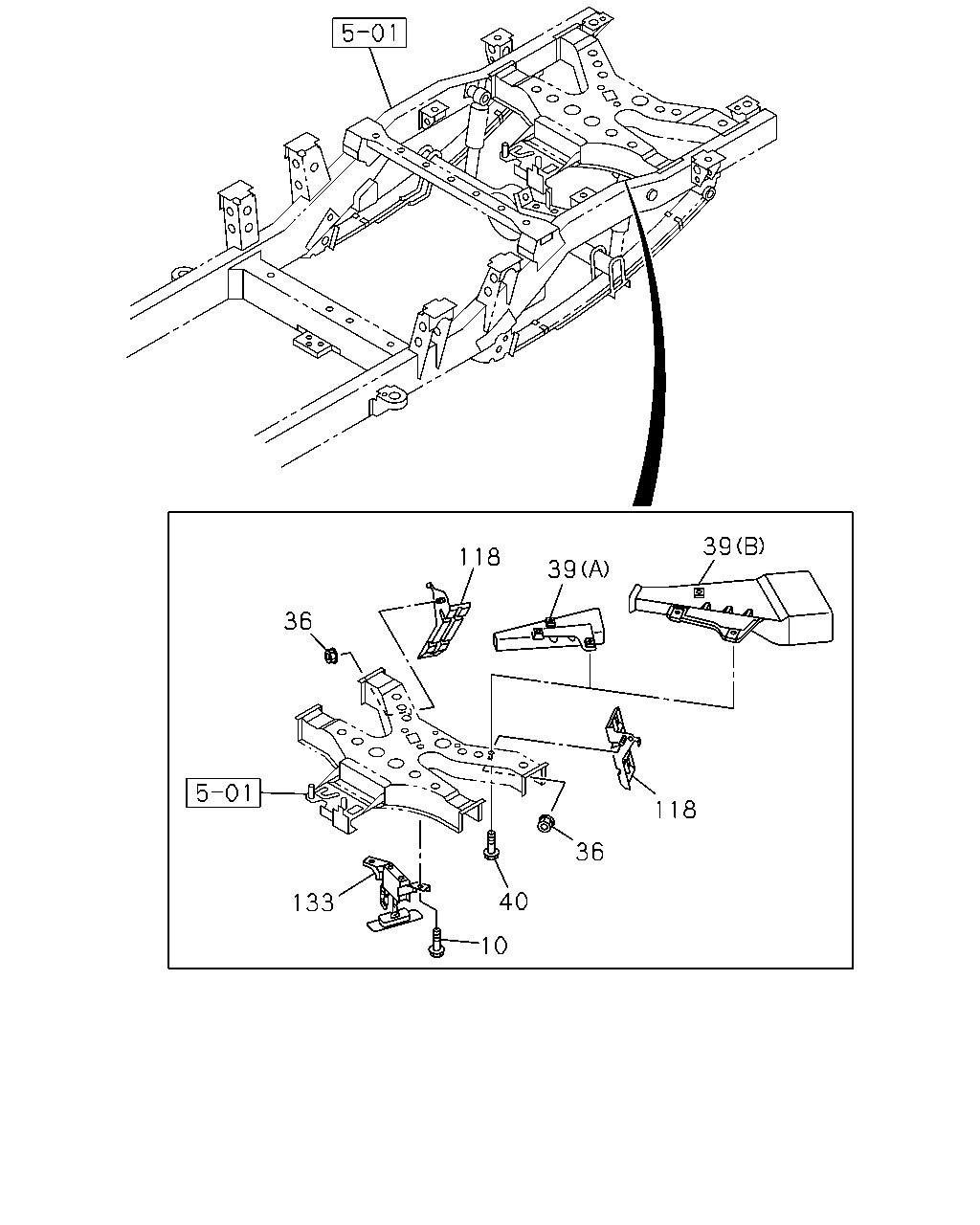

çizim 50471
39 118 39 36 118 36 40 133 10
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
10 07.632 BOLT; TIRE HANGER
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0211- ● ● ● ● ● ● ● ●
36 07.629 NUT; SPARE TIRE
FRT&RR 245/70R16(BZD) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0211- ● ●
39 07.629 GUIDE; SPARE TIRE HANGER
(B) 		8-97943-470-0 01 1 0304- ● ●
39 07.629 GUIDE; SPARE TIRE HANGER
(A) 		8-97360-473-0 01 1 0211-0303 ● ● ● ● ● ● ● ●
39 07.629 GUIDE; SPARE TIRE HANGER
(B) 		8-97943-469-0 01 1 0304- ● ● ● ● ● ●
40 07.629 BOLT; GUIDE TO FRAME
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0211- ● ● ● ● ● ● ● ●
118 07.629 SUPPORT ASM; SPARE TIRE
FRT&RR 245/70R16(BZD) 		8-97259-558-1 01 1 0211- ● ●
118 07.629 SUPPORT ASM; SPARE TIRE
FRT&RR 245/70R16(BZD) 		8-97259-559-1 01 1 0211- ● ●
133 07.629 HANGER; SPARE TIRE 8-97360-367-0 01 1 0211-0303 ● ● ● ● ● ● ● ●
133 07.629 HANGER; SPARE TIRE 8-97215-333-1 01 1 0304- ● ● ● ● ● ● ● ●
