◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50936 - TFR/TFS(AUSTRALIA) ▶ 5 - Frame, Cab Mounting ▶ 5-20 - BATTERY CARRIER ▶
5-20 — BATTERY CARRIER (#42342) — 9 parça

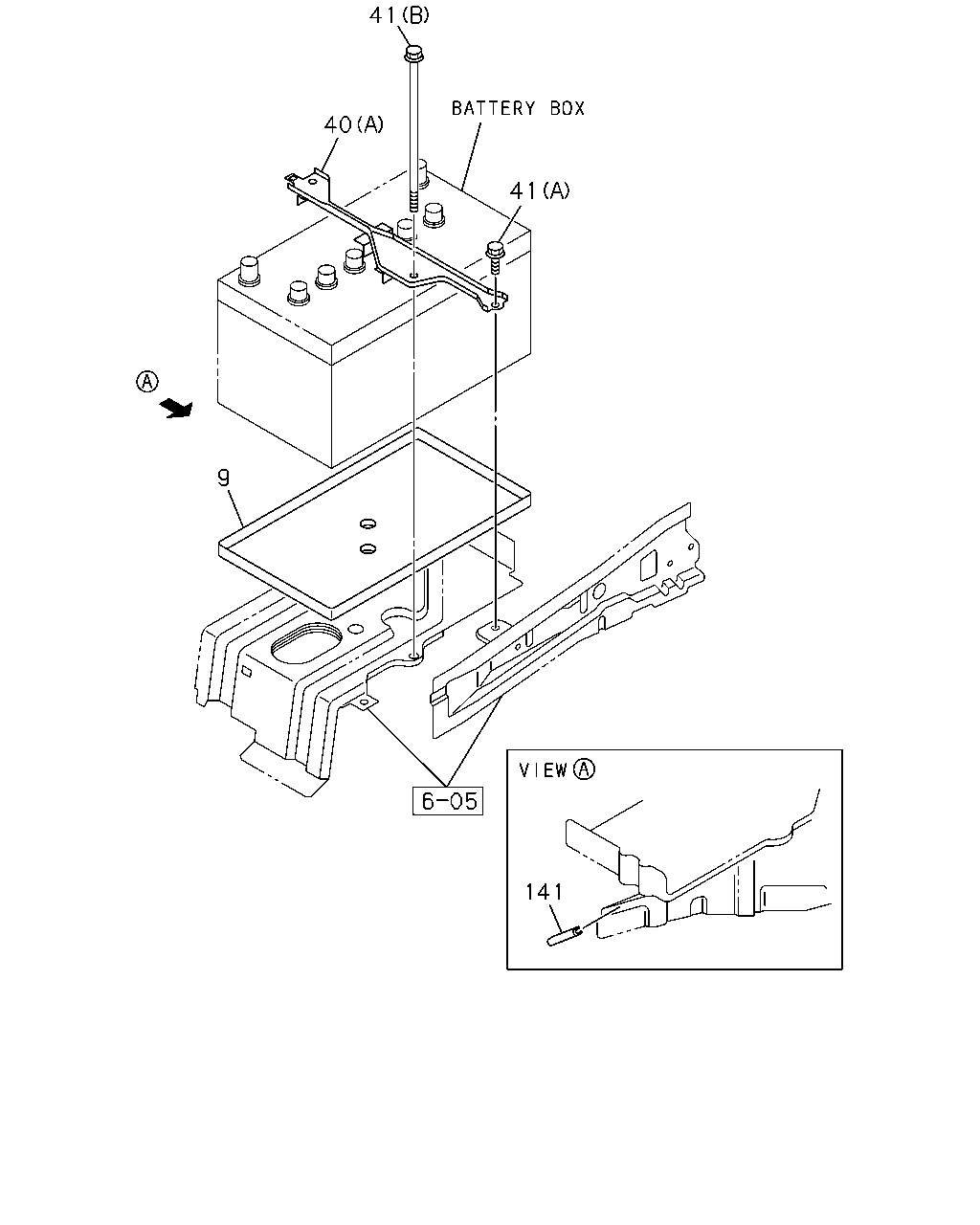

çizim 11247
41 40 41 9 141
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
9 02.333 SEAT; BATTERY
4JH1-TC ENG(RDM) 		8-97318-865-1 01 1 0211- ● ● ● ● ● ● ●
9 02.333 SEAT; BATTERY 8-97318-865-1 01 1 0211- ●
9 02.333 SEAT; BATTERY
6VE1 ENG(RJQ) 		8-97328-060-0 01 1 0211- ● ● ● ● ● ● ●
9 02.333 SEAT; BATTERY
C24SE ENG(LG1) 		8-97328-059-0 01 1 0211- ● ●
40 02.335 CLAMP; BATTERY
4JH1-TC ENG(RDM),6VE1 ENG(RJQ) 		8-97357-407-0 01 1 0211- ● ● ● ● ● ● ●
40 02.335 CLAMP; BATTERY 8-97357-407-0 01 1 0211- ●
40 02.335 CLAMP; BATTERY
C24SE ENG(LG1) 		8-97352-945-0 01 1 0211- ● ●
41 02.334 BOLT; CLAMP,BATTERY
01.531 (A) M8X20 FLANGE 		0-28650-820-0 01 1 0211- ● ● ● ● ● ● ● ●
41 02.334 BOLT; CLAMP,BATTERY
(B) M8X222 FLANGE 		8-97308-979-0 02 1 0211- ● ● ● ● ● ● ● ●
