5-10 — CAB MOUNTING; FRAME SIDE (#42341) — 27 parça

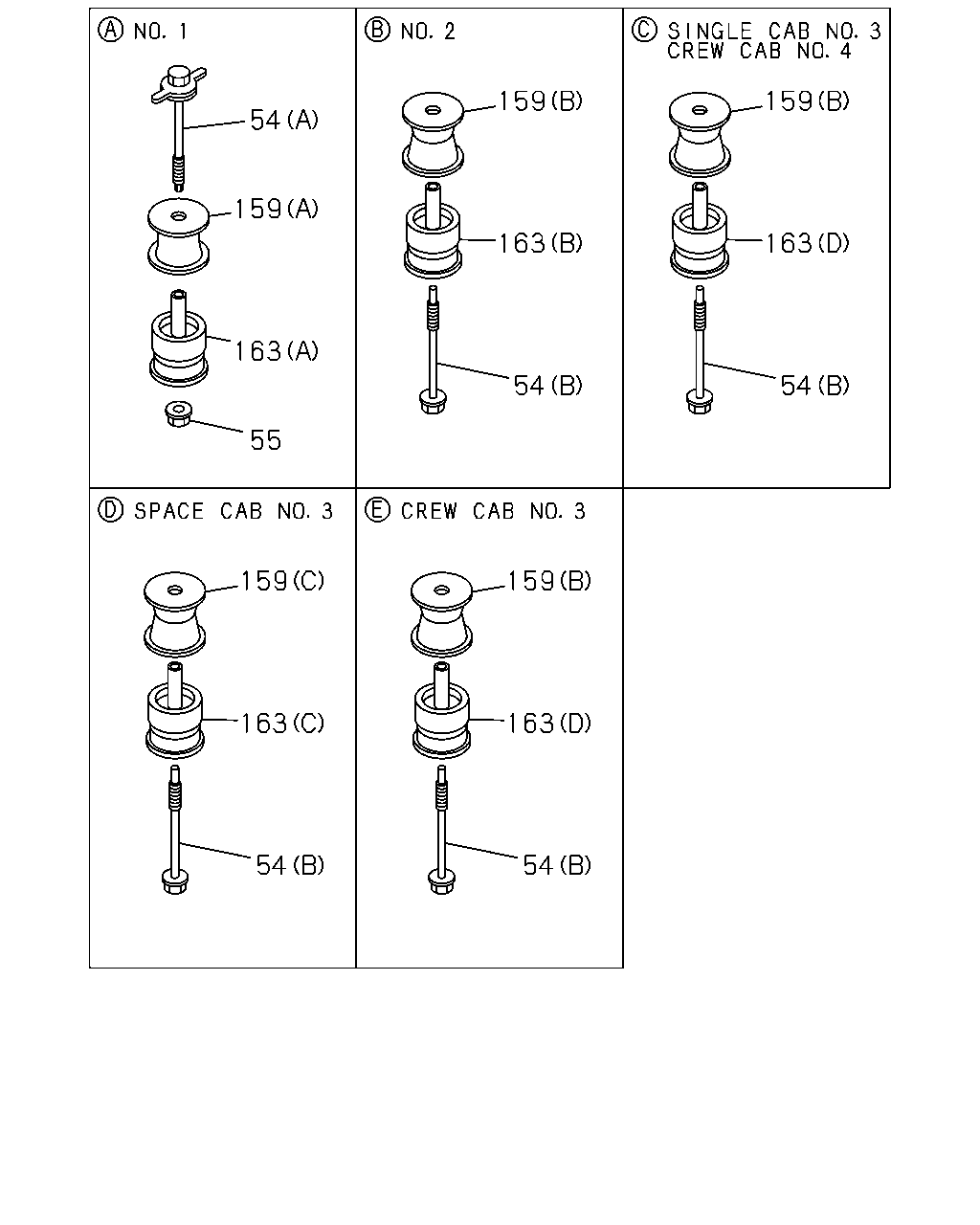

çizim 50437
159 159 54 159 163 163 163 54 54 55 159 159 163 163 54 54
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
54 09.008 BOLT; RUBBER
(A) 		8-97245-653-0 02 1 0211-0305 ● ● ● ● ● ● ● ●
54 09.008 BOLT; RUBBER
(A) M10X117.3 FLANGE 		8-97365-219-0 02 1 0306- ● ● ● ● ● ● ● ●
54 09.008 BOLT; RUBBER
(B) 		8-97245-657-1 04 1 0211-0305 ● ● ● ● ● ● ● ●
54 09.008 BOLT; RUBBER
(B) 		8-97365-220-0 04 1 0306- ● ● ● ● ● ● ● ●
54 09.008 BOLT; RUBBER
(B) 		8-97245-657-1 02 1 0211-0305 ● ●
54 09.008 BOLT; RUBBER
(B) 		8-97365-220-0 02 1 0306- ● ●
55 09.008 NUT; RUBBER
08.917 M10 FLANGE 		0-91250-210-0 02 1 0211- ● ● ● ● ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(A) STAMP SB 		8-97256-674-1 02 1 0211-0303 ● ● ● ● ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(A) STAMP SB 		8-97367-285-0 02 1 0304- ● ● ● ● ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(B) STAMP W 		8-97301-825-2 02 1 0211-0303 ● ● ● ● ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(B) STAMP W 		8-97301-825-2 02 1 0211-0303 ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(B) STAMP W 		8-97301-825-2 02 1 0211-0303 ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(B) STAMP W 		8-97367-286-0 02 1 0304- ● ● ● ● ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(B) STAMP W 		8-97367-286-0 02 1 0304- ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(B) STAMP W 		8-97367-286-0 02 1 0304- ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(C) STAMP P 		8-97301-839-2 02 1 0211-0303 ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(C) STAMP P 		8-97367-287-0 02 1 0304- ● ● ● ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(A) STAMP SP 		8-97256-676-0 02 1 0211-0303 ● ● ● ● ● ● ● ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(A) STAMP SP 		8-97367-288-0 02 1 0304- ● ● ● ● ● ● ● ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(B) STAMP Y 		8-97256-677-1 02 1 0211-0303 ● ● ● ● ● ● ● ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(B) STAMP Y 		8-97367-289-0 02 1 0304- ● ● ● ● ● ● ● ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(C) STAMP B 		8-97256-678-1 02 1 0211-0303 ● ● ● ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(C) STAMP B 		8-97367-291-0 02 1 0304- ● ● ● ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(D) STAMP G 		8-97301-826-1 02 1 0211-0303 ● ● ● ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(D) STAMP G 		8-97301-826-1 02 1 0211-0303 ● ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(D) STAMP G 		8-97367-290-0 02 1 0304- ● ● ● ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(D) STAMP G 		8-97367-290-0 02 1 0304- ● ●
