◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10720 - CXZ RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-28B - VENTILATION SYSTEM ▶
0-28B — VENTILATION SYSTEM (#4234) — 41 parça

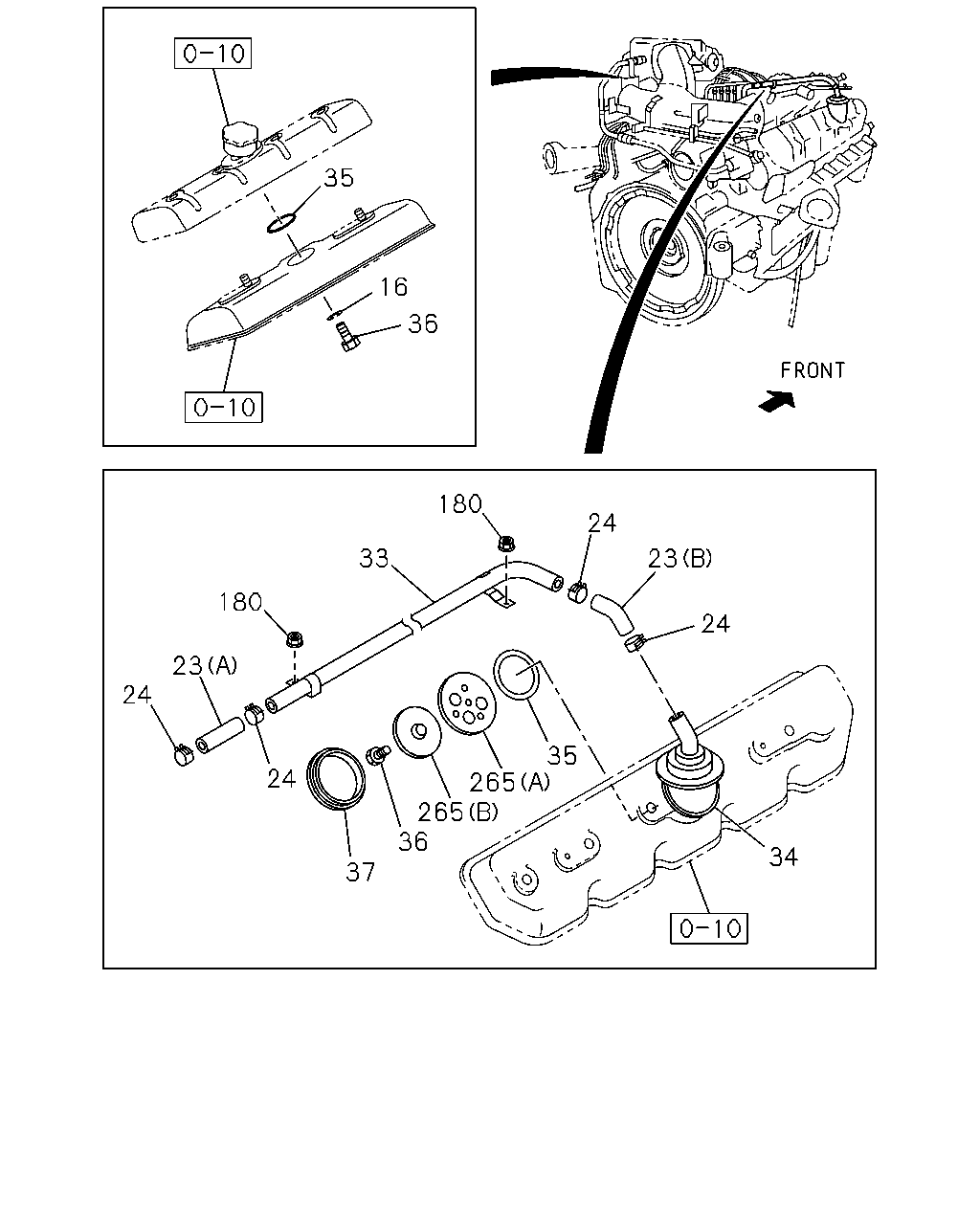

çizim 40183
35 16 36 180 24 33 23 180 24 23 24 35 24 265 265 36 34 37
BalonParca AdiParca NoAdetTipApplied Date A B C D
16 WASHER; LK,BREATHER
ID=6.1 		9-09150-506-0 04 1 9603-9904 ●
23 HOSE; RUBBER,VENTILATOR PIPE
(A) L=55 		1-09360-766-0 01 1 9603-9904 ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(A) L=55 		1-09360-766-0 01 1 9905- ● ● ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(B) 		1-09360-775-1 01 1 9603-9904 ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(B) 		1-09360-775-1 01 1 9905- ● ● ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
ID=26 		1-09707-091-0 04 1 9603-9904 ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
ID=26 		1-09707-091-0 04 1 9905- ● ● ● ●
33 PIPE; VENTILATOR 1-14236-106-1 01 1 9603- ●
33 PIPE; VENTILATOR 1-14236-105-0 01 1 9603-9904 ●
33 PIPE; VENTILATOR 1-14236-105-0 01 1 9905- ● ● ●
34 VENTILATOR 1-14360-052-0 01 1 9603-9904 ● ●
34 VENTILATOR 1-14360-052-0 01 1 9905-9909 ● ● ● ●
34 VENTILATOR 1-14360-055-0 01 1 9910- ● ● ● ●
35 GASKET; VENTILATOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> 		1-09623-418-0 01 1 9603-9902 ● ●
35 GASKET; VENTILATOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09623-418-0 01 1 9903-9904 ●
35 GASKET; VENTILATOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> 		1-09623-418-0 01 1 9903-9904 ●
35 GASKET; VENTILATOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> 		1-09623-418-0 02 1 9603-9904 ●
35 GASKET; VENTILATOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09623-418-0 02 1 9905-0001 ● ● ● ●
35 GASKET; VENTILATOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09623-418-0 02 1 0002- ● ● ●
35 GASKET; VENTILATOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) SHORT CHASSIS(CXZ5MC) INJ PUMP Q SET SPECIAL +5%Q(T1A),INJ PUMP Q SET STD(T1B) 		1-09623-418-0 02 1 0002- ●
35 GASKET; VENTILATOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) LONG CHASSIS(CXZ5MF) INJ PUMP Q SET SPECIAL +5%Q(T1A),INJ PUMP Q SET STD(T1B) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-09623-418-0 02 1 0002- ●
35 GASKET; VENTILATOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) INJ PUMP Q SET 2000M ALTITUDE(T1C) 		1-09623-418-0 01 1 0002- ●
35 GASKET; VENTILATOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) LONG CHASSIS(CXZ5MF) INJ PUMP Q SET SPECIAL +5%Q(T1A) ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-09623-418-0 01 1 0002- ●
36 BOLT; VENTILATOR
EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> M6X12 		0-20800-612-0 04 1 9603-9902 ● ●
36 BOLT; VENTILATOR
M6X12 		0-20800-612-0 04 1 9903-9904 ●
36 BOLT; VENTILATOR
EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> M6X12 		0-20800-612-0 04 1 9903-9904 ●
36 BOLT; VENTILATOR
EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> M6X12 FLANGE 		0-28080-612-0 07 1 9603-9904 ●
36 BOLT; VENTILATOR
M6X12 FLANGE 		0-28080-612-0 07 1 9905-0001 ● ● ● ●
36 BOLT; VENTILATOR
M6X12 FLANGE 		0-28080-612-0 07 1 0002- ● ● ●
36 BOLT; VENTILATOR
SHORT CHASSIS(CXZ5MC) INJ PUMP Q SET SPECIAL +5%Q(T1A),INJ PUMP Q SET STD(T1B) M6X12 FLANGE 		0-28080-612-0 07 1 0002- ●
36 BOLT; VENTILATOR
LONG CHASSIS(CXZ5MF) INJ PUMP Q SET SPECIAL +5%Q(T1A),INJ PUMP Q SET STD(T1B) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> M6X12 FLANGE 		0-28080-612-0 07 1 0002- ●
36 BOLT; VENTILATOR
INJ PUMP Q SET 2000M ALTITUDE(T1C) M6X12 		0-20800-612-0 04 1 0002- ●
36 BOLT; VENTILATOR
LONG CHASSIS(CXZ5MF) INJ PUMP Q SET SPECIAL +5%Q(T1A) ENGINE OIL TEMPERATURE GAUGE<UG3> M6X12 		0-20800-612-0 04 1 0002- ●
37 GROMMET; BREATHER,HD COVER
EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> 		1-09333-132-0 01 1 9603-9904 ●
37 GROMMET; BREATHER,HD COVER 1-09333-132-0 01 1 9905- ● ● ● ●
180 NUT; PIPE
M8 FLANGE 		0-91150-108-0 02 1 9603-9904 ● ●
180 NUT; PIPE
M8 FLANGE 		0-91150-108-0 02 1 9905- ● ● ● ●
265 PLATE; BAFFLE HD COVER
(B) OD=75 		1-14369-051-0 01 1 9603-9904 ● ●
265 PLATE; BAFFLE HD COVER
(B) OD=75 		1-14369-051-0 01 1 9905- ● ● ● ●
265 PLATE; BAFFLE HD COVER
(A) OD=92 		1-14369-052-0 01 1 9603-9904 ● ●
265 PLATE; BAFFLE HD COVER
(A) OD=92 		1-14369-052-0 01 1 9905- ● ● ● ●
