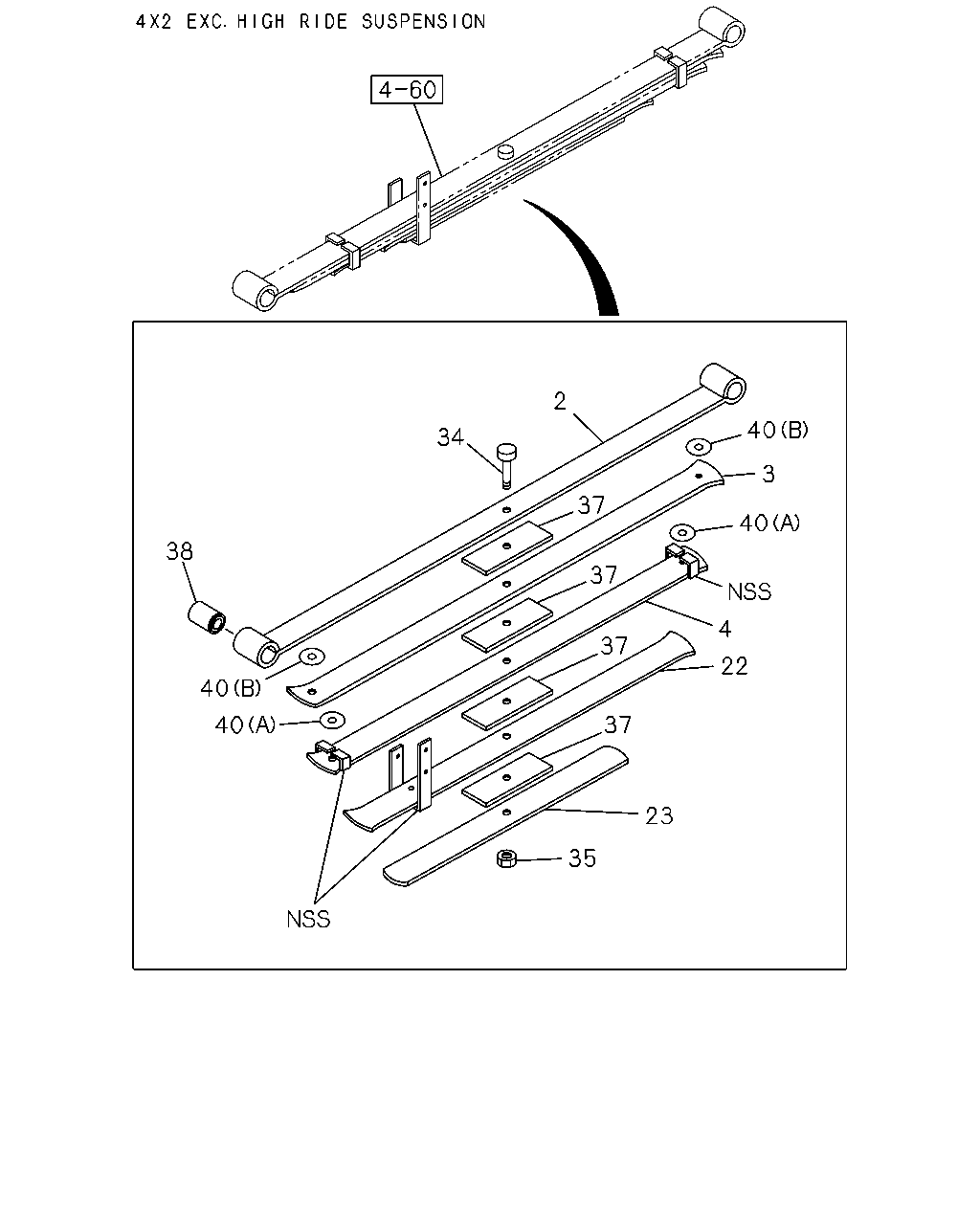

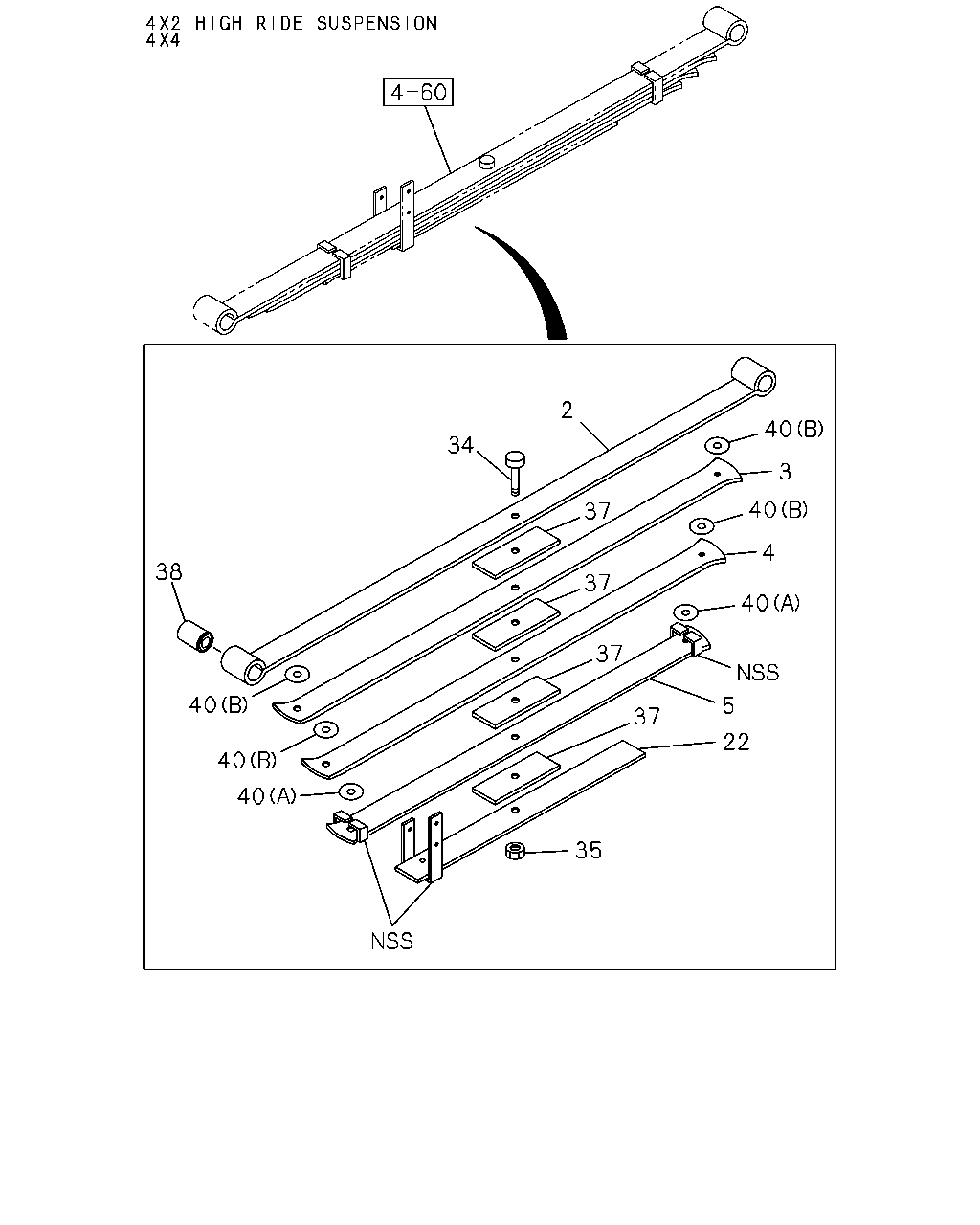

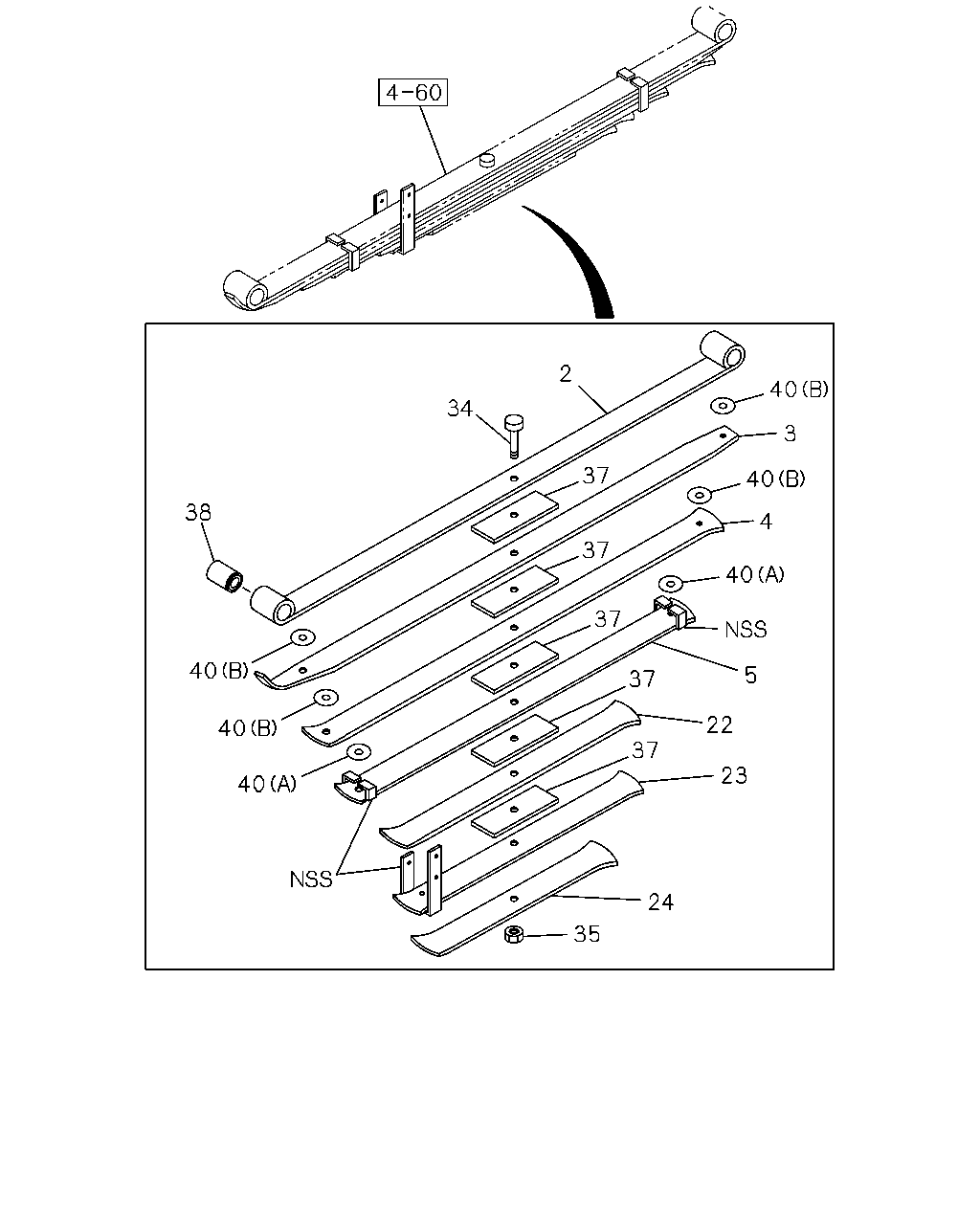

4-65 — REAR LEAF SPRING (#42338) — 131 parça

2 40 34 3 37 40 38 37 4 37 22 40 37 40 23 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: D = 8-97356-161-0, 97356161, G = 8-97359-755-1, 97359755	8-97246-603-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: C = 8-97356-160-0, 97356160, E = 8-97359-753-1, 97359753	8-97246-604-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-97244-976-3, 97244976, F = 8-97359-754-1, 97359754	8-97246-605-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 8-97244-979-3, 97244979, H = 8-97359-756-1, 97359756	8-97246-606-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: D = 8-97356-161-0, 97356161, G = 8-97359-755-1, 97359755	8-97246-607-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 8-97356-160-0, 97356160, E = 8-97359-753-1, 97359753	8-97246-608-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-97244-976-3, 97244976, F = 8-97359-754-1, 97359754	8-97246-609-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 8-97244-979-3, 97244979, H = 8-97359-756-1, 97359756	8-97246-610-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: D = 8-97356-161-0, 97356161, G = 8-97359-755-1, 97359755	8-97246-612-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 8-97356-160-0, 97356160, E = 8-97359-753-1, 97359753	8-97246-614-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-97244-976-3, 97244976, F = 8-97359-754-1, 97359754	8-97246-615-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 8-97244-979-3, 97244979, H = 8-97359-756-1, 97359756	8-97246-616-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: G = 8-97359-755-1, 97359755	8-97246-620-0	01	1	-0306
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: D = 8-97356-161-0, 97356161	8-97246-620-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: C = 8-97356-160-0, 97356160	8-97246-621-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: E = 8-97359-753-1, 97359753	8-97246-621-0	01	1	-0306
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-97244-976-3, 97244976	8-97246-622-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: F = 8-97359-754-1, 97359754	8-97246-622-0	01	1	-0306
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: H = 8-97359-756-1, 97359756	8-97246-623-0	01	1	-0306
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: B = 8-97244-979-3, 97244979	8-97246-623-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: E = 8-97359-753-1, 97359753	8-97368-641-0	01	1	0307-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: F = 8-97359-754-1, 97359754	8-97368-643-0	01	1	0307-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: G = 8-97359-755-1, 97359755	8-97368-645-0	01	1	0307-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: H = 8-97359-756-1, 97359756	8-97368-646-0	01	1	0307-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: E = 8-97359-753-1, 97359753	8-97246-626-0	01	1	-0306
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: C = 8-97356-160-0, 97356160	8-97246-626-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: F = 8-97359-754-1, 97359754	8-97246-627-0	01	1	-0306
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: A = 8-97244-976-3, 97244976	8-97246-627-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: B = 8-97244-979-3, 97244979	8-97246-628-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: H = 8-97359-756-1, 97359756	8-97246-628-0	01	1	-0306
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: E = 8-97359-753-1, 97359753	8-97368-642-0	01	1	0307-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: F = 8-97359-754-1, 97359754	8-97368-644-0	01	1	0307-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: H = 8-97359-756-1, 97359756	8-97368-647-0	01	1	0307-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X56 ASM PART: C = 8-97356-160-0, 97356160, E = 8-97359-753-1, 97359753	8-94468-050-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN ASM PART: D = 8-97356-161-0, 97356161, G = 8-97359-755-1, 97359755	8-97304-262-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X75 ASM PART: A = 8-97244-976-3, 97244976, B = 8-97244-979-3, 97244979, F = 8-97359-754-1, 97359754, H = 8-97359-756-1, 97359756	8-97304-264-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR 00.002, M8 ASM PART: A = 8-97244-976-3, 97244976, B = 8-97244-979-3, 97244979, C = 8-97356-160-0, 97356160, D = 8-97356-161-0, 97356161, F = 8-97359-754-1, 97359754, G = 8-97359-755-1, 97359755, H = 8-97359-756-1, 97359756	9-09110-508-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR 00.002, M8 ASM PART: E = 8-97359-753-1, 97359753	9-09110-508-0	01	1	-0306
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: C = 8-97356-160-0, 97356160, D = 8-97356-161-0, 97356161, E = 8-97359-753-1, 97359753, G = 8-97359-755-1, 97359755	8-94468-305-0	04	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: A = 8-97244-976-3, 97244976, B = 8-97244-979-3, 97244979, F = 8-97359-754-1, 97359754, H = 8-97359-756-1, 97359756	8-94468-305-0	05	1	-
38	07.505 BUSHING; LEAF SPR,RR ASM PART: A = 8-97244-976-3, 97244976, B = 8-97244-979-3, 97244979, C = 8-97356-160-0, 97356160, D = 8-97356-161-0, 97356161, E = 8-97359-753-1, 97359753, F = 8-97359-754-1, 97359754, G = 8-97359-755-1, 97359755, H = 8-97359-756-1, 97359756	8-97332-642-0	01	1	-
40	07.506 LINER; LEAF SPR,RR 07.518, (A) ASM PART: A = 8-97244-976-3, 97244976, B = 8-97244-979-3, 97244979, C = 8-97356-160-0, 97356160, D = 8-97356-161-0, 97356161	8-94406-909-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: C = 8-97356-160-0, 97356160	8-94479-181-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: A = 8-97244-976-3, 97244976, B = 8-97244-979-3, 97244979, D = 8-97356-161-0, 97356161	8-94479-181-0	04	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: F = 8-97359-754-1, 97359754, G = 8-97359-755-1, 97359755, H = 8-97359-756-1, 97359756	8-97360-245-0	04	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: E = 8-97359-753-1, 97359753	8-97360-245-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: E = 8-97359-753-1, 97359753, F = 8-97359-754-1, 97359754, G = 8-97359-755-1, 97359755, H = 8-97359-756-1, 97359756	8-97360-246-0	02	1	-

2 40 34 3 40 37 4 38 37 40 37 40 5 37 22 40 40 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: D = 8-97356-161-0, 97356161, G = 8-97359-755-1, 97359755	8-97246-603-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: C = 8-97356-160-0, 97356160, E = 8-97359-753-1, 97359753	8-97246-604-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-97244-976-3, 97244976, F = 8-97359-754-1, 97359754	8-97246-605-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 8-97244-979-3, 97244979, H = 8-97359-756-1, 97359756	8-97246-606-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: D = 8-97356-161-0, 97356161, G = 8-97359-755-1, 97359755	8-97246-607-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 8-97356-160-0, 97356160, E = 8-97359-753-1, 97359753	8-97246-608-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-97244-976-3, 97244976, F = 8-97359-754-1, 97359754	8-97246-609-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 8-97244-979-3, 97244979, H = 8-97359-756-1, 97359756	8-97246-610-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: D = 8-97356-161-0, 97356161, G = 8-97359-755-1, 97359755	8-97246-612-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 8-97356-160-0, 97356160, E = 8-97359-753-1, 97359753	8-97246-614-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-97244-976-3, 97244976, F = 8-97359-754-1, 97359754	8-97246-615-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 8-97244-979-3, 97244979, H = 8-97359-756-1, 97359756	8-97246-616-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 8-97244-976-3, 97244976, F = 8-97359-754-1, 97359754	8-97246-617-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: B = 8-97244-979-3, 97244979, H = 8-97359-756-1, 97359756	8-97246-619-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: D = 8-97356-161-0, 97356161, G = 8-97359-755-1, 97359755	8-97304-269-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: G = 8-97359-755-1, 97359755	8-97246-620-0	01	1	-0306
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: D = 8-97356-161-0, 97356161	8-97246-620-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: C = 8-97356-160-0, 97356160	8-97246-621-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: E = 8-97359-753-1, 97359753	8-97246-621-0	01	1	-0306
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-97244-976-3, 97244976	8-97246-622-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: F = 8-97359-754-1, 97359754	8-97246-622-0	01	1	-0306
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: H = 8-97359-756-1, 97359756	8-97246-623-0	01	1	-0306
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: B = 8-97244-979-3, 97244979	8-97246-623-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: E = 8-97359-753-1, 97359753	8-97368-641-0	01	1	0307-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: F = 8-97359-754-1, 97359754	8-97368-643-0	01	1	0307-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: G = 8-97359-755-1, 97359755	8-97368-645-0	01	1	0307-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: H = 8-97359-756-1, 97359756	8-97368-646-0	01	1	0307-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X56 ASM PART: C = 8-97356-160-0, 97356160, E = 8-97359-753-1, 97359753	8-94468-050-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN ASM PART: D = 8-97356-161-0, 97356161, G = 8-97359-755-1, 97359755	8-97304-262-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X75 ASM PART: A = 8-97244-976-3, 97244976, B = 8-97244-979-3, 97244979, F = 8-97359-754-1, 97359754, H = 8-97359-756-1, 97359756	8-97304-264-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR 00.002, M8 ASM PART: A = 8-97244-976-3, 97244976, B = 8-97244-979-3, 97244979, C = 8-97356-160-0, 97356160, D = 8-97356-161-0, 97356161, F = 8-97359-754-1, 97359754, G = 8-97359-755-1, 97359755, H = 8-97359-756-1, 97359756	9-09110-508-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR 00.002, M8 ASM PART: E = 8-97359-753-1, 97359753	9-09110-508-0	01	1	-0306
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: C = 8-97356-160-0, 97356160, D = 8-97356-161-0, 97356161, E = 8-97359-753-1, 97359753, G = 8-97359-755-1, 97359755	8-94468-305-0	04	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: A = 8-97244-976-3, 97244976, B = 8-97244-979-3, 97244979, F = 8-97359-754-1, 97359754, H = 8-97359-756-1, 97359756	8-94468-305-0	05	1	-
38	07.505 BUSHING; LEAF SPR,RR ASM PART: A = 8-97244-976-3, 97244976, B = 8-97244-979-3, 97244979, C = 8-97356-160-0, 97356160, D = 8-97356-161-0, 97356161, E = 8-97359-753-1, 97359753, F = 8-97359-754-1, 97359754, G = 8-97359-755-1, 97359755, H = 8-97359-756-1, 97359756	8-97332-642-0	01	1	-
40	07.506 LINER; LEAF SPR,RR 07.518, (A) ASM PART: A = 8-97244-976-3, 97244976, B = 8-97244-979-3, 97244979, C = 8-97356-160-0, 97356160, D = 8-97356-161-0, 97356161	8-94406-909-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: C = 8-97356-160-0, 97356160	8-94479-181-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: A = 8-97244-976-3, 97244976, B = 8-97244-979-3, 97244979, D = 8-97356-161-0, 97356161	8-94479-181-0	04	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: F = 8-97359-754-1, 97359754, G = 8-97359-755-1, 97359755, H = 8-97359-756-1, 97359756	8-97360-245-0	04	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: E = 8-97359-753-1, 97359753	8-97360-245-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: E = 8-97359-753-1, 97359753, F = 8-97359-754-1, 97359754, G = 8-97359-755-1, 97359755, H = 8-97359-756-1, 97359756	8-97360-246-0	02	1	-

2 40 34 3 37 40 38 4 37 40 37 40 5 37 22 40 37 3 40 24 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: D = 8-97356-161-0, 97356161, G = 8-97359-755-1, 97359755	8-97246-603-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: C = 8-97356-160-0, 97356160, E = 8-97359-753-1, 97359753	8-97246-604-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-97244-976-3, 97244976, F = 8-97359-754-1, 97359754	8-97246-605-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 8-97244-979-3, 97244979, H = 8-97359-756-1, 97359756	8-97246-606-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: D = 8-97356-161-0, 97356161, G = 8-97359-755-1, 97359755	8-97246-607-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 8-97356-160-0, 97356160, E = 8-97359-753-1, 97359753	8-97246-608-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-97244-976-3, 97244976, F = 8-97359-754-1, 97359754	8-97246-609-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 8-97244-979-3, 97244979, H = 8-97359-756-1, 97359756	8-97246-610-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: D = 8-97356-161-0, 97356161, G = 8-97359-755-1, 97359755	8-97246-612-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 8-97356-160-0, 97356160, E = 8-97359-753-1, 97359753	8-97246-614-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-97244-976-3, 97244976, F = 8-97359-754-1, 97359754	8-97246-615-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 8-97244-979-3, 97244979, H = 8-97359-756-1, 97359756	8-97246-616-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 8-97244-976-3, 97244976, F = 8-97359-754-1, 97359754	8-97246-617-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: B = 8-97244-979-3, 97244979, H = 8-97359-756-1, 97359756	8-97246-619-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: D = 8-97356-161-0, 97356161, G = 8-97359-755-1, 97359755	8-97304-269-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: G = 8-97359-755-1, 97359755	8-97246-620-0	01	1	-0306
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: D = 8-97356-161-0, 97356161	8-97246-620-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: C = 8-97356-160-0, 97356160	8-97246-621-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: E = 8-97359-753-1, 97359753	8-97246-621-0	01	1	-0306
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-97244-976-3, 97244976	8-97246-622-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: F = 8-97359-754-1, 97359754	8-97246-622-0	01	1	-0306
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: H = 8-97359-756-1, 97359756	8-97246-623-0	01	1	-0306
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: B = 8-97244-979-3, 97244979	8-97246-623-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: E = 8-97359-753-1, 97359753	8-97368-641-0	01	1	0307-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: F = 8-97359-754-1, 97359754	8-97368-643-0	01	1	0307-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: G = 8-97359-755-1, 97359755	8-97368-645-0	01	1	0307-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: H = 8-97359-756-1, 97359756	8-97368-646-0	01	1	0307-
24	07.505 SPRING; LEAF,NO 3,RR SUB ASM PART: A = 8-97244-976-3, 97244976, F = 8-97359-754-1, 97359754	8-97304-271-0	01	1	-
24	07.505 SPRING; LEAF,NO 3,RR SUB ASM PART: B = 8-97244-979-3, 97244979, H = 8-97359-756-1, 97359756	8-97304-272-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X56 ASM PART: C = 8-97356-160-0, 97356160, E = 8-97359-753-1, 97359753	8-94468-050-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN ASM PART: D = 8-97356-161-0, 97356161, G = 8-97359-755-1, 97359755	8-97304-262-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN M8X75 ASM PART: A = 8-97244-976-3, 97244976, B = 8-97244-979-3, 97244979, F = 8-97359-754-1, 97359754, H = 8-97359-756-1, 97359756	8-97304-264-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR 00.002, M8 ASM PART: A = 8-97244-976-3, 97244976, B = 8-97244-979-3, 97244979, C = 8-97356-160-0, 97356160, D = 8-97356-161-0, 97356161, F = 8-97359-754-1, 97359754, G = 8-97359-755-1, 97359755, H = 8-97359-756-1, 97359756	9-09110-508-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR 00.002, M8 ASM PART: E = 8-97359-753-1, 97359753	9-09110-508-0	01	1	-0306
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: C = 8-97356-160-0, 97356160, D = 8-97356-161-0, 97356161, E = 8-97359-753-1, 97359753, G = 8-97359-755-1, 97359755	8-94468-305-0	04	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR ASM PART: A = 8-97244-976-3, 97244976, B = 8-97244-979-3, 97244979, F = 8-97359-754-1, 97359754, H = 8-97359-756-1, 97359756	8-94468-305-0	05	1	-
38	07.505 BUSHING; LEAF SPR,RR ASM PART: A = 8-97244-976-3, 97244976, B = 8-97244-979-3, 97244979, C = 8-97356-160-0, 97356160, D = 8-97356-161-0, 97356161, E = 8-97359-753-1, 97359753, F = 8-97359-754-1, 97359754, G = 8-97359-755-1, 97359755, H = 8-97359-756-1, 97359756	8-97332-642-0	01	1	-
40	07.506 LINER; LEAF SPR,RR 07.518, (A) ASM PART: A = 8-97244-976-3, 97244976, B = 8-97244-979-3, 97244979, C = 8-97356-160-0, 97356160, D = 8-97356-161-0, 97356161	8-94406-909-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: C = 8-97356-160-0, 97356160	8-94479-181-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: A = 8-97244-976-3, 97244976, B = 8-97244-979-3, 97244979, D = 8-97356-161-0, 97356161	8-94479-181-0	04	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: F = 8-97359-754-1, 97359754, G = 8-97359-755-1, 97359755, H = 8-97359-756-1, 97359756	8-97360-245-0	04	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: E = 8-97359-753-1, 97359753	8-97360-245-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (A) ASM PART: E = 8-97359-753-1, 97359753, F = 8-97359-754-1, 97359754, G = 8-97359-755-1, 97359755, H = 8-97359-756-1, 97359756	8-97360-246-0	02	1	-
