◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50936 - TFR/TFS(AUSTRALIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-61 - SHOCK ABSORBER; REAR SUSPENSION ▶
4-61 — SHOCK ABSORBER; REAR SUSPENSION (#42337) — 17 parça

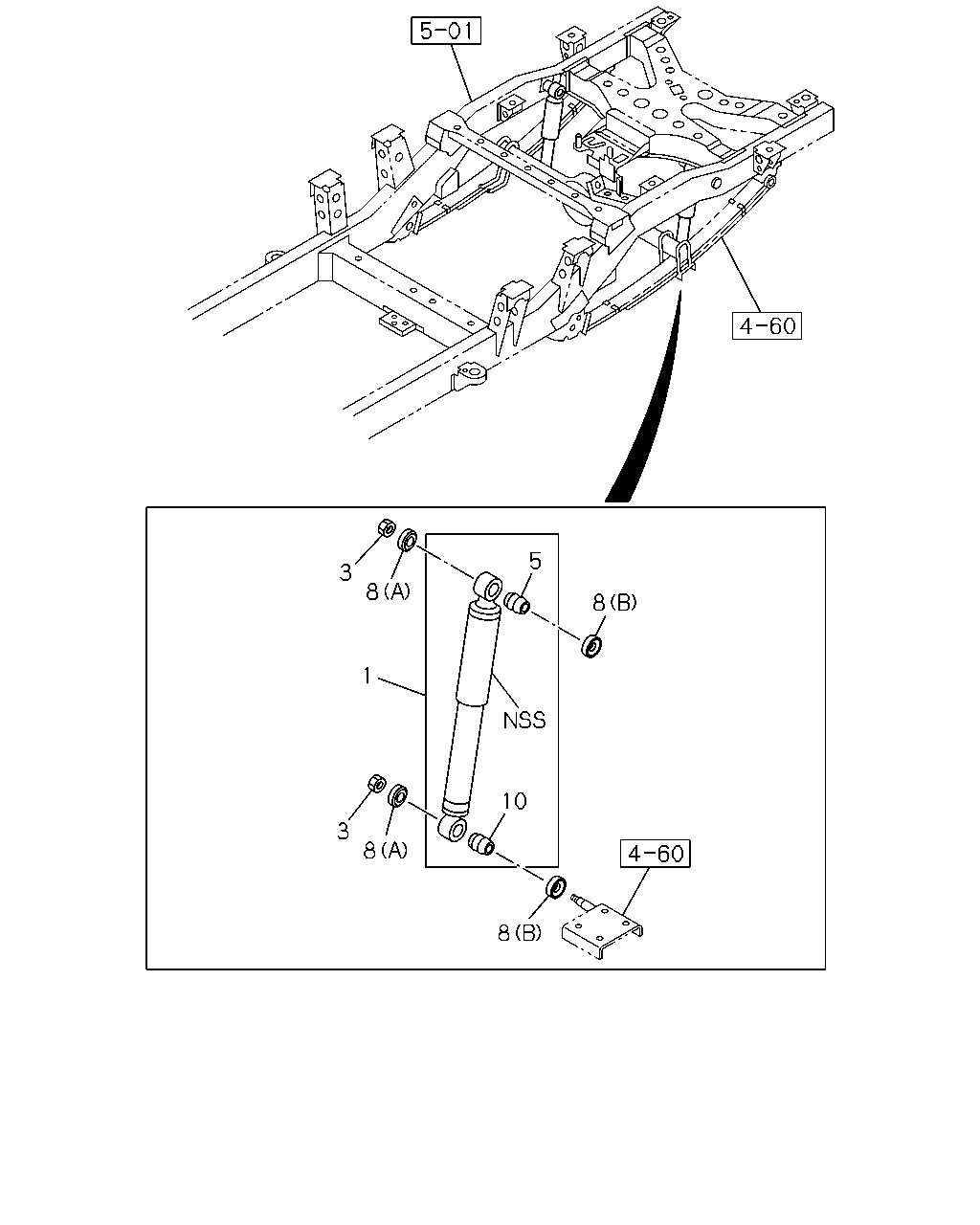

çizim 11334
5 3 8 8 1 10 3 8 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 07.395 ABSORBER ASM; SHOCK,RR
REAR SPRING HEAVY DUTY(G50) HIGH RIDE SUSPENSION(7YC) 		8-97301-842-4 02 1 0211-0306 ● ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
REAR SPRING HEAVY DUTY(G50) 		8-97301-842-4 02 1 0211-0306 ● ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
REAR SPRING HEAVY DUTY(G50) HIGH RIDE SUSPENSION(7YC) 		8-97368-601-0 02 1 0307- ● ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
REAR SPRING HEAVY DUTY(G50) 		8-97368-601-0 02 1 0307- ● ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
REAR SPRING HEAVY DUTY(G50) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97301-843-4 02 1 0211-0306 ● ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
REAR SPRING HEAVY DUTY(G50) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97368-600-0 02 1 0307- ● ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. REAR SPRING HEAVY DUTY(G50), HIGH RIDE SUSPENSION(7YC) 		8-97940-845-4 02 1 0211-0306 ● ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. REAR SPRING HEAVY DUTY(G50), HIGH RIDE SUSPENSION(7YC) 		8-97368-598-0 02 1 0307- ● ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
HIGH RIDE SUSPENSION(7YC) EXC. REAR SPRING HEAVY DUTY(G50) 		8-97940-844-4 02 1 0211-0306 ● ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. REAR SPRING HEAVY DUTY(G50) 		8-97940-844-4 02 1 0211-0306 ● ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
HIGH RIDE SUSPENSION(7YC) EXC. REAR SPRING HEAVY DUTY(G50) 		8-97368-599-0 02 1 0307- ● ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. REAR SPRING HEAVY DUTY(G50) 		8-97368-599-0 02 1 0307- ● ● ● ●
3 07.347 NUT; S/ABS
M12 FLANGE 		8-97256-670-0 04 1 0211- ● ● ● ● ● ● ● ●
5 07.388 BUSHING; RUBBER,S/ABS,UPR 8-97302-810-0 02 1 0211- ● ● ● ● ● ● ● ●
8 07.347 WASHER; S/ABS
(A) ID=16.5 		8-94445-688-0 04 1 0211- ● ● ● ● ● ● ● ●
8 07.347 WASHER; S/ABS
(B) ID=12.5 		9-51679-022-0 04 1 0211- ● ● ● ● ● ● ● ●
10 07.388 BUSHING; RUBBER,S/ABS 8-97302-810-0 02 1 0211- ● ● ● ● ● ● ● ●
