4-60 — REAR SUSPENSION (#42336) — 32 parça

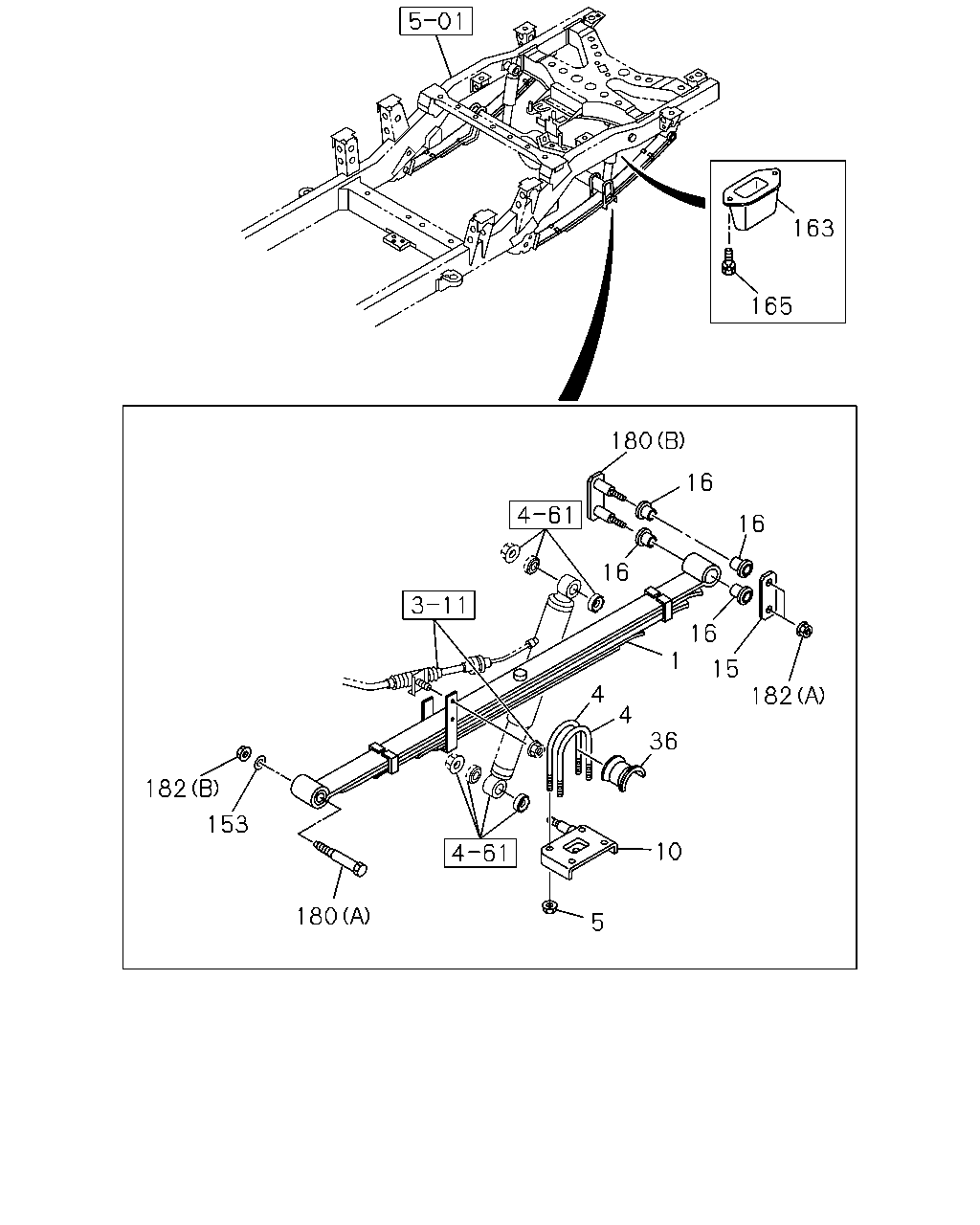

çizim 50599
163 165 180 16 16 16 16 1 15 4 182 4 36 182 153 10 180 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR SPRING HEAVY DUTY(G50) HIGH RIDE SUSPENSION(7YC) 		8-97244-979-3 02 1 0211-0212 ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR SPRING HEAVY DUTY(G50) 		8-97244-979-3 02 1 0211-0212 ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR SPRING HEAVY DUTY(G50) HIGH RIDE SUSPENSION(7YC) 		8-97359-756-1 02 1 0301- ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR SPRING HEAVY DUTY(G50) 		8-97359-756-1 02 1 0301- ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR SPRING HEAVY DUTY(G50) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97244-976-3 02 1 0211-0212 ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR SPRING HEAVY DUTY(G50) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97359-754-1 02 1 0301- ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. REAR SPRING HEAVY DUTY(G50), HIGH RIDE SUSPENSION(7YC) 		8-97356-160-0 02 1 0211-0212 ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. REAR SPRING HEAVY DUTY(G50), HIGH RIDE SUSPENSION(7YC) 		8-97359-753-1 02 1 0301- ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HIGH RIDE SUSPENSION(7YC) EXC. REAR SPRING HEAVY DUTY(G50) 		8-97356-161-0 02 1 0211-0212 ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. REAR SPRING HEAVY DUTY(G50) 		8-97356-161-0 02 1 0211-0212 ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HIGH RIDE SUSPENSION(7YC) EXC. REAR SPRING HEAVY DUTY(G50) 		8-97359-755-1 02 1 0301- ● ● ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. REAR SPRING HEAVY DUTY(G50) 		8-97359-755-1 02 1 0301- ● ● ● ●
4 07.516 U-BOLT; RR SPR
REAR SPRING HEAVY DUTY(G50) L=187 		8-97248-621-1 04 1 0211- ● ● ● ● ● ● ● ●
4 07.516 U-BOLT; RR SPR
EXC. REAR SPRING HEAVY DUTY(G50) 		8-97248-620-1 04 1 0211- ● ● ● ● ● ● ● ●
5 07.529 NUT; U-BOLT,RR SPR
M14 FLANGE 		8-97245-635-0 08 1 0211- ● ● ● ● ● ● ● ●
10 07.529 CLAMP; LWR,RR SPR 8-97220-964-0 01 1 0211-0302 ● ● ● ● ● ● ● ●
10 07.529 CLAMP; LWR,RR SPR 8-97365-393-0 01 1 0303- ● ● ● ● ● ● ● ●
10 07.529 CLAMP; LWR,RR SPR 8-97312-802-0 01 1 0211-0302 ● ● ● ● ● ● ● ●
10 07.529 CLAMP; LWR,RR SPR 8-97365-391-0 01 1 0303- ● ● ● ● ● ● ● ●
15 07.523 SHACKLE; RR SPR 8-97245-901-1 02 1 0211- ● ● ● ● ● ● ● ●
16 07.524 BUSHING; SHACKLE,RR SPR 8-94234-319-0 08 1 0211-0303 ● ● ● ● ● ● ● ●
16 07.524 BUSHING; SHACKLE,RR SPR 8-97357-492-0 08 1 0304- ● ● ● ● ● ● ● ●
36 07.529 SEAT; HELPER RUBBER,RR SPR 8-97221-355-0 02 1 0211- ● ● ● ● ● ● ● ●
153 07.529 WASHER; PL,SPRING PIN
ID=14.5 OD=30 		8-94476-635-0 02 1 0211- ● ● ● ● ● ● ● ●
163 07.529 RUBBER; HELPER,RR SPR
HIGH RIDE SUSPENSION(7YC) 		8-97235-925-1 02 1 0211- ● ● ● ●
163 07.529 RUBBER; HELPER,RR SPR 8-97235-925-1 02 1 0211- ● ● ● ●
163 07.529 RUBBER; HELPER,RR SPR
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97235-926-0 02 1 0211- ● ● ● ●
165 07.529 BOLT; HELPER RUBBER
00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0211- ● ● ● ● ● ● ● ●
180 07.529 PIN; RR SPR
(A) M14X106 		8-97245-647-0 02 1 0211- ● ● ● ● ● ● ● ●
180 07.529 PIN; RR SPR
07.523 (B) 		8-97245-650-1 02 1 0211- ● ● ● ● ● ● ● ●
182 07.529 NUT; PIN,RR SPR
(A) M14 FLANGE 		0-91180-114-0 04 1 0211- ● ● ● ● ● ● ● ●
182 07.529 NUT; PIN,RR SPR
(B) M14 FLANGE 		8-97245-651-0 02 1 0211- ● ● ● ● ● ● ● ●
