4-42 — POWER STEERING OIL PUMP (#42334) — 74 parça

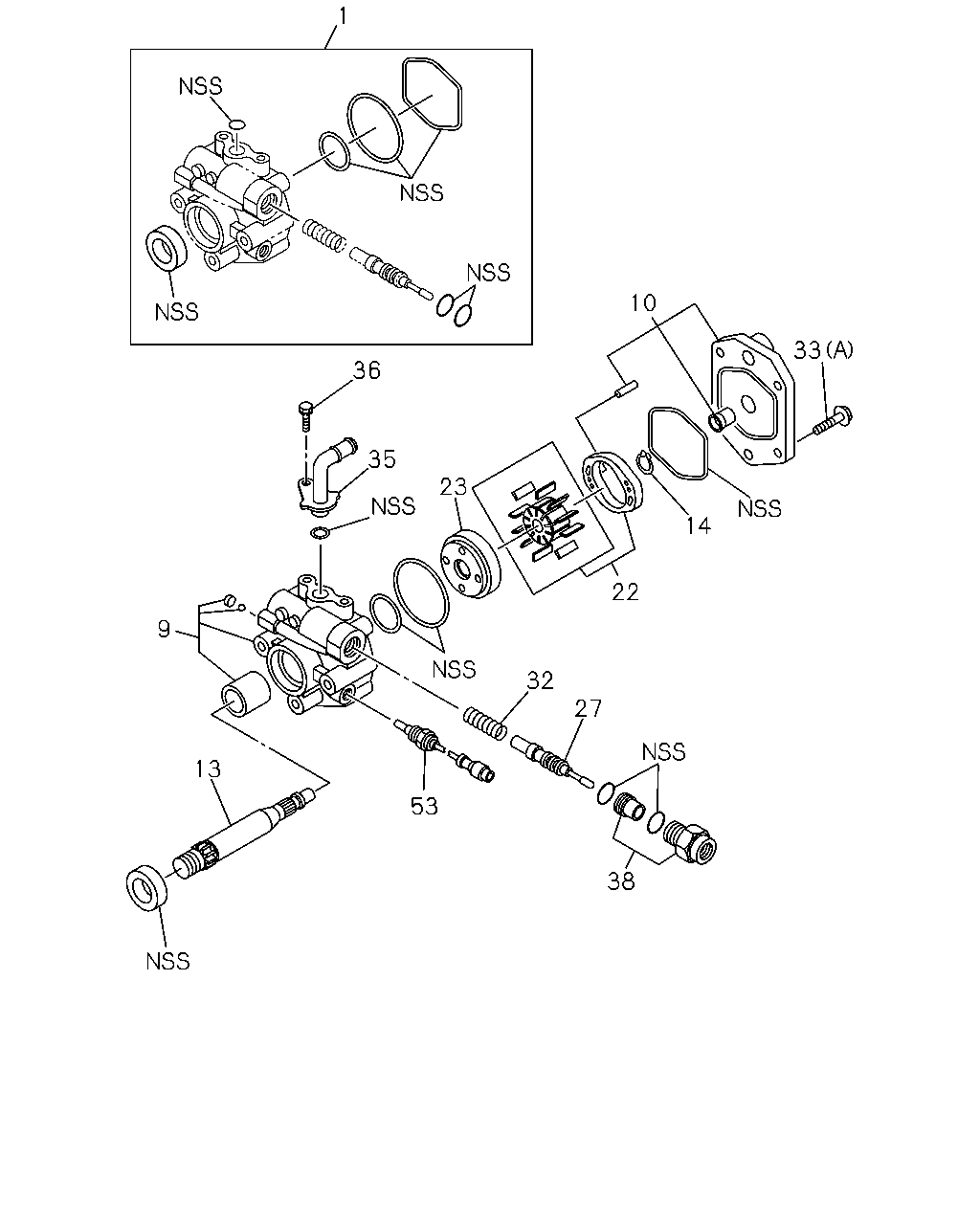

1 10 33 36 35 23 14 22 9 32 27 13 53 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP ASM PART: A = 8-97214-994-1, 97214994, B = 8-97214-995-1, 97214995, C = 8-97234-963-1, 97234963	8-97205-626-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: B = 8-97214-995-1, 97214995	8-97184-721-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: C = 8-97234-963-1, 97234963	8-97205-607-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP 06.008 ASM PART: A = 8-97214-994-1, 97214994	8-97332-290-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: B = 8-97214-995-1, 97214995	8-97184-730-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: A = 8-97214-994-1, 97214994, C = 8-97234-963-1, 97234963	8-97205-620-0	01	1	-
13	06.605 SHAFT KIT; RET ASM PART: A = 8-97214-994-1, 97214994	8-97184-723-0	01	1	-
13	06.605 SHAFT KIT; RET ASM PART: C = 8-97234-963-1, 97234963	8-97207-744-0	01	1	-
13	06.605 SHAFT KIT; RET ASM PART: B = 8-97214-995-1, 97214995	8-97306-614-0	01	1	-
14	06.616 RING; RET,OIL PUMP ASM PART: A = 8-97214-994-1, 97214994, C = 8-97234-963-1, 97234963	8-94411-358-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-97214-995-1, 97214995	8-97184-729-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97214-994-1, 97214994, C = 8-97234-963-1, 97234963	8-97205-611-0	01	1	-
23	06.609 PLATE; SIDE,OIL PUMP ASM PART: A = 8-97214-994-1, 97214994, B = 8-97214-995-1, 97214995, C = 8-97234-963-1, 97234963	8-97184-728-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: B = 8-97214-995-1, 97214995	8-97184-731-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: A = 8-97214-994-1, 97214994, C = 8-97234-963-1, 97234963	8-97357-779-0	01	1	-
32	06.606 SPRING; OIL PUMP ASM PART: A = 8-97214-994-1, 97214994, B = 8-97214-995-1, 97214995, C = 8-97234-963-1, 97234963	8-97184-766-0	01	1	-
33	06.606 BOLT; COVER ASM PART: A = 8-97214-994-1, 97214994, C = 8-97234-963-1, 97234963	8-97184-761-0	04	1	-
33	06.606 BOLT; COVER ASM PART: B = 8-97214-995-1, 97214995	8-97184-761-0	03	1	-
33	06.606 BOLT; COVER ASM PART: B = 8-97214-995-1, 97214995	8-97184-762-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: B = 8-97214-995-1, 97214995, C = 8-97234-963-1, 97234963	8-97184-733-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: A = 8-97214-994-1, 97214994	8-97357-780-0	01	1	-
36	06.602 BOLT; CONN,PIPE ASM PART: A = 8-97214-994-1, 97214994, C = 8-97234-963-1, 97234963	8-97184-763-0	02	1	-
36	06.602 BOLT; CONN,PIPE ASM PART: B = 8-97214-995-1, 97214995	8-97184-763-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: A = 8-97214-994-1, 97214994, B = 8-97214-995-1, 97214995, C = 8-97234-963-1, 97234963	8-97188-391-0	01	1	-
53	06.609 SWITCH KIT; PRESSURE ASM PART: A = 8-97214-994-1, 97214994, C = 8-97234-963-1, 97234963	8-97205-627-0	01	1	-

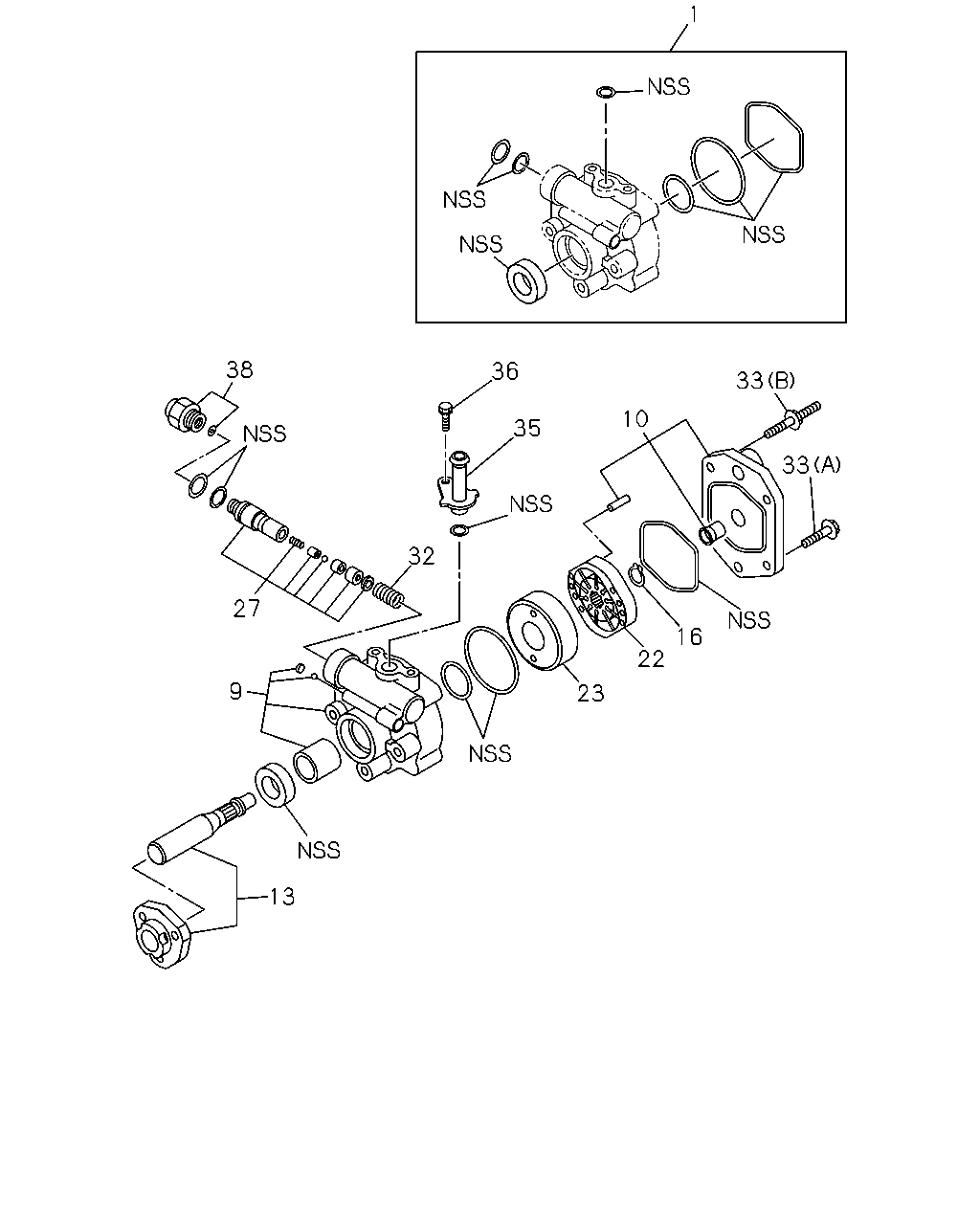

1 38 36 33 10 35 33 32 27 16 22 9 23 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP ASM PART: A = 8-97214-994-1, 97214994, B = 8-97214-995-1, 97214995, C = 8-97234-963-1, 97234963	8-97205-626-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: B = 8-97214-995-1, 97214995	8-97184-721-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: C = 8-97234-963-1, 97234963	8-97205-607-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP 06.008 ASM PART: A = 8-97214-994-1, 97214994	8-97332-290-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: B = 8-97214-995-1, 97214995	8-97184-730-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: A = 8-97214-994-1, 97214994, C = 8-97234-963-1, 97234963	8-97205-620-0	01	1	-
13	06.605 SHAFT KIT; RET ASM PART: A = 8-97214-994-1, 97214994	8-97184-723-0	01	1	-
13	06.605 SHAFT KIT; RET ASM PART: C = 8-97234-963-1, 97234963	8-97207-744-0	01	1	-
13	06.605 SHAFT KIT; RET ASM PART: B = 8-97214-995-1, 97214995	8-97306-614-0	01	1	-
16	06.616 RING; RET,OIL PUMP ASM PART: B = 8-97214-995-1, 97214995	8-94411-358-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-97214-995-1, 97214995	8-97184-729-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97214-994-1, 97214994, C = 8-97234-963-1, 97234963	8-97205-611-0	01	1	-
23	06.609 PLATE; SIDE,OIL PUMP ASM PART: A = 8-97214-994-1, 97214994, B = 8-97214-995-1, 97214995, C = 8-97234-963-1, 97234963	8-97184-728-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: B = 8-97214-995-1, 97214995	8-97184-731-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: A = 8-97214-994-1, 97214994, C = 8-97234-963-1, 97234963	8-97357-779-0	01	1	-
32	06.606 SPRING; OIL PUMP ASM PART: A = 8-97214-994-1, 97214994, B = 8-97214-995-1, 97214995, C = 8-97234-963-1, 97234963	8-97184-766-0	01	1	-
33	06.606 BOLT; COVER ASM PART: A = 8-97214-994-1, 97214994, C = 8-97234-963-1, 97234963	8-97184-761-0	04	1	-
33	06.606 BOLT; COVER ASM PART: B = 8-97214-995-1, 97214995	8-97184-761-0	03	1	-
33	06.606 BOLT; COVER ASM PART: B = 8-97214-995-1, 97214995	8-97184-762-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: B = 8-97214-995-1, 97214995, C = 8-97234-963-1, 97234963	8-97184-733-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: A = 8-97214-994-1, 97214994	8-97357-780-0	01	1	-
36	06.602 BOLT; CONN,PIPE ASM PART: A = 8-97214-994-1, 97214994, C = 8-97234-963-1, 97234963	8-97184-763-0	02	1	-
36	06.602 BOLT; CONN,PIPE ASM PART: B = 8-97214-995-1, 97214995	8-97184-763-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: A = 8-97214-994-1, 97214994, B = 8-97214-995-1, 97214995, C = 8-97234-963-1, 97234963	8-97188-391-0	01	1	-

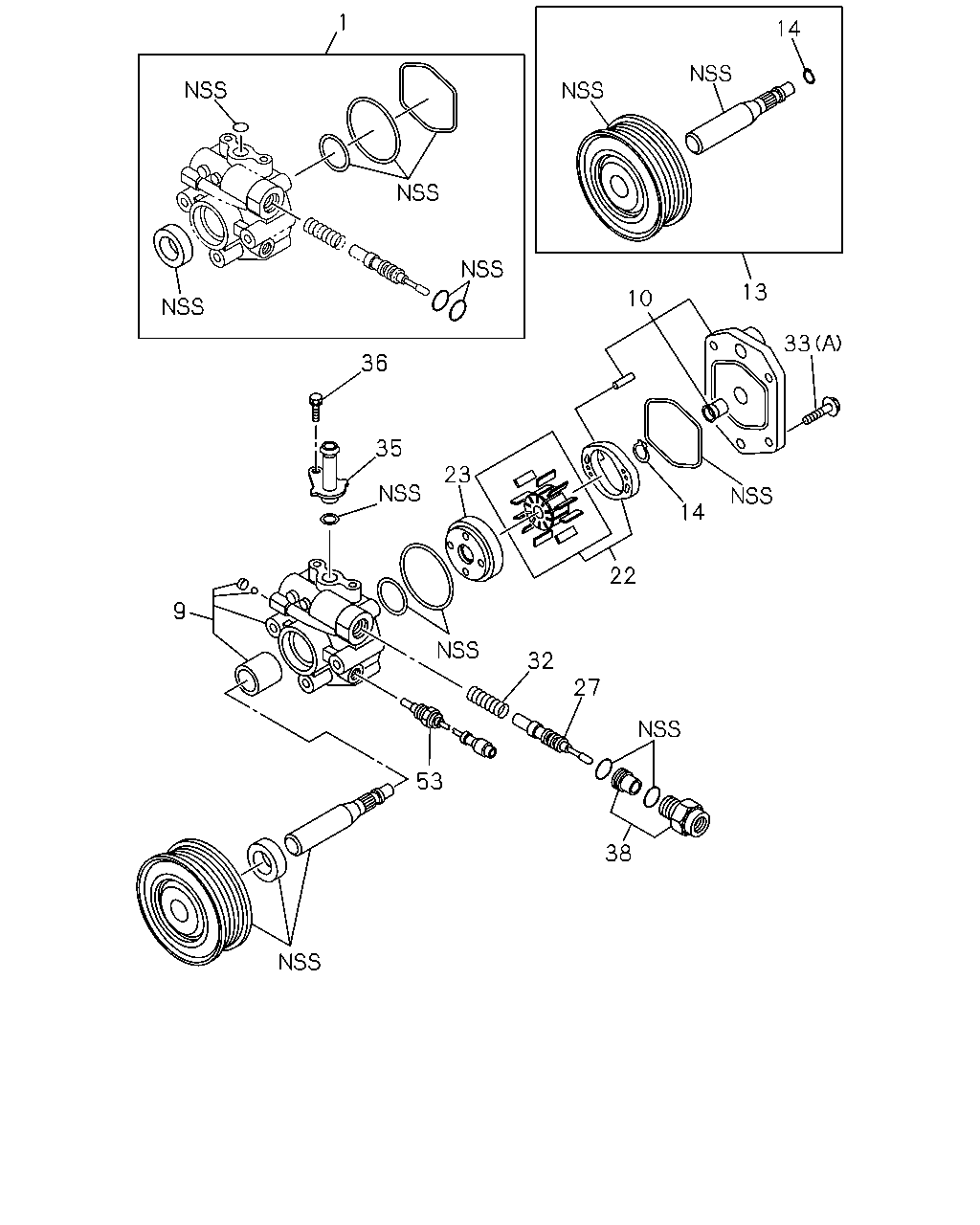

1 14 13 10 33 36 35 23 14 22 9 32 27 53 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP ASM PART: A = 8-97214-994-1, 97214994, B = 8-97214-995-1, 97214995, C = 8-97234-963-1, 97234963	8-97205-626-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: B = 8-97214-995-1, 97214995	8-97184-721-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: C = 8-97234-963-1, 97234963	8-97205-607-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP 06.008 ASM PART: A = 8-97214-994-1, 97214994	8-97332-290-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: B = 8-97214-995-1, 97214995	8-97184-730-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: A = 8-97214-994-1, 97214994, C = 8-97234-963-1, 97234963	8-97205-620-0	01	1	-
13	06.605 SHAFT KIT; RET ASM PART: A = 8-97214-994-1, 97214994	8-97184-723-0	01	1	-
13	06.605 SHAFT KIT; RET ASM PART: C = 8-97234-963-1, 97234963	8-97207-744-0	01	1	-
13	06.605 SHAFT KIT; RET ASM PART: B = 8-97214-995-1, 97214995	8-97306-614-0	01	1	-
14	06.616 RING; RET,OIL PUMP ASM PART: A = 8-97214-994-1, 97214994, C = 8-97234-963-1, 97234963	8-94411-358-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-97214-995-1, 97214995	8-97184-729-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97214-994-1, 97214994, C = 8-97234-963-1, 97234963	8-97205-611-0	01	1	-
23	06.609 PLATE; SIDE,OIL PUMP ASM PART: A = 8-97214-994-1, 97214994, B = 8-97214-995-1, 97214995, C = 8-97234-963-1, 97234963	8-97184-728-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: B = 8-97214-995-1, 97214995	8-97184-731-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: A = 8-97214-994-1, 97214994, C = 8-97234-963-1, 97234963	8-97357-779-0	01	1	-
32	06.606 SPRING; OIL PUMP ASM PART: A = 8-97214-994-1, 97214994, B = 8-97214-995-1, 97214995, C = 8-97234-963-1, 97234963	8-97184-766-0	01	1	-
33	06.606 BOLT; COVER ASM PART: A = 8-97214-994-1, 97214994, C = 8-97234-963-1, 97234963	8-97184-761-0	04	1	-
33	06.606 BOLT; COVER ASM PART: B = 8-97214-995-1, 97214995	8-97184-761-0	03	1	-
33	06.606 BOLT; COVER ASM PART: B = 8-97214-995-1, 97214995	8-97184-762-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: B = 8-97214-995-1, 97214995, C = 8-97234-963-1, 97234963	8-97184-733-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: A = 8-97214-994-1, 97214994	8-97357-780-0	01	1	-
36	06.602 BOLT; CONN,PIPE ASM PART: A = 8-97214-994-1, 97214994, C = 8-97234-963-1, 97234963	8-97184-763-0	02	1	-
36	06.602 BOLT; CONN,PIPE ASM PART: B = 8-97214-995-1, 97214995	8-97184-763-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: A = 8-97214-994-1, 97214994, B = 8-97214-995-1, 97214995, C = 8-97234-963-1, 97234963	8-97188-391-0	01	1	-
53	06.609 SWITCH KIT; PRESSURE ASM PART: A = 8-97214-994-1, 97214994, C = 8-97234-963-1, 97234963	8-97205-627-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
