4-40 — STEERING UNIT (#42333) — 24 parça

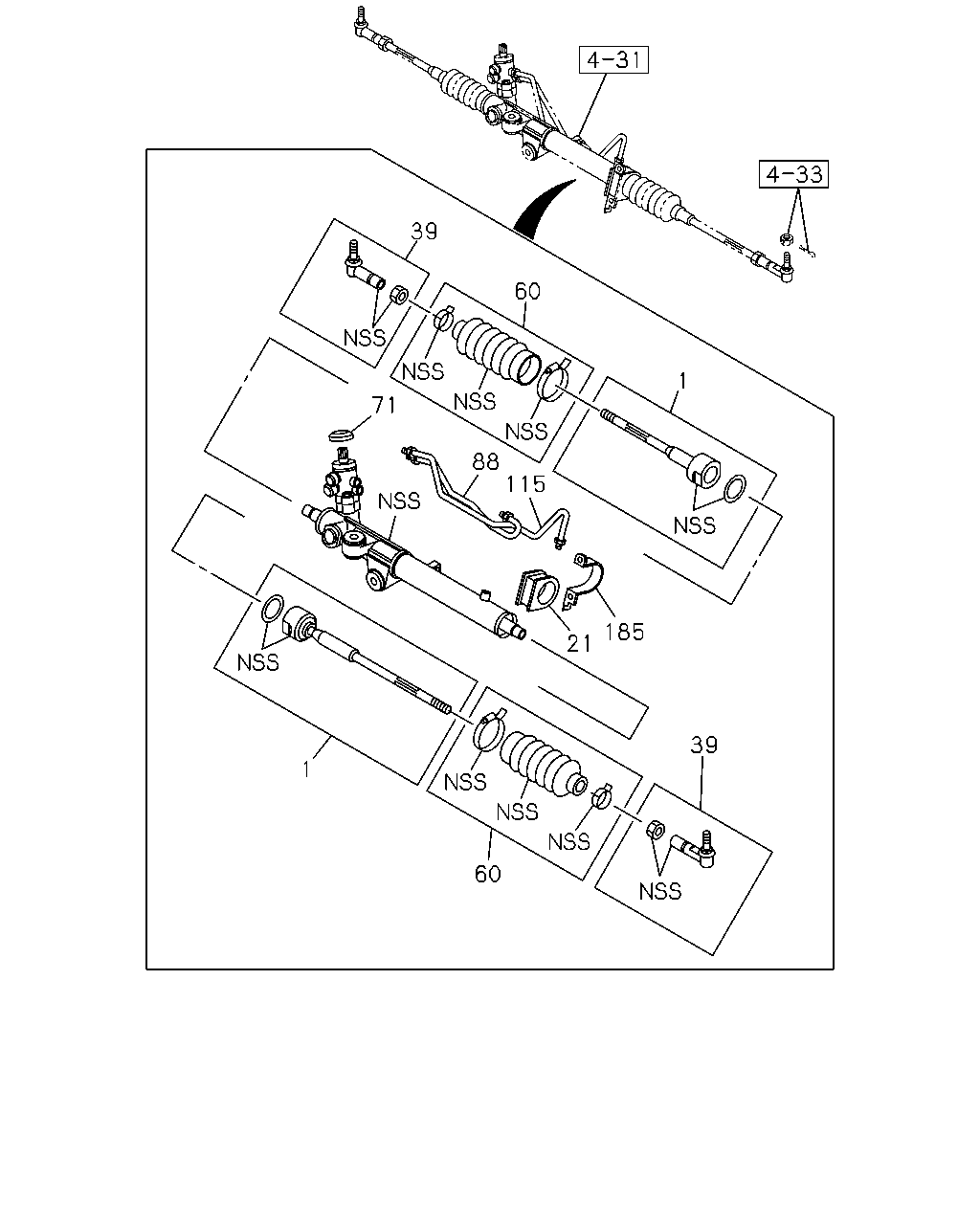

39 60 1 71 88 115 185 21 39 1 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.507 REPAIR KIT; STRG UNIT,1 YEAR ASM PART: A = 8-97234-440-3, 97234440, C = 8-97234-444-2, 97234444, D = 8-97943-520-0, 97943520	8-97304-851-0	02	1	-
1	06.507 REPAIR KIT; STRG UNIT,1 YEAR ASM PART: B = 8-97234-441-3, 97234441, E = 8-97943-521-0, 97943521	8-97304-853-0	02	1	-
21	06.509 RUBBER; MTG,PINION SIDE ASM PART: A = 8-97234-440-3, 97234440, D = 8-97943-520-0, 97943520	8-97304-908-0	01	1	-
21	06.509 RUBBER; MTG,PINION SIDE ASM PART: B = 8-97234-441-3, 97234441, E = 8-97943-521-0, 97943521	8-97304-923-0	01	1	-
21	06.509 RUBBER; MTG,PINION SIDE ASM PART: C = 8-97234-444-2, 97234444	8-97304-936-0	01	1	-
39	06.233 ROD END ASM; OUTER ASM PART: A = 8-97234-440-3, 97234440, B = 8-97234-441-3, 97234441, C = 8-97234-444-2, 97234444, D = 8-97943-520-0, 97943520, E = 8-97943-521-0, 97943521	8-97304-855-0	02	1	-
60	06.242 BOOT KIT; STRG HSG ASM PART: A = 8-97234-440-3, 97234440, C = 8-97234-444-2, 97234444, D = 8-97943-520-0, 97943520	8-97304-852-0	02	1	-
60	06.242 BOOT KIT; STRG HSG ASM PART: B = 8-97234-441-3, 97234441, E = 8-97943-521-0, 97943521	8-97304-854-0	02	1	-
71	06.242 COVER; DUST,STRG UNIT ASM PART: A = 8-97234-440-3, 97234440, B = 8-97234-441-3, 97234441, C = 8-97234-444-2, 97234444, D = 8-97943-520-0, 97943520, E = 8-97943-521-0, 97943521	8-97304-904-0	01	1	-
88	06.671 PIPE; HSG TO VLV ASM PART: A = 8-97234-440-3, 97234440, D = 8-97943-520-0, 97943520	8-97304-915-0	01	1	-
88	06.671 PIPE; HSG TO VLV ASM PART: B = 8-97234-441-3, 97234441, E = 8-97943-521-0, 97943521	8-97304-916-0	01	1	-
115	06.671 PIPE; HSG TO VLV ASM PART: A = 8-97234-440-3, 97234440, D = 8-97943-520-0, 97943520	8-97304-917-0	01	1	-
115	06.671 PIPE; HSG TO VLV ASM PART: B = 8-97234-441-3, 97234441, E = 8-97943-521-0, 97943521	8-97304-918-0	01	1	-
185	06.509 BRACKET; P/S ASM PART: A = 8-97234-440-3, 97234440, B = 8-97234-441-3, 97234441, C = 8-97234-444-2, 97234444, D = 8-97943-520-0, 97943520, E = 8-97943-521-0, 97943521	8-97304-891-0	01	1	-

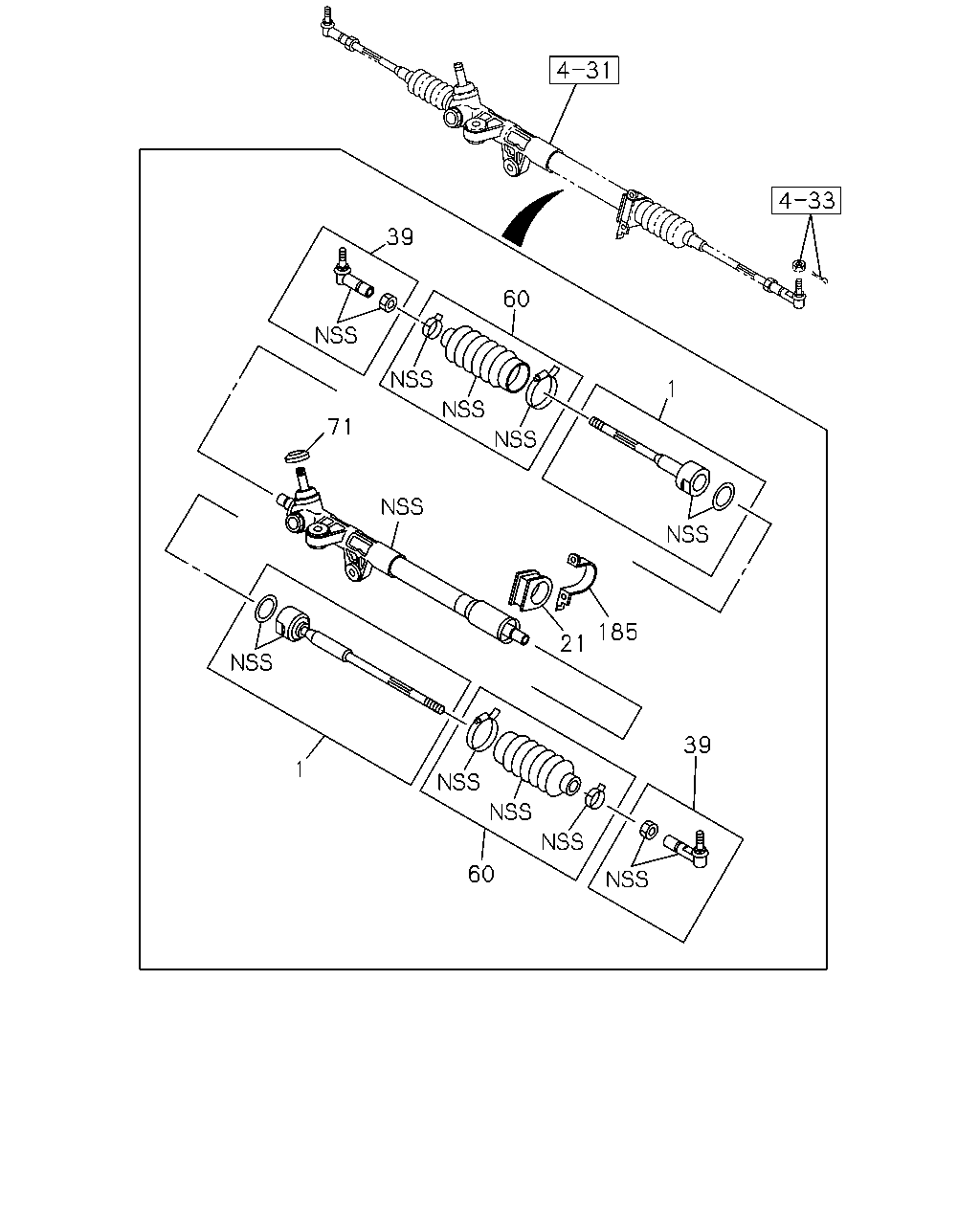

39 60 1 71 185 21 39 1 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.507 REPAIR KIT; STRG UNIT,1 YEAR ASM PART: A = 8-97234-440-3, 97234440, C = 8-97234-444-2, 97234444, D = 8-97943-520-0, 97943520	8-97304-851-0	02	1	-
1	06.507 REPAIR KIT; STRG UNIT,1 YEAR ASM PART: B = 8-97234-441-3, 97234441, E = 8-97943-521-0, 97943521	8-97304-853-0	02	1	-
21	06.509 RUBBER; MTG,PINION SIDE ASM PART: A = 8-97234-440-3, 97234440, D = 8-97943-520-0, 97943520	8-97304-908-0	01	1	-
21	06.509 RUBBER; MTG,PINION SIDE ASM PART: B = 8-97234-441-3, 97234441, E = 8-97943-521-0, 97943521	8-97304-923-0	01	1	-
21	06.509 RUBBER; MTG,PINION SIDE ASM PART: C = 8-97234-444-2, 97234444	8-97304-936-0	01	1	-
39	06.233 ROD END ASM; OUTER ASM PART: A = 8-97234-440-3, 97234440, B = 8-97234-441-3, 97234441, C = 8-97234-444-2, 97234444, D = 8-97943-520-0, 97943520, E = 8-97943-521-0, 97943521	8-97304-855-0	02	1	-
60	06.242 BOOT KIT; STRG HSG ASM PART: A = 8-97234-440-3, 97234440, C = 8-97234-444-2, 97234444, D = 8-97943-520-0, 97943520	8-97304-852-0	02	1	-
60	06.242 BOOT KIT; STRG HSG ASM PART: B = 8-97234-441-3, 97234441, E = 8-97943-521-0, 97943521	8-97304-854-0	02	1	-
71	06.242 COVER; DUST,STRG UNIT ASM PART: A = 8-97234-440-3, 97234440, B = 8-97234-441-3, 97234441, C = 8-97234-444-2, 97234444, D = 8-97943-520-0, 97943520, E = 8-97943-521-0, 97943521	8-97304-904-0	01	1	-
185	06.509 BRACKET; P/S ASM PART: A = 8-97234-440-3, 97234440, B = 8-97234-441-3, 97234441, C = 8-97234-444-2, 97234444, D = 8-97943-520-0, 97943520, E = 8-97943-521-0, 97943521	8-97304-891-0	01	1	-
