◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50808 - NHR ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#42332) — 221 parça

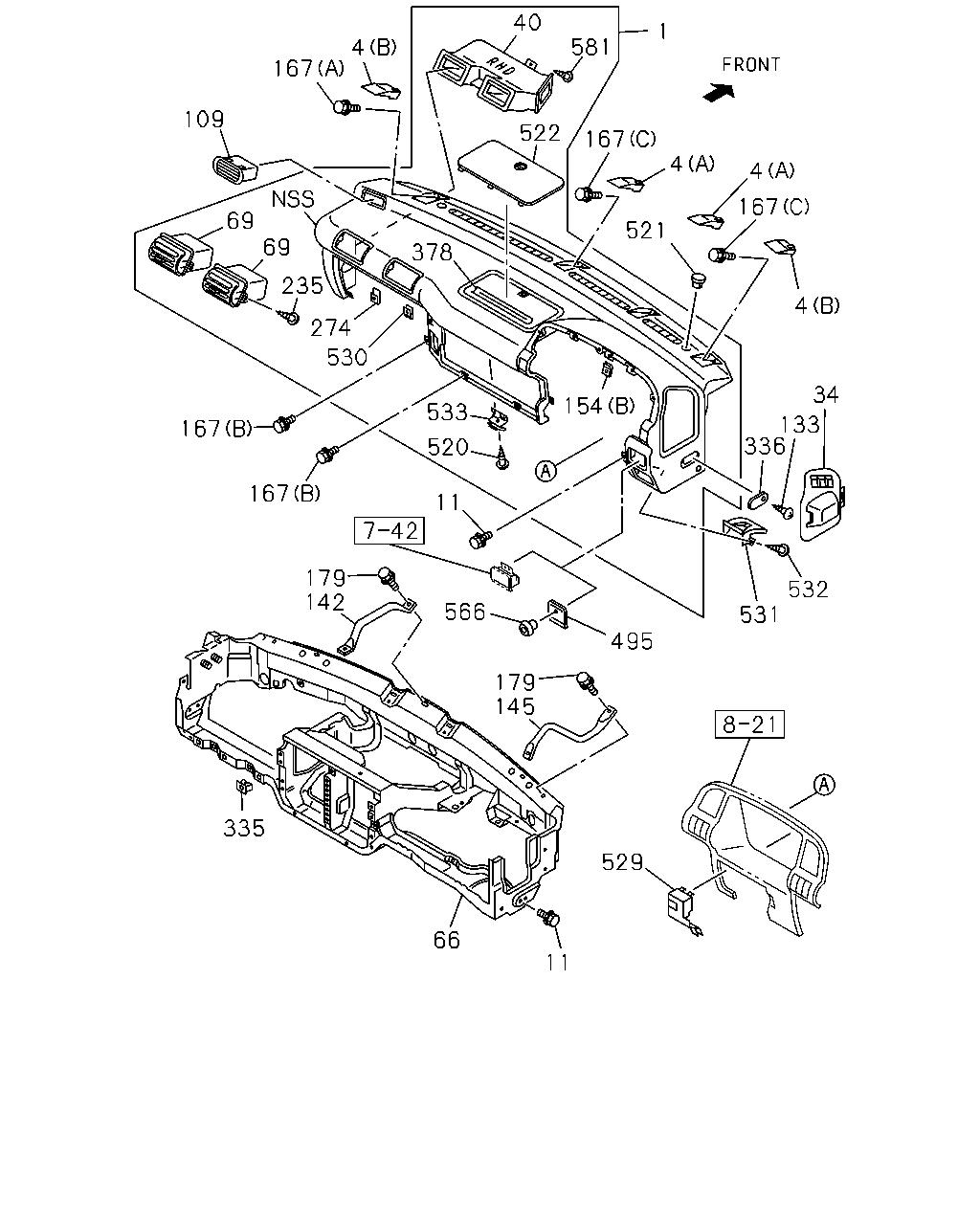

çizim 9667
40 1 581 4 167 109 522 167 4 4 167 69 521 69 378 235 4 274 530 34 154 533 133 336 167 520 167 11 179 142 532 566 531 495 179 145 335 529 66 11
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.080 PANEL; INST
DARK GRAY 		8-97195-958-1 01 1 9811- ● ● ●
1 16.080 PANEL; INST
DARK GRAY 		8-97195-961-0 01 1 9811-9905 ● ● ●
1 16.080 PANEL; INST
EXC. SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY 		8-97195-961-2 01 1 9906- ● ●
1 16.080 PANEL; INST
DARK GRAY 		8-97195-961-2 01 1 9906- ●
1 16.080 PANEL; INST
SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY 		8-97896-997-1 01 1 9906- ● ●
4 16.080 COVER; INST PNL
(A) DARK GRAY 		8-97857-523-3 02 1 9811- ● ● ● ● ● ●
4 16.080 COVER; INST PNL
(B) DARK GRAY 		8-97857-525-3 01 1 9811- ● ● ● ● ● ●
4 16.080 COVER; INST PNL
(B) DARK GRAY 		8-97857-524-3 01 1 9811- ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
16.085 M8X20 FLANGE 		8-97114-431-0 04 1 9811-0106 ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
M8X23 FLANGE 		8-97264-766-0 04 1 0107- ● ● ● ● ● ●
34 16.085 LID; OIL TANK
DARK GRAY 		8-97859-800-7 01 1 9811- ● ● ●
34 16.085 LID; OIL TANK
DARK GRAY 		8-97857-499-5 01 1 9811- ● ● ●
40 09.264 DUCT; VENT,SIDE CLUSTER BEZEL
09.786 		8-97035-234-0 01 1 9811-0007 ● ● ●
40 09.264 DUCT; VENT,SIDE CLUSTER BEZEL
09.262 		8-97262-688-0 01 1 0008- ● ● ●
40 09.264 DUCT; VENT,SIDE CLUSTER BEZEL
09.786 		8-97069-824-0 01 1 9811-0007 ● ● ●
40 09.264 DUCT; VENT,SIDE CLUSTER BEZEL 8-97262-698-0 01 1 0008- ● ● ●
66 16.085 REINFORCEMENT; INST PANEL 8-97194-312-3 01 1 9811-9901 ● ● ●
66 16.085 REINFORCEMENT; INST PANEL 8-97892-865-0 01 1 9902-9909 ● ● ●
66 16.085 REINFORCEMENT; INST PANEL 8-97896-977-0 01 1 9910-9911 ● ● ●
66 16.085 REINFORCEMENT; INST PANEL 8-97898-307-0 01 1 9912-0005 ● ● ●
66 16.085 REINFORCEMENT; INST PANEL 8-97898-461-4 01 1 0006- ● ● ●
66 16.085 REINFORCEMENT; INST PANEL 8-97867-898-5 01 1 9811-9905 ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97867-898-5 01 1 9906-9910 ● ●
66 16.085 REINFORCEMENT; INST PANEL 8-97867-898-5 01 1 9906-9910 ●
66 16.085 REINFORCEMENT; INST PANEL
SAUDI ARABIA EQUIPMENT(EU2) 		8-97896-978-0 01 1 9906-9910 ● ●
66 16.085 REINFORCEMENT; INST PANEL 8-97896-978-0 01 1 9911-0006 ● ● ●
66 16.085 REINFORCEMENT; INST PANEL 8-97898-464-3 01 1 0007- ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
DARK GRAY 		8-97890-631-0 02 1 9811-0207 ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
DARK GRAY 		8-97890-631-0 02 1 0208- ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY 		8-97890-631-0 02 1 0208- ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
EXC. SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY 		8-97857-519-2 02 1 0208- ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
DARK GRAY 		8-97857-519-2 02 1 0208- ●
109 16.081 GRILLE; INST PNL SIDE,UPR
DARK GRAY 		8-97859-795-0 01 1 9811- ● ● ●
109 16.081 GRILLE; INST PNL SIDE,UPR
DARK GRAY 		8-97857-530-0 01 1 9811- ● ● ●
133 16.081 SCREW; COVER,INST PNL
09.744 M5X20 TAPPING W/PL WASHER 		0-74110-520-0 02 1 9811- ● ● ● ● ● ●
142 16.085 STAY; INST PANEL 8-97853-637-2 01 1 9811- ● ● ●
142 16.085 STAY; INST PANEL 8-97856-196-2 01 1 9811- ● ● ●
145 16.085 STAY; INST PANEL SIDE 8-97853-638-3 01 1 9811- ● ● ●
145 16.085 STAY; INST PANEL SIDE 8-97856-197-2 01 1 9811- ● ● ●
154 16.085 NUT
16.742 (B) M6 SPIRE NUT 		8-94291-960-0 01 1 9811-9901 ● ● ● ● ● ●
154 16.085 NUT
(B) M6 SPIRE NUT 		8-97210-973-1 01 1 9902-9902 ● ● ● ● ● ●
154 16.085 NUT
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B) M6 SPIRE NUT 		8-97210-973-1 02 1 9902-0208 ● ● ●
154 16.085 NUT
(B) M6 SPIRE NUT 		8-97210-973-1 01 1 0209- ● ● ● ● ● ●
154 16.085 NUT
(A) M6 SPIRE NUT 		8-97210-973-1 03 1 9811- ● ● ● ● ● ●
154 16.085 NUT
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) (B) M6 SPIRE NUT 		8-97210-973-1 01 1 9902-0208 ● ● ●
154 16.085 NUT
(B) M6 SPIRE NUT 		8-97210-973-1 01 1 9902-0208 ● ● ●
167 16.085 BOLT; REINF TO INST
08.225 (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 9811- ● ● ● ● ● ●
167 16.085 BOLT; REINF TO INST
06.500 (C) M6X25 		8-94279-204-0 02 1 9811- ● ● ● ● ● ●
167 16.085 BOLT; REINF TO INST
(A) M6X24 FLANGE 		8-94279-231-1 02 1 9811- ● ● ● ● ● ●
179 16.085 BOLT; STAY,INST PANEL
16.350 M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 9811- ● ● ● ● ● ●
235 16.081 SCREW; GRILLE
16.067 M5X14 		8-94279-325-0 04 1 9811- ● ● ● ● ● ●
274 16.100 NUT; GLOVE BOX
16.081 M5 SPIRE NUT 		8-94279-051-0 02 1 9811- ● ● ● ● ● ●
335 16.115 GROMMET; GLOVE BOX LK
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9811- ● ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
DARK GRAY 		8-97857-528-4 02 1 9811- ● ● ● ● ● ●
378 09.743 SEAL; INST PANEL 8-97209-399-0 01 1 9811- ● ● ● ● ● ●
495 09.743 BEZEL; SW
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97857-548-4 01 1 9811- ● ● ● ● ● ●
520 16.085 SCREW; CLIP,SPRING
16.067 M5X14 		8-94279-325-0 02 1 9811- ● ● ●
520 16.085 SCREW; CLIP,SPRING
16.067 M5X14 		8-94279-325-0 03 1 9811- ● ● ●
521 16.081 COVER; SUN SENSOR
DARK GRAY 		8-97857-529-2 01 1 9811- ● ● ● ● ● ●
522 16.085 LID; RELAY BOX
DARK GRAY 		8-97857-520-6 01 1 9811- ● ● ● ● ● ●
529 16.100 POCKET; COIN
BLACK 		8-97867-074-5 01 1 9811- ● ● ●
530 16.100 CLIP; GLOVE BOX 8-97856-135-0 01 1 9811- ● ● ● ● ● ●
531 16.100 CASE; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> 		8-97853-130-0 01 1 9811- ● ● ● ● ● ●
532 16.100 SCREW; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> 16.067 M5X14 		8-94279-325-0 02 1 9811- ● ● ● ● ● ●
533 16.100 CLIP; SPRING,CTR CLUSTER 8-97853-170-5 02 1 9811- ● ● ● ● ● ●
566 16.085 PLUG; HOLE
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97868-413-0 01 1 9811- ● ● ● ● ● ●
581 09.744 SCREW
16.067 M5X14 		8-94279-325-0 02 1 9811- ● ● ● ● ● ●

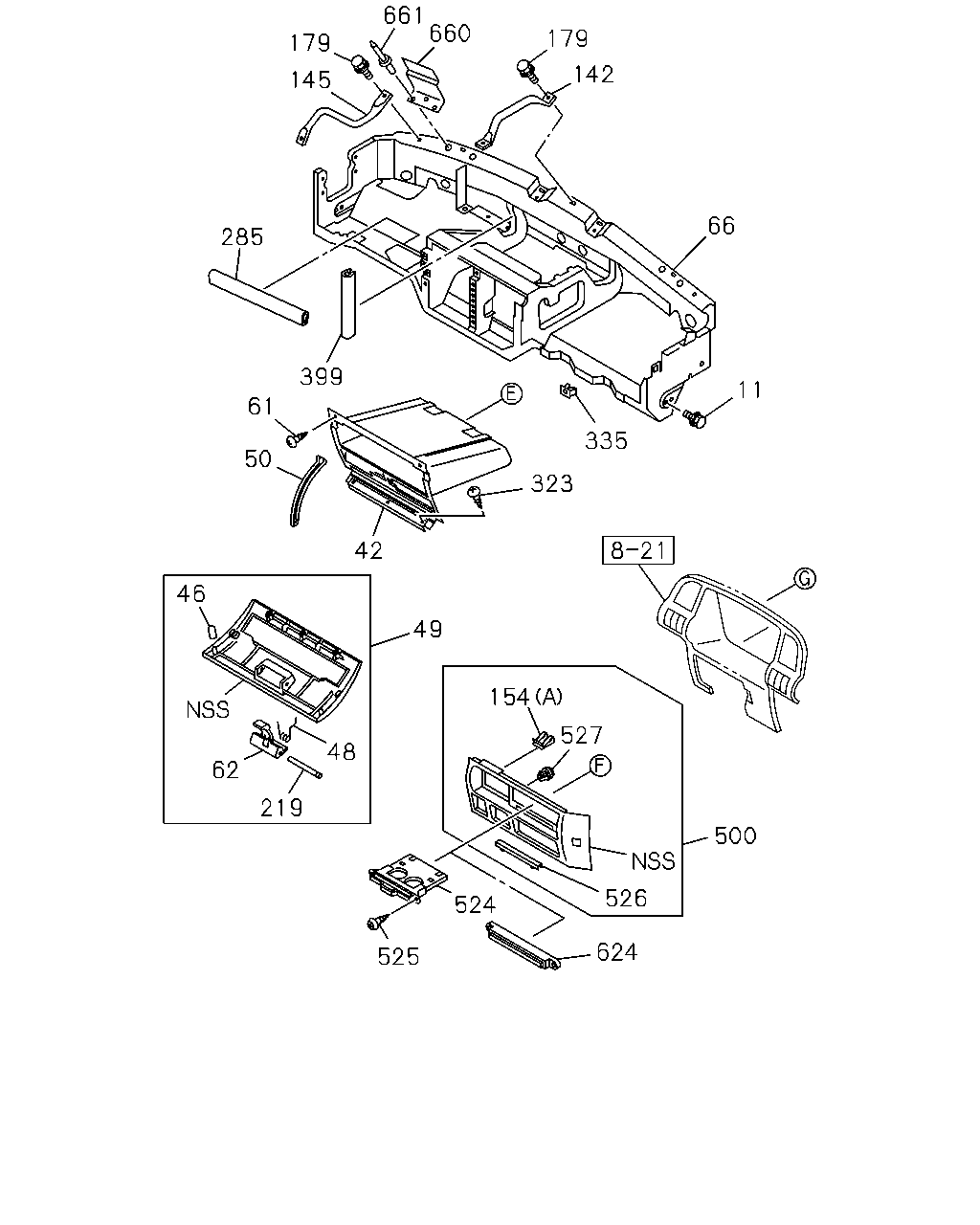

çizim 46634
661 660 179 179 142 145 66 285 399 11 61 335 50 323 42 46 49 154 527 48 62 219 500 524 526 624 525
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
11 16.090 BOLT; INST PNL
16.085 M8X20 FLANGE 		8-97114-431-0 04 1 9811-0106 ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
M8X23 FLANGE 		8-97264-766-0 04 1 0107- ● ● ● ● ● ●
42 16.100 BOX; GLOVE,INST PNL 8-97853-150-5 01 1 9811- ● ● ● ● ● ●
46 16.110 CAP; GLOVE BOX STOPPER 8-94270-538-0 02 1 9811-0208 ● ● ● ● ● ●
48 16.110 SPRING; GLOVE BOX LID 8-97853-750-1 01 1 9811- ● ● ● ● ● ●
49 16.110 LID; GLOVE BOX
DARK GRAY 		8-97859-798-5 01 1 9811- ● ● ● ● ● ●
50 16.110 STOPPER; LID,GLOVE BOX,INST CLUS 8-97853-152-0 02 1 9811- ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 9811- ● ● ● ● ● ●
62 16.110 KNOB; GLOVE BOX LID
DARK GRAY 		8-97857-498-1 01 1 9811- ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL 8-97194-312-3 01 1 9811-9901 ● ● ●
66 16.085 REINFORCEMENT; INST PANEL 8-97892-865-0 01 1 9902-9909 ● ● ●
66 16.085 REINFORCEMENT; INST PANEL 8-97896-977-0 01 1 9910-9911 ● ● ●
66 16.085 REINFORCEMENT; INST PANEL 8-97898-307-0 01 1 9912-0005 ● ● ●
66 16.085 REINFORCEMENT; INST PANEL 8-97898-461-4 01 1 0006- ● ● ●
66 16.085 REINFORCEMENT; INST PANEL 8-97867-898-5 01 1 9811-9905 ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97867-898-5 01 1 9906-9910 ● ●
66 16.085 REINFORCEMENT; INST PANEL 8-97867-898-5 01 1 9906-9910 ●
66 16.085 REINFORCEMENT; INST PANEL
SAUDI ARABIA EQUIPMENT(EU2) 		8-97896-978-0 01 1 9906-9910 ● ●
66 16.085 REINFORCEMENT; INST PANEL 8-97896-978-0 01 1 9911-0006 ● ● ●
66 16.085 REINFORCEMENT; INST PANEL 8-97898-464-3 01 1 0007- ● ● ●
142 16.085 STAY; INST PANEL 8-97853-637-2 01 1 9811- ● ● ●
142 16.085 STAY; INST PANEL 8-97856-196-2 01 1 9811- ● ● ●
145 16.085 STAY; INST PANEL SIDE 8-97853-638-3 01 1 9811- ● ● ●
145 16.085 STAY; INST PANEL SIDE 8-97856-197-2 01 1 9811- ● ● ●
154 16.085 NUT
16.742 (B) M6 SPIRE NUT 		8-94291-960-0 01 1 9811-9901 ● ● ● ● ● ●
154 16.085 NUT
(B) M6 SPIRE NUT 		8-97210-973-1 01 1 9902-9902 ● ● ● ● ● ●
154 16.085 NUT
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B) M6 SPIRE NUT 		8-97210-973-1 02 1 9902-0208 ● ● ●
154 16.085 NUT
(B) M6 SPIRE NUT 		8-97210-973-1 01 1 0209- ● ● ● ● ● ●
154 16.085 NUT
(A) M6 SPIRE NUT 		8-97210-973-1 03 1 9811- ● ● ● ● ● ●
154 16.085 NUT
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) (B) M6 SPIRE NUT 		8-97210-973-1 01 1 9902-0208 ● ● ●
154 16.085 NUT
(B) M6 SPIRE NUT 		8-97210-973-1 01 1 9902-0208 ● ● ●
179 16.085 BOLT; STAY,INST PANEL
16.350 M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 9811- ● ● ● ● ● ●
219 09.744 SHAFT; GLOVE BOX LID 5-72547-059-1 01 1 9811- ● ● ● ● ● ●
285 16.085 FINISHER; INST PANEL
16.550 L=120 SERVICED BY L=2040 		1-71997-513-1 01 1 9811-0104 ● ● ●
323 16.110 SCREW; GLOVE BOX LK
16.067 M5X14 		8-94279-325-0 03 1 9811- ● ● ● ● ● ●
335 16.115 GROMMET; GLOVE BOX LK
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9811- ● ● ● ● ● ●
399 16.085 FINISHER; HARNESS
03.885 L=50 		8-94270-377-1 01 1 9811- ● ● ●
500 16.081 CLUSTER; INST CENTER
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK GRAY 		8-97859-813-9 01 1 9811-9901 ● ● ●
500 16.081 CLUSTER; INST CENTER
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK GRAY 		8-97199-872-0 01 1 9902-9902 ● ● ●
500 16.081 CLUSTER; INST CENTER
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK GRAY 		8-97198-489-2 01 1 9902- ● ● ●
500 16.081 CLUSTER; INST CENTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) DARK GRAY 		8-97859-812-9 01 1 9811-9901 ● ● ●
500 16.081 CLUSTER; INST CENTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) DARK GRAY 		8-97199-870-0 01 1 9902-9902 ● ● ●
500 16.081 CLUSTER; INST CENTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) DARK GRAY 		8-97892-187-5 01 1 9902- ● ● ●
500 16.081 CLUSTER; INST CENTER
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK GRAY 		8-97868-657-4 01 1 9811- ● ● ●
500 16.081 CLUSTER; INST CENTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) DARK GRAY 		8-97868-656-7 01 1 9811- ● ● ●
524 16.100 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-97853-172-8 01 1 9811- ● ● ● ● ● ●
525 16.100 SCREW; CUP STAND
16.067 M5X14 		8-94279-325-0 02 1 9811- ● ● ● ● ● ●
526 16.100 GUIDE; POCKET,INST CLUSTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) DARK GRAY 		8-97857-503-1 01 1 9811-9901 ● ● ●
526 16.100 GUIDE; POCKET,INST CLUSTER
DARK GRAY 		8-97857-503-1 01 1 9811-9901 ● ● ●
526 16.100 GUIDE; POCKET,INST CLUSTER
DARK GRAY 		8-97857-503-1 01 1 9902-9904 ● ● ● ● ● ●
526 16.100 GUIDE; POCKET,INST CLUSTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) DARK GRAY 		8-97857-503-1 01 1 9905- ● ● ● ● ● ●
527 16.100 CLIP; INST CLUSTER 8-97853-169-0 04 1 9811-9901 ● ● ● ● ● ●
527 16.100 CLIP; INST CLUSTER
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97853-169-0 08 1 9902-0208 ● ● ●
527 16.100 CLIP; INST CLUSTER 8-97853-169-0 04 1 0209- ● ● ● ● ● ●
527 16.100 CLIP; INST CLUSTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) 		8-97853-169-0 04 1 9902-0208 ● ● ●
527 16.100 CLIP; INST CLUSTER 8-97853-169-0 04 1 9902-0208 ● ● ●
624 16.085 COVER; CUP STAND
EXC. CUP HOLDER<7KZ> 		1-72438-139-0 01 1 9811- ● ● ● ● ● ●
660 16.085 BRACKET; VIN PLATE
SAUDI ARABIA EQUIPMENT(EU2) 		8-97896-985-0 01 1 9906- ● ●
661 16.085 RIVET; BRKT,VIN PLATE
SAUDI ARABIA EQUIPMENT(EU2) 10.571 		8-94153-449-0 03 1 9906-9907 ● ●
661 16.085 RIVET; BRKT,VIN PLATE
SAUDI ARABIA EQUIPMENT(EU2) 10.688 		5-09730-002-0 03 1 9908- ● ●

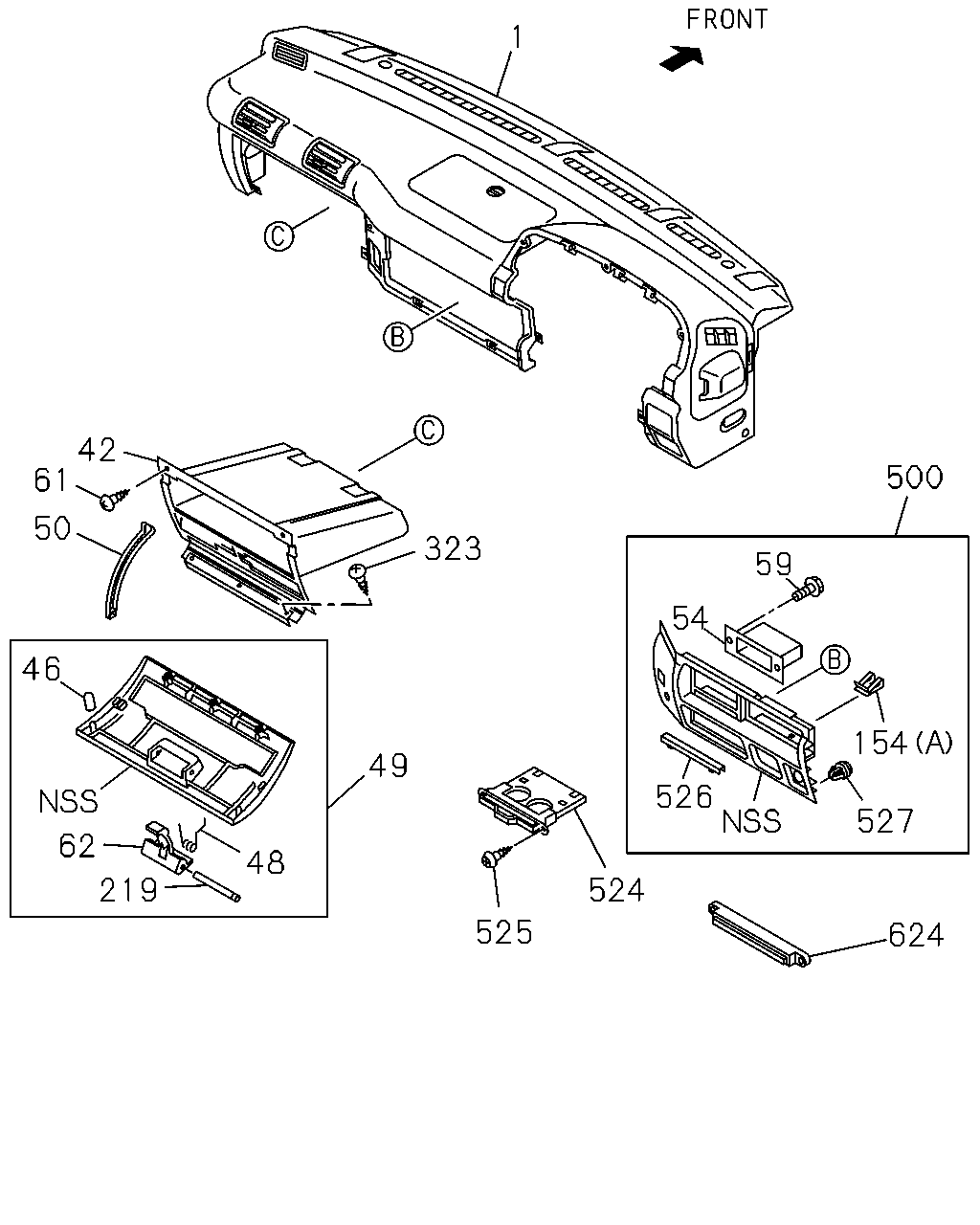

çizim 47530
1 42 61 500 50 323 59 54 46 154 49 526 527 62 48 219 524 525 624
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.080 PANEL; INST
DARK GRAY 		8-97195-958-1 01 1 9811- ● ● ●
1 16.080 PANEL; INST
DARK GRAY 		8-97195-961-0 01 1 9811-9905 ● ● ●
1 16.080 PANEL; INST
EXC. SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY 		8-97195-961-2 01 1 9906- ● ●
1 16.080 PANEL; INST
DARK GRAY 		8-97195-961-2 01 1 9906- ●
1 16.080 PANEL; INST
SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY 		8-97896-997-1 01 1 9906- ● ●
42 16.100 BOX; GLOVE,INST PNL 8-97853-150-5 01 1 9811- ● ● ● ● ● ●
46 16.110 CAP; GLOVE BOX STOPPER 8-94270-538-0 02 1 9811-0208 ● ● ● ● ● ●
48 16.110 SPRING; GLOVE BOX LID 8-97853-750-1 01 1 9811- ● ● ● ● ● ●
49 16.110 LID; GLOVE BOX
DARK GRAY 		8-97859-798-5 01 1 9811- ● ● ● ● ● ●
50 16.110 STOPPER; LID,GLOVE BOX,INST CLUS 8-97853-152-0 02 1 9811- ● ● ● ● ● ●
54 16.100 POCKET; CENTER CLUSTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) DARK GRAY 		8-97196-294-2 01 1 9902- ● ● ●
59 16.100 SCREW; CLUSTER POCKET
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) 16.067 M5X14 		8-94279-325-0 02 1 9902-0208 ● ● ●
59 16.100 SCREW; CLUSTER POCKET
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) 01.269 M5X14 		8-94148-576-1 02 1 0209- ● ● ●
61 16.100 SCREW; GLOVE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 9811- ● ● ● ● ● ●
62 16.110 KNOB; GLOVE BOX LID
DARK GRAY 		8-97857-498-1 01 1 9811- ● ● ● ● ● ●
154 16.085 NUT
16.742 (B) M6 SPIRE NUT 		8-94291-960-0 01 1 9811-9901 ● ● ● ● ● ●
154 16.085 NUT
(B) M6 SPIRE NUT 		8-97210-973-1 01 1 9902-9902 ● ● ● ● ● ●
154 16.085 NUT
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B) M6 SPIRE NUT 		8-97210-973-1 02 1 9902-0208 ● ● ●
154 16.085 NUT
(B) M6 SPIRE NUT 		8-97210-973-1 01 1 0209- ● ● ● ● ● ●
154 16.085 NUT
(A) M6 SPIRE NUT 		8-97210-973-1 03 1 9811- ● ● ● ● ● ●
154 16.085 NUT
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) (B) M6 SPIRE NUT 		8-97210-973-1 01 1 9902-0208 ● ● ●
154 16.085 NUT
(B) M6 SPIRE NUT 		8-97210-973-1 01 1 9902-0208 ● ● ●
219 09.744 SHAFT; GLOVE BOX LID 5-72547-059-1 01 1 9811- ● ● ● ● ● ●
323 16.110 SCREW; GLOVE BOX LK
16.067 M5X14 		8-94279-325-0 03 1 9811- ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK GRAY 		8-97859-813-9 01 1 9811-9901 ● ● ●
500 16.081 CLUSTER; INST CENTER
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK GRAY 		8-97199-872-0 01 1 9902-9902 ● ● ●
500 16.081 CLUSTER; INST CENTER
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK GRAY 		8-97198-489-2 01 1 9902- ● ● ●
500 16.081 CLUSTER; INST CENTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) DARK GRAY 		8-97859-812-9 01 1 9811-9901 ● ● ●
500 16.081 CLUSTER; INST CENTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) DARK GRAY 		8-97199-870-0 01 1 9902-9902 ● ● ●
500 16.081 CLUSTER; INST CENTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) DARK GRAY 		8-97892-187-5 01 1 9902- ● ● ●
500 16.081 CLUSTER; INST CENTER
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) DARK GRAY 		8-97868-657-4 01 1 9811- ● ● ●
500 16.081 CLUSTER; INST CENTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) DARK GRAY 		8-97868-656-7 01 1 9811- ● ● ●
524 16.100 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-97853-172-8 01 1 9811- ● ● ● ● ● ●
525 16.100 SCREW; CUP STAND
16.067 M5X14 		8-94279-325-0 02 1 9811- ● ● ● ● ● ●
526 16.100 GUIDE; POCKET,INST CLUSTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) DARK GRAY 		8-97857-503-1 01 1 9811-9901 ● ● ●
526 16.100 GUIDE; POCKET,INST CLUSTER
DARK GRAY 		8-97857-503-1 01 1 9811-9901 ● ● ●
526 16.100 GUIDE; POCKET,INST CLUSTER
DARK GRAY 		8-97857-503-1 01 1 9902-9904 ● ● ● ● ● ●
526 16.100 GUIDE; POCKET,INST CLUSTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) DARK GRAY 		8-97857-503-1 01 1 9905- ● ● ● ● ● ●
527 16.100 CLIP; INST CLUSTER 8-97853-169-0 04 1 9811-9901 ● ● ● ● ● ●
527 16.100 CLIP; INST CLUSTER
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 		8-97853-169-0 08 1 9902-0208 ● ● ●
527 16.100 CLIP; INST CLUSTER 8-97853-169-0 04 1 0209- ● ● ● ● ● ●
527 16.100 CLIP; INST CLUSTER
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) 		8-97853-169-0 04 1 9902-0208 ● ● ●
527 16.100 CLIP; INST CLUSTER 8-97853-169-0 04 1 9902-0208 ● ● ●
624 16.085 COVER; CUP STAND
EXC. CUP HOLDER<7KZ> 		1-72438-139-0 01 1 9811- ● ● ● ● ● ●

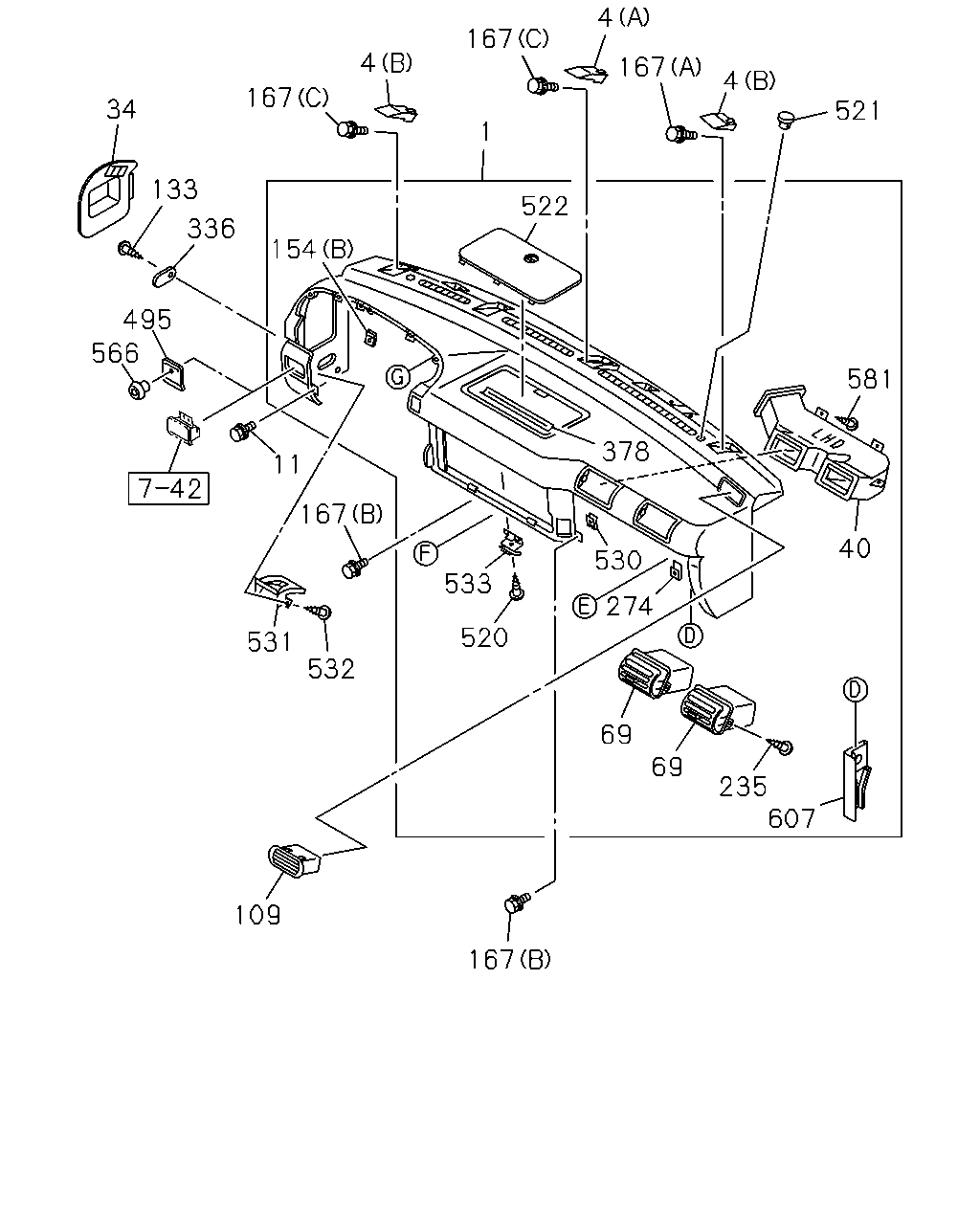

çizim 48348
4 167 4 167 4 167 34 521 1 133 522 336 154 495 566 581 378 11 167 40 530 533 274 520 531 532 69 69 235 607 109 167
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.080 PANEL; INST
DARK GRAY 		8-97195-958-1 01 1 9811- ● ● ●
1 16.080 PANEL; INST
DARK GRAY 		8-97195-961-0 01 1 9811-9905 ● ● ●
1 16.080 PANEL; INST
EXC. SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY 		8-97195-961-2 01 1 9906- ● ●
1 16.080 PANEL; INST
DARK GRAY 		8-97195-961-2 01 1 9906- ●
1 16.080 PANEL; INST
SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY 		8-97896-997-1 01 1 9906- ● ●
4 16.080 COVER; INST PNL
(A) DARK GRAY 		8-97857-523-3 02 1 9811- ● ● ● ● ● ●
4 16.080 COVER; INST PNL
(B) DARK GRAY 		8-97857-525-3 01 1 9811- ● ● ● ● ● ●
4 16.080 COVER; INST PNL
(B) DARK GRAY 		8-97857-524-3 01 1 9811- ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
16.085 M8X20 FLANGE 		8-97114-431-0 04 1 9811-0106 ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
M8X23 FLANGE 		8-97264-766-0 04 1 0107- ● ● ● ● ● ●
34 16.085 LID; OIL TANK
DARK GRAY 		8-97859-800-7 01 1 9811- ● ● ●
34 16.085 LID; OIL TANK
DARK GRAY 		8-97857-499-5 01 1 9811- ● ● ●
40 09.264 DUCT; VENT,SIDE CLUSTER BEZEL
09.786 		8-97035-234-0 01 1 9811-0007 ● ● ●
40 09.264 DUCT; VENT,SIDE CLUSTER BEZEL
09.262 		8-97262-688-0 01 1 0008- ● ● ●
40 09.264 DUCT; VENT,SIDE CLUSTER BEZEL
09.786 		8-97069-824-0 01 1 9811-0007 ● ● ●
40 09.264 DUCT; VENT,SIDE CLUSTER BEZEL 8-97262-698-0 01 1 0008- ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
DARK GRAY 		8-97890-631-0 02 1 9811-0207 ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
DARK GRAY 		8-97890-631-0 02 1 0208- ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY 		8-97890-631-0 02 1 0208- ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
EXC. SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY 		8-97857-519-2 02 1 0208- ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
DARK GRAY 		8-97857-519-2 02 1 0208- ●
109 16.081 GRILLE; INST PNL SIDE,UPR
DARK GRAY 		8-97859-795-0 01 1 9811- ● ● ●
109 16.081 GRILLE; INST PNL SIDE,UPR
DARK GRAY 		8-97857-530-0 01 1 9811- ● ● ●
133 16.081 SCREW; COVER,INST PNL
09.744 M5X20 TAPPING W/PL WASHER 		0-74110-520-0 02 1 9811- ● ● ● ● ● ●
154 16.085 NUT
16.742 (B) M6 SPIRE NUT 		8-94291-960-0 01 1 9811-9901 ● ● ● ● ● ●
154 16.085 NUT
(B) M6 SPIRE NUT 		8-97210-973-1 01 1 9902-9902 ● ● ● ● ● ●
154 16.085 NUT
RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B) M6 SPIRE NUT 		8-97210-973-1 02 1 9902-0208 ● ● ●
154 16.085 NUT
(B) M6 SPIRE NUT 		8-97210-973-1 01 1 0209- ● ● ● ● ● ●
154 16.085 NUT
(A) M6 SPIRE NUT 		8-97210-973-1 03 1 9811- ● ● ● ● ● ●
154 16.085 NUT
EXC. RADIO AM/FM W/CASSETTE 2 SPEAKER S(6VL) (B) M6 SPIRE NUT 		8-97210-973-1 01 1 9902-0208 ● ● ●
154 16.085 NUT
(B) M6 SPIRE NUT 		8-97210-973-1 01 1 9902-0208 ● ● ●
167 16.085 BOLT; REINF TO INST
08.225 (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 9811- ● ● ● ● ● ●
167 16.085 BOLT; REINF TO INST
06.500 (C) M6X25 		8-94279-204-0 02 1 9811- ● ● ● ● ● ●
167 16.085 BOLT; REINF TO INST
(A) M6X24 FLANGE 		8-94279-231-1 02 1 9811- ● ● ● ● ● ●
235 16.081 SCREW; GRILLE
16.067 M5X14 		8-94279-325-0 04 1 9811- ● ● ● ● ● ●
274 16.100 NUT; GLOVE BOX
16.081 M5 SPIRE NUT 		8-94279-051-0 02 1 9811- ● ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
DARK GRAY 		8-97857-528-4 02 1 9811- ● ● ● ● ● ●
378 09.743 SEAL; INST PANEL 8-97209-399-0 01 1 9811- ● ● ● ● ● ●
495 09.743 BEZEL; SW
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97857-548-4 01 1 9811- ● ● ● ● ● ●
520 16.085 SCREW; CLIP,SPRING
16.067 M5X14 		8-94279-325-0 02 1 9811- ● ● ●
520 16.085 SCREW; CLIP,SPRING
16.067 M5X14 		8-94279-325-0 03 1 9811- ● ● ●
521 16.081 COVER; SUN SENSOR
DARK GRAY 		8-97857-529-2 01 1 9811- ● ● ● ● ● ●
522 16.085 LID; RELAY BOX
DARK GRAY 		8-97857-520-6 01 1 9811- ● ● ● ● ● ●
530 16.100 CLIP; GLOVE BOX 8-97856-135-0 01 1 9811- ● ● ● ● ● ●
531 16.100 CASE; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> 		8-97853-130-0 01 1 9811- ● ● ● ● ● ●
532 16.100 SCREW; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> 16.067 M5X14 		8-94279-325-0 02 1 9811- ● ● ● ● ● ●
533 16.100 CLIP; SPRING,CTR CLUSTER 8-97853-170-5 02 1 9811- ● ● ● ● ● ●
566 16.085 PLUG; HOLE
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97868-413-0 01 1 9811- ● ● ● ● ● ●
581 09.744 SCREW
16.067 M5X14 		8-94279-325-0 02 1 9811- ● ● ● ● ● ●
607 16.085 FIXING ASM; CLIP INST TO M/CSTR 8-97857-893-2 01 1 9811- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
