Isuzu WW
▶
TRUCKS
▶
NHR
▶
50808 - NHR
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-80 - BACK PANEL
▶
6-80 — BACK PANEL
(#42324) — 25 parça
Tümü
A - NHB5SF
B - NHB6SF
C - NHN6SF
D - NHN5SF
E - NHB5WF
F - NHB6WF
◀

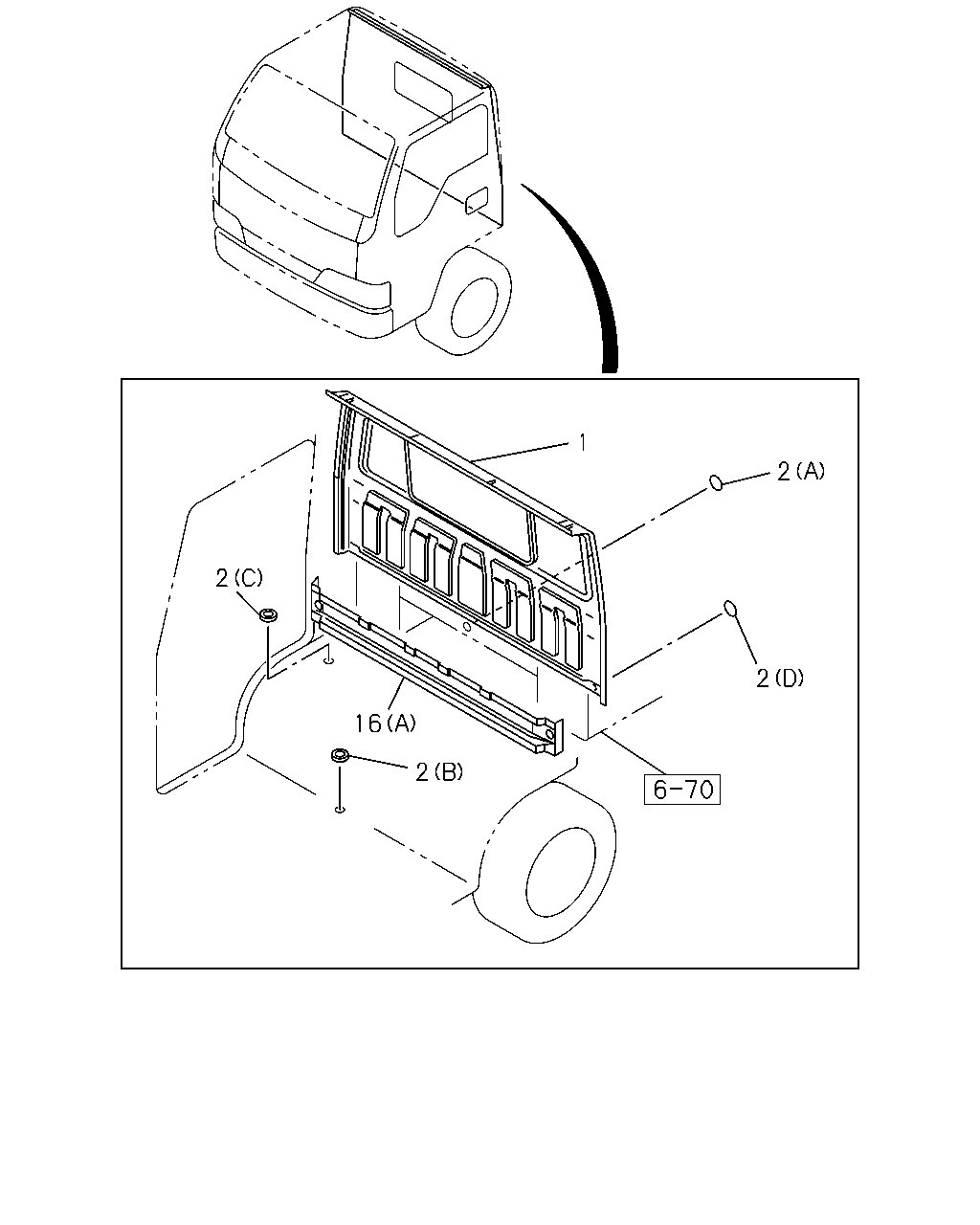

[680A] SGL CAB (11 parça)

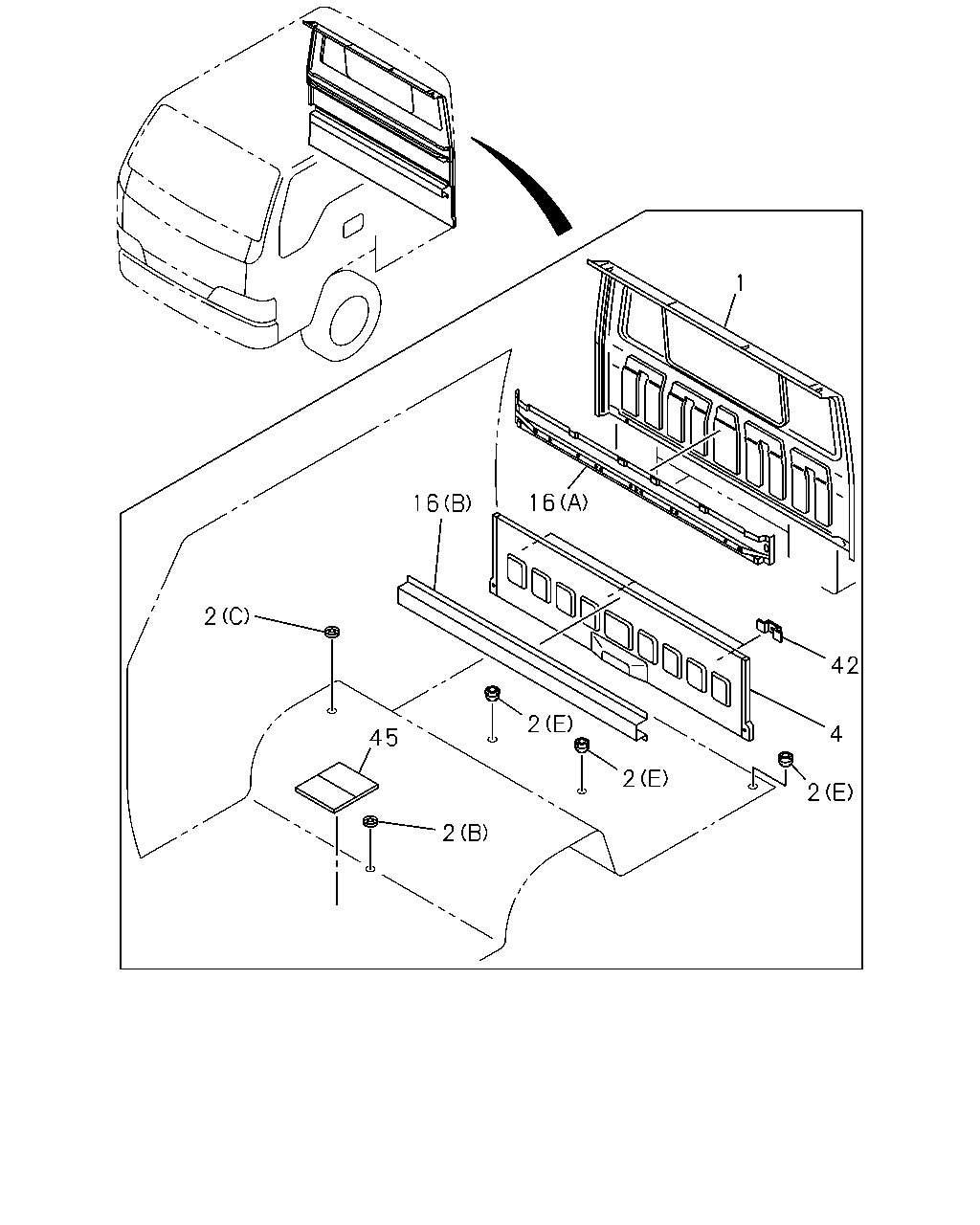

[680A] DBL CAB (14 parça)
▶
1
2
2
2
16
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
1
16.587 PANEL; BACK OUTER
8-97851-352-2
01
1
9811-
●
●
●
1
16.587 PANEL; BACK OUTER
EXC. CAB-LOW ROOF<6XQ>
8-97851-352-2
01
1
9811-
●
1
16.587 PANEL; BACK OUTER
8-97851-273-5
01
1
9811-
●
●
1
16.587 PANEL; BACK OUTER
CAB-LOW ROOF<6XQ>
8-97851-544-1
01
1
9811-
●
2
16.587 GROMMET; LOCATION HOLE,BACK PANE
08.155 (B) OD=28.5
8-94279-711-0
02
1
9811-
●
●
●
●
●
●
2
16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (C) OD=16.2
8-94492-493-0
02
1
9811-
●
●
●
●
●
●
2
16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK
1-76798-019-0
04
1
9811-
●
●
●
●
2
16.587 GROMMET; LOCATION HOLE,BACK PANE
02.580 (D) OD=36 T=0.05 BLACK
5-76777-035-0
02
1
9811-
●
●
●
●
2
16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (E) OD=35
8-94122-971-0
04
1
9811-
●
●
16
16.575 REINFORCEMENT; BACK OUTER PNL
(A)
8-97867-215-0
01
1
9811-
●
●
●
●
●
●
16
16.575 REINFORCEMENT; BACK OUTER PNL
(B)
8-97851-300-1
01
1
9811-
●
●
1
16
16
2
42
2
45
4
2
2
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
1
16.587 PANEL; BACK OUTER
8-97851-352-2
01
1
9811-
●
●
●
1
16.587 PANEL; BACK OUTER
EXC. CAB-LOW ROOF<6XQ>
8-97851-352-2
01
1
9811-
●
1
16.587 PANEL; BACK OUTER
8-97851-273-5
01
1
9811-
●
●
1
16.587 PANEL; BACK OUTER
CAB-LOW ROOF<6XQ>
8-97851-544-1
01
1
9811-
●
2
16.587 GROMMET; LOCATION HOLE,BACK PANE
08.155 (B) OD=28.5
8-94279-711-0
02
1
9811-
●
●
●
●
●
●
2
16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (C) OD=16.2
8-94492-493-0
02
1
9811-
●
●
●
●
●
●
2
16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK
1-76798-019-0
04
1
9811-
●
●
●
●
2
16.587 GROMMET; LOCATION HOLE,BACK PANE
02.580 (D) OD=36 T=0.05 BLACK
5-76777-035-0
02
1
9811-
●
●
●
●
2
16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (E) OD=35
8-94122-971-0
04
1
9811-
●
●
4
16.575 PANEL; CAB BACK LWR
8-97851-145-6
01
1
9811-
●
●
16
16.575 REINFORCEMENT; BACK OUTER PNL
(A)
8-97867-215-0
01
1
9811-
●
●
●
●
●
●
16
16.575 REINFORCEMENT; BACK OUTER PNL
(B)
8-97851-300-1
01
1
9811-
●
●
42
16.587 BRACKET; HEAT PROTECTOR
16.588
8-94265-170-1
03
1
9811-
●
●
45
16.587 SHEET; MELTING,BACK PANEL
16.850 NON ASBESTOS 1000X600 T=1.5; PARTS ON LY
8-94262-093-0
02
1
9811-
●
●
