◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50808 - NHR ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-78 - FLOOR HOLE PLUG ▶
6-78 — FLOOR HOLE PLUG (#42323) — 18 parça

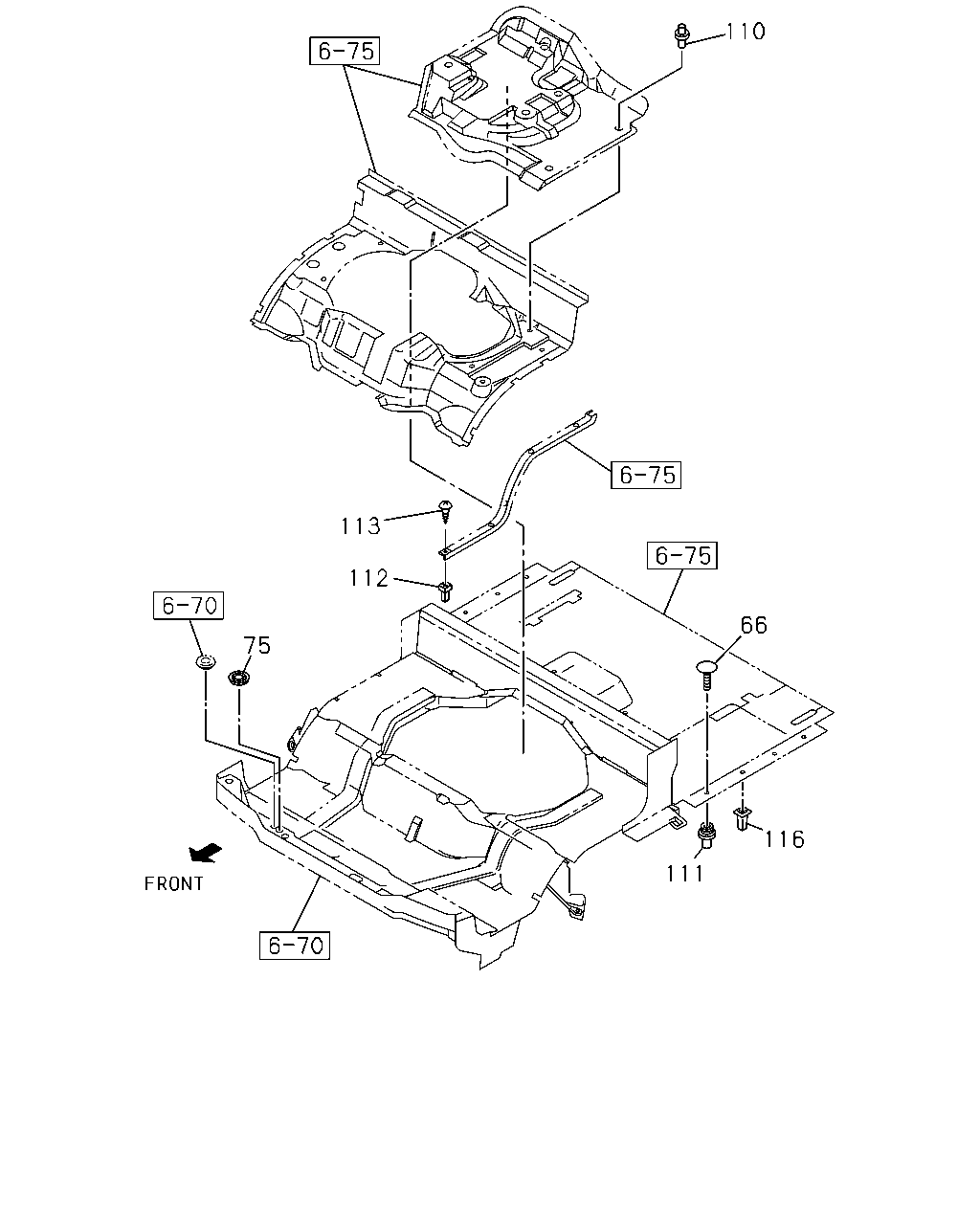

çizim 45545
110 113 112 66 75 116 111
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
66 16.800 PLUG; FLOOR MAT,CAB RR FLOOR
DARK GRAY 		8-97867-158-0 06 1 9811- ●
66 16.800 PLUG; FLOOR MAT,CAB RR FLOOR
DARK GRAY 		8-97867-158-0 04 1 9811- ●
75 09.775 PLUG; RUBBER,FLOOR
16.549 OD=38 		8-94159-507-0 01 1 9811- ● ● ●
110 16.802 FASTENER; FLOOR MAT
BLACK 		8-94279-089-0 13 1 9811-0211 ● ● ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
BLACK 		8-94279-089-0 12 1 0212- ● ● ●
110 16.802 FASTENER; FLOOR MAT
BLACK 		8-94279-089-0 04 1 9811- ● ●
110 16.802 FASTENER; FLOOR MAT
BLACK 		8-94279-089-0 11 1 0212- ● ● ●
111 16.800 FASTENER; FLOOR MAT,CAB RR MTG
16.802 BLACK 		8-94279-089-0 10 1 9811- ● ●
112 16.800 GROMMET; SCREW,TRIM COVER
04.931 H=15 		8-94463-268-1 10 1 9811- ● ● ● ● ● ●
113 16.800 SCREW; TRIM COVER
08.845 M5X14 TAPPING W/PL WASHER 		0-74110-514-0 10 1 9811- ● ● ● ● ● ●
116 16.547 GROMMET; SCREW,FLOOR MAT
16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 08 1 9811- ● ●

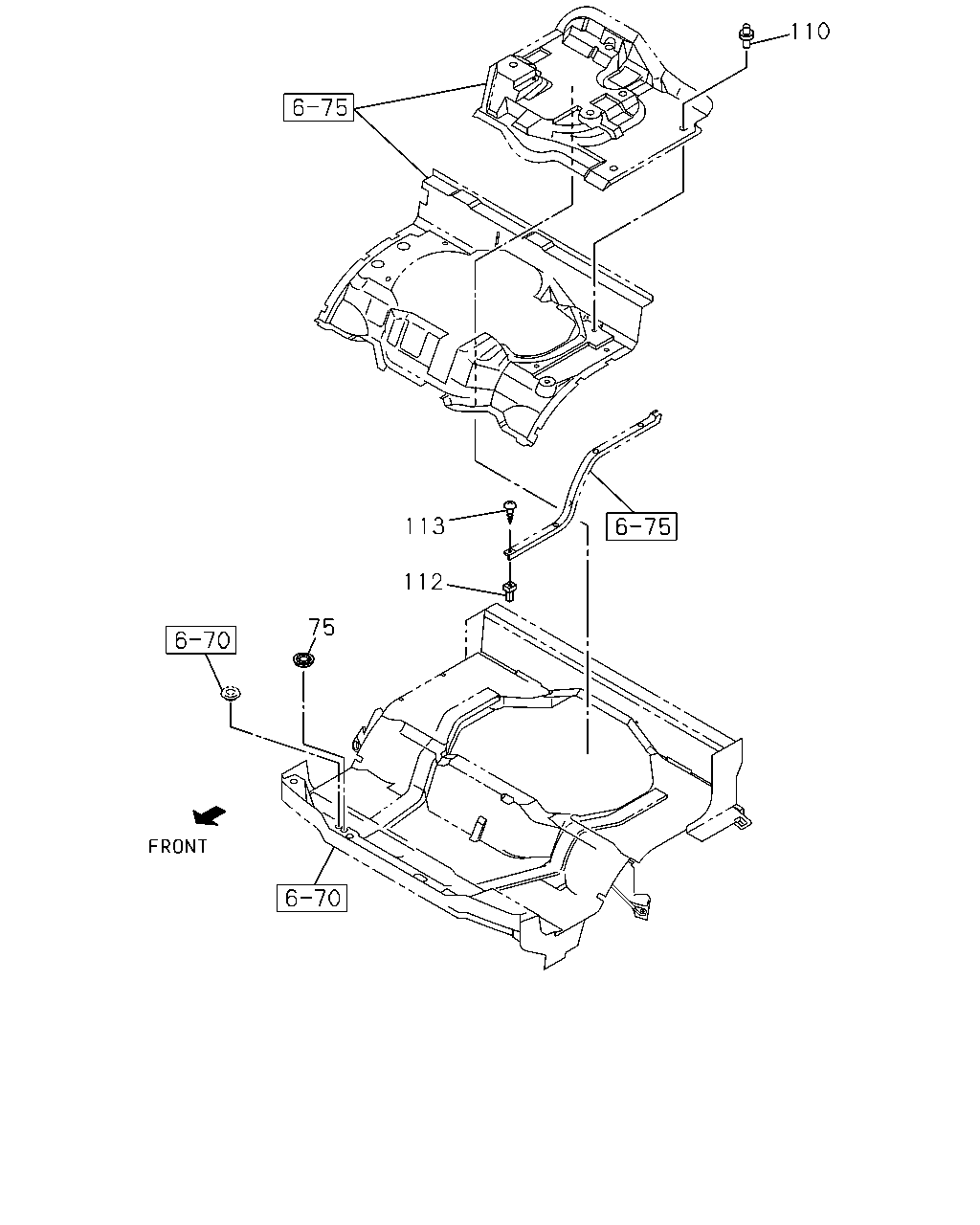

çizim 45591
110 113 112 75
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
75 09.775 PLUG; RUBBER,FLOOR
16.549 OD=38 		8-94159-507-0 01 1 9811- ● ● ●
110 16.802 FASTENER; FLOOR MAT
BLACK 		8-94279-089-0 13 1 9811-0211 ● ● ● ● ● ●
110 16.802 FASTENER; FLOOR MAT
BLACK 		8-94279-089-0 12 1 0212- ● ● ●
110 16.802 FASTENER; FLOOR MAT
BLACK 		8-94279-089-0 04 1 9811- ● ●
110 16.802 FASTENER; FLOOR MAT
BLACK 		8-94279-089-0 11 1 0212- ● ● ●
112 16.800 GROMMET; SCREW,TRIM COVER
04.931 H=15 		8-94463-268-1 10 1 9811- ● ● ● ● ● ●
113 16.800 SCREW; TRIM COVER
08.845 M5X14 TAPPING W/PL WASHER 		0-74110-514-0 10 1 9811- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
