◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50808 - NHR ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#42322) — 88 parça

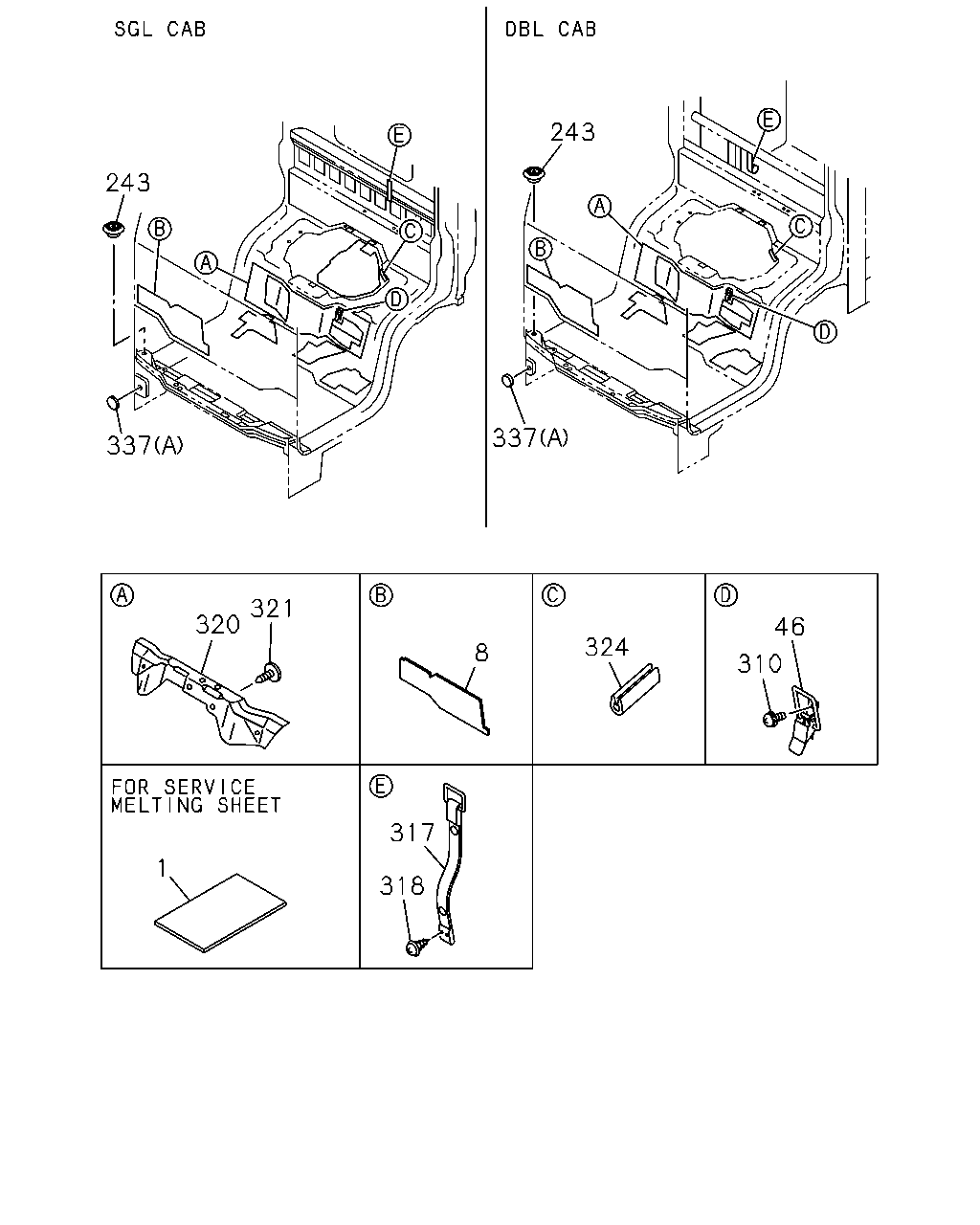

çizim 44116
243 243 337 337 321 320 46 324 8 310 317 1 318
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.850 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ON LY 		8-94262-093-0 AR 1 9811- ● ● ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL 8-97853-604-2 01 1 9811- ● ● ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL 8-97853-603-2 01 1 9811- ● ● ● ● ● ●
46 16.549 HOOK ASM; ENG COVER 8-97853-632-2 02 1 9811- ● ● ● ● ● ●
243 16.547 GROMMET; STOPPER,CHECK HOLE LID
16.549 OD=12.1 		8-94279-716-0 01 1 9811-0002 ● ● ● ● ● ●
243 16.547 GROMMET; STOPPER,CHECK HOLE LID
OD=12.1 		8-97898-423-0 01 1 0003- ● ● ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 9811- ● ● ● ● ● ●
317 16.549 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-0 01 1 9811- ● ● ● ● ● ●
318 16.549 SCREW; BAND
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9811- ● ● ● ● ● ●
320 16.549 INSULATOR; FLOOR,FRT 8-97856-277-6 01 1 9811- ● ● ●
320 16.549 INSULATOR; FLOOR,FRT 8-97857-142-3 01 1 9811- ● ● ●
321 16.549 CLIP; INSULATOR,FLOOR
OD=28 BLACK 		8-94279-997-0 04 1 9811-9904 ● ● ● ● ● ●
321 16.549 CLIP; INSULATOR,FLOOR
OD=30 		8-94279-952-0 04 1 9905- ● ● ● ● ● ●
324 16.545 FINISHER; FLOOR PANEL
L=140 		8-97867-865-0 01 1 9811-9812 ● ● ● ● ● ●
324 16.545 FINISHER; FLOOR PANEL
L=140 		8-97892-742-0 01 1 9901- ● ● ● ● ● ●
337 16.545 SEAL; CLIP HOLE
16.165 (A) OD=25 BLACK 		1-76798-019-0 01 1 9811-0010 ● ● ●
337 16.545 SEAL; CLIP HOLE
16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0011- ● ● ●
337 16.545 SEAL; CLIP HOLE
16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 9811-0009 ● ● ●
337 16.545 SEAL; CLIP HOLE
EXC. MANUAL TILT CAB<RWZ> 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 0010-0105 ● ● ●
337 16.545 SEAL; CLIP HOLE
16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 0106-0106 ● ● ●
337 16.545 SEAL; CLIP HOLE
EXC. MANUAL TILT CAB<RWZ> 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 0107- ● ● ●

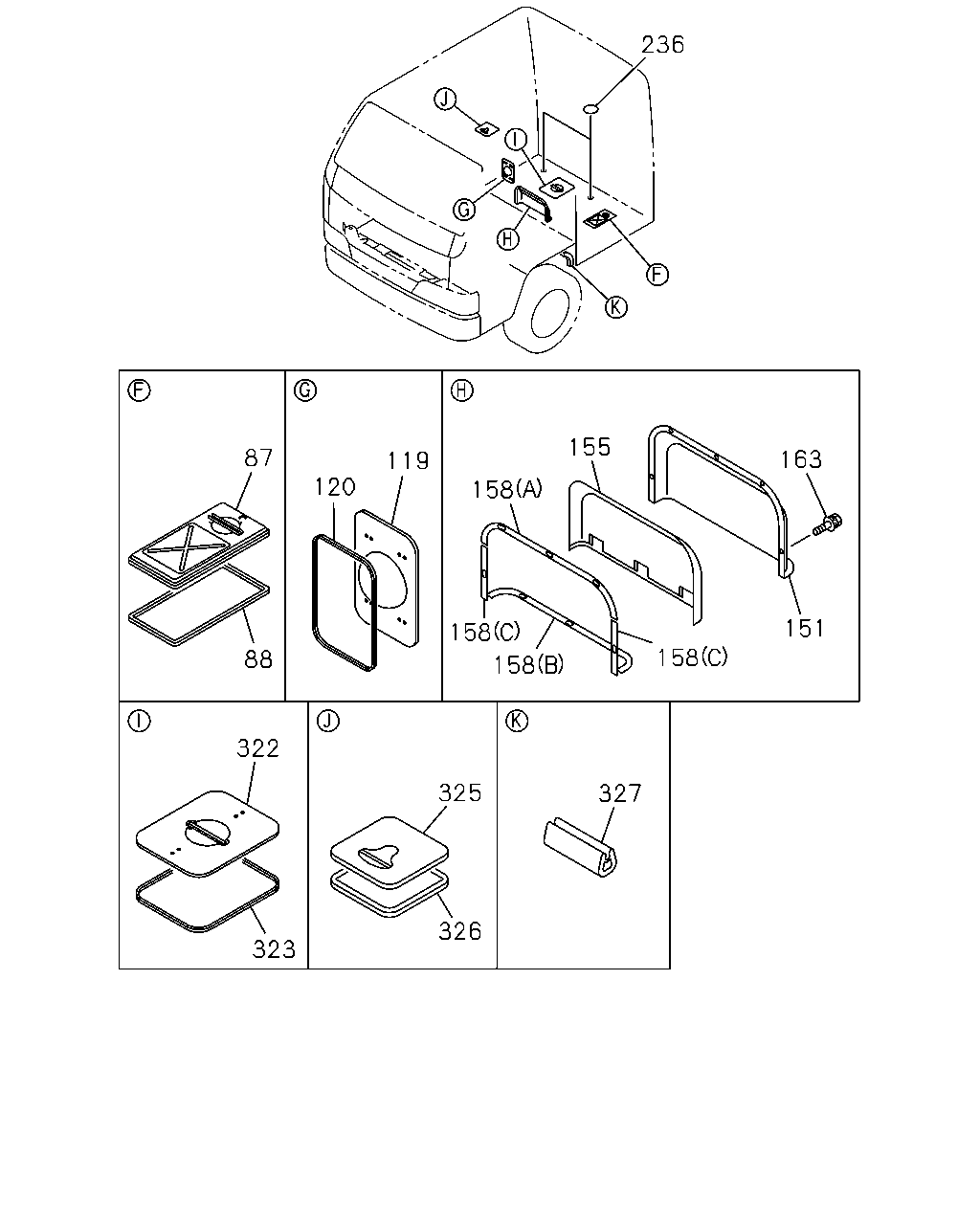

çizim 45590
236 155 87 163 119 120 158 151 158 158 88 158 322 325 327 326 323
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
87 16.549 COVER; BATTERY CHECK HOLE 8-97856-332-4 01 1 9811- ● ●
88 16.549 SEAL; BATTERY CHECK HOLE COVER 8-97853-725-1 01 1 9811- ● ●
119 16.090 LID; P/S OIL TANK 8-97853-440-2 01 1 9811- ● ●
120 16.090 SEAL; LID,P/S 8-97853-441-1 01 1 9811- ● ●
151 16.549 COVER ASM; ENG 8-97850-285-0 01 1 9811- ● ●
155 16.549 INSULATOR; RR,ENG COVER 8-97853-433-1 01 1 9811- ● ●
158 16.549 SEAL; RR,ENG COVER,FRT
(A) 		8-97853-434-0 01 1 9811- ● ●
158 16.549 SEAL; RR,ENG COVER,FRT
(B) 		8-97853-435-0 01 1 9811- ● ●
158 16.549 SEAL; RR,ENG COVER,FRT
(C) 		8-97853-436-1 02 1 9811- ● ●
163 16.549 BOLT; RR,ENG COVER,FRT
04.439 M6X16 FLANGE 		0-28680-616-0 08 1 9811- ● ●
236 16.549 SEAL; CHECK HOLE
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 9811- ● ●
322 16.549 COVER; A/T OIL 8-97853-442-2 01 1 9811- ● ●
323 16.549 SEAL; COVER,A/T OIL 8-97853-443-2 01 1 9811- ● ●
325 16.549 COVER; LLC 8-97856-974-0 01 1 9811- ● ●
326 16.549 SEAL; COVER 8-97856-975-1 01 1 9811- ● ●
327 16.545 FINISHER; CTR PILLAR,LWR 8-97857-257-1 02 1 9811- ● ●

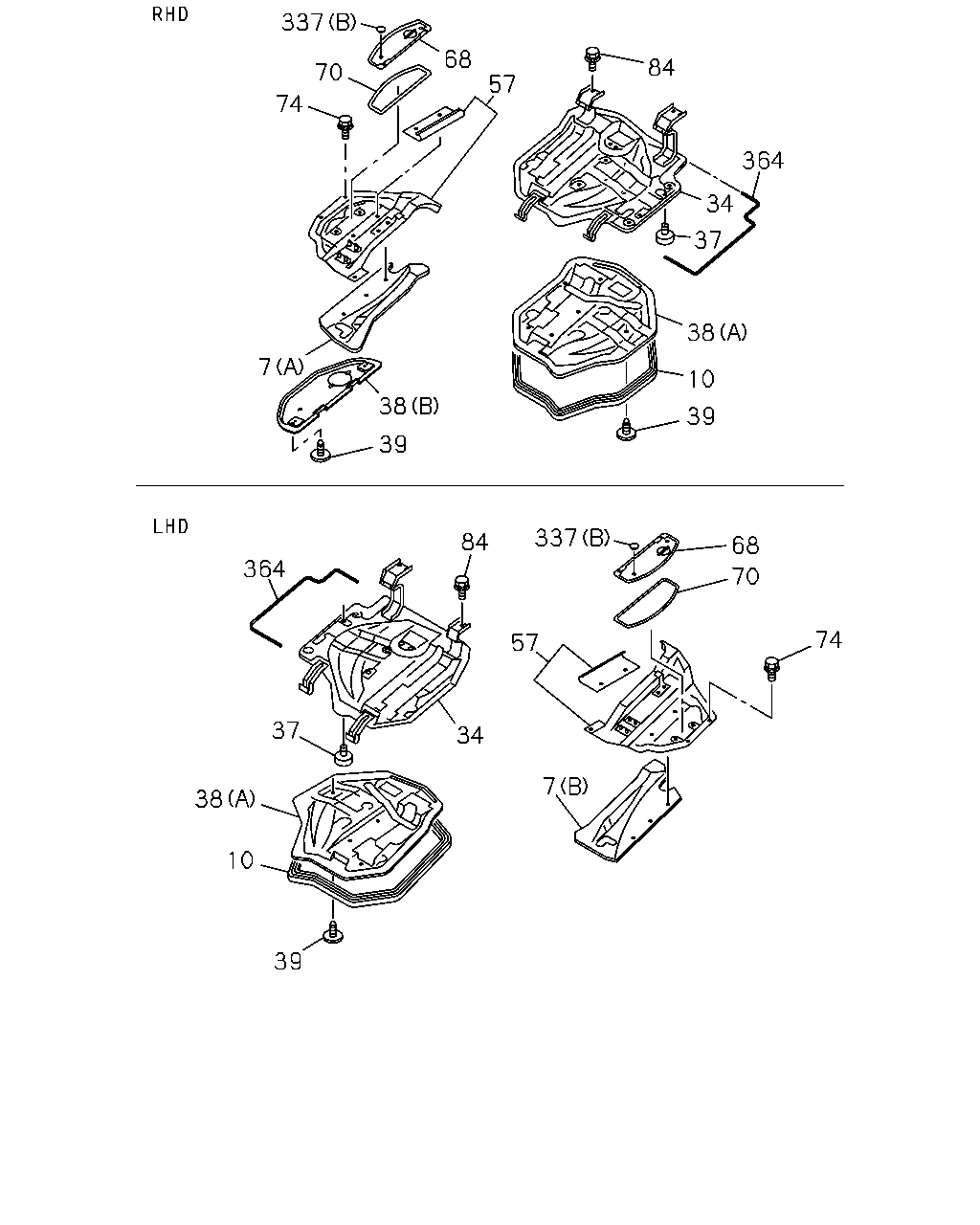

çizim 46910
337 68 84 70 57 74 364 34 37 38 7 10 38 39 39 337 84 68 364 70 74 57 37 34 7 38 10 39
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
7 16.545 INSULATOR; SUPPORT COVER
(A) 		8-97853-544-3 01 1 9811- ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
MANUAL TILT CAB<RWZ> (B) 		8-97856-207-1 01 1 0010-0105 ●
7 16.545 INSULATOR; SUPPORT COVER
MANUAL TILT CAB<RWZ> (B) 		8-97856-207-1 01 1 0107- ●
7 16.545 INSULATOR; SUPPORT COVER
(B) 		8-97856-208-1 01 1 9811-0009 ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
EXC. MANUAL TILT CAB<RWZ> (B) 		8-97856-208-1 01 1 0010-0105 ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
(B) 		8-97856-208-1 01 1 0106-0106 ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
EXC. MANUAL TILT CAB<RWZ> (B) 		8-97856-208-1 01 1 0107- ● ● ●
10 16.549 SEAL; ENG COVER 8-97853-010-3 01 1 9811- ● ● ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR 8-97850-673-1 01 1 9811- ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR 8-97850-678-1 01 1 9811- ● ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 9811- ● ● ● ● ● ●
38 16.549 INSULATOR; ENG COVER
(B) 		8-97856-803-0 01 1 9811- ● ● ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97859-917-0 01 1 9811- ● ● ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97856-204-1 01 1 9811- ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=28 BLACK 		8-94279-997-0 10 1 9811-9904 ● ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 10 1 9905-0009 ● ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 07 1 0010-0105 ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 10 1 0106-0106 ● ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 07 1 0107- ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 05 1 0010-0105 ● ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 05 1 0010-0105 ● ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 05 1 0107- ● ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 05 1 0107- ● ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=28 BLACK 		8-94279-997-0 02 1 9811-9904 ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 02 1 9905- ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR 8-97866-688-1 01 1 9811- ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
MANUAL TILT CAB<RWZ> 		8-97866-693-1 01 1 0010-0105 ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
MANUAL TILT CAB<RWZ> 		8-97866-693-1 01 1 0107- ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR 8-97866-694-1 01 1 9811-0009 ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97866-694-1 01 1 0010-0105 ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR 8-97866-694-1 01 1 0106-0106 ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97866-694-1 01 1 0107- ● ● ●
68 16.549 COVER ASM; SUB,ENG COVER 8-97853-712-3 01 1 9811-0009 ● ● ● ● ● ●
68 16.549 COVER ASM; SUB,ENG COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97853-712-3 01 1 0010-0105 ● ● ● ● ● ●
68 16.549 COVER ASM; SUB,ENG COVER 8-97853-712-3 01 1 0106-0106 ● ● ● ● ● ●
68 16.549 COVER ASM; SUB,ENG COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97853-712-3 01 1 0107- ● ● ● ● ● ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR 8-97853-050-1 01 1 9811-0009 ● ● ● ● ● ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97853-050-1 01 1 0010-0105 ● ● ● ● ● ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR 8-97853-050-1 01 1 0106-0106 ● ● ● ● ● ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97853-050-1 01 1 0107- ● ● ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 9811- ● ● ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811- ● ● ● ● ● ●
84 16.549 BOLT; ENG COVER HINGE
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 9811- ● ● ● ● ● ●
337 16.545 SEAL; CLIP HOLE
16.165 (A) OD=25 BLACK 		1-76798-019-0 01 1 9811-0010 ● ● ●
337 16.545 SEAL; CLIP HOLE
16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0011- ● ● ●
337 16.545 SEAL; CLIP HOLE
16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 9811-0009 ● ● ●
337 16.545 SEAL; CLIP HOLE
EXC. MANUAL TILT CAB<RWZ> 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 0010-0105 ● ● ●
337 16.545 SEAL; CLIP HOLE
16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 0106-0106 ● ● ●
337 16.545 SEAL; CLIP HOLE
EXC. MANUAL TILT CAB<RWZ> 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 0107- ● ● ●
364 16.545 FINISHER; ENG COVER SIDE
L=1100 		8-97890-598-0 01 1 9811-9812 ● ● ● ● ● ●
364 16.545 FINISHER; ENG COVER SIDE
L=1100 		8-97892-744-0 01 1 9901- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
