6-75 — MAT AND CARPET (#42321) — 72 parça

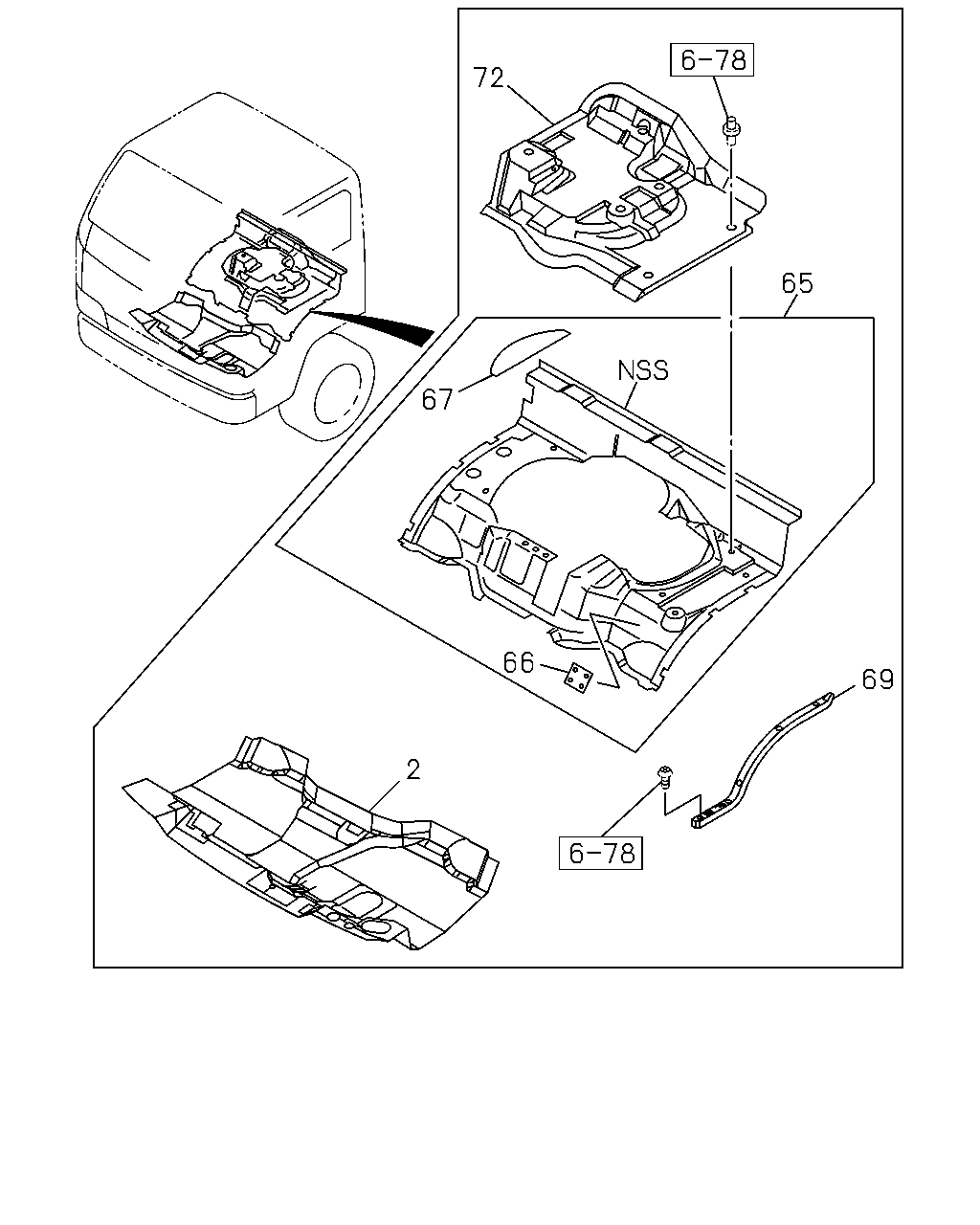

72 65 67 66 69 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97867-795-4	01	1	9811-0203	●	●	●
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97996-652-1	01	1	0204-	●	●	●
2	16.800 MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97867-794-4	01	1	9811-0203	●	●	●
2	16.800 MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97996-650-1	01	1	0204-	●	●	●
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97868-662-2	01	1	9811-0203				●	●	●
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97996-632-1	01	1	0204-				●	●	●
2	16.800 MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97868-661-2	01	1	9811-0203				●	●	●
2	16.800 MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97996-630-1	01	1	0204-				●	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97868-637-1	01	1	9811-0203	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97996-696-0	01	1	0204-	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97859-703-8	01	1	9811-9906		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97898-057-1	01	1	9907-0203		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97996-775-0	01	1	0204-		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97868-638-5	01	1	9811-0203				●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97996-698-0	01	1	0204-				●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97868-639-5	01	1	9811-9906					●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97898-059-1	01	1	9907-0203					●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97996-777-0	01	1	0204-					●
66	16.549 HOOK; COVER DARK GRAY	8-97859-705-0	02	1	9811-0203	●	●	●	●	●	●
66	16.549 HOOK; COVER DARK GRAY	8-97997-582-0	02	1	0204-	●	●	●	●	●	●
67	16.549 LID; COVER DARK GRAY	8-97859-704-0	01	1	9811-0203	●	●	●
67	16.549 LID; COVER DARK GRAY	8-97997-586-0	01	1	0204-	●	●	●
67	16.549 LID; COVER DARK GRAY	8-97868-518-0	01	1	9811-0203				●	●	●
67	16.549 LID; COVER DARK GRAY	8-97997-588-0	01	1	0204-				●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE DARK GRAY	8-97857-552-0	01	1	9811-	●	●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE DARK GRAY	8-97857-551-0	01	1	9811-	●	●	●	●	●	●
72	16.800 MAT; SILENCER,ENG COVER DARK GRAY	8-97859-707-0	01	1	9811-0203	●	●	●
72	16.800 MAT; SILENCER,ENG COVER DARK GRAY	8-97996-720-0	01	1	0204-	●	●	●
72	16.800 MAT; SILENCER,ENG COVER DARK GRAY	8-97890-495-0	01	1	9811-0203				●	●	●
72	16.800 MAT; SILENCER,ENG COVER DARK GRAY	8-97996-765-0	01	1	0204-				●	●	●

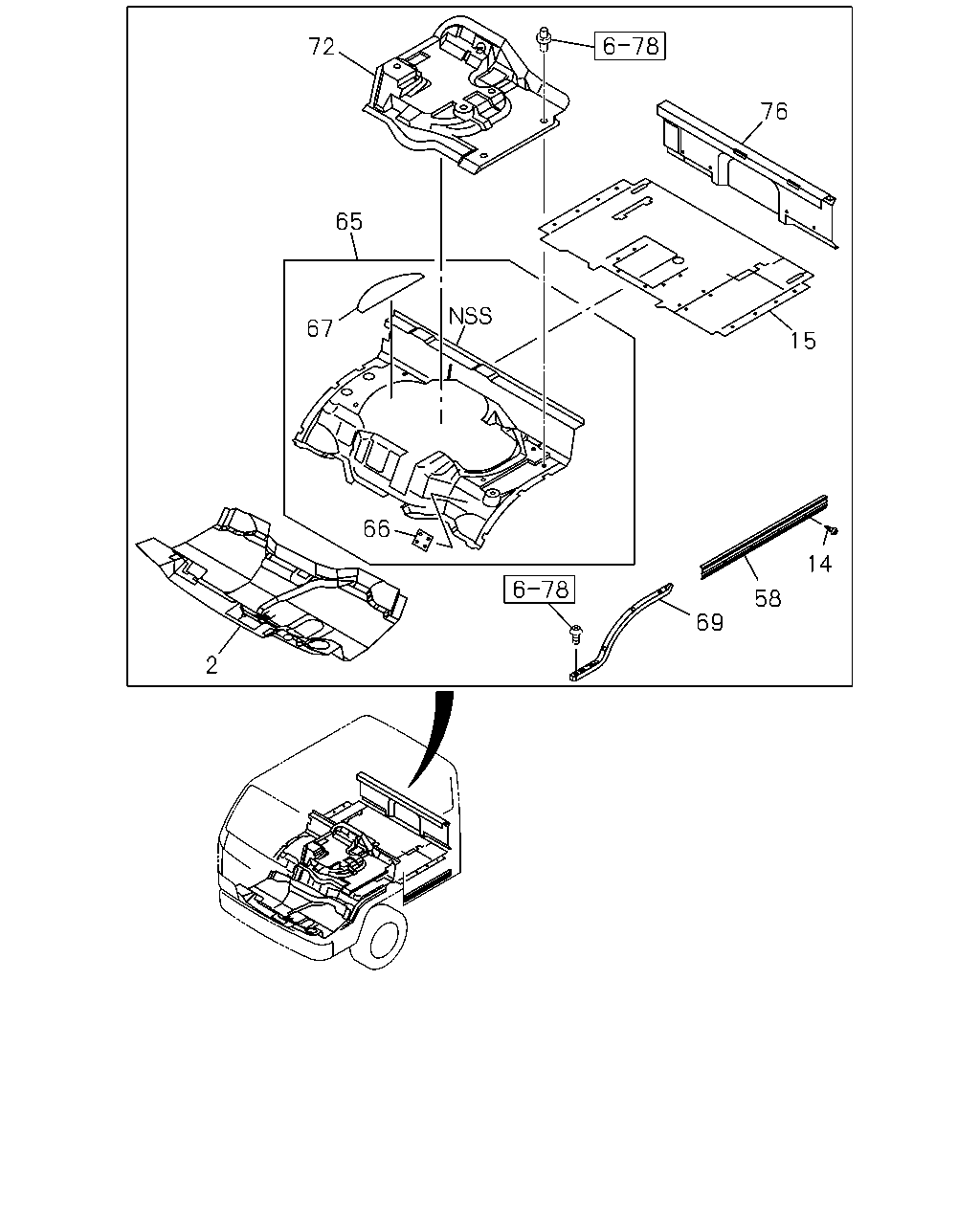

72 76 65 67 15 66 14 58 69 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97867-795-4	01	1	9811-0203	●	●	●
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97996-652-1	01	1	0204-	●	●	●
2	16.800 MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97867-794-4	01	1	9811-0203	●	●	●
2	16.800 MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97996-650-1	01	1	0204-	●	●	●
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97868-662-2	01	1	9811-0203				●	●	●
2	16.800 MAT; FLOOR AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97996-632-1	01	1	0204-				●	●	●
2	16.800 MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97868-661-2	01	1	9811-0203				●	●	●
2	16.800 MAT; FLOOR EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97996-630-1	01	1	0204-				●	●	●
14	16.870 SCREW; PLATE 16.345 M5X16 W/PL WASHER TAPPING	8-94279-123-0	08	1	9811-		●			●
15	16.800 MAT; FLOOR REAR DARK GRAY	8-97868-592-0	01	1	9811-0203		●			●
15	16.800 MAT; FLOOR REAR DARK GRAY	8-97996-668-1	01	1	0204-		●			●
58	08.153 PLATE; GUARD,RR FLOOR MAT	8-97081-344-3	02	1	9811-		●			●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97868-637-1	01	1	9811-0203	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97996-696-0	01	1	0204-	●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97859-703-8	01	1	9811-9906		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97898-057-1	01	1	9907-0203		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97996-775-0	01	1	0204-		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97868-638-5	01	1	9811-0203				●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97996-698-0	01	1	0204-				●		●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97868-639-5	01	1	9811-9906					●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97898-059-1	01	1	9907-0203					●
65	16.802 MAT ASM; SILENCER,CAB FLOOR DARK GRAY	8-97996-777-0	01	1	0204-					●
66	16.549 HOOK; COVER DARK GRAY	8-97859-705-0	02	1	9811-0203	●	●	●	●	●	●
66	16.549 HOOK; COVER DARK GRAY	8-97997-582-0	02	1	0204-	●	●	●	●	●	●
67	16.549 LID; COVER DARK GRAY	8-97859-704-0	01	1	9811-0203	●	●	●
67	16.549 LID; COVER DARK GRAY	8-97997-586-0	01	1	0204-	●	●	●
67	16.549 LID; COVER DARK GRAY	8-97868-518-0	01	1	9811-0203				●	●	●
67	16.549 LID; COVER DARK GRAY	8-97997-588-0	01	1	0204-				●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE DARK GRAY	8-97857-552-0	01	1	9811-	●	●	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE DARK GRAY	8-97857-551-0	01	1	9811-	●	●	●	●	●	●
72	16.800 MAT; SILENCER,ENG COVER DARK GRAY	8-97859-707-0	01	1	9811-0203	●	●	●
72	16.800 MAT; SILENCER,ENG COVER DARK GRAY	8-97996-720-0	01	1	0204-	●	●	●
72	16.800 MAT; SILENCER,ENG COVER DARK GRAY	8-97890-495-0	01	1	9811-0203				●	●	●
72	16.800 MAT; SILENCER,ENG COVER DARK GRAY	8-97996-765-0	01	1	0204-				●	●	●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG DARK GRAY	8-97867-155-7	01	1	9811-9911		●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG DARK GRAY	8-97898-298-0	01	1	9912-0203		●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG DARK GRAY	8-97996-782-0	01	1	0204-0211		●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG DARK GRAY	8-97985-065-0	01	1	0212-		●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG DARK GRAY	8-97868-640-4	01	1	9811-9911					●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG DARK GRAY	8-97898-305-0	01	1	9912-0203					●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG DARK GRAY	8-97996-802-0	01	1	0204-0211					●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG DARK GRAY	8-97985-086-0	01	1	0212-					●
