Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10720 - CXZ RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-27B - EXHAUST MANIFOLD
▶
0-27B — EXHAUST MANIFOLD
(#4232) — 54 parça
Tümü
A - 8PE1S
B - 10PE1S
C - 10PE1N
D - 10PE1H
◀

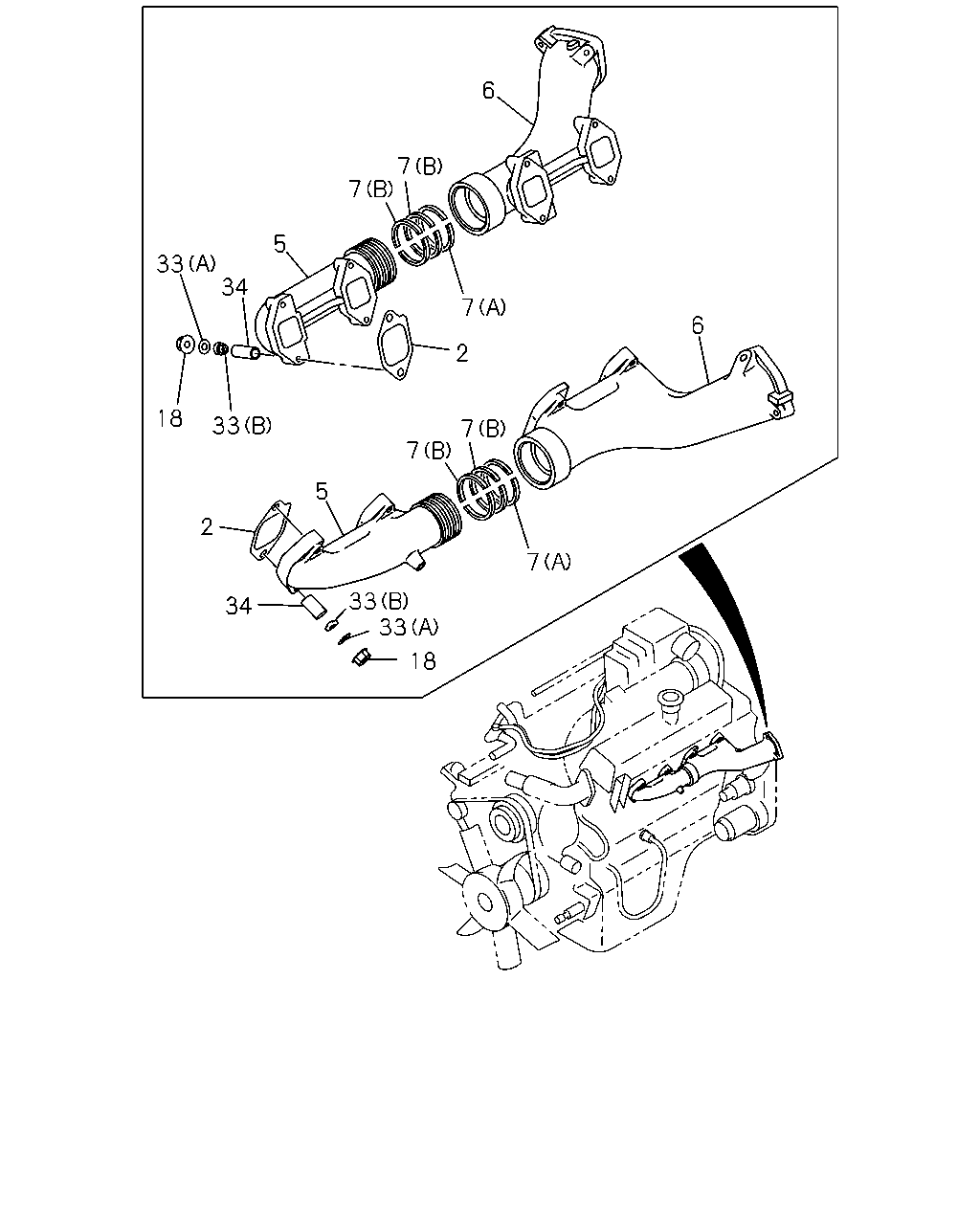

[027B] 8PE1 (26 parça)

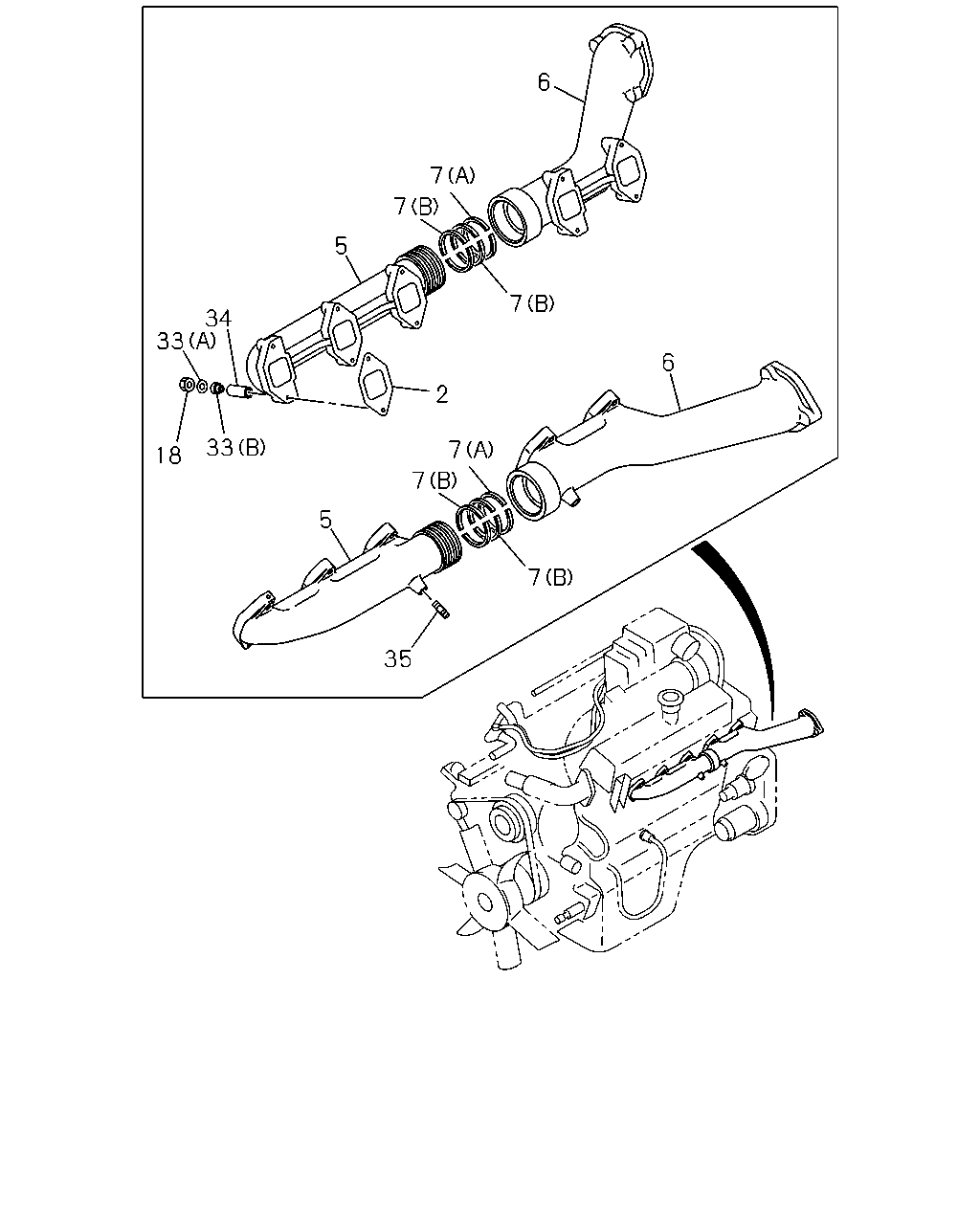

[027B] 10PE1 (28 parça)
▶
6
7
7
5
33
34
7
6
2
18
33
7
7
5
2
7
33
33
34
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14145-185-0
08
1
9603-
●
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14145-185-0
10
1
9603-9904
●
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14145-185-0
10
1
9905-
●
●
●
5
MANIFOLD; EXH,FRT
1-14141-851-2
02
1
9603-
●
5
MANIFOLD; EXH,FRT
1-14141-859-4
02
1
9603-9904
●
5
MANIFOLD; EXH,FRT
1-14141-859-4
02
1
9905-
●
●
●
6
MANIFOLD; EXH,RR
1-14141-840-2
01
1
9603-9904
●
●
6
MANIFOLD; EXH,RR
1-14141-840-2
01
1
9905-
●
●
●
●
6
MANIFOLD; EXH,RR
1-14141-875-2
01
1
9603-9904
●
●
6
MANIFOLD; EXH,RR
1-14141-875-2
01
1
9905-
●
●
●
●
7
RING; SEAL,EXH MANIF
(A)
1-14149-201-0
02
1
9603-9904
●
●
7
RING; SEAL,EXH MANIF
(A)
1-14149-201-0
02
1
9905-
●
●
●
●
7
RING; SEAL,EXH MANIF
(B)
9-14149-026-0
04
1
9603-9904
●
●
7
RING; SEAL,EXH MANIF
(B)
9-14149-026-0
04
1
9905-
●
●
●
●
18
NUT; EXH MANIF
M10 FLANGE
0-91150-210-0
16
1
9603-
●
18
NUT; EXH MANIF
M10 FLANGE
0-91150-210-0
20
1
9603-9904
●
18
NUT; EXH MANIF
M10 FLANGE
0-91150-210-0
20
1
9905-
●
●
●
33
WASHER; EXH MANIF
(A) T=2.2
1-09556-015-0
16
1
9603-
●
33
WASHER; EXH MANIF
(B) T=5.5
1-14149-042-0
16
1
9603-
●
33
WASHER; EXH MANIF
(A) T=2.2
1-09556-015-0
20
1
9603-9904
●
33
WASHER; EXH MANIF
(A) T=2.2
1-09556-015-0
20
1
9905-
●
●
●
33
WASHER; EXH MANIF
(B) T=5.5
1-14149-042-0
20
1
9603-9904
●
33
WASHER; EXH MANIF
(B) T=5.5
1-14149-042-0
20
1
9905-
●
●
●
34
COLLAR; DIST,EXH MANIF
L=43
1-14149-048-1
16
1
9603-
●
34
COLLAR; DIST,EXH MANIF
L=43
1-14149-048-1
20
1
9603-9904
●
34
COLLAR; DIST,EXH MANIF
L=43
1-14149-048-1
20
1
9905-
●
●
●
6
7
7
5
7
34
33
6
2
33
7
18
7
5
7
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14145-185-0
08
1
9603-
●
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14145-185-0
10
1
9603-9904
●
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14145-185-0
10
1
9905-
●
●
●
5
MANIFOLD; EXH,FRT
1-14141-851-2
02
1
9603-
●
5
MANIFOLD; EXH,FRT
1-14141-859-4
02
1
9603-9904
●
5
MANIFOLD; EXH,FRT
1-14141-859-4
02
1
9905-
●
●
●
6
MANIFOLD; EXH,RR
1-14141-840-2
01
1
9603-9904
●
●
6
MANIFOLD; EXH,RR
1-14141-840-2
01
1
9905-
●
●
●
●
6
MANIFOLD; EXH,RR
1-14141-875-2
01
1
9603-9904
●
●
6
MANIFOLD; EXH,RR
1-14141-875-2
01
1
9905-
●
●
●
●
7
RING; SEAL,EXH MANIF
(A)
1-14149-201-0
02
1
9603-9904
●
●
7
RING; SEAL,EXH MANIF
(A)
1-14149-201-0
02
1
9905-
●
●
●
●
7
RING; SEAL,EXH MANIF
(B)
9-14149-026-0
04
1
9603-9904
●
●
7
RING; SEAL,EXH MANIF
(B)
9-14149-026-0
04
1
9905-
●
●
●
●
18
NUT; EXH MANIF
M10 FLANGE
0-91150-210-0
16
1
9603-
●
18
NUT; EXH MANIF
M10 FLANGE
0-91150-210-0
20
1
9603-9904
●
18
NUT; EXH MANIF
M10 FLANGE
0-91150-210-0
20
1
9905-
●
●
●
33
WASHER; EXH MANIF
(A) T=2.2
1-09556-015-0
16
1
9603-
●
33
WASHER; EXH MANIF
(B) T=5.5
1-14149-042-0
16
1
9603-
●
33
WASHER; EXH MANIF
(A) T=2.2
1-09556-015-0
20
1
9603-9904
●
33
WASHER; EXH MANIF
(A) T=2.2
1-09556-015-0
20
1
9905-
●
●
●
33
WASHER; EXH MANIF
(B) T=5.5
1-14149-042-0
20
1
9603-9904
●
33
WASHER; EXH MANIF
(B) T=5.5
1-14149-042-0
20
1
9905-
●
●
●
34
COLLAR; DIST,EXH MANIF
L=43
1-14149-048-1
16
1
9603-
●
34
COLLAR; DIST,EXH MANIF
L=43
1-14149-048-1
20
1
9603-9904
●
34
COLLAR; DIST,EXH MANIF
L=43
1-14149-048-1
20
1
9905-
●
●
●
35
STUD; BRKT
M8X16 L=28
9-04110-816-0
01
1
9603-9904
●
35
STUD; BRKT
M8X16 L=28
9-04110-816-0
01
1
9905-
●
●
●
