◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50808 - NHR ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#42318) — 57 parça

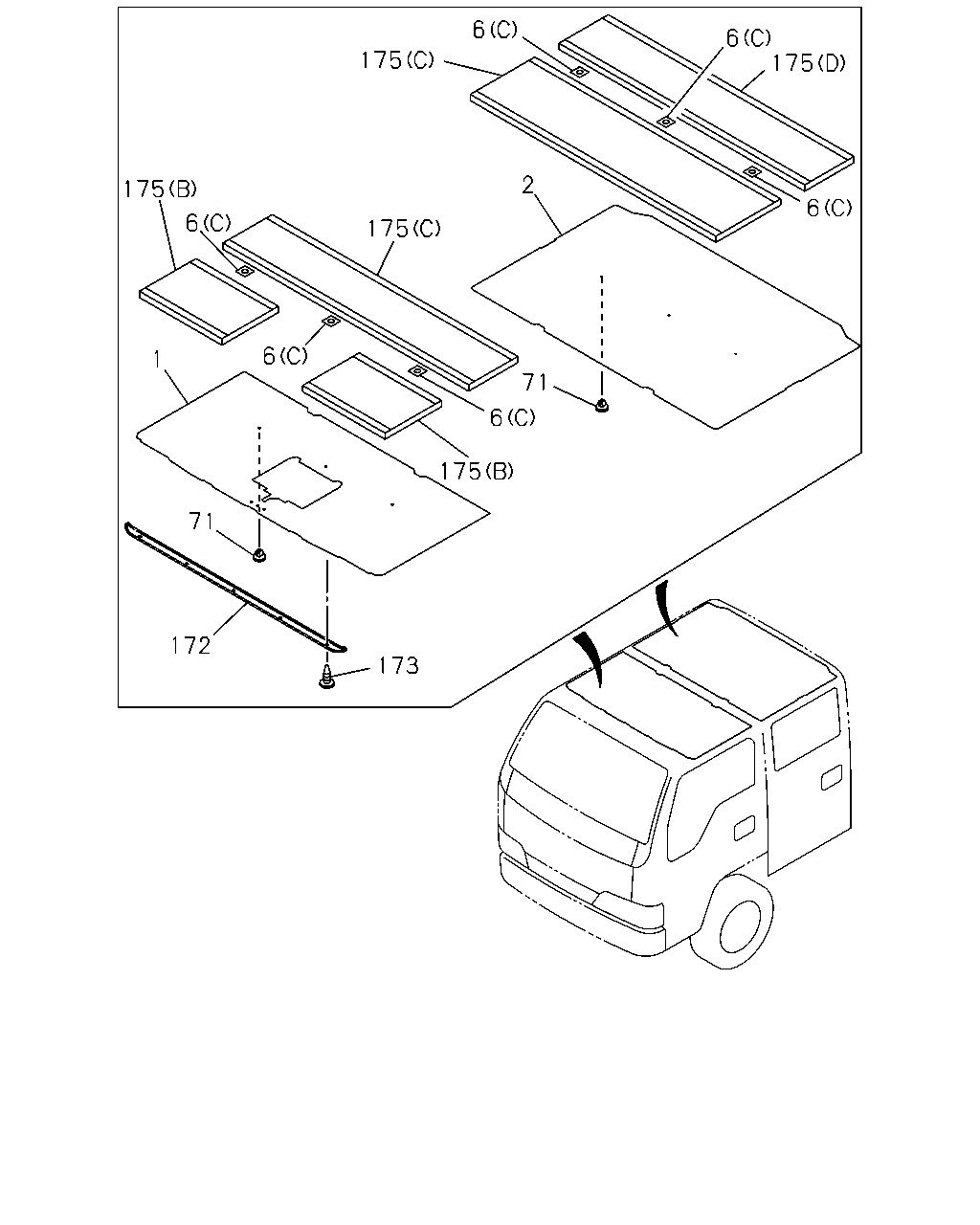

çizim 45249
6 6 175 175 2 175 6 6 175 6 1 71 6 175 71 172 173
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.742 LINING; HD
ROOF VENTILATOR<C55> EXC. CAB-LOW ROOF<6XQ>,TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97868-645-2 01 1 9811- ● ● ● ●
1 16.742 LINING; HD
ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> EXC. CAB-LOW ROOF<6XQ> LIGHT GRAY 		8-97868-646-2 01 1 9811- ● ● ● ●
1 16.742 LINING; HD
EXC. ROOF VENTILATOR<C55>,CAB-LOW ROOF<6XQ>,TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97868-644-2 01 1 9811- ● ● ● ●
1 16.742 LINING; HD
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,CAB-LOW ROOF<6XQ> LIGHT GRAY 		8-97859-861-3 01 1 9811- ● ● ● ●
1 16.742 LINING; HD
ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97868-651-2 01 1 9811- ● ●
1 16.742 LINING; HD
ROOF VENTILATOR<C55> EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97868-650-2 01 1 9811- ● ●
1 16.742 LINING; HD
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97868-648-2 01 1 9811- ● ●
1 16.742 LINING; HD
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> LIGHT GRAY 		8-97868-649-3 01 1 9811- ● ●
1 16.742 LINING; HD
CAB-LOW ROOF<6XQ> LIGHT GRAY 		8-97859-862-1 01 1 9811- ●
2 16.742 LINING; HD,ROOF RR
LIGHT GRAY 		8-97868-652-2 01 1 9811- ● ●
6 16.742 SPACER; HD LINING
(A) 		8-94353-014-0 03 1 9811- ● ● ● ●
6 16.742 SPACER; HD LINING
16.588 (B) H=10 L=55 		8-97857-444-0 02 1 9811- ● ● ● ●
6 16.742 SPACER; HD LINING
(C) 		8-94353-014-0 06 1 9811- ● ●
71 16.742 FASTENER; HD LINING
LIGHT GRAY 		8-97867-230-2 03 1 9811- ● ● ● ●
71 16.742 FASTENER; HD LINING
LIGHT GRAY 		8-97867-230-2 06 1 9811- ● ●
172 16.742 RETAINER; HEAD LINING
LIGHT GRAY 		8-97867-191-4 01 1 9811- ● ● ● ● ●
172 16.742 RETAINER; HEAD LINING
EXC. CAB-LOW ROOF<6XQ> LIGHT GRAY 		8-97867-191-4 01 1 9811- ●
172 16.742 RETAINER; HEAD LINING
CAB-LOW ROOF<6XQ> LIGHT GRAY 		8-97867-190-6 01 1 9811- ●
173 16.742 CLIP; RETAINER,HEAD LINING
LIGHT GRAY, D6.8X11 PUSH RIVET 		8-97867-240-0 04 1 9811- ● ● ● ● ●
173 16.742 CLIP; RETAINER,HEAD LINING
EXC. CAB-LOW ROOF<6XQ> LIGHT GRAY, D6.8X11 PUSH RIVET 		8-97867-240-0 04 1 9811- ●
173 16.742 CLIP; RETAINER,HEAD LINING
CAB-LOW ROOF<6XQ> LIGHT GRAY, D6.8X11 PUSH RIVET 		8-97867-240-0 05 1 9811- ●
175 16.742 CUSHION; HEAD LINING
(B) 		8-97856-791-2 02 1 9811- ● ● ● ● ●
175 16.742 CUSHION; HEAD LINING
EXC. CAB-LOW ROOF<6XQ> (B) 		8-97856-791-2 02 1 9811- ●
175 16.742 CUSHION; HEAD LINING
(A) 		8-97856-792-2 01 1 9811- ● ● ●
175 16.742 CUSHION; HEAD LINING
EXC. CAB-LOW ROOF<6XQ> (A) 		8-97856-792-2 01 1 9811- ●
175 16.742 CUSHION; HEAD LINING
(C) 		8-97856-793-2 02 1 9811- ● ●
175 16.742 CUSHION; HEAD LINING
(D) 		8-97857-294-1 01 1 9811- ● ●
175 16.742 CUSHION; HEAD LINING
CAB-LOW ROOF<6XQ> (D) 		8-97856-485-3 02 1 9811- ●
çizim 45567
175 6 175 6 1 6 175 71 215 6 215 172 173
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.742 LINING; HD
ROOF VENTILATOR<C55> EXC. CAB-LOW ROOF<6XQ>,TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97868-645-2 01 1 9811- ● ● ● ●
1 16.742 LINING; HD
ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> EXC. CAB-LOW ROOF<6XQ> LIGHT GRAY 		8-97868-646-2 01 1 9811- ● ● ● ●
1 16.742 LINING; HD
EXC. ROOF VENTILATOR<C55>,CAB-LOW ROOF<6XQ>,TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97868-644-2 01 1 9811- ● ● ● ●
1 16.742 LINING; HD
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,CAB-LOW ROOF<6XQ> LIGHT GRAY 		8-97859-861-3 01 1 9811- ● ● ● ●
1 16.742 LINING; HD
ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97868-651-2 01 1 9811- ● ●
1 16.742 LINING; HD
ROOF VENTILATOR<C55> EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97868-650-2 01 1 9811- ● ●
1 16.742 LINING; HD
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97868-648-2 01 1 9811- ● ●
1 16.742 LINING; HD
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> LIGHT GRAY 		8-97868-649-3 01 1 9811- ● ●
1 16.742 LINING; HD
CAB-LOW ROOF<6XQ> LIGHT GRAY 		8-97859-862-1 01 1 9811- ●
6 16.742 SPACER; HD LINING
(A) 		8-94353-014-0 03 1 9811- ● ● ● ●
6 16.742 SPACER; HD LINING
16.588 (B) H=10 L=55 		8-97857-444-0 02 1 9811- ● ● ● ●
6 16.742 SPACER; HD LINING
(C) 		8-94353-014-0 06 1 9811- ● ●
71 16.742 FASTENER; HD LINING
LIGHT GRAY 		8-97867-230-2 03 1 9811- ● ● ● ●
71 16.742 FASTENER; HD LINING
LIGHT GRAY 		8-97867-230-2 06 1 9811- ● ●
172 16.742 RETAINER; HEAD LINING
LIGHT GRAY 		8-97867-191-4 01 1 9811- ● ● ● ● ●
172 16.742 RETAINER; HEAD LINING
EXC. CAB-LOW ROOF<6XQ> LIGHT GRAY 		8-97867-191-4 01 1 9811- ●
172 16.742 RETAINER; HEAD LINING
CAB-LOW ROOF<6XQ> LIGHT GRAY 		8-97867-190-6 01 1 9811- ●
173 16.742 CLIP; RETAINER,HEAD LINING
LIGHT GRAY, D6.8X11 PUSH RIVET 		8-97867-240-0 04 1 9811- ● ● ● ● ●
173 16.742 CLIP; RETAINER,HEAD LINING
EXC. CAB-LOW ROOF<6XQ> LIGHT GRAY, D6.8X11 PUSH RIVET 		8-97867-240-0 04 1 9811- ●
173 16.742 CLIP; RETAINER,HEAD LINING
CAB-LOW ROOF<6XQ> LIGHT GRAY, D6.8X11 PUSH RIVET 		8-97867-240-0 05 1 9811- ●
175 16.742 CUSHION; HEAD LINING
(B) 		8-97856-791-2 02 1 9811- ● ● ● ● ●
175 16.742 CUSHION; HEAD LINING
EXC. CAB-LOW ROOF<6XQ> (B) 		8-97856-791-2 02 1 9811- ●
175 16.742 CUSHION; HEAD LINING
(A) 		8-97856-792-2 01 1 9811- ● ● ●
175 16.742 CUSHION; HEAD LINING
EXC. CAB-LOW ROOF<6XQ> (A) 		8-97856-792-2 01 1 9811- ●
175 16.742 CUSHION; HEAD LINING
(C) 		8-97856-793-2 02 1 9811- ● ●
175 16.742 CUSHION; HEAD LINING
(D) 		8-97857-294-1 01 1 9811- ● ●
175 16.742 CUSHION; HEAD LINING
CAB-LOW ROOF<6XQ> (D) 		8-97856-485-3 02 1 9811- ●
215 16.592 CUSHION; TRAY BACK PANEL
ROOF VENTILATOR<C55> 16.587 L=100 		8-97866-625-0 02 1 0112- ● ● ●
215 16.592 CUSHION; TRAY BACK PANEL
ROOF VENTILATOR<C55> EXC. CAB-LOW ROOF<6XQ> 16.587 L=100 		8-97866-625-0 02 1 0112- ●
