◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50808 - NHR ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#42317) — 57 parça

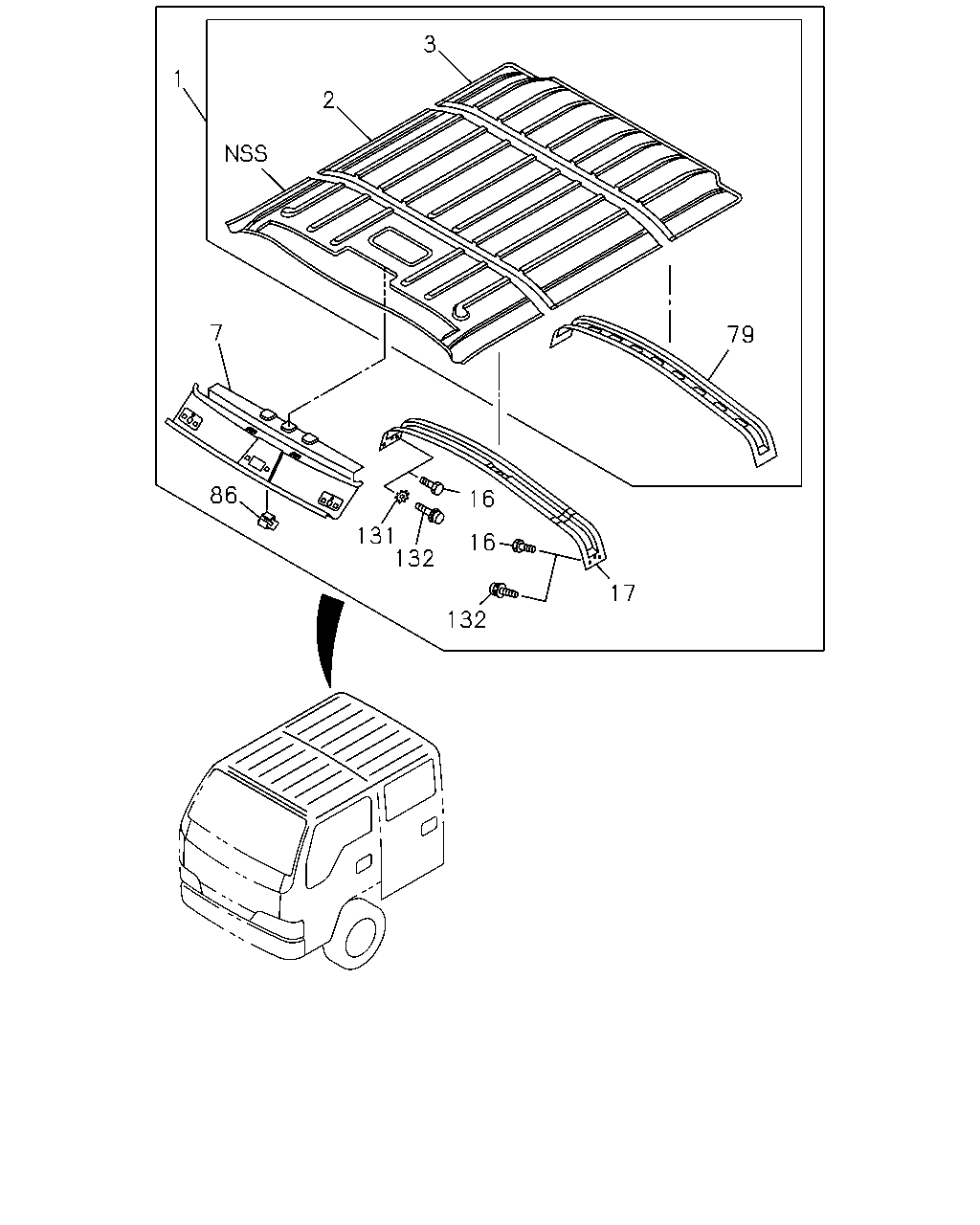

çizim 10444
3 1 2 7 79 86 16 131 132 16 17 132
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> EXC. CAB-LOW ROOF<6XQ> 		8-97851-109-1 01 1 9811-9902 ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> IDENTIFICATION LABEL FOR KD<6UT> EXC. CAB-LOW ROOF<6XQ> 		8-97851-109-1 01 1 9903- ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> EXC. IDENTIFICATION LABEL FOR KD<6UT> ,CAB-LOW ROOF<6XQ> 		8-97892-868-0 01 1 9903- ● ● ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,CAB-LOW ROOF<6XQ>,TRAY ROOF HEAD<7EJ> 		8-97851-369-0 01 1 9811-9902 ● ● ● ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> EXC. ROOF VENTILATOR<C55>,CAB-LOW ROOF<6XQ>,TRAY ROOF HEAD<7EJ> 		8-97851-369-0 01 1 9903- ● ● ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>, IDENTIFICATION LABEL FOR KD<6UT>,CAB-LOW ROOF<6XQ>,TRAY ROOF HEAD<7EJ> 		8-97892-873-0 01 1 9903- ● ● ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-450-0 01 1 9811-9902 ● ● ● ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-450-0 01 1 9903- ● ● ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>, IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-871-0 01 1 9903- ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> 		8-97851-378-4 01 1 9811-0105 ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> IDENTIFICATION LABEL FOR KD<6UT> 		8-97851-378-4 01 1 0106- ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-930-0 01 1 0106- ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>, IDENTIFICATION LABEL FOR KD<6UT>,TRAY ROOF HEAD<7EJ> 		8-97892-934-0 01 1 0106- ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-266-4 01 1 9811-0105 ● ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-266-4 01 1 0106- ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-451-4 01 1 9811-0105 ● ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-451-4 01 1 0106- ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>, IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-932-0 01 1 0106- ● ●
1 16.585 PANEL; ROOF
CAB-LOW ROOF<6XQ> 		8-97851-046-1 01 1 9811-9902 ●
1 16.585 PANEL; ROOF
CAB-LOW ROOF<6XQ> 		8-97892-874-0 01 1 9903- ●
2 16.585 PANEL; ROOF,CENTER 8-97851-264-2 01 1 9811- ● ●
3 16.585 PANEL; ROOF,RR 8-97851-265-3 01 1 9811-0105 ● ●
3 16.585 PANEL; ROOF,RR
IDENTIFICATION LABEL FOR KD<6UT> 		8-97851-265-3 01 1 0106- ● ●
3 16.585 PANEL; ROOF,RR
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-942-0 01 1 0106- ● ●
7 16.585 PANEL; FRT WINDSHIELD UPR 8-97892-141-1 01 1 9811- ● ● ● ● ●
7 16.585 PANEL; FRT WINDSHIELD UPR
EXC. CAB-LOW ROOF<6XQ> 		8-97892-141-1 01 1 9811- ●
7 16.585 PANEL; FRT WINDSHIELD UPR
CAB-LOW ROOF<6XQ> 		8-97859-529-0 01 1 9811- ●
16 16.585 SCREW; ROOF SUPPORT
16.085 M6X16 W/LK&PL WASHER 		1-09981-141-0 04 1 9811-0107 ● ●
17 16.570 REINFORCEMENT; ROOF PNL CENTER 8-97853-628-2 01 1 9811- ● ●
79 16.570 REINFORCEMENT; ROOF PANEL,RR 8-97851-410-0 01 1 9811- ● ●
86 16.585 NUT; ROOF
16.069 M5 		8-94279-075-1 01 1 9811- ● ● ● ● ● ●
131 16.585 WASHER; LOCK,ROOF REINF
00.002 ID=6.4 TOOTH LK INT-EXT 		9-09152-206-0 01 1 0108- ● ●
132 16.585 FASTENER; HEADER SHELF
16.742 		8-97892-737-0 04 1 0108- ● ●

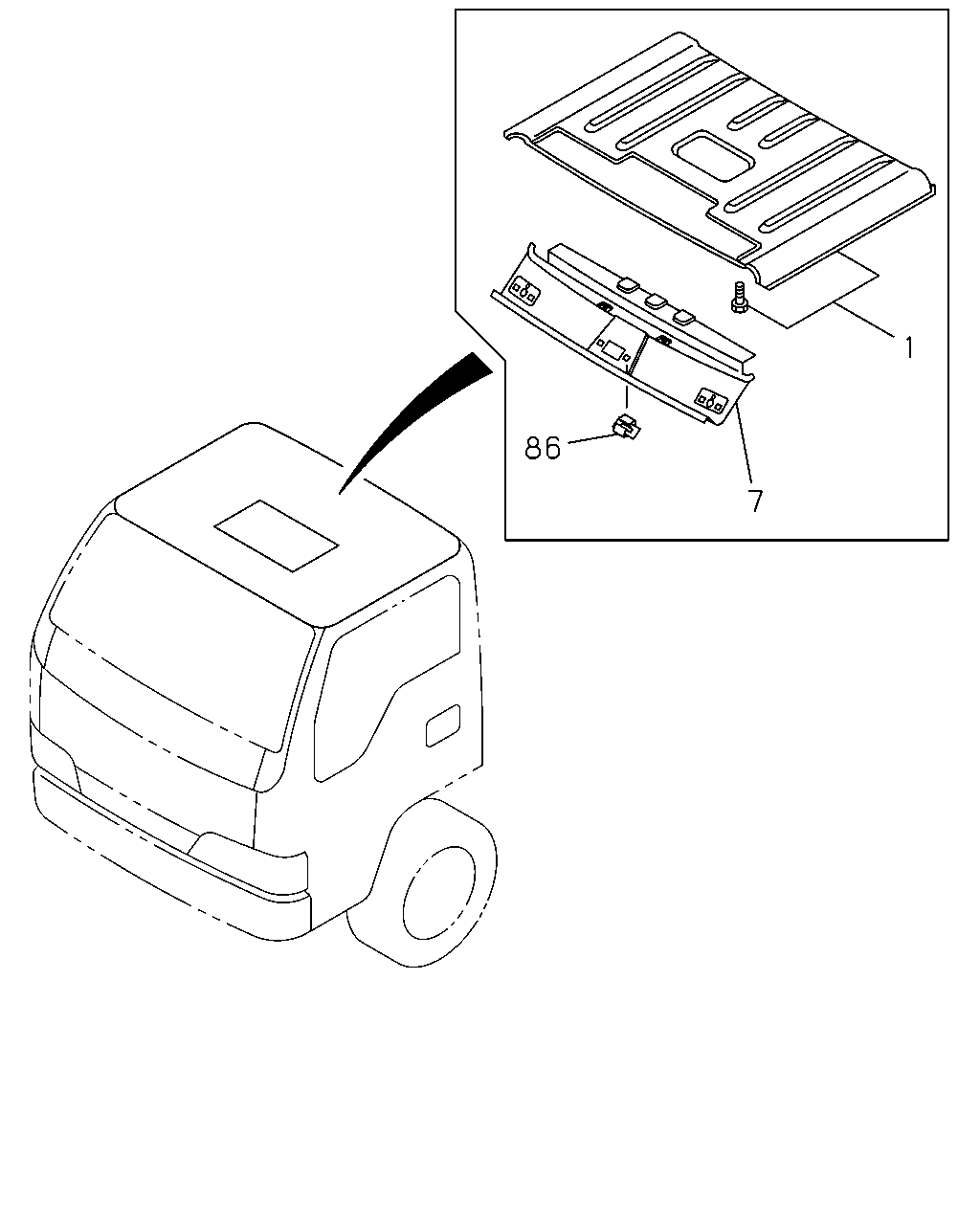

çizim 48904
1 86 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> EXC. CAB-LOW ROOF<6XQ> 		8-97851-109-1 01 1 9811-9902 ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> IDENTIFICATION LABEL FOR KD<6UT> EXC. CAB-LOW ROOF<6XQ> 		8-97851-109-1 01 1 9903- ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> EXC. IDENTIFICATION LABEL FOR KD<6UT> ,CAB-LOW ROOF<6XQ> 		8-97892-868-0 01 1 9903- ● ● ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,CAB-LOW ROOF<6XQ>,TRAY ROOF HEAD<7EJ> 		8-97851-369-0 01 1 9811-9902 ● ● ● ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> EXC. ROOF VENTILATOR<C55>,CAB-LOW ROOF<6XQ>,TRAY ROOF HEAD<7EJ> 		8-97851-369-0 01 1 9903- ● ● ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>, IDENTIFICATION LABEL FOR KD<6UT>,CAB-LOW ROOF<6XQ>,TRAY ROOF HEAD<7EJ> 		8-97892-873-0 01 1 9903- ● ● ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-450-0 01 1 9811-9902 ● ● ● ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-450-0 01 1 9903- ● ● ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>, IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-871-0 01 1 9903- ● ● ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> 		8-97851-378-4 01 1 9811-0105 ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> IDENTIFICATION LABEL FOR KD<6UT> 		8-97851-378-4 01 1 0106- ● ●
1 16.585 PANEL; ROOF
ROOF VENTILATOR<C55> EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-930-0 01 1 0106- ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>, IDENTIFICATION LABEL FOR KD<6UT>,TRAY ROOF HEAD<7EJ> 		8-97892-934-0 01 1 0106- ● ●
1 16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-266-4 01 1 9811-0105 ● ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ> 		8-97851-266-4 01 1 0106- ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-451-4 01 1 9811-0105 ● ●
1 16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> 		8-97851-451-4 01 1 0106- ● ●
1 16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>, IDENTIFICATION LABEL FOR KD<6UT> 		8-97892-932-0 01 1 0106- ● ●
1 16.585 PANEL; ROOF
CAB-LOW ROOF<6XQ> 		8-97851-046-1 01 1 9811-9902 ●
1 16.585 PANEL; ROOF
CAB-LOW ROOF<6XQ> 		8-97892-874-0 01 1 9903- ●
7 16.585 PANEL; FRT WINDSHIELD UPR 8-97892-141-1 01 1 9811- ● ● ● ● ●
7 16.585 PANEL; FRT WINDSHIELD UPR
EXC. CAB-LOW ROOF<6XQ> 		8-97892-141-1 01 1 9811- ●
7 16.585 PANEL; FRT WINDSHIELD UPR
CAB-LOW ROOF<6XQ> 		8-97859-529-0 01 1 9811- ●
86 16.585 NUT; ROOF
16.069 M5 		8-94279-075-1 01 1 9811- ● ● ● ● ● ●
