6-47 — MUD GUARD AND INSULATOR (#42312) — 70 parça

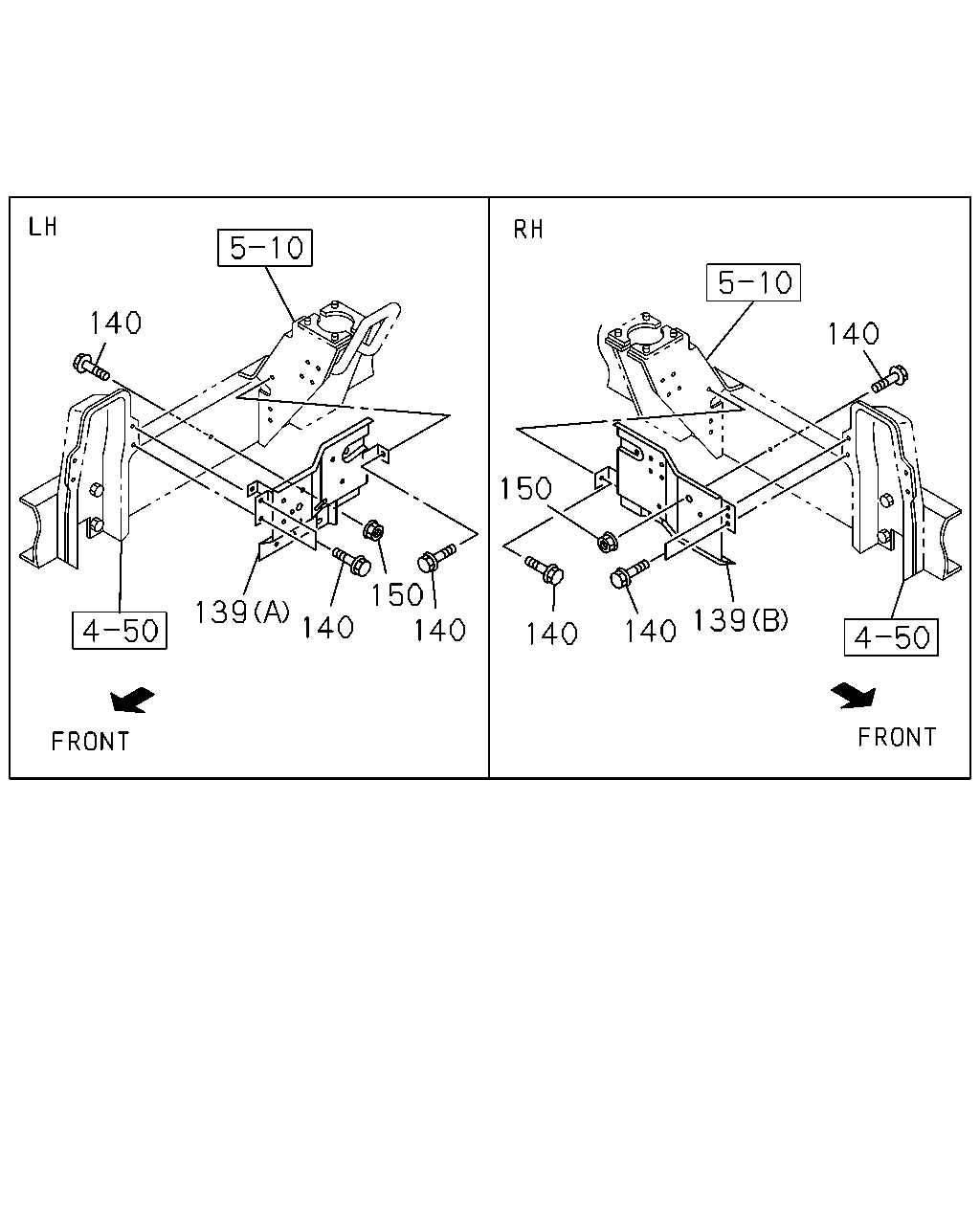

140 140 150 150 140 139 140 139 140 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
139	08.153 PANEL; SIDE (B)	8-97078-381-1	01	1	9811-	●	●	●	●	●	●
139	08.153 PANEL; SIDE AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97083-093-1	01	1	9811-0005	●		●
139	08.153 PANEL; SIDE AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97083-093-1	01	1	0006-	●
139	08.153 PANEL; SIDE AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A)	8-97083-093-1	01	1	0006-			●
139	08.153 PANEL; SIDE AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97035-774-3	01	1	9811-0005	●		●
139	08.153 PANEL; SIDE (A)	8-97035-774-3	01	1	9811-0005		●		●	●	●
139	08.153 PANEL; SIDE AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97035-774-3	01	1	0006-	●	●	●	●	●	●
139	08.153 PANEL; SIDE AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A)	8-97035-774-3	01	1	0006-			●
140	08.155 BOLT; SIDE PANEL 04.595 M8X20 FLANGE	0-28480-820-0	04	1	9811-	●	●	●	●	●	●
140	08.155 BOLT; SIDE PANEL 02.559 M8X25 FLANGE	0-28680-825-0	03	1	9811-	●	●	●	●	●	●
150	08.155 NUT; SIDE PANEL 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-	●	●	●	●	●	●
150	08.155 NUT; SIDE PANEL 07.633 M8 FLANGE	0-91150-108-0	03	1	9811-	●	●	●	●	●	●

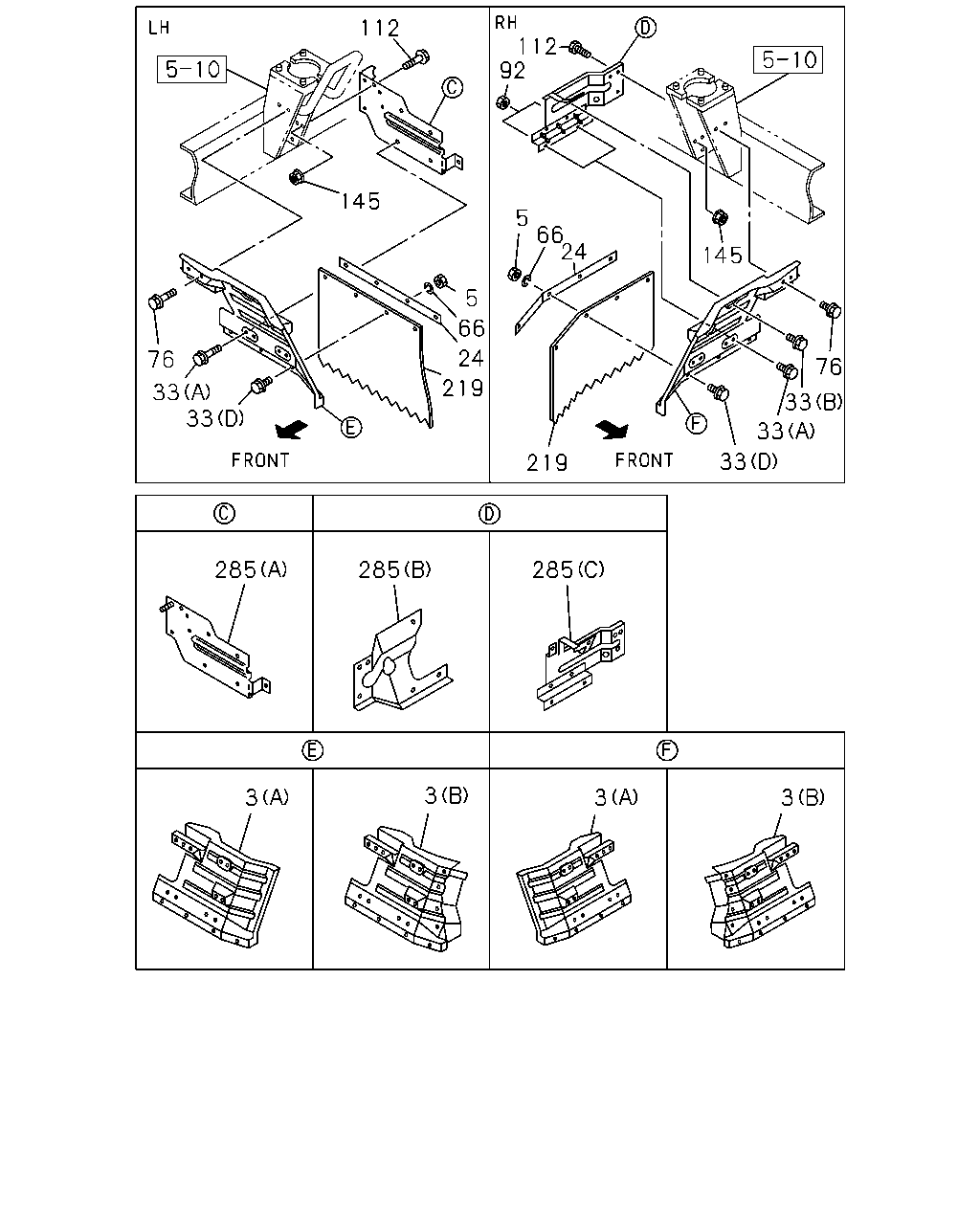

112 92 112 145 5 66 24 145 5 66 24 76 76 219 33 33 33 33 33 219 285 285 285 3 3 3 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	08.153 GUARD; MUD,RR (A)	8-97048-729-1	01	1	9811-	●		●		●	●
3	08.153 GUARD; MUD,RR (A)	8-97048-728-3	01	1	9811-	●		●		●	●
3	08.153 GUARD; MUD,RR (B)	8-97081-735-3	01	1	9811-		●		●
3	08.153 GUARD; MUD,RR (B)	8-97081-734-5	01	1	9811-		●		●
5	08.155 NUT; FLAP RUBBER 08.915 M6	9-09111-406-0	08	1	9811-	●	●	●	●	●	●
24	08.155 PLATE; MUD COVER	8-97095-186-0	02	1	9811-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	9811-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 07.010 (A) M8X20 FLANGE	0-28080-820-0	05	1	9811-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 02.334 (C) M6X25 FLANGE	0-28680-625-0	04	1	9811-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 16.320 (B) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	9811-	●	●	●	●	●	●
66	08.155 WASHER; LK 00.206 ID=6.1	9-09150-506-0	08	1	9811-	●	●	●	●	●	●
76	08.155 BOLT; MUD GUARD 04.595 M8X20 FLANGE	0-28480-820-0	02	1	9811-	●	●	●	●	●	●
92	08.155 NUT; MUD COVER 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-	●	●	●	●	●	●
112	08.155 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	05	1	9811-	●	●	●	●	●	●
145	08.155 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	06	1	9811-	●	●	●	●	●	●
219	08.155 FLAP; MUD GUARD	8-97036-107-2	02	1	9811-9903	●	●	●	●	●	●
219	08.155 FLAP; MUD GUARD	8-97218-078-0	02	1	9904-	●	●	●	●	●	●
285	08.155 BRACKET; MUD COVER (A)	8-97035-780-3	01	1	9811-0004	●	●	●	●	●	●
285	08.155 BRACKET; MUD COVER (A)	8-97035-780-4	01	1	0005-	●	●		●	●	●
285	08.155 BRACKET; MUD COVER EXC. CHARGE AIR COOLER<6PL> (A)	8-97035-780-4	01	1	0005-			●
285	08.155 BRACKET; MUD COVER AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97089-653-2	01	1	9811-	●		●
285	08.155 BRACKET; MUD COVER AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97035-778-4	01	1	9811-	●		●
285	08.155 BRACKET; MUD COVER (C)	8-97035-778-4	01	1	9811-					●	●
285	08.155 BRACKET; MUD COVER (C)	8-97103-463-0	01	1	9811-		●		●
285	08.155 BRACKET; MUD COVER CHARGE AIR COOLER<6PL> (A)	8-97225-272-1	01	1	0005-			●

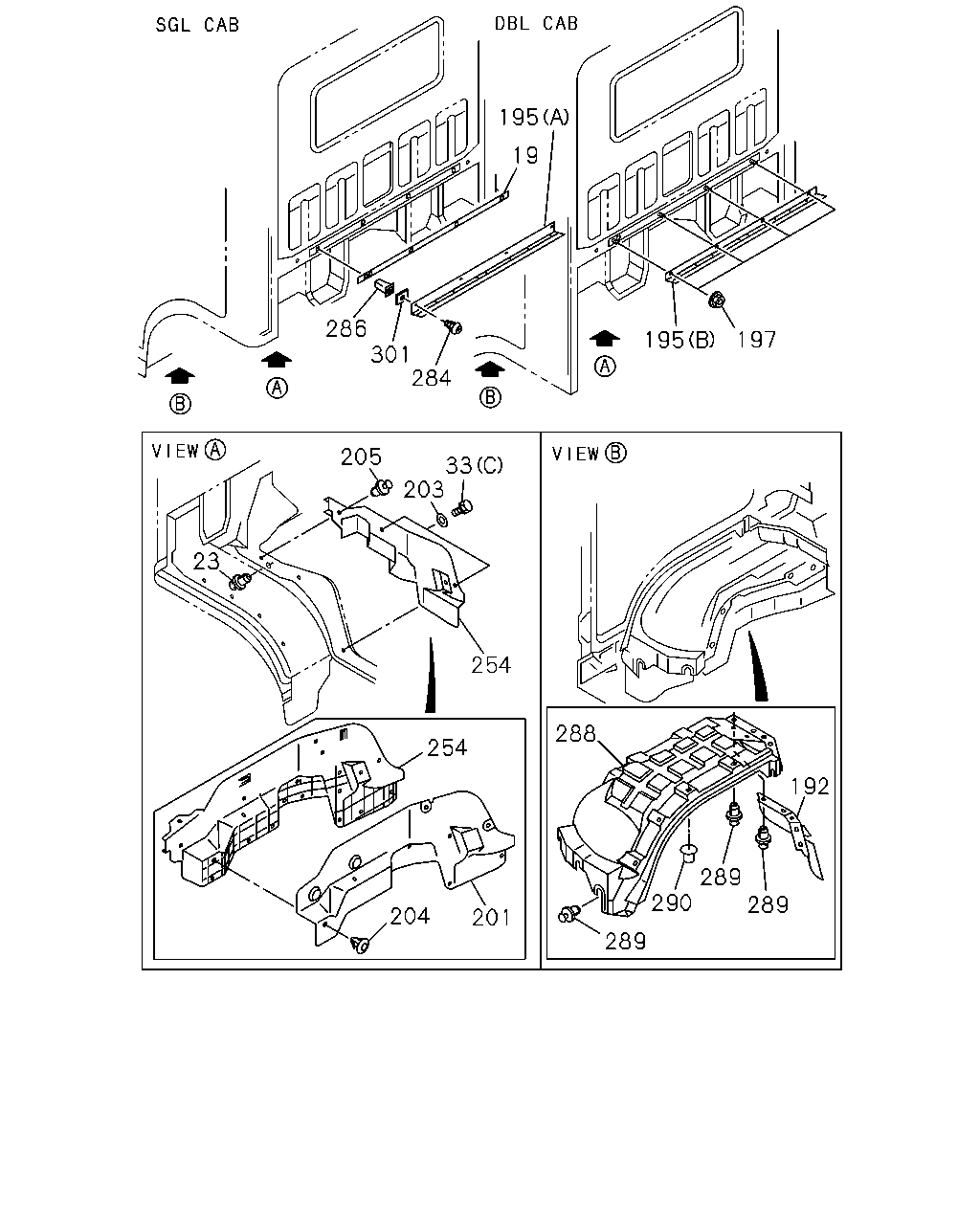

195 19 286 301 284 197 195 205 33 203 23 254 288 254 192 289 290 289 204 201 289

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
19	03.602 SHEET; HEAT PROTECTOR,CAB BACK	8-97856-016-0	01	1	9811-	●		●		●	●
23	08.154 FASTENER; MUD COVER 16.320 OD=8.3	8-94279-989-0	10	1	9811-9907	●	●	●	●	●	●
23	08.154 FASTENER; MUD COVER 16.320 OD=8.3	8-94279-989-0	06	1	9908-0207	●	●	●	●	●	●
23	08.154 FASTENER; MUD COVER 16.320 OD=8.3	8-97997-832-0	06	1	0208-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	9811-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 07.010 (A) M8X20 FLANGE	0-28080-820-0	05	1	9811-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 02.334 (C) M6X25 FLANGE	0-28680-625-0	04	1	9811-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 16.320 (B) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	9811-	●	●	●	●	●	●
192	08.153 SEAL; MUD COVER DELETION INDONESIA<35D>	8-97857-297-2	02	1	9811-9902	●
192	08.153 SEAL; MUD COVER DELETION COLOMBIA<80D>	8-97857-297-2	02	1	9811-9902			●
192	08.153 SEAL; MUD COVER	8-97857-297-3	02	1	9903-	●	●	●	●	●	●
195	03.602 PROTECTOR; HEAT (A)	8-97094-833-1	01	1	9811-	●		●		●	●
195	03.602 PROTECTOR; HEAT (B)	8-94462-569-0	01	1	9811-		●		●
197	03.602 NUT; HEAT PROTECTOR,CAB BACK 03.417 M6 FLANGE	8-94279-514-0	03	1	9811-		●		●
201	08.155 INSULATOR; VALANCE	8-97853-117-3	01	1	9811-	●	●	●	●	●	●
201	08.155 INSULATOR; VALANCE	8-97853-116-3	01	1	9811-	●	●	●	●	●	●
203	08.155 WASHER; PL,VALANCE ID=6.4 OD=22	8-94279-631-0	04	1	9811-	●	●	●	●	●	●
204	08.155 CLIP; VALANCE,INSULATOR OD=18 L=17	8-94279-702-0	12	1	9811-	●	●	●	●	●	●
205	08.155 FASTENER; MUD COVER 12.934 D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	9811-	●	●	●	●	●	●
254	08.153 COVER; MUD,VALANCE	8-97853-072-4	01	1	9811-	●	●	●	●	●	●
254	08.153 COVER; MUD,VALANCE	8-97853-071-4	01	1	9811-	●	●	●	●	●	●
284	08.155 SCREW; HEAT PROTECTOR M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	9811-	●		●		●	●
286	08.155 GROMMET; SCREW,HEAT PROTECTOR 16.802 D=7.8X7.8 L=18 NATURAL	8-94279-043-0	04	1	9811-0101	●		●		●	●
286	08.155 GROMMET; SCREW,HEAT PROTECTOR	8-97994-312-0	04	1	0102-	●		●		●	●
288	08.155 LINER; TIRE HOUSE	8-97890-579-1	01	1	9811-0212	●	●	●	●	●	●
288	08.155 LINER; TIRE HOUSE	8-97581-241-0	01	1	0301-	●	●	●	●	●	●
288	08.155 LINER; TIRE HOUSE	8-97890-578-1	01	1	9811-0212	●	●	●	●	●	●
288	08.155 LINER; TIRE HOUSE	8-97581-240-0	01	1	0301-	●	●	●	●	●	●
289	08.155 FASTENER; LINER 16.320 OD=8.3	8-94279-989-0	20	1	9811-0212	●	●	●	●	●	●
289	08.155 FASTENER; LINER 16.320 OD=8.3	8-94279-989-0	18	1	0301-	●	●	●	●	●	●
290	08.155 NUT; LINER CAP NUT BLACK	8-94279-526-0	08	1	9811-	●	●	●	●	●	●
301	08.155 HOLDER; HEAT PROTECTOR	8-97857-153-0	04	1	9811-0101	●		●		●	●
301	08.155 HOLDER; HEAT PROTECTOR	8-97994-313-0	04	1	0102-	●		●		●	●
