◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50808 - NHR ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶
6-31 — FRONT DOOR GLASS AND REGULATOR (#42308) — 77 parça

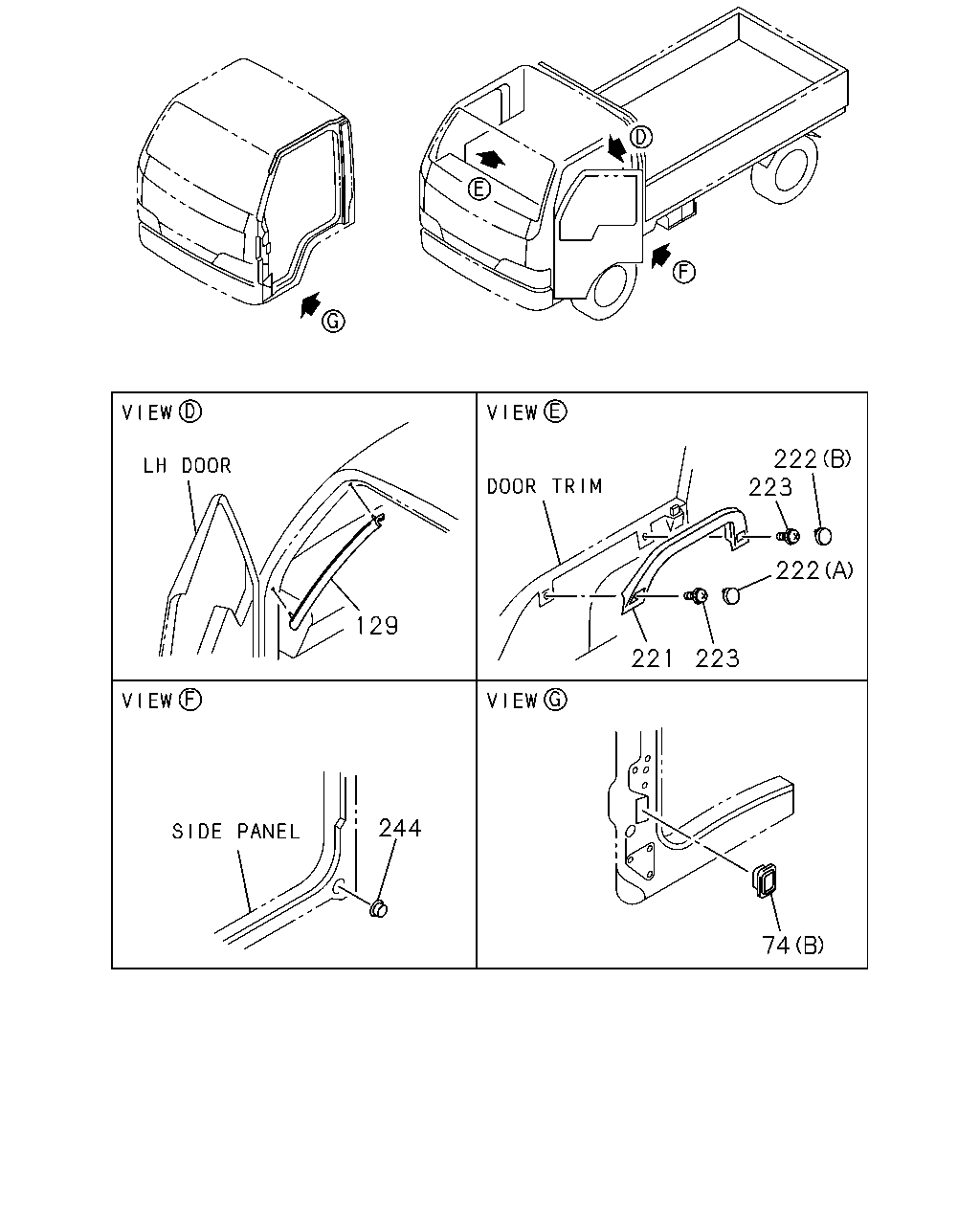

çizim 47048
222 223 222 129 221 223 244 74
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
74 16.263 GROMMET; DOOR OUTER WAIST
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,ANTENNA<U73>,RADIO AM/ FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FMW/CASSETTE 2 SPEAKERS(6VL) 09.656 (A) OD=48 T=9.1 		8-94279-053-0 02 1 9811- ● ● ● ● ● ●
74 16.263 GROMMET; DOOR OUTER WAIST
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,ANTENNA<U73>,RADIO AM/ FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FMW/CASSETTE 2 SPEAKERS(6VL) 09.775 (B) 		8-94279-736-0 02 1 9811- ● ● ● ● ● ●
129 16.183 SEAL; DOOR,SUB UPR 8-97852-147-3 01 1 9811- ● ● ● ● ●
129 16.183 SEAL; DOOR,SUB UPR
EXC. CAB-LOW ROOF<6XQ> 		8-97852-147-3 01 1 9811- ●
129 16.183 SEAL; DOOR,SUB UPR 8-97852-146-3 01 1 9811- ● ● ● ● ●
129 16.183 SEAL; DOOR,SUB UPR
EXC. CAB-LOW ROOF<6XQ> 		8-97852-146-3 01 1 9811- ●
129 16.183 SEAL; DOOR,SUB UPR
CAB-LOW ROOF<6XQ> 		8-97857-841-0 02 1 9811- ●
221 16.320 BAR ASM; DOOR GLASS GUARD
DARK GRAY 		8-97867-822-1 01 1 9811-0112 ● ● ● ● ●
221 16.320 BAR ASM; DOOR GLASS GUARD
EXC. CAB-LOW ROOF<6XQ> DARK GRAY 		8-97867-822-1 01 1 9811-0112 ●
221 16.320 BAR ASM; DOOR GLASS GUARD
DARK GRAY 		8-97995-853-0 01 1 0201- ● ● ● ● ●
221 16.320 BAR ASM; DOOR GLASS GUARD
EXC. CAB-LOW ROOF<6XQ> DARK GRAY 		8-97995-853-0 01 1 0201- ●
221 16.320 BAR ASM; DOOR GLASS GUARD
DARK GRAY 		8-97867-820-1 01 1 9811-0112 ● ● ● ● ●
221 16.320 BAR ASM; DOOR GLASS GUARD
EXC. CAB-LOW ROOF<6XQ> DARK GRAY 		8-97867-820-1 01 1 9811-0112 ●
221 16.320 BAR ASM; DOOR GLASS GUARD
DARK GRAY 		8-97995-850-0 01 1 0201- ● ● ● ● ●
221 16.320 BAR ASM; DOOR GLASS GUARD
EXC. CAB-LOW ROOF<6XQ> DARK GRAY 		8-97995-850-0 01 1 0201- ●
222 16.320 CAP; GUARD BAR
(A) FRONT DARK GRAY 		8-97867-824-0 02 1 9811-0112 ● ● ● ● ●
222 16.320 CAP; GUARD BAR
EXC. CAB-LOW ROOF<6XQ> (A) FRONT DARK GRAY 		8-97867-824-0 02 1 9811-0112 ●
222 16.320 CAP; GUARD BAR
(A) FRONT DARK GRAY 		8-97995-856-0 02 1 0201- ● ● ● ● ●
222 16.320 CAP; GUARD BAR
EXC. CAB-LOW ROOF<6XQ> (A) FRONT DARK GRAY 		8-97995-856-0 02 1 0201- ●
222 16.320 CAP; GUARD BAR
(B) REAR DARK GRAY 		8-97867-826-0 02 1 9811-0112 ● ● ● ● ●
222 16.320 CAP; GUARD BAR
EXC. CAB-LOW ROOF<6XQ> (B) REAR DARK GRAY 		8-97867-826-0 02 1 9811-0112 ●
222 16.320 CAP; GUARD BAR
(B) REAR DARK GRAY 		8-97995-859-0 02 1 0201- ● ● ● ● ●
222 16.320 CAP; GUARD BAR
EXC. CAB-LOW ROOF<6XQ> (B) REAR DARK GRAY 		8-97995-859-0 02 1 0201- ●
223 16.320 SCREW; GUARD BAR
M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 9811-0112 ● ● ● ● ●
223 16.320 SCREW; GUARD BAR
EXC. CAB-LOW ROOF<6XQ> M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 9811-0112 ●
223 16.320 SCREW; GUARD BAR
16.650 M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0201- ● ● ● ● ●
223 16.320 SCREW; GUARD BAR
EXC. CAB-LOW ROOF<6XQ> 16.650 M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0201- ●
244 16.155 STOPPER; DOOR 8-97890-484-0 02 1 9811- ● ● ● ● ● ●

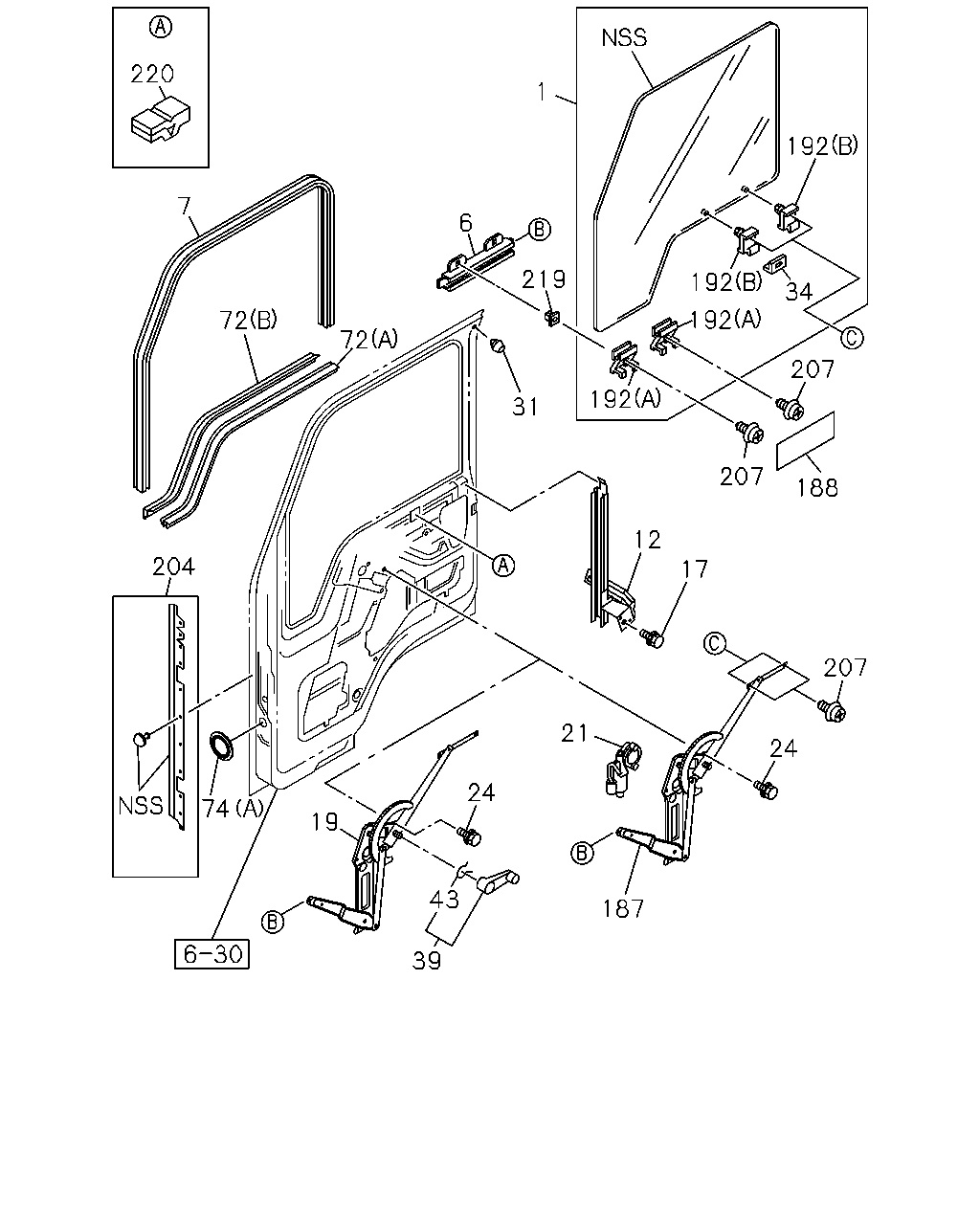

çizim 47500
220 1 192 7 6 219 192 34 192 72 72 207 192 31 207 188 12 204 17 207 21 24 24 74 19 43 187 39
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.180 GLASS; FRT DOOR
ASAHI 		8-97867-418-0 01 1 9811- ● ● ● ● ●
1 16.180 GLASS; FRT DOOR
EXC. CAB-LOW ROOF<6XQ> ASAHI 		8-97867-418-0 01 1 9811- ●
1 16.180 GLASS; FRT DOOR
ASAHI 		8-97867-417-0 01 1 9811- ● ● ● ● ●
1 16.180 GLASS; FRT DOOR
EXC. CAB-LOW ROOF<6XQ> ASAHI 		8-97867-417-0 01 1 9811- ●
1 16.180 GLASS; FRT DOOR
CAB-LOW ROOF<6XQ> ASAHI 		8-97867-416-0 01 1 9811- ●
1 16.180 GLASS; FRT DOOR
CAB-LOW ROOF<6XQ> ASAHI 		8-97867-415-0 01 1 9811- ●
6 10.685 CHANNEL; DOOR GLASS
W/ROLLER&PROTECTOR 		8-97890-590-0 02 1 9811-0003 ● ● ● ● ● ●
6 10.685 CHANNEL; DOOR GLASS
W/ROLLER&PROTECTOR 		8-97898-425-0 02 1 0004- ● ● ● ● ● ●
7 16.190 GLASS RUN; FRT DOOR 8-97852-143-4 01 1 9811- ● ● ● ● ●
7 16.190 GLASS RUN; FRT DOOR
EXC. CAB-LOW ROOF<6XQ> 		8-97852-143-4 01 1 9811- ●
7 16.190 GLASS RUN; FRT DOOR 8-97852-142-4 01 1 9811- ● ● ● ● ●
7 16.190 GLASS RUN; FRT DOOR
EXC. CAB-LOW ROOF<6XQ> 		8-97852-142-4 01 1 9811- ●
7 16.190 GLASS RUN; FRT DOOR
CAB-LOW ROOF<6XQ> 		8-97852-114-4 01 1 9811- ●
7 16.190 GLASS RUN; FRT DOOR
CAB-LOW ROOF<6XQ> 		8-97852-113-4 01 1 9811- ●
12 16.190 CHANNEL; GLASS RUN,FRT 8-97852-112-5 01 1 9811- ● ● ● ● ● ●
12 16.190 CHANNEL; GLASS RUN,FRT 8-97852-111-5 01 1 9811- ● ● ● ● ● ●
17 16.183 SCREW; RR CHANNEL
M6X16 W/LK&PL WASHER 		8-94279-402-0 04 1 9811- ● ● ● ● ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-97852-116-6 01 1 9811- ● ● ● ● ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-97852-115-6 01 1 9811- ● ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-97868-064-0 01 1 9811-0002 ● ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-97898-478-0 01 1 0003- ● ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-97868-063-0 01 1 9811-0002 ● ● ● ● ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-97898-477-0 01 1 0003- ● ● ● ● ● ●
24 16.230 SCREW; WINDOW REG
M6X8 W/LK&PL WASHER 		8-94279-401-0 10 1 9811- ● ● ● ● ● ●
31 16.225 STOPPER; RUBBER,DOOR INNER 8-97852-022-1 02 1 9811- ● ● ● ● ● ●
34 16.270 STOPPER; WINDOW REG 8-97852-012-0 02 1 9811- ● ● ● ● ● ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
DELETION INDONESIA<35D> EXC. POWER WINDOW FRT DOOR<A32> DARK GRAY 		8-97098-453-0 02 1 9811-9902 ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
DELETION COLOMBIA<80D> EXC. POWER WINDOW FRT DOOR<A32> DARK GRAY 		8-97098-453-0 02 1 9811-9902 ●
39 16.270 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> DARK GRAY 		8-97098-453-0 02 1 9903- ● ● ● ● ● ●
43 16.270 CLIP; REG HANDLE,FRT DOOR
DELETION INDONESIA<35D> EXC. POWER WINDOW FRT DOOR<A32> 		8-94220-591-0 02 1 9811-9902 ●
43 16.270 CLIP; REG HANDLE,FRT DOOR
DELETION COLOMBIA<80D> EXC. POWER WINDOW FRT DOOR<A32> 		8-94220-591-0 02 1 9811-9902 ●
43 16.270 CLIP; REG HANDLE,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-94220-591-0 02 1 9903- ● ● ● ● ● ●
72 16.183 SEAL; WAIST,FRT DOOR
(A) INNER 		8-97852-118-5 01 1 9811- ● ● ● ● ● ●
72 16.183 SEAL; WAIST,FRT DOOR
(B) OUTER 		8-97855-293-3 01 1 9811- ● ● ● ● ● ●
72 16.183 SEAL; WAIST,FRT DOOR
(A) INNER 		8-97852-117-5 01 1 9811- ● ● ● ● ● ●
72 16.183 SEAL; WAIST,FRT DOOR
(B) OUTER 		8-97855-292-3 01 1 9811- ● ● ● ● ● ●
74 16.263 GROMMET; DOOR OUTER WAIST
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,ANTENNA<U73>,RADIO AM/ FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FMW/CASSETTE 2 SPEAKERS(6VL) 09.656 (A) OD=48 T=9.1 		8-94279-053-0 02 1 9811- ● ● ● ● ● ●
74 16.263 GROMMET; DOOR OUTER WAIST
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT DOOR<A32>,ANTENNA<U73>,RADIO AM/ FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FMW/CASSETTE 2 SPEAKERS(6VL) 09.775 (B) 		8-94279-736-0 02 1 9811- ● ● ● ● ● ●
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97868-114-1 01 1 9811- ● ● ● ● ● ●
187 16.260 REGULATOR ASM; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97868-113-1 01 1 9811- ● ● ● ● ● ●
188 16.225 PROTECTOR; DOOR SEAL 8-97994-698-0 02 1 0112- ● ● ● ● ● ●
192 16.183 HOLDER; DOOR GLASS
(A) 		8-97852-076-1 04 1 9811- ● ● ● ● ● ●
192 16.183 HOLDER; DOOR GLASS
(B) 		8-97852-077-1 04 1 9811- ● ● ● ● ● ●
204 16.183 RUBBER; SHIELD,FRT DOOR 8-97852-093-2 01 1 9811- ● ● ● ● ● ●
204 16.183 RUBBER; SHIELD,FRT DOOR 8-97852-092-2 01 1 9811- ● ● ● ● ● ●
207 16.183 SCREW; DOOR GLASS
16.445 REAR M6X16 TAPPING W/PL WASHER 		1-09981-452-0 04 1 9811- ● ● ● ● ● ●
207 16.183 SCREW; DOOR GLASS
FRONT M6X14.5 W/PL WASHER TAPPING 		8-94279-014-0 04 1 9811- ● ● ● ● ● ●
219 16.175 GROMMET; SCREW,CHANNEL,REG 8-94326-756-0 04 1 9811- ● ● ● ● ● ●
220 16.332 SEAL; LINK ROD 8-97852-321-0 02 1 9811- ● ● ● ● ● ●
