6-30 — FRONT DOOR AND HINGE (#42307) — 34 parça

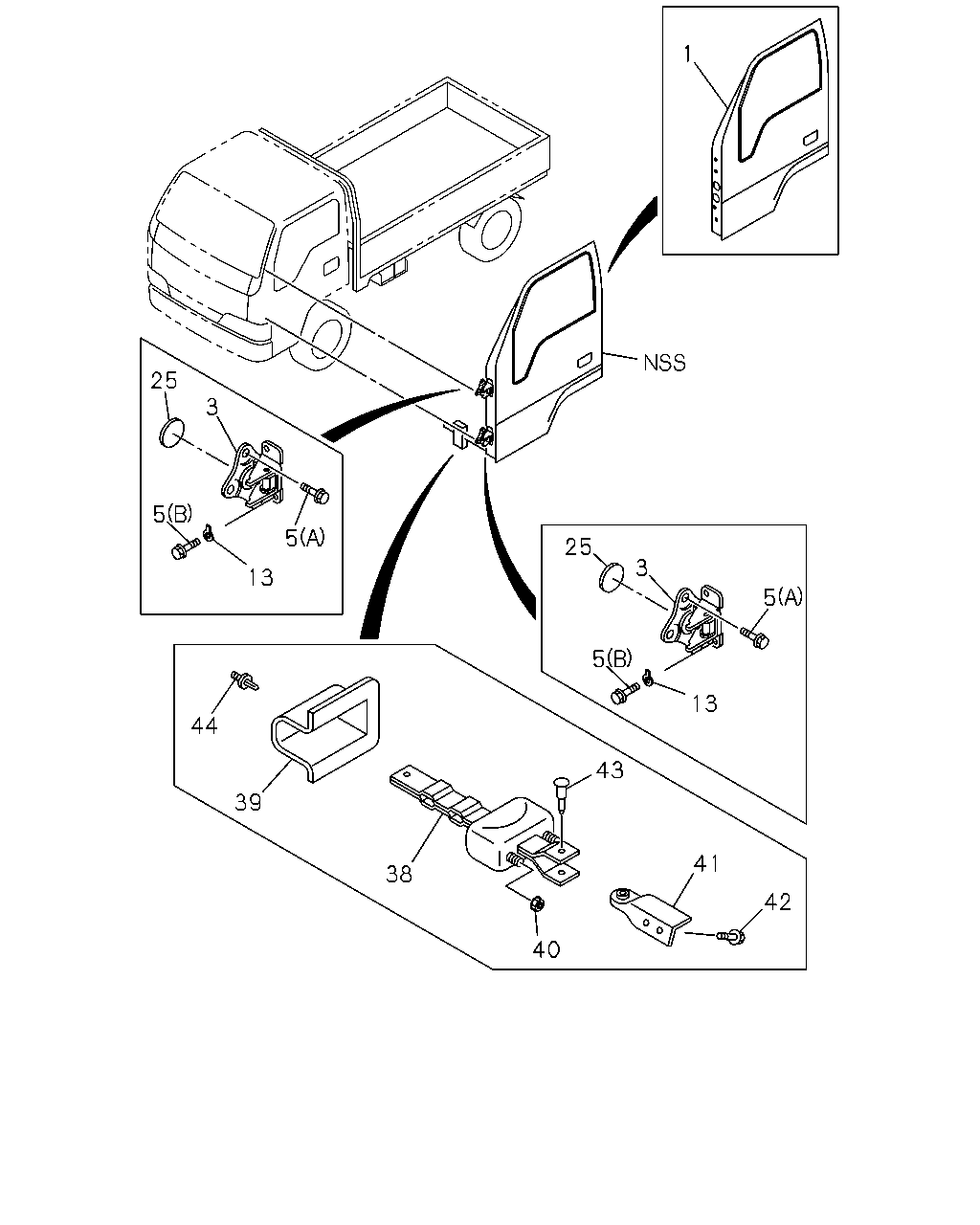

çizim 44083
1 25 3 5 5 25 3 13 5 5 13 44 43 39 41 38 42 40
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.150 DOOR ASM; FRT,WO/TRIM 8-97863-848-0 01 1 9811-9912 ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. DOOR MIRROR<6VE> 		8-97863-848-0 01 1 9811-9912 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. CAB-LOW ROOF<6XQ> 		8-97863-848-0 01 1 9811-9912 ●
1 16.150 DOOR ASM; FRT,WO/TRIM 8-97892-889-1 01 1 0001- ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. DOOR MIRROR<6VE> 		8-97892-889-1 01 1 0001- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. CAB-LOW ROOF<6XQ> 		8-97892-889-1 01 1 0001- ●
1 16.150 DOOR ASM; FRT,WO/TRIM 8-97863-847-0 01 1 9811-9912 ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. DOOR MIRROR<6VE> 		8-97863-847-0 01 1 9811-9912 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. CAB-LOW ROOF<6XQ> 		8-97863-847-0 01 1 9811-9912 ●
1 16.150 DOOR ASM; FRT,WO/TRIM 8-97892-888-1 01 1 0001- ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. DOOR MIRROR<6VE> 		8-97892-888-1 01 1 0001- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. CAB-LOW ROOF<6XQ> 		8-97892-888-1 01 1 0001- ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<6VE> 		8-97863-850-1 01 1 9811- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<6VE> 		8-97863-849-1 01 1 9811- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
CAB-LOW ROOF<6XQ> 		8-97863-846-0 01 1 9811-9912 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
CAB-LOW ROOF<6XQ> 		8-97892-887-1 01 1 0001- ●
1 16.150 DOOR ASM; FRT,WO/TRIM
CAB-LOW ROOF<6XQ> 		8-97863-845-0 01 1 9811-9912 ●
1 16.150 DOOR ASM; FRT,WO/TRIM
CAB-LOW ROOF<6XQ> 		8-97892-886-1 01 1 0001- ●
3 16.320 HINGE; DOOR FRT 8-97852-007-5 04 1 9811- ● ● ● ● ● ●
5 16.320 BOLT; HINGE
(A) M8X18 W/LK&PL WASHER 		8-94279-232-0 12 1 9811- ● ● ● ● ● ●
5 16.320 BOLT; HINGE
(B) M8X22 FLANGE 		8-94279-098-1 08 1 9811- ● ● ● ●
5 16.320 BOLT; HINGE
(B) M8X24.5 W/LK&PL WASHER 		8-94279-217-0 08 1 9811- ● ●
13 16.320 WASHER; HINGE
W/PLAIN WASHER SEAL ID=8.1 		8-97142-090-0 04 1 9811-9812 ● ● ● ●
13 16.320 WASHER; HINGE
ID=8.1 W/SEAL 		8-97890-584-1 04 1 9901- ● ● ● ●
25 16.320 SEAL; HINGE 8-97856-591-0 04 1 9811-9811 ● ●
38 16.320 CHECKER ASM; DOOR 8-97867-841-1 02 1 9811- ● ● ● ● ● ●
39 16.320 COVER; CHECKER 8-97852-365-3 02 1 9811- ● ● ● ● ● ●
40 16.320 NUT; CHECKER
07.633 M8 FLANGE 		0-91150-108-0 04 1 9811- ● ● ● ● ● ●
41 16.320 BRACKET; CHECKER 8-97852-403-1 01 1 9811- ● ● ● ● ● ●
41 16.320 BRACKET; CHECKER 8-97852-402-1 01 1 9811- ● ● ● ● ● ●
42 16.320 BOLT; BRKT
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9811- ● ● ● ● ● ●
43 16.320 PIN 8-97852-057-1 02 1 9811- ● ● ● ● ● ●
44 16.320 FASTENER; COVER
OD=8.3 		8-94279-989-0 02 1 9811-0207 ● ● ● ● ● ●
44 16.320 FASTENER; COVER
OD=8.3 		8-97997-832-0 02 1 0208- ● ● ● ● ● ●
