Isuzu WW
▶
TRUCKS
▶
NHR
▶
50808 - NHR
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

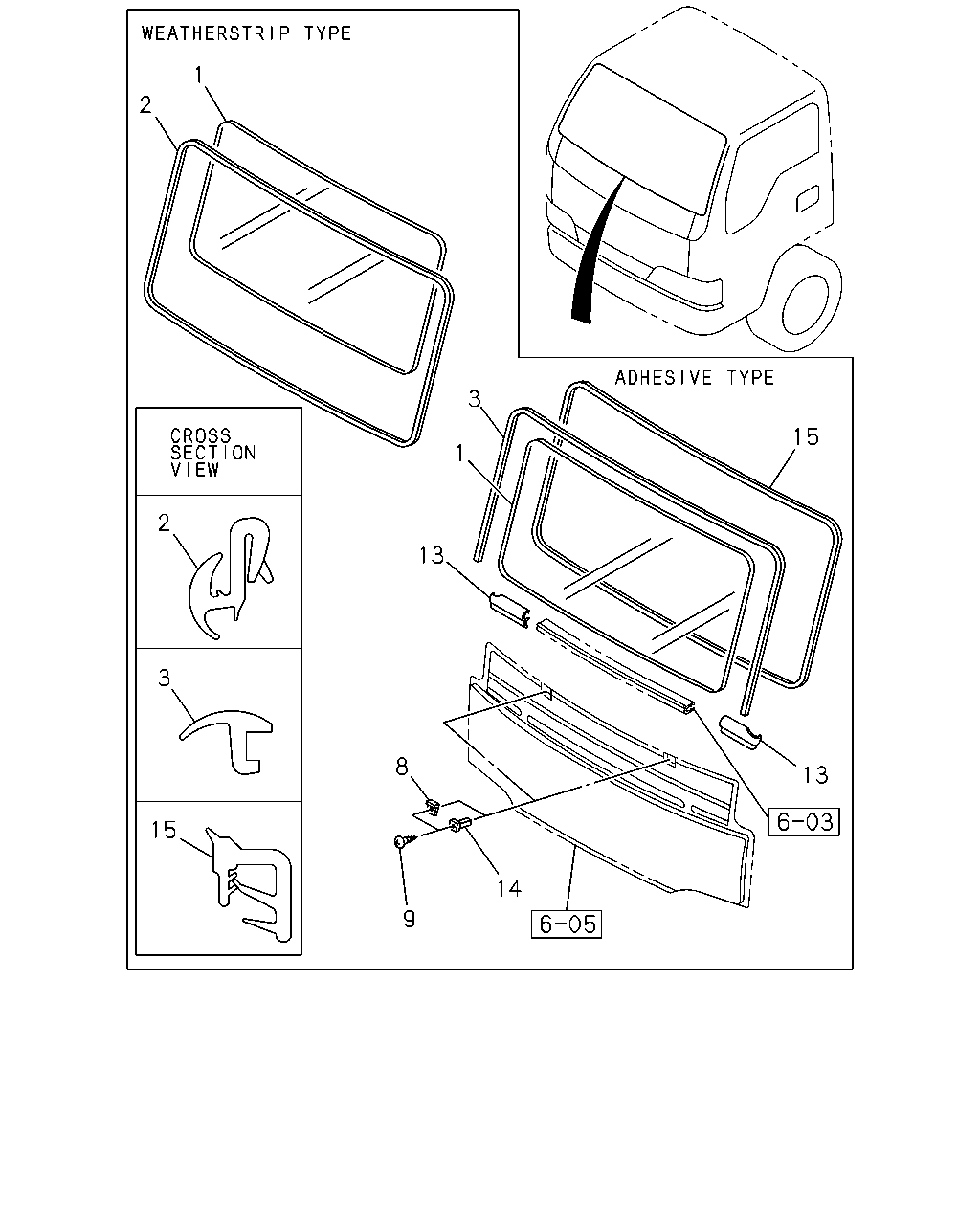

6-07 - FRONT WINDOW GLASS AND WEATHERSTRIP
▶
6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP
(#42305) — 18 parça
Tümü
A - NHB5SF
B - NHB6SF
C - NHN5SF
D - NHN6SF
E - NHB5WF
F - NHB6WF
1
2
3
15
1
2
13
3
8
13
15
14
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
1
16.005 GLASS; WINDSHIELD
INDONESIA EQUIPMENT(S4S)
8-97117-890-0
01
1
9811-
●
1
16.005 GLASS; WINDSHIELD
EXC. SAUDI ARABIA EQUIPMENT(EU2), INDONESIA EQUIPMENT(S4S),CAB-LOW ROOF<6XQ>
8-97869-123-0
01
1
9811-
●
●
●
●
1
16.005 GLASS; WINDSHIELD
8-97869-123-0
01
1
9811-
●
●
1
16.005 GLASS; WINDSHIELD
SAUDI ARABIA EQUIPMENT(EU2)
8-97869-124-0
01
1
9811-
●
●
1
16.005 GLASS; WINDSHIELD
CAB-LOW ROOF<6XQ>
8-97869-121-0
01
1
9811-
●
2
16.040 WEATHERSTRIP; WINDSHIELD GLASS
WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. CAB-LOW ROOF<6XQ>
8-97856-351-3
01
1
9811-
●
●
●
●
●
●
2
16.040 WEATHERSTRIP; WINDSHIELD GLASS
CAB-LOW ROOF<6XQ> WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97856-349-3
01
1
9811-
●
3
16.470 MOLDING; WINDSHIELD
EXC. CAB-LOW ROOF<6XQ>,WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97890-214-1
01
1
9811-
●
●
●
●
●
●
3
16.470 MOLDING; WINDSHIELD
CAB-LOW ROOF<6XQ> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97890-213-1
01
1
9811-
●
8
16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97859-215-0
02
1
9811-
●
●
●
●
8
16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97853-733-0
02
1
9811-
●
●
9
16.041 SCREW; STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.067 M5X14
8-94279-325-0
02
1
9811-
●
●
●
●
●
●
13
16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97853-787-4
01
1
9811-
●
●
●
●
●
●
13
16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97853-786-3
01
1
9811-
●
●
●
●
●
●
14
16.041 GROMMET; SCREW,STOPPER
WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.547 14.5X14.5 BLACK
8-94279-714-0
04
1
9811-
●
●
●
●
●
●
14
16.041 GROMMET; SCREW,STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 D=7.8X7.8 L=18 NATURAL
8-94279-043-0
02
1
9811-
●
●
15
16.041 FINISHER; WINDSHIELD
EXC. CAB-LOW ROOF<6XQ>,WINDSHIELD WEATHERSTRIP TYPE<7EL> DARK GRAY
8-97859-856-4
01
1
9811-
●
●
●
●
●
●
15
16.041 FINISHER; WINDSHIELD
CAB-LOW ROOF<6XQ> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> DARK GRAY
8-97859-855-4
01
1
9811-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
