6-01 — FRONT BUMPER (#42301) — 47 parça

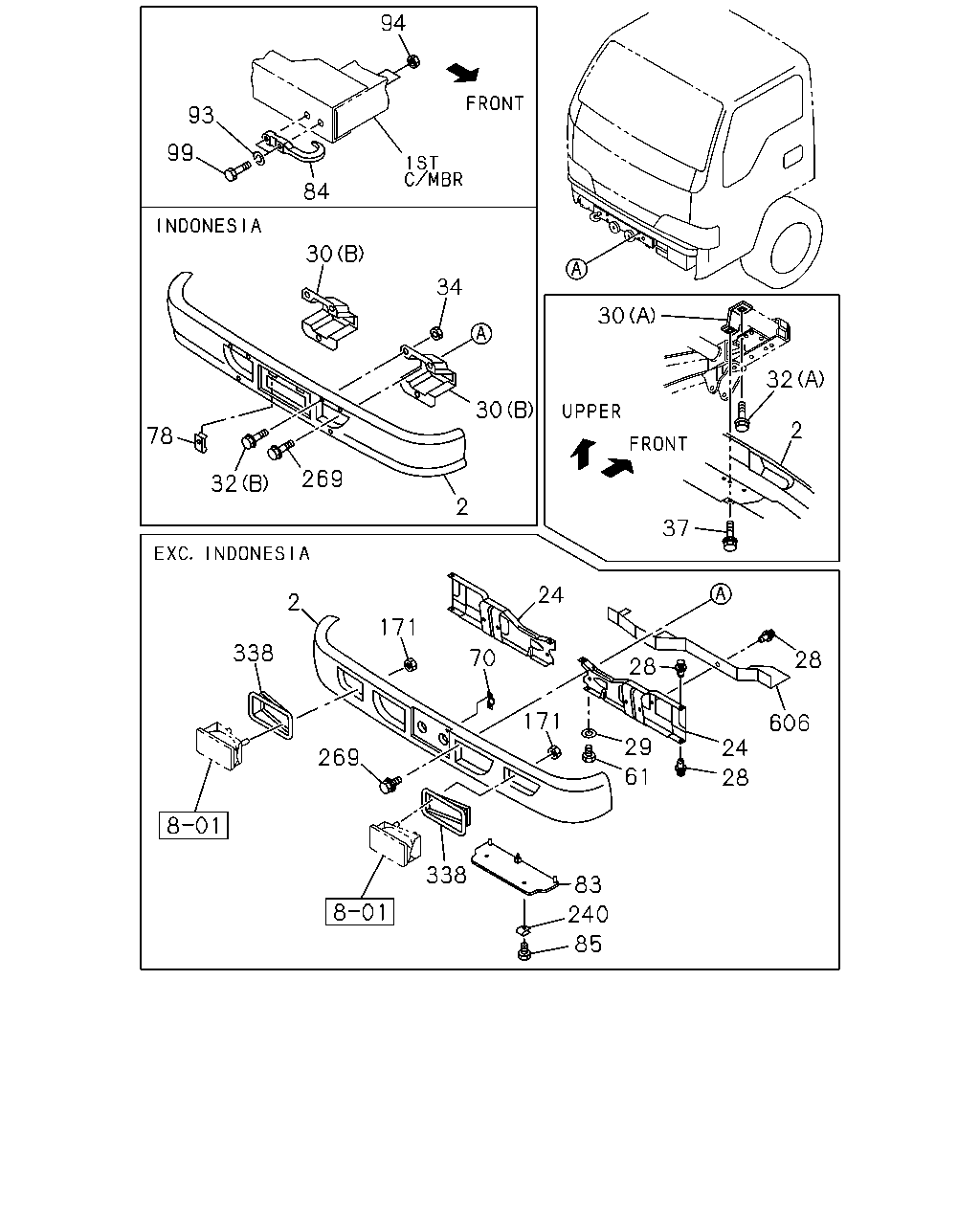

çizim 47178
94 93 99 84 30 34 30 32 30 2 78 269 32 2 37 24 2 171 338 70 28 28 171 606 29 24 269 61 28 338 83 240 85
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 07.831 BUMPER; FRT,CENTER
INDONESIA EQUIPMENT(S4S) EXC. FOG LAMP(T96) 		8-97867-482-0 01 1 9811- ●
2 07.831 BUMPER; FRT,CENTER
EXC. COLOR KEYED BUMPER<S4H>, INDONESIA EQUIPMENT(S4S),FOG LAMP(T96) DARK GRAY 		8-97196-169-0 01 1 9811-0205 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
EXC. COLOR KEYED BUMPER<S4H>, INDONESIA EQUIPMENT(S4S),FOG LAMP(T96) DARK GRAY 		8-97999-003-0 01 1 0206- ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
FOG LAMP(T96) EXC. INDONESIA EQUIPMENT(S4S) DARK GRAY 		8-97196-159-0 01 1 9811-0205 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
FOG LAMP(T96) EXC. INDONESIA EQUIPMENT(S4S) DARK GRAY 		8-97999-023-0 01 1 0206- ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ADRIATIC BLUE(730) COLOR KEYED BUMPER<S4H> EXC. INDONESIA EQUIPMENT(S4S),FOG LAMP(T96) BLUE 		8-97196-168-0 01 1 9811-0105 ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ADRIATIC BLUE(730) COLOR KEYED BUMPER<S4H> EXC. FOG LAMP(T96) BLUE 		8-97191-911-0 01 1 0106-0205 ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ADRIATIC BLUE(730) COLOR KEYED BUMPER<S4H> EXC. FOG LAMP(T96) BLUE 		8-97998-069-0 01 1 0206- ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) COLOR KEYED BUMPER<S4H> EXC. INDONESIA EQUIPMENT(S4S),FOG LAMP(T96) WHITE 		8-97196-160-0 01 1 9811-0105 ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) COLOR KEYED BUMPER<S4H> EXC. FOG LAMP(T96) WHITE 		8-97191-911-0 01 1 0106-0205 ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) COLOR KEYED BUMPER<S4H> EXC. FOG LAMP(T96) WHITE 		8-97999-004-0 01 1 0206- ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) COLOR KEYED BUMPER<S4H> EXC. INDONESIA EQUIPMENT(S4S),FOG LAMP(T96) BLUE 		8-97196-167-0 01 1 9811-0105 ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) COLOR KEYED BUMPER<S4H> EXC. FOG LAMP(T96) BLUE 		8-97191-911-0 01 1 0106-0205 ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) COLOR KEYED BUMPER<S4H> EXC. FOG LAMP(T96) BLUE 		8-97998-069-0 01 1 0206- ●
24 07.869 BAR; FRT BUMPER
FOG LAMP(T96) EXC. INDONESIA EQUIPMENT(S4S) 		8-97070-818-4 01 1 9811- ● ● ● ● ● ●
24 07.869 BAR; FRT BUMPER
FOG LAMP(T96) EXC. INDONESIA EQUIPMENT(S4S) 		8-97070-817-4 01 1 9811- ● ● ● ● ● ●
24 07.869 BAR; FRT BUMPER
EXC. INDONESIA EQUIPMENT(S4S),FOG LAMP(T96) 		8-97035-752-6 01 1 9811- ● ● ● ● ● ●
24 07.869 BAR; FRT BUMPER
EXC. INDONESIA EQUIPMENT(S4S),FOG LAMP(T96) 		8-97035-751-6 01 1 9811- ● ● ● ● ● ●
28 07.833 FASTENER; BACK BAR
FOG LAMP(T96) EXC. INDONESIA EQUIPMENT(S4S) 12.934 D=5.8 SCREW & GROMMET NYLON 		8-94242-150-0 12 1 9811- ● ● ● ● ● ●
28 07.833 FASTENER; BACK BAR
EXC. INDONESIA EQUIPMENT(S4S),FOG LAMP(T96) 12.934 D=5.8 SCREW & GROMMET NYLON 		8-94242-150-0 08 1 9811- ● ● ● ● ● ●
29 07.833 WASHER; FRT BUMPER
EXC. INDONESIA EQUIPMENT(S4S) ID=8.5 		8-94167-476-0 06 1 9811- ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER
INDONESIA EQUIPMENT(S4S) EXC. FOG LAMP(T96) (B) 		8-97867-474-0 01 1 9811- ●
30 07.869 BRACKET; FRT BUMPER
INDONESIA EQUIPMENT(S4S) EXC. FOG LAMP(T96) (B) 		8-97867-473-0 01 1 9811- ●
30 07.869 BRACKET; FRT BUMPER
(A) 		8-97209-567-1 02 1 9811-9811 ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER
01.263 (A) 		8-97093-639-3 02 1 9812- ● ● ● ● ● ●
32 07.874 BOLT; BRKT,BUMPER
INDONESIA EQUIPMENT(S4S) EXC. FOG LAMP(T96) (B) M10X25 BLACK 		8-94365-131-1 06 1 0106- ●
32 07.874 BOLT; BRKT,BUMPER
02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 9811- ● ● ● ● ● ●
34 07.874 NUT; BRKT,BUMPER
INDONESIA EQUIPMENT(S4S) EXC. FOG LAMP(T96) M10 FLANGE 		5-09440-006-0 06 1 0106- ●
37 01.263 BOLT; BRKT TO BUMPER LWR
16.320 M8X22 W/LK&PL WASHER 		8-94279-148-1 02 1 9811- ● ● ● ● ● ●
61 07.832 BOLT; BACK BAR
EXC. INDONESIA EQUIPMENT(S4S) 04.785 M8X18 W/LK WASHER 		0-50040-818-0 06 1 9811- ● ● ● ● ● ●
70 07.800 BRACKET; LICENSE PLATE,FRT
EXC. INDONESIA EQUIPMENT(S4S) 		8-94151-164-1 02 1 9811- ● ● ● ● ● ●
78 07.874 NUT; SPIRE
INDONESIA EQUIPMENT(S4S) EXC. FOG LAMP(T96) 16.742 M6 SPIRE NUT 		8-94291-960-0 02 1 9811-0004 ●
78 07.874 NUT; SPIRE
INDONESIA EQUIPMENT(S4S) EXC. FOG LAMP(T96) 16.085 M6 SPIRE NUT 		8-97210-973-1 02 1 0005- ●
83 07.833 GUIDE; AIR,FRT BUMPER
EXC. INDONESIA EQUIPMENT(S4S) 		8-97076-832-2 01 1 9811- ● ● ● ● ● ●
84 07.068 HOOK 8-94249-270-2 01 1 9811- ● ● ● ● ● ●
85 07.874 BOLT; AIR GUIDE,FRT BUMPER
EXC. INDONESIA EQUIPMENT(S4S) M6X22 W/PL WASHER 		8-97012-072-0 03 1 9811- ● ● ● ● ● ●
93 07.068 WASHER; LK,HOOK
05.422 ID=14.2 		9-09150-814-0 02 1 9811- ● ● ● ● ● ●
94 07.068 NUT; HOOK
07.529 M14 		9-99110-514-0 02 1 9811- ● ● ● ● ● ●
99 07.039 BOLT; HOOK
M14X50 		0-10806-450-0 02 1 9811- ● ● ● ● ● ●
171 07.869 NUT; BACK BAR
FOG LAMP(T96) EXC. INDONESIA EQUIPMENT(S4S) 04.012 M8 FLANGE 		1-09464-018-1 04 1 9811- ● ● ● ● ● ●
240 07.833 NUT; AIR GUIDE,FRT BUMPER
EXC. INDONESIA EQUIPMENT(S4S) M6 		8-94412-740-1 03 1 9811-0004 ● ● ● ● ● ●
240 07.833 NUT; AIR GUIDE,FRT BUMPER
EXC. INDONESIA EQUIPMENT(S4S) 16.085 M6 SPIRE NUT 		8-97210-973-1 03 1 0005- ● ● ● ● ● ●
269 07.874 BOLT; BUMPER BAR TO FRAME
M10X35 W/LK&PL WASHER 		8-97101-865-0 04 1 9811- ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
FOG LAMP(T96) EXC. INDONESIA EQUIPMENT(S4S) DARK GRAY 		8-97866-836-0 01 1 9811- ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
FOG LAMP(T96) EXC. INDONESIA EQUIPMENT(S4S) DARK GRAY 		8-97866-835-0 01 1 9811- ● ● ● ● ● ●
606 07.832 SEAL; BACK BAR
FOG LAMP(T96) EXC. INDONESIA EQUIPMENT(S4S) 		8-97867-844-0 02 1 9811- ● ● ● ● ● ●
606 07.832 SEAL; BACK BAR
EXC. INDONESIA EQUIPMENT(S4S),FOG LAMP(T96) 		8-97867-844-0 01 1 9811- ● ● ● ● ● ●
