◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10720 - CXZ RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-25B - INLET MANIFOLD ▶
0-25B — INLET MANIFOLD (#4230) — 162 parça

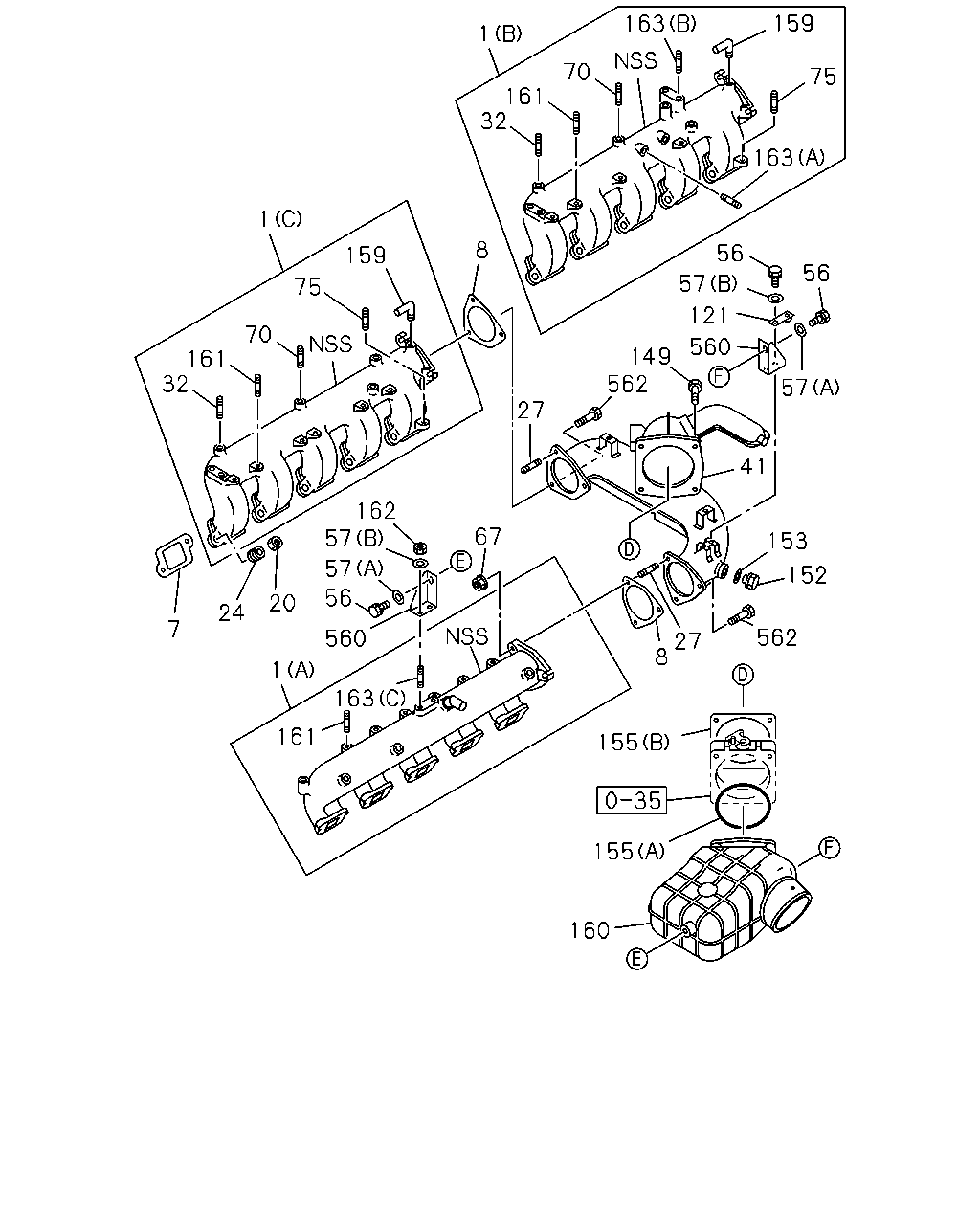

çizim 5903
159 163 1 70 75 161 32 163 1 8 56 159 56 57 75 121 70 560 149 562 161 32 57 27 41 162 57 67 153 57 152 56 20 24 7 562 560 27 8 1 163 161 155 155 160
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 MANIFOLD; INL
(A) LH BANK 		1-14112-586-4 01 1 9603- ●
1 MANIFOLD; INL
(C) RH BANK 		1-14112-585-1 01 1 9603-9904 ●
1 MANIFOLD; INL
EXC. GOVERNOR CONTROL<W69> (C) RH BANK 		1-14112-585-1 01 1 9905- ●
1 MANIFOLD; INL
GOVERNOR CONTROL<W69> (B) RH BANK 		1-14112-636-1 01 1 9905- ●
1 MANIFOLD; INL
(A) LH BANK 		1-14112-584-2 01 1 9603-9904 ●
1 MANIFOLD; INL
(A) LH BANK 		1-14112-584-2 01 1 9905- ● ● ●
1 MANIFOLD; INL
GOVERNOR CONTROL<W69> (B) RH BANK 		1-14112-637-1 01 1 9603-9904 ●
1 MANIFOLD; INL
GOVERNOR CONTROL<W69> (B) RH BANK 		1-14112-637-1 01 1 9905- ● ●
1 MANIFOLD; INL
EXC. GOVERNOR CONTROL<W69> (C) RH BANK 		1-14112-583-1 01 1 9603-9904 ●
1 MANIFOLD; INL
EXC. GOVERNOR CONTROL<W69> (C) RH BANK 		1-14112-583-1 01 1 9905- ● ●
1 MANIFOLD; INL
(C) RH BANK 		1-14112-583-1 01 1 9905- ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14115-026-0 08 1 9603- ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14115-026-0 10 1 9603-9904 ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14115-026-0 10 1 9905- ● ● ●
8 GASKET; INT DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14117-078-0 02 1 9603-9904 ● ●
8 GASKET; INT DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14117-078-0 02 1 9905- ● ● ● ●
20 NUT; INL MANIF
M10 FLANGE 		0-91150-110-0 16 1 9603- ●
20 NUT; INL MANIF
M10 FLANGE 		0-91150-110-0 20 1 9603-9904 ●
20 NUT; INL MANIF
M10 FLANGE 		0-91150-110-0 20 1 9905- ● ● ●
24 SPRING; INL MANIF 1-09580-156-0 16 1 9603- ●
24 SPRING; INL MANIF 1-09580-156-0 20 1 9603-9904 ●
24 SPRING; INL MANIF 1-09580-156-0 20 1 9905- ● ● ●
27 STUD; INL MANIF
M10X35 L=55 		9-04311-035-0 03 1 9603-9904 ● ●
27 STUD; INL MANIF
M10X35 L=55 		9-04311-035-0 03 1 9905- ● ● ● ●
32 STUD; INL PIPE
M8X16 L=28 		9-04110-816-0 01 1 9603-9904 ●
32 STUD; INL PIPE
M8X16 L=28 		9-04110-816-0 01 1 9905- ● ● ●
41 DUCT; INT COVER 1-14134-101-4 01 1 9603-9605 ●
41 DUCT; INT COVER 1-14134-203-2 01 1 9606- ●
41 DUCT; INT COVER 1-14134-163-0 01 1 9603-9605 ●
41 DUCT; INT COVER 1-14134-204-2 01 1 9606-9904 ●
41 DUCT; INT COVER 1-14134-204-2 01 1 9905- ● ● ●
56 BOLT; STAY AIR DUCT
M10X20 W/LK&PL WASHER 		0-50141-020-0 04 1 9603-9904 ● ●
56 BOLT; STAY AIR DUCT
M10X20 W/LK&PL WASHER 		0-50141-020-0 04 1 9905- ● ● ● ●
57 WASHER; PL
(A) ID=10.5 OD=22 		9-09160-610-0 02 1 9603-9904 ● ●
57 WASHER; PL
(A) ID=10.5 OD=22 		9-09160-610-0 02 1 9905- ● ● ● ●
57 WASHER; PL
(B) ID=10.5 OD=26 		9-09160-710-0 04 1 9603-9904 ● ●
57 WASHER; PL
(B) ID=10.5 OD=26 		9-09160-710-0 04 1 9905- ● ● ● ●
67 NUT; INL DUCT
M10 FLANGE 		0-91150-110-0 03 1 9603-9904 ● ●
67 NUT; INL DUCT
M10 FLANGE 		0-91150-110-0 03 1 9905- ● ● ● ●
70 STUD; WATER PIPE
M8X16 L=28 		9-04110-816-0 03 1 9603- ●
70 STUD; WATER PIPE
M8X16 L=28 		9-04110-816-0 02 1 9603-9904 ●
70 STUD; WATER PIPE
M8X16 L=28 		9-04110-816-0 02 1 9905- ● ● ●
75 STUD; BRKT,AIR PIPE
M10X16 L=31 		9-04411-016-0 01 1 9603-9904 ●
75 STUD; BRKT,AIR PIPE
M10X16 L=31 		9-04411-016-0 01 1 9905- ● ● ●
121 BRACKET
L=65 		1-47476-513-0 01 1 9603-9904 ● ●
121 BRACKET
L=65 		1-47476-513-0 01 1 9905- ● ● ● ●
149 BOLT; INT SHUTTER
M10X60 FLANGE 		0-28081-060-0 04 1 9603-9904 ● ●
149 BOLT; INT SHUTTER
M10X60 FLANGE 		0-28081-060-0 04 1 9905- ● ● ● ●
152 PLUG; INT DUCT
M22X12 		1-09604-035-0 02 1 9603-9904 ● ●
152 PLUG; INT DUCT
EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) M22X12 		1-09604-035-0 02 1 9905- ● ●
152 PLUG; INT DUCT
M22X12 		1-09604-035-0 02 1 9905- ● ●
153 GASKET; PLUG,INT DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=22.5 		9-09571-422-0 02 1 9603-9904 ● ●
153 GASKET; PLUG,INT DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=22.5 		9-09571-422-0 02 1 9905- ● ●
153 GASKET; PLUG,INT DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=22.5 		9-09571-422-0 02 1 9905- ● ●
155 GASKET; INL DUCT TO SHUTTER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=125.4 		1-13213-012-0 01 1 9603-9904 ● ●
155 GASKET; INL DUCT TO SHUTTER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=125.4 		1-13213-012-0 01 1 9905- ● ● ● ●
155 GASKET; INL DUCT TO SHUTTER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		1-14117-072-0 01 1 9603-9904 ● ●
155 GASKET; INL DUCT TO SHUTTER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		1-14117-072-0 01 1 9905- ● ● ● ●
159 PIPE; VENTILATOR 1-14119-381-0 01 1 9603-9904 ● ●
159 PIPE; VENTILATOR 1-14119-381-0 01 1 9905- ● ● ● ●
160 DUCT; AIR 1-14134-139-4 01 1 9603-9904 ● ●
160 DUCT; AIR 1-14134-139-4 01 1 9905- ● ● ● ●
161 STUD; BRKT,INJ PUMP
M8X20 L=32 		9-04110-820-0 08 1 9603-9904 ●
161 STUD; BRKT,INJ PUMP
GOVERNOR CONTROL<W69> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) M8X20 L=32 		9-04110-820-0 02 1 9905-9905 ●
161 STUD; BRKT,INJ PUMP
GOVERNOR CONTROL<W69> M8X20 L=32 		9-04110-820-0 02 1 9906- ●
161 STUD; BRKT,INJ PUMP
M8X20 L=32 		9-04110-820-0 04 1 9603-9904 ●
161 STUD; BRKT,INJ PUMP
M8X20 L=32 		9-04110-820-0 04 1 9603-9904 ●
161 STUD; BRKT,INJ PUMP
M8X20 L=32 		9-04110-820-0 04 1 9905- ● ● ● ●
161 STUD; BRKT,INJ PUMP
EXC. GOVERNOR CONTROL<W69> M8X20 L=32 		9-04110-820-0 04 1 9905- ●
161 STUD; BRKT,INJ PUMP
M8X20 L=32 		9-04110-820-0 04 1 9905- ● ● ●
162 NUT; STAY
M10 FLANGE 		0-91150-110-0 02 1 9603-9904 ● ●
162 NUT; STAY
M10 FLANGE 		0-91150-110-0 02 1 9905- ● ● ● ●
163 STUD; BRKT,ENG SPD CONT
(C) M10X20 L=35 		9-04411-020-0 02 1 9603-9904 ●
163 STUD; BRKT,ENG SPD CONT
(C) M10X20 L=35 		9-04411-020-0 02 1 9905- ● ● ●
163 STUD; BRKT,ENG SPD CONT
GOVERNOR CONTROL<W69> (A) M10X16 L=31 		9-04411-016-0 02 1 9603-9904 ●
163 STUD; BRKT,ENG SPD CONT
GOVERNOR CONTROL<W69> (A) M10X16 L=31 		9-04411-016-0 02 1 9905- ● ● ●
163 STUD; BRKT,ENG SPD CONT
GOVERNOR CONTROL<W69> (B) M10X40 L=55 		9-04411-040-0 03 1 9603-9904 ●
163 STUD; BRKT,ENG SPD CONT
GOVERNOR CONTROL<W69> (B) M10X40 L=55 		9-04411-040-0 03 1 9905- ● ● ●
560 BRACKET; AIR PIPE 1-14119-336-0 02 1 9603-9904 ● ●
560 BRACKET; AIR PIPE 1-14119-336-0 02 1 9905- ● ● ● ●
562 BOLT; INL DUCT
M10X40 FLANGE 		0-28181-040-0 03 1 9603-9904 ● ●
562 BOLT; INL DUCT
M10X40 FLANGE 		0-28181-040-0 03 1 9905- ● ● ● ●

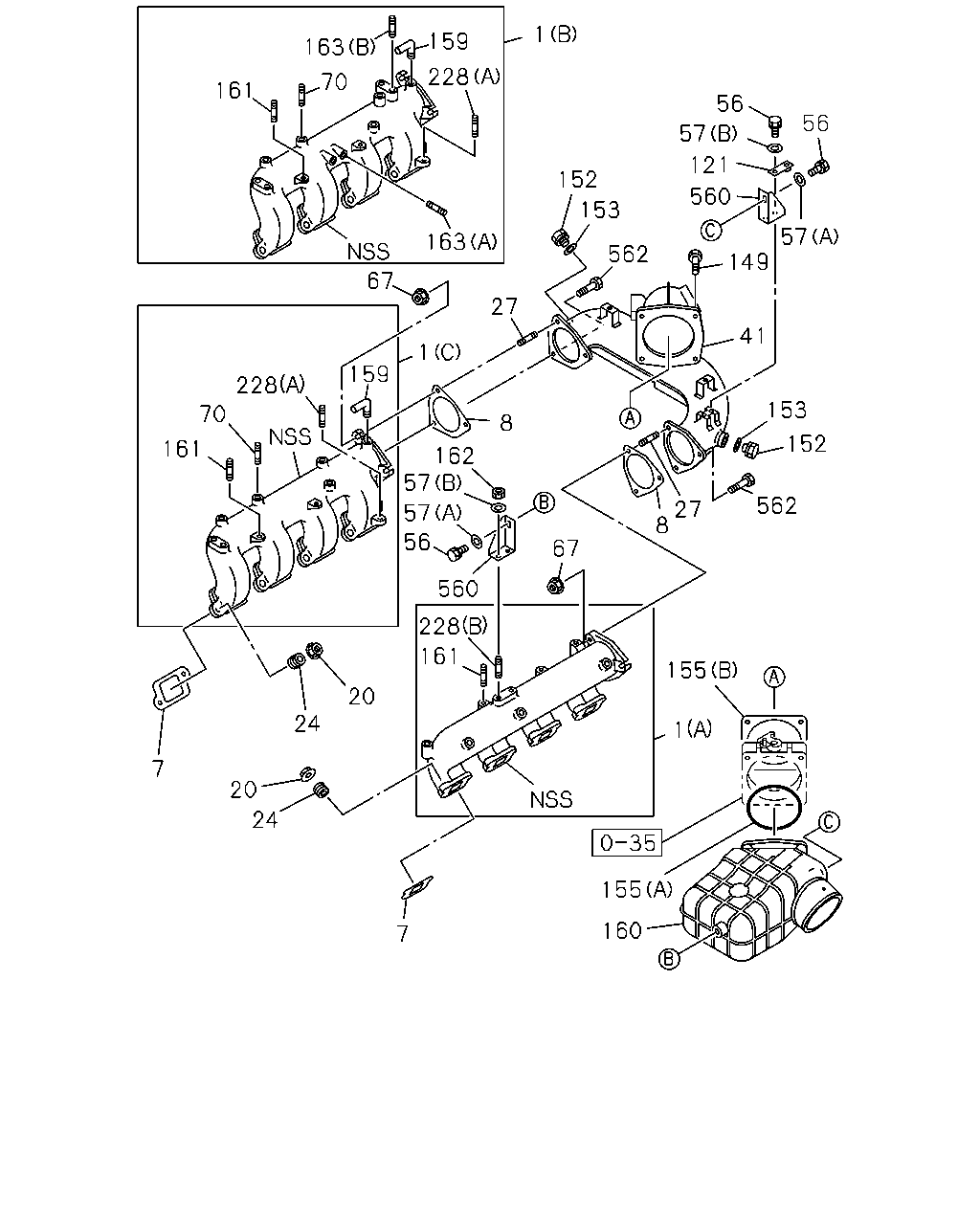

çizim 6319
1 159 163 228 70 161 56 56 57 121 152 560 153 57 163 562 149 67 27 41 1 159 228 153 70 8 152 161 162 7 57 562 27 8 56 67 560 228 161 155 20 24 1 7 20 24 155 160 7
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 MANIFOLD; INL
(A) LH BANK 		1-14112-586-4 01 1 9603- ●
1 MANIFOLD; INL
(C) RH BANK 		1-14112-585-1 01 1 9603-9904 ●
1 MANIFOLD; INL
EXC. GOVERNOR CONTROL<W69> (C) RH BANK 		1-14112-585-1 01 1 9905- ●
1 MANIFOLD; INL
GOVERNOR CONTROL<W69> (B) RH BANK 		1-14112-636-1 01 1 9905- ●
1 MANIFOLD; INL
(A) LH BANK 		1-14112-584-2 01 1 9603-9904 ●
1 MANIFOLD; INL
(A) LH BANK 		1-14112-584-2 01 1 9905- ● ● ●
1 MANIFOLD; INL
GOVERNOR CONTROL<W69> (B) RH BANK 		1-14112-637-1 01 1 9603-9904 ●
1 MANIFOLD; INL
GOVERNOR CONTROL<W69> (B) RH BANK 		1-14112-637-1 01 1 9905- ● ●
1 MANIFOLD; INL
EXC. GOVERNOR CONTROL<W69> (C) RH BANK 		1-14112-583-1 01 1 9603-9904 ●
1 MANIFOLD; INL
EXC. GOVERNOR CONTROL<W69> (C) RH BANK 		1-14112-583-1 01 1 9905- ● ●
1 MANIFOLD; INL
(C) RH BANK 		1-14112-583-1 01 1 9905- ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14115-026-0 08 1 9603- ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14115-026-0 10 1 9603-9904 ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14115-026-0 10 1 9905- ● ● ●
8 GASKET; INT DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14117-078-0 02 1 9603-9904 ● ●
8 GASKET; INT DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14117-078-0 02 1 9905- ● ● ● ●
20 NUT; INL MANIF
M10 FLANGE 		0-91150-110-0 16 1 9603- ●
20 NUT; INL MANIF
M10 FLANGE 		0-91150-110-0 20 1 9603-9904 ●
20 NUT; INL MANIF
M10 FLANGE 		0-91150-110-0 20 1 9905- ● ● ●
24 SPRING; INL MANIF 1-09580-156-0 16 1 9603- ●
24 SPRING; INL MANIF 1-09580-156-0 20 1 9603-9904 ●
24 SPRING; INL MANIF 1-09580-156-0 20 1 9905- ● ● ●
27 STUD; INL MANIF
M10X35 L=55 		9-04311-035-0 03 1 9603-9904 ● ●
27 STUD; INL MANIF
M10X35 L=55 		9-04311-035-0 03 1 9905- ● ● ● ●
41 DUCT; INT COVER 1-14134-101-4 01 1 9603-9605 ●
41 DUCT; INT COVER 1-14134-203-2 01 1 9606- ●
41 DUCT; INT COVER 1-14134-163-0 01 1 9603-9605 ●
41 DUCT; INT COVER 1-14134-204-2 01 1 9606-9904 ●
41 DUCT; INT COVER 1-14134-204-2 01 1 9905- ● ● ●
56 BOLT; STAY AIR DUCT
M10X20 W/LK&PL WASHER 		0-50141-020-0 04 1 9603-9904 ● ●
56 BOLT; STAY AIR DUCT
M10X20 W/LK&PL WASHER 		0-50141-020-0 04 1 9905- ● ● ● ●
57 WASHER; PL
(A) ID=10.5 OD=22 		9-09160-610-0 02 1 9603-9904 ● ●
57 WASHER; PL
(A) ID=10.5 OD=22 		9-09160-610-0 02 1 9905- ● ● ● ●
57 WASHER; PL
(B) ID=10.5 OD=26 		9-09160-710-0 04 1 9603-9904 ● ●
57 WASHER; PL
(B) ID=10.5 OD=26 		9-09160-710-0 04 1 9905- ● ● ● ●
67 NUT; INL DUCT
M10 FLANGE 		0-91150-110-0 03 1 9603-9904 ● ●
67 NUT; INL DUCT
M10 FLANGE 		0-91150-110-0 03 1 9905- ● ● ● ●
70 STUD; WATER PIPE
M8X16 L=28 		9-04110-816-0 03 1 9603- ●
70 STUD; WATER PIPE
M8X16 L=28 		9-04110-816-0 02 1 9603-9904 ●
70 STUD; WATER PIPE
M8X16 L=28 		9-04110-816-0 02 1 9905- ● ● ●
121 BRACKET
L=65 		1-47476-513-0 01 1 9603-9904 ● ●
121 BRACKET
L=65 		1-47476-513-0 01 1 9905- ● ● ● ●
149 BOLT; INT SHUTTER
M10X60 FLANGE 		0-28081-060-0 04 1 9603-9904 ● ●
149 BOLT; INT SHUTTER
M10X60 FLANGE 		0-28081-060-0 04 1 9905- ● ● ● ●
152 PLUG; INT DUCT
M22X12 		1-09604-035-0 02 1 9603-9904 ● ●
152 PLUG; INT DUCT
EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) M22X12 		1-09604-035-0 02 1 9905- ● ●
152 PLUG; INT DUCT
M22X12 		1-09604-035-0 02 1 9905- ● ●
153 GASKET; PLUG,INT DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=22.5 		9-09571-422-0 02 1 9603-9904 ● ●
153 GASKET; PLUG,INT DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=22.5 		9-09571-422-0 02 1 9905- ● ●
153 GASKET; PLUG,INT DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=22.5 		9-09571-422-0 02 1 9905- ● ●
155 GASKET; INL DUCT TO SHUTTER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=125.4 		1-13213-012-0 01 1 9603-9904 ● ●
155 GASKET; INL DUCT TO SHUTTER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=125.4 		1-13213-012-0 01 1 9905- ● ● ● ●
155 GASKET; INL DUCT TO SHUTTER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		1-14117-072-0 01 1 9603-9904 ● ●
155 GASKET; INL DUCT TO SHUTTER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		1-14117-072-0 01 1 9905- ● ● ● ●
159 PIPE; VENTILATOR 1-14119-381-0 01 1 9603-9904 ● ●
159 PIPE; VENTILATOR 1-14119-381-0 01 1 9905- ● ● ● ●
160 DUCT; AIR 1-14134-139-4 01 1 9603-9904 ● ●
160 DUCT; AIR 1-14134-139-4 01 1 9905- ● ● ● ●
161 STUD; BRKT,INJ PUMP
M8X20 L=32 		9-04110-820-0 08 1 9603-9904 ●
161 STUD; BRKT,INJ PUMP
GOVERNOR CONTROL<W69> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) M8X20 L=32 		9-04110-820-0 02 1 9905-9905 ●
161 STUD; BRKT,INJ PUMP
GOVERNOR CONTROL<W69> M8X20 L=32 		9-04110-820-0 02 1 9906- ●
161 STUD; BRKT,INJ PUMP
M8X20 L=32 		9-04110-820-0 04 1 9603-9904 ●
161 STUD; BRKT,INJ PUMP
M8X20 L=32 		9-04110-820-0 04 1 9603-9904 ●
161 STUD; BRKT,INJ PUMP
M8X20 L=32 		9-04110-820-0 04 1 9905- ● ● ● ●
161 STUD; BRKT,INJ PUMP
EXC. GOVERNOR CONTROL<W69> M8X20 L=32 		9-04110-820-0 04 1 9905- ●
161 STUD; BRKT,INJ PUMP
M8X20 L=32 		9-04110-820-0 04 1 9905- ● ● ●
162 NUT; STAY
M10 FLANGE 		0-91150-110-0 02 1 9603-9904 ● ●
162 NUT; STAY
M10 FLANGE 		0-91150-110-0 02 1 9905- ● ● ● ●
163 STUD; BRKT,ENG SPD CONT
(C) M10X20 L=35 		9-04411-020-0 02 1 9603-9904 ●
163 STUD; BRKT,ENG SPD CONT
(C) M10X20 L=35 		9-04411-020-0 02 1 9905- ● ● ●
163 STUD; BRKT,ENG SPD CONT
GOVERNOR CONTROL<W69> (A) M10X16 L=31 		9-04411-016-0 02 1 9603-9904 ●
163 STUD; BRKT,ENG SPD CONT
GOVERNOR CONTROL<W69> (A) M10X16 L=31 		9-04411-016-0 02 1 9905- ● ● ●
163 STUD; BRKT,ENG SPD CONT
GOVERNOR CONTROL<W69> (B) M10X40 L=55 		9-04411-040-0 03 1 9603-9904 ●
163 STUD; BRKT,ENG SPD CONT
GOVERNOR CONTROL<W69> (B) M10X40 L=55 		9-04411-040-0 03 1 9905- ● ● ●
228 STUD; INL COVER
(A) M10X16 L=31 		9-04411-016-0 01 1 9603- ●
228 STUD; INL COVER
(B) M10X20 L=35 		9-04411-020-0 02 1 9603- ●
560 BRACKET; AIR PIPE 1-14119-336-0 02 1 9603-9904 ● ●
560 BRACKET; AIR PIPE 1-14119-336-0 02 1 9905- ● ● ● ●
562 BOLT; INL DUCT
M10X40 FLANGE 		0-28181-040-0 03 1 9603-9904 ● ●
562 BOLT; INL DUCT
M10X40 FLANGE 		0-28181-040-0 03 1 9905- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
