5-01 — FRAME AND OTHER PARTS (#42296) — 89 parça

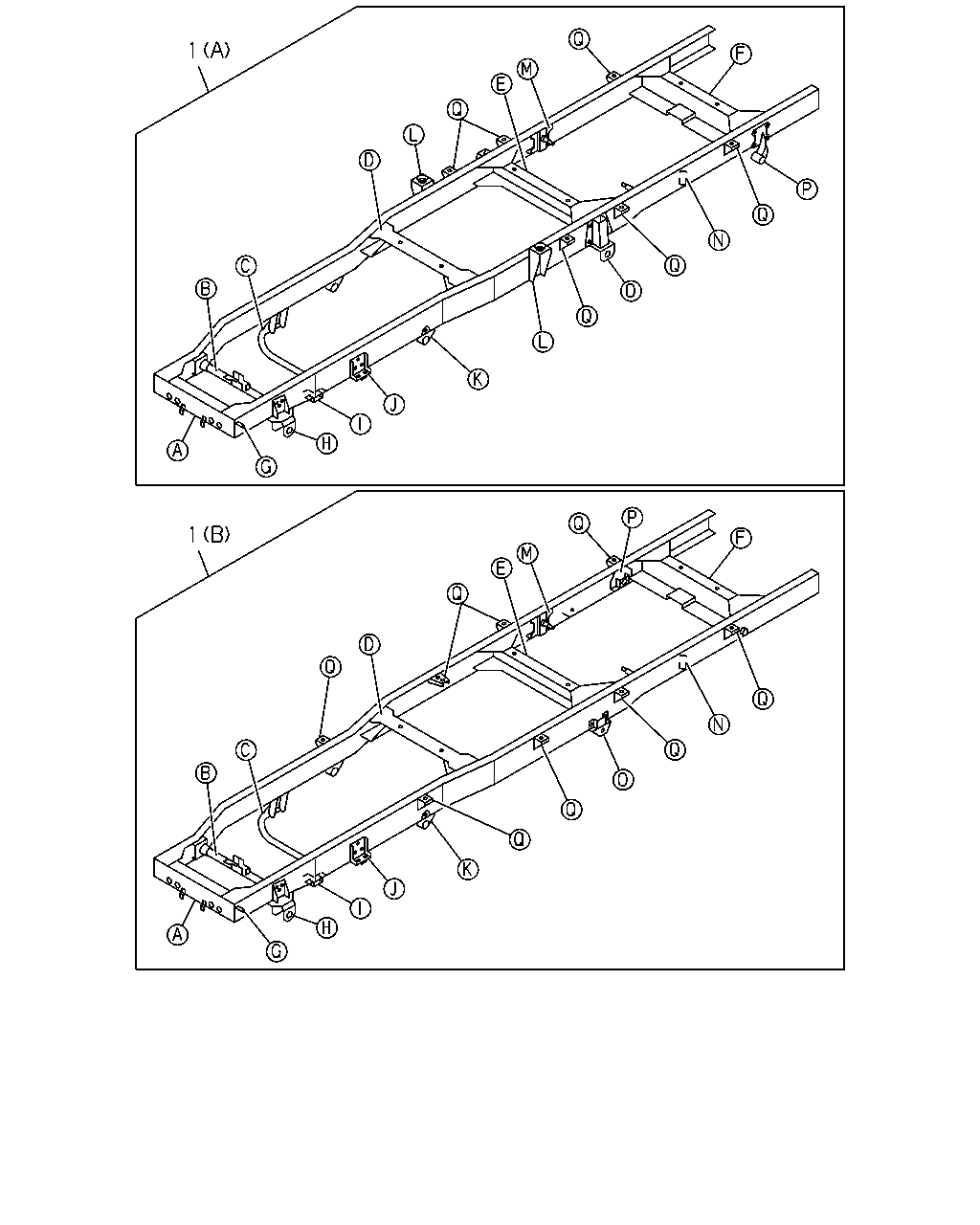

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	07.003 FRAME ASM HONG KONG EQUIPMENT(PQ1) (A)	8-97210-889-1	01	1	9811-0105	●
1	07.003 FRAME ASM EXC. HONG KONG EQUIPMENT(PQ1) (A)	8-97210-887-1	01	1	9811-0105	●
1	07.003 FRAME ASM (A)	8-97210-887-1	01	1	0106-	●
1	07.003 FRAME ASM (A)	8-97210-891-1	01	1	9811-		●
1	07.003 FRAME ASM (A)	8-97210-888-1	01	1	9811-			●
1	07.003 FRAME ASM (A)	8-97210-890-1	01	1	9811-				●
1	07.003 FRAME ASM HONG KONG EQUIPMENT(PQ1) (B)	8-97210-894-1	01	1	9811-0105					●
1	07.003 FRAME ASM SINGAPORE EQUIPMENT(S9Y) (B)	8-97210-894-1	01	1	0106-0111					●
1	07.003 FRAME ASM (B)	8-97210-894-1	01	1	0112-					●
1	07.003 FRAME ASM EXC. HONG KONG EQUIPMENT(PQ1) (B)	8-97210-892-1	01	1	9811-9910					●
1	07.003 FRAME ASM EXC. HONG KONG EQUIPMENT(PQ1) (B)	8-97246-429-0	01	1	9911-0105					●
1	07.003 FRAME ASM EXC. SINGAPORE EQUIPMENT(S9Y) (B)	8-97246-429-0	01	1	0106-0111					●
1	07.003 FRAME ASM (B)	8-97210-893-1	01	1	9811-						●

43 142 140 101 101 105 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
43	09.003 BRACKET; CAB MTG,RR	8-97042-541-0	01	1	9811-		●		●
43	09.003 BRACKET; CAB MTG,RR	8-97042-540-0	01	1	9811-		●		●
101	07.112 BRACKET; RR SPR,FRT (A)	8-94258-093-1	02	1	9811-	●	●	●	●
101	07.112 BRACKET; RR SPR,FRT (B)	8-94376-080-0	02	1	9811-					●	●
105	07.112 BRACKET; RR SPR,RR (A)	8-94126-621-1	01	1	9811-	●	●	●	●
105	07.112 BRACKET; RR SPR,RR (A)	8-94126-620-1	01	1	9811-	●	●	●	●
105	07.112 BRACKET; RR SPR,RR (B)	8-94109-312-0	02	1	9811-					●	●
140	07.112 BRACKET; S/ABS,RR	8-94258-104-1	01	1	9811-	●	●	●	●	●	●
140	07.112 BRACKET; S/ABS,RR	8-94258-103-1	01	1	9811-	●	●	●	●	●	●
142	04.845 BRACKET; FLEX HOSE,BRAKE	8-97047-775-1	01	1	9811-	●	●	●	●	●	●

17 20 20 2 17 75 74 34 75 74 42 344 345 75 198 24 358 75 198 51 39 63 139 345

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	07.010 MEMBER; CROSS,1ST	8-97034-332-2	01	1	9811-	●	●	●	●	●	●
17	07.039 GUSSET; 1ST C/MBR	8-97088-205-1	02	1	9811-	●	●	●	●	●	●
20	07.012 MEMBER; CROSS,2ND (A)	8-97145-718-0	01	1	9811-	●	●			●
20	07.012 MEMBER; CROSS,2ND (B)	8-97078-581-1	01	1	9811-			●	●		●
24	07.105 BRACKET; FRT SPR,FRT	8-97065-789-1	01	1	9811-	●	●	●	●
24	07.105 BRACKET; FRT SPR,FRT	8-94366-818-1	01	1	9811-	●	●	●	●
24	07.105 BRACKET; FRT SPR,FRT	8-97065-788-1	01	1	9811-					●	●
24	07.105 BRACKET; FRT SPR,FRT	8-94366-816-1	01	1	9811-					●	●
34	07.012 MEMBER; CROSS,3RD	8-97039-670-1	01	1	9811-	●	●	●	●	●	●
39	07.112 BRACKET; FRT SPR,RR	8-94258-091-0	02	1	9811-	●	●	●	●	●	●
42	07.011 MEMBER; CROSS,ENG MTG	8-94246-127-7	01	1	9811-	●	●	●	●	●	●
51	07.011 BRACKET; ENG SUPPORT,OUTER 00.029	8-94258-086-1	02	1	9811-	●	●	●	●	●	●
63	01.270 BRACKET; RAD MTG	8-94257-950-1	01	1	9811-	●	●	●	●	●	●
74	07.039 GUSSET; 4TH C/MBR EXC. HONG KONG EQUIPMENT(PQ1)	8-97062-499-0	02	1	9811-0105	●
74	07.039 GUSSET; 4TH C/MBR	8-97062-499-0	02	1	0106-	●
74	07.039 GUSSET; 4TH C/MBR EXC. HONG KONG EQUIPMENT(PQ1)	8-97062-500-0	02	1	9811-0105	●
74	07.039 GUSSET; 4TH C/MBR	8-97062-500-0	02	1	0106-	●
75	07.039 GUSSET; 5TH C/MBR HONG KONG EQUIPMENT(PQ1) (B)	8-97062-499-0	02	1	9811-0105	●
75	07.039 GUSSET; 5TH C/MBR (B)	8-97062-499-0	02	1	9811-0105		●	●	●	●	●
75	07.039 GUSSET; 5TH C/MBR (B)	8-97062-499-0	02	1	0106-		●	●	●	●	●
75	07.039 GUSSET; 5TH C/MBR HONG KONG EQUIPMENT(PQ1) (B)	8-97062-500-0	02	1	9811-0105	●
75	07.039 GUSSET; 5TH C/MBR (B)	8-97062-500-0	02	1	9811-0105		●	●	●	●	●
75	07.039 GUSSET; 5TH C/MBR (B)	8-97062-500-0	02	1	0106-		●	●	●	●	●
75	07.039 GUSSET; 5TH C/MBR EXC. HONG KONG EQUIPMENT(PQ1) (A)	8-94258-081-1	02	1	9811-0105	●
75	07.039 GUSSET; 5TH C/MBR (A)	8-94258-081-1	02	1	0106-	●
139	07.012 MEMBER; CROSS,6TH HONG KONG EQUIPMENT(PQ1)	8-97045-542-2	01	1	9811-0105	●
139	07.012 MEMBER; CROSS,6TH	8-97045-542-2	01	1	9811-0105		●	●	●	●	●
139	07.012 MEMBER; CROSS,6TH	8-97045-542-2	01	1	0106-		●	●	●	●	●
198	07.039 GUSSET; 6TH C/MBR HONG KONG EQUIPMENT(PQ1)	8-94258-081-1	02	1	9811-0105	●
198	07.039 GUSSET; 6TH C/MBR	8-94258-081-1	02	1	9811-0105		●	●	●	●	●
198	07.039 GUSSET; 6TH C/MBR	8-94258-081-1	02	1	0106-		●	●	●	●	●
344	07.012 MEMBER; CROSS,4TH EXC. HONG KONG EQUIPMENT(PQ1)	8-97076-793-2	01	1	9811-0105	●
344	07.012 MEMBER; CROSS,4TH	8-97076-793-2	01	1	0106-	●
345	07.012 MEMBER; CROSS,5TH HONG KONG EQUIPMENT(PQ1) (A)	8-97076-793-2	01	1	9811-0105	●
345	07.012 MEMBER; CROSS,5TH (A)	8-97076-793-2	01	1	9811-0105		●	●	●	●	●
345	07.012 MEMBER; CROSS,5TH (A)	8-97076-793-2	01	1	0106-		●	●	●	●	●
345	07.012 MEMBER; CROSS,5TH EXC. HONG KONG EQUIPMENT(PQ1) (B)	8-97045-542-2	01	1	9811-0105	●
345	07.012 MEMBER; CROSS,5TH (B)	8-97045-542-2	01	1	0106-	●
358	07.039 BRACKET; CAB EARTH	8-97065-790-3	01	1	9811-	●	●	●	●	●	●

156 156 156 156 376 376 376 376 376 376 376 376 376 176

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
156	07.330 BRACKET; RR BODY MTG (C)	8-97207-097-0	06	1	9811-		●		●
156	07.330 BRACKET; RR BODY MTG (B)	8-94258-111-0	01	1	9811-					●	●
156	07.330 BRACKET; RR BODY MTG (C)	8-97207-097-0	04	1	9811-					●	●
156	07.330 BRACKET; RR BODY MTG (D)	8-94258-112-0	01	1	9811-					●	●
156	07.330 BRACKET; RR BODY MTG (A)	8-97091-293-0	01	1	9811-					●	●
156	07.330 BRACKET; RR BODY MTG (A)	8-94122-891-2	01	1	9811-					●	●
176	04.085 BOLT; C/MBR,ENG MTG 03.417 M10X25 FLANGE	0-28081-025-0	08	1	9811-	●	●	●	●	●	●
376	07.039 RIVET; FRAME (A) D8X20 PLATED TAPER END	9-06760-820-0	AR	1	9811-0004	●	●	●	●	●	●
376	07.039 RIVET; FRAME (B) D8X22 PLATED TAPER END	9-06760-822-0	AR	1	9811-0004	●	●	●	●	●	●
376	07.039 RIVET; FRAME (C) D8X28 PLATED TAPER END	9-06760-828-0	AR	1	9811-0004	●	●	●	●	●	●
376	07.039 RIVET; FRAME (D) D10X24 PLATED TAPER END	9-06761-024-0	AR	1	9811-0004	●	●	●	●	●	●
376	07.039 RIVET; FRAME (E) D10X26 PLATED TAPER END	9-06761-026-0	AR	1	9811-0004	●	●	●	●	●	●
376	07.039 RIVET; FRAME 07.428 (F) D10X28 PLATED TAPER END	9-06761-028-0	AR	1	9811-0004	●	●	●	●	●	●
376	07.039 RIVET; FRAME (G) D10X30 PLATED TAPER END	9-06761-030-0	AR	1	9811-0004	●	●	●	●	●	●
376	07.039 RIVET; FRAME 07.529 (H) D10X32 PLATED TAPER END	9-06761-032-0	AR	1	9811-0004	●	●	●	●	●	●
376	07.039 RIVET; FRAME 07.112 (I) D10X36 PLATED TAPER END	9-06761-036-0	AR	1	9811-0004	●	●	●	●	●	●
376	07.039 RIVET; FRAME 07.529 (J) D12X30 PLATED TAPER END	9-06761-230-0	AR	1	9811-0004	●	●	●	●	●	●
376	07.039 RIVET; FRAME (A) D8X20 TAPER END	9-06750-820-0	AR	1	0005-	●	●	●	●	●	●
376	07.039 RIVET; FRAME 07.011 (B) D8X22 TAPER END	9-06750-822-0	AR	1	0005-	●	●	●	●	●	●
376	07.039 RIVET; FRAME 07.395 (C) D8X28 TAPER END	9-06750-828-0	AR	1	0005-	●	●	●	●	●	●
376	07.039 RIVET; FRAME (D) D10X24 TAPER END	9-06751-024-0	AR	1	0005-	●	●	●	●	●	●
376	07.039 RIVET; FRAME (E) D10X26 TAPER END	9-06751-026-0	AR	1	0005-	●	●	●	●	●	●
376	07.039 RIVET; FRAME (F) D10X28 TAPER END	9-06751-028-0	AR	1	0005-	●	●	●	●	●	●
376	07.039 RIVET; FRAME (G) D10X30 TAPER END	9-06751-030-0	AR	1	0005-	●	●	●	●	●	●
376	07.039 RIVET; FRAME (H) D10X32 TAPER END	9-06751-032-0	AR	1	0005-	●	●	●	●	●	●
376	07.039 RIVET; FRAME (I) D10X36 TAPER END	9-06751-036-0	AR	1	0005-	●	●	●	●	●	●
376	07.039 RIVET; FRAME 07.105 (J) D12X30 TAPER END	9-06751-230-0	AR	1	0005-	●	●	●	●	●	●
