◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10720 - CXZ RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-25A - INLET MANIFOLD ▶
0-25A — INLET MANIFOLD (#4229) — 453 parça

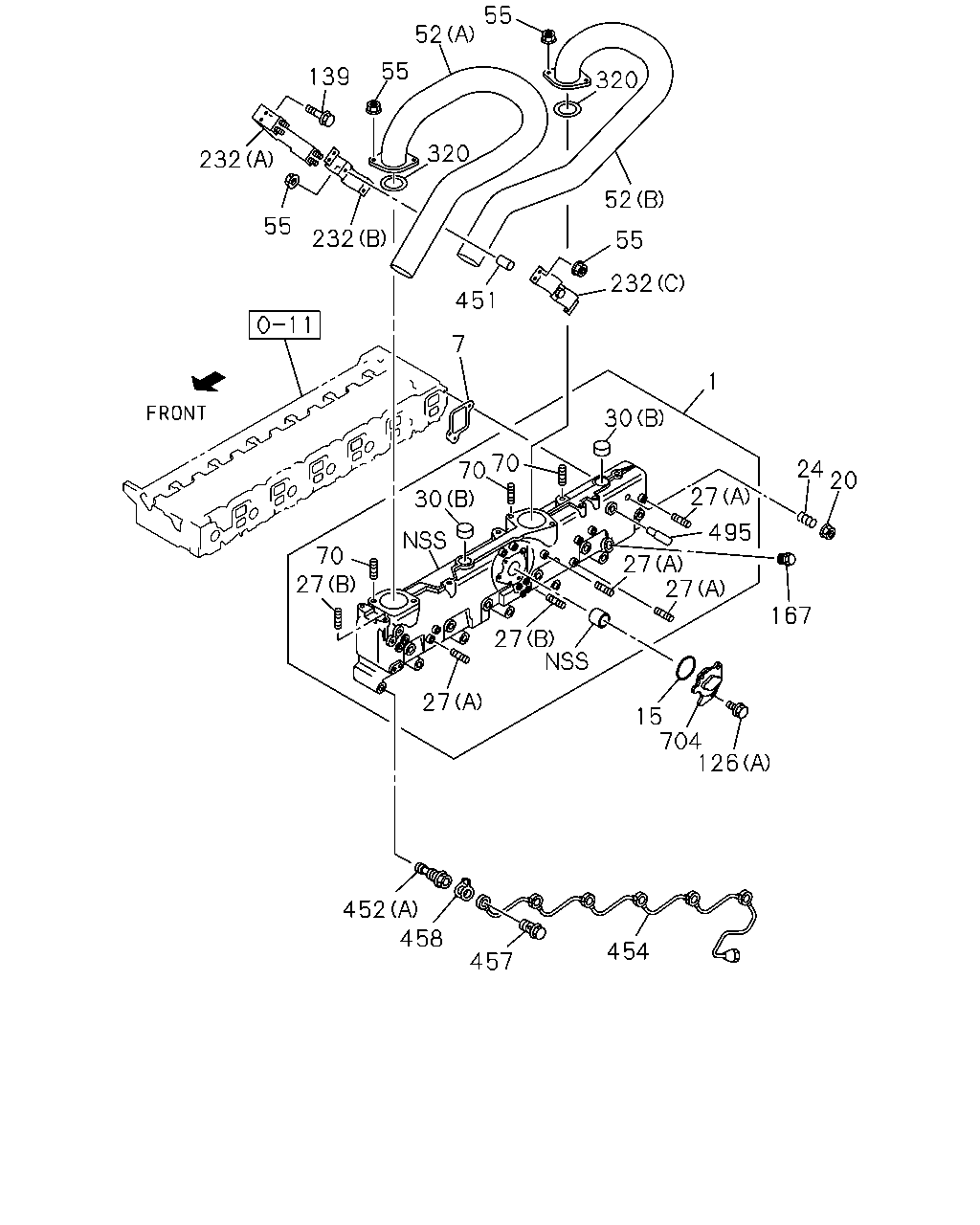

çizim 4640
55 52 55 139 320 320 232 52 55 232 55 232 451 7 1 30 70 70 30 24 20 27 495 70 27 27 27 167 27 27 15 704 126 452 458 454 457
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 MANIFOLD; INL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> 		1-14110-547-3 01 1 9603-9904 ●
1 MANIFOLD; INL 1-14110-547-3 01 1 9905- ●
1 MANIFOLD; INL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>, EURO2 SPECIFICATION<THN> 		1-14110-548-3 01 1 9603-9904 ●
1 MANIFOLD; INL 1-14110-548-3 01 1 9905- ●
1 MANIFOLD; INL
EURO2 SPECIFICATION<THN> 		1-14110-551-1 01 1 9610-9706 ●
1 MANIFOLD; INL
EURO2 SPECIFICATION<THN> 		1-14110-551-3 01 1 9707-9904 ●
1 MANIFOLD; INL 1-14110-551-3 01 1 9707-9904 ●
1 MANIFOLD; INL
ELECTRONIC GOV RED3(KG5) 		1-14110-551-3 01 1 9905- ●
1 MANIFOLD; INL 1-14110-551-3 01 1 9905- ●
1 MANIFOLD; INL
RLD GOVERNOR(SD7) 		1-14110-579-1 01 1 9905- ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14115-063-1 06 1 9603-9706 ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14115-063-1 06 1 9707-9904 ● ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14115-063-1 06 1 9905- ● ● ● ●
15 GASKET; VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-406-0 01 1 9603-9706 ●
15 GASKET; VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-406-0 01 1 9707-9904 ● ●
15 GASKET; VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-406-0 01 1 9905- ● ● ● ●
20 NUT; INL MANIF
M10 FLANGE 		0-91150-110-0 12 1 9603-9706 ●
20 NUT; INL MANIF
M10 FLANGE 		0-91150-110-0 12 1 9707-9904 ● ●
20 NUT; INL MANIF
M10 FLANGE 		0-91150-110-0 12 1 9905- ● ● ● ●
24 SPRING; INL MANIF 1-09580-156-0 12 1 9603-9706 ●
24 SPRING; INL MANIF 1-09580-156-0 12 1 9707-9904 ● ●
24 SPRING; INL MANIF 1-09580-156-0 12 1 9905- ● ● ● ●
27 STUD; INL MANIF
(A) M6X30 L=38 		9-04110-630-0 08 1 9603-9706 ●
27 STUD; INL MANIF
(A) M6X30 L=38 		9-04110-630-0 08 1 9707-9904 ● ●
27 STUD; INL MANIF
(A) M6X30 L=38 		9-04110-630-0 08 1 9905- ● ● ● ●
27 STUD; INL MANIF
(B) M8X16 L=28 		9-04110-816-0 06 1 9603-9706 ●
27 STUD; INL MANIF
(B) M8X16 L=28 		9-04110-816-0 06 1 9707-9904 ● ●
27 STUD; INL MANIF
(B) M8X16 L=28 		9-04110-816-0 06 1 9905- ● ● ● ●
30 CUP; SEALING,INL MANIF
(B) OD=30 		8-94241-638-0 02 1 9603-9706 ●
30 CUP; SEALING,INL MANIF
(B) OD=30 		8-94241-638-0 02 1 9707-9904 ● ●
30 CUP; SEALING,INL MANIF
(B) OD=30 		8-94241-638-0 02 1 9905- ● ● ● ●
30 CUP; SEALING,INL MANIF
(A) OD=20 		9-11129-128-0 01 1 9603-9706 ●
30 CUP; SEALING,INL MANIF
(A) OD=20 		9-11129-128-0 01 1 9707-9904 ● ●
30 CUP; SEALING,INL MANIF
(A) OD=20 		9-11129-128-0 01 1 9905- ● ● ● ●
52 PIPE; INL
(B) 		1-14112-522-1 01 1 9603-9706 ●
52 PIPE; INL
(B) 		1-14112-522-1 01 1 9707-9904 ● ●
52 PIPE; INL
(B) 		1-14112-522-1 01 1 9905- ● ● ● ●
52 PIPE; INL
(A) 		1-14112-635-0 01 1 9603-9706 ●
52 PIPE; INL
(A) 		1-14112-635-0 01 1 9707-9904 ● ●
52 PIPE; INL
(A) 		1-14112-635-0 01 1 9905- ● ● ● ●
55 NUT; INL PIPE
M10 FLANGE 		0-91150-110-0 09 1 9603-9706 ●
55 NUT; INL PIPE
M10 FLANGE 		0-91150-110-0 09 1 9707-9904 ● ●
55 NUT; INL PIPE
M10 FLANGE 		0-91150-110-0 09 1 9905- ● ● ● ●
70 STUD; WATER PIPE
M10X20 L=35 		9-04411-020-0 07 1 9603-9706 ●
70 STUD; WATER PIPE
M10X20 L=35 		9-04411-020-0 07 1 9707-9904 ● ●
70 STUD; WATER PIPE
M10X20 L=35 		9-04411-020-0 07 1 9905- ● ● ● ●
126 BOLT; COVER
(A) M10X20 FLANGE 		0-28181-020-0 03 1 9603-9706 ●
126 BOLT; COVER
(A) M10X20 FLANGE 		0-28181-020-0 03 1 9707-9904 ● ●
126 BOLT; COVER
(A) M10X20 FLANGE 		0-28181-020-0 03 1 9905- ● ● ● ●
126 BOLT; COVER
(B) M8X16 FLANGE 		0-28080-816-0 02 1 9707-9904 ●
126 BOLT; COVER
(B) M8X16 FLANGE 		0-28080-816-0 02 1 9905- ●
139 BOLT; BRKT FIX
M10X20 FLANGE 		0-28181-020-0 05 1 9603-9706 ●
139 BOLT; BRKT FIX
M10X20 FLANGE 		0-28181-020-0 05 1 9707-9904 ● ●
139 BOLT; BRKT FIX
M10X20 FLANGE 		0-28181-020-0 05 1 9905- ● ● ● ●
167 PLUG; INL MANIF
EXC. EURO2 SPECIFICATION<THN> 		1-14129-025-0 01 1 9603-9904 ●
167 PLUG; INL MANIF 1-14129-025-0 01 1 9905- ● ●
232 BRACKET; INJ PIPE
(A) 		1-14119-377-0 01 1 9603-9706 ●
232 BRACKET; INJ PIPE
(A) 		1-14119-377-0 01 1 9707-9904 ● ●
232 BRACKET; INJ PIPE
(A) 		1-14119-377-0 01 1 9905- ● ● ● ●
232 BRACKET; INJ PIPE
(B) 		1-14119-378-1 01 1 9603-9706 ●
232 BRACKET; INJ PIPE
(B) 		1-14119-378-1 01 1 9707-9904 ● ●
232 BRACKET; INJ PIPE
(B) 		1-14119-378-1 01 1 9905- ● ● ● ●
232 BRACKET; INJ PIPE
(C) 		1-14119-379-1 01 1 9603-9706 ●
232 BRACKET; INJ PIPE
(C) 		1-14119-379-1 01 1 9707-9904 ● ●
232 BRACKET; INJ PIPE
(C) 		1-14119-379-1 01 1 9905- ● ● ● ●
320 GASKET; PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=79.6 		1-09623-421-0 02 1 9603-9706 ●
320 GASKET; PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=79.6 		1-09623-421-0 02 1 9707-9904 ● ●
320 GASKET; PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=79.6 		1-09623-421-0 02 1 9905- ● ● ● ●
451 TUBE; DIST,BRKT 1-21529-002-0 01 1 9603-9706 ●
451 TUBE; DIST,BRKT 1-21529-002-0 01 1 9707-9904 ● ●
451 TUBE; DIST,BRKT 1-21529-002-0 01 1 9905- ● ● ● ●
452 CYLINDER ASM; AIR
EURO2 SPECIFICATION<THN> (A) 		1-14370-013-0 06 1 9610-9706 ●
452 CYLINDER ASM; AIR
EURO2 SPECIFICATION<THN> (A) 		1-14370-013-0 06 1 9707-9904 ●
452 CYLINDER ASM; AIR
(A) 		1-14370-013-0 06 1 9707-9904 ●
452 CYLINDER ASM; AIR
(A) 		1-14370-013-0 06 1 9905- ● ●
452 CYLINDER ASM; AIR
(B) 		1-22190-579-0 01 1 9707-9904 ●
452 CYLINDER ASM; AIR
(B) 		1-22190-579-1 01 1 9905- ●
454 PIPE; AIR,IVES
EURO2 SPECIFICATION<THN> 		1-19192-590-0 01 1 9610-9706 ●
454 PIPE; AIR,IVES
EURO2 SPECIFICATION<THN> 		1-19192-590-1 01 1 9707-9904 ●
454 PIPE; AIR,IVES 1-19192-590-1 01 1 9707-9904 ●
454 PIPE; AIR,IVES 1-19192-590-1 01 1 9905- ● ●
457 BOLT; EYE,AIR PIPE,IVES
EURO2 SPECIFICATION<THN> M8X18 EYE-BOLT 		1-09675-037-1 06 1 9610-9706 ●
457 BOLT; EYE,AIR PIPE,IVES
EURO2 SPECIFICATION<THN> M8X18 EYE-BOLT 		1-09675-037-1 06 1 9707-9904 ●
457 BOLT; EYE,AIR PIPE,IVES
M8X18 EYE-BOLT 		1-09675-037-1 06 1 9707-9904 ●
457 BOLT; EYE,AIR PIPE,IVES
M8X18 EYE-BOLT 		1-09675-037-1 06 1 9905- ● ●
458 GASKET; AIR PIPE,VSS
EURO2 SPECIFICATION<THN> ID=8.6 		8-94395-214-0 06 1 9610-9706 ●
458 GASKET; AIR PIPE,VSS
EURO2 SPECIFICATION<THN> ID=8.6 		8-94395-214-0 06 1 9707-9904 ●
458 GASKET; AIR PIPE,VSS
ID=8.6 		8-94395-214-0 06 1 9707-9904 ●
458 GASKET; AIR PIPE,VSS
ID=8.6 		8-94395-214-0 06 1 9905- ● ●
495 PIPE; BOOST SENSOR
EURO2 SPECIFICATION<THN> 		1-09669-073-0 01 1 9610-9706 ●
495 PIPE; BOOST SENSOR
EURO2 SPECIFICATION<THN> 		1-09669-073-0 01 1 9707-9904 ●
495 PIPE; BOOST SENSOR 1-09669-073-0 01 1 9707-9904 ●
495 PIPE; BOOST SENSOR
ELECTRONIC GOV RED3(KG5) 		1-09669-073-0 01 1 9905- ●
495 PIPE; BOOST SENSOR 1-09669-073-0 01 1 9905- ●
704 COVER 1-14134-193-0 01 1 9603-9904 ●
704 COVER 1-14134-193-0 01 1 9905- ● ● ●

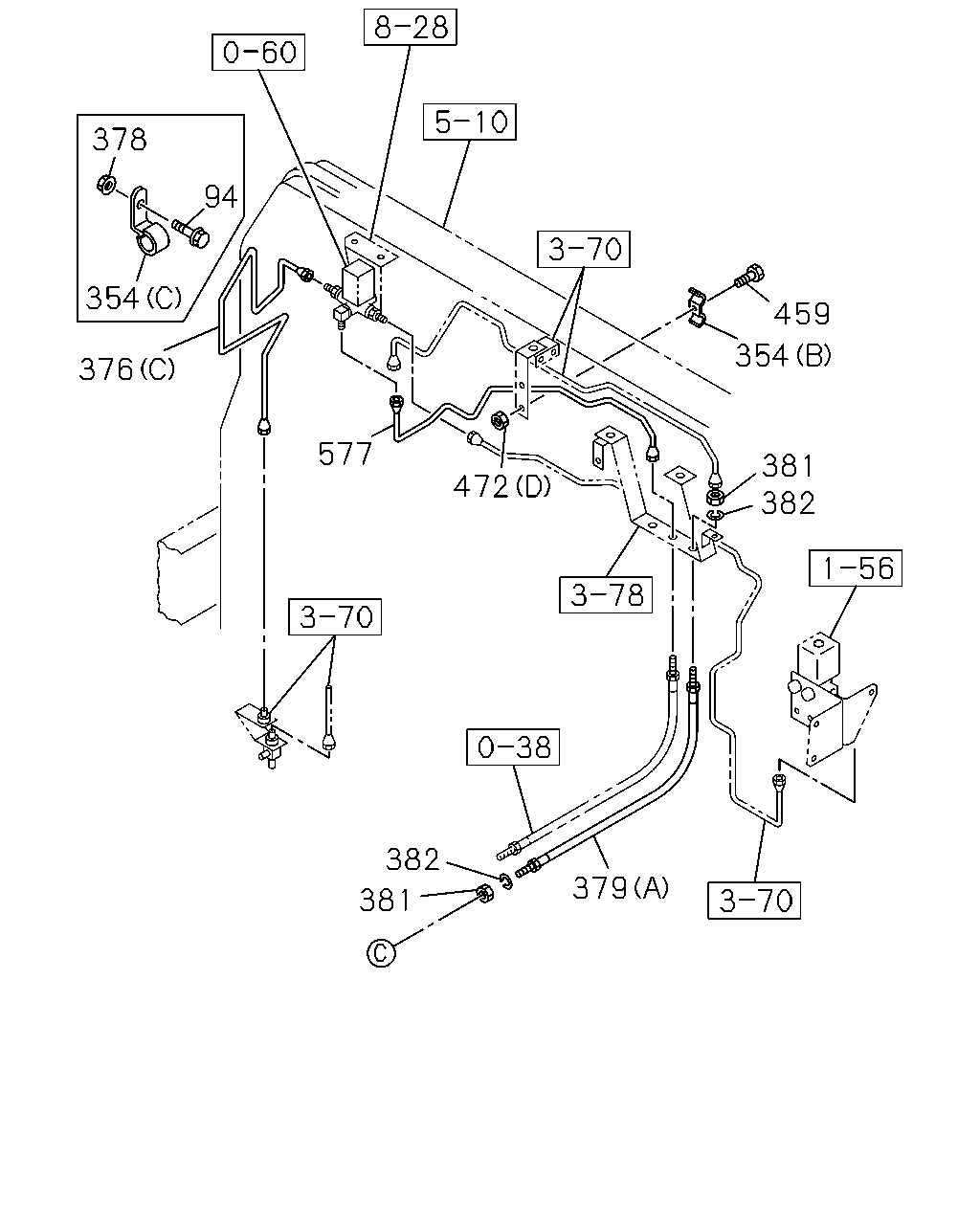

çizim 5871
378 94 354 459 354 376 577 381 382 472 382 379 381
BalonParca AdiParca NoAdetTipApplied Date A B C D E
94 BOLT
M8X20 FLANGE 		0-28680-820-0 01 1 9905- ● ●
354 CLIP; AIR PIPE
EURO2 SPECIFICATION<THN> (A) ID=6 H=20 L=20 		1-09700-603-0 01 1 9610-9904 ●
354 CLIP; AIR PIPE
(C) ID=6 H=20 L=20 		1-09700-603-0 01 1 9905- ● ●
354 CLIP; AIR PIPE
EURO2 SPECIFICATION<THN> (B) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 9610-9706 ●
354 CLIP; AIR PIPE
ELECTRONIC GOV RED3(KG5) (B) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 9707-9904 ● ●
354 CLIP; AIR PIPE
(B) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 9905- ● ●
354 CLIP; AIR PIPE
EURO2 SPECIFICATION<THN> (C) ID=7 L=20 		9-09524-635-0 01 1 9610-9904 ●
354 CLIP; AIR PIPE
(A) 		1-09701-132-0 02 1 9707-9904 ●
354 CLIP; AIR PIPE
(A) 		1-09701-132-1 02 1 9905- ●
376 PIPE ASM; AIR UNION TO MAG VLV
EURO2 SPECIFICATION<THN> (B) 		1-49114-277-0 01 1 9610-9706 ●
376 PIPE ASM; AIR UNION TO MAG VLV
ELECTRONIC GOV RED3(KG5) EXC. CAB UP +50MM<W60> (B) 		1-49114-277-0 01 1 9707-9904 ● ●
376 PIPE ASM; AIR UNION TO MAG VLV
EURO2 SPECIFICATION<THN> (A) 		1-49117-470-0 01 1 9610-9904 ●
376 PIPE ASM; AIR UNION TO MAG VLV
EXC. CAB UP +110MM<TGG> (C) L=620 		1-49121-778-0 01 1 9905- ●
376 PIPE ASM; AIR UNION TO MAG VLV
(A) L=185 		1-49117-855-0 01 1 9707-9904 ●
376 PIPE ASM; AIR UNION TO MAG VLV
CAB UP +110MM<TGG> (C) 		1-49121-779-0 01 1 9905- ● ●
376 PIPE ASM; AIR UNION TO MAG VLV
ELECTRONIC GOV RED3(KG5) CAB UP +50MM<W60> (B) 		1-49116-708-0 01 1 9707-9904 ●
378 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 9905- ● ●
379 HOSE; FLEX
EURO2 SPECIFICATION<THN> (A) L=520 		0-07030-520-0 01 1 9610-9702 ●
379 HOSE; FLEX
EURO2 SPECIFICATION<THN> (A) L=520 		1-09363-657-0 01 1 9703-9706 ●
379 HOSE; FLEX
ELECTRONIC GOV RED3(KG5) EXC. CAB UP +50MM<W60> (A) L=520 		1-09363-657-0 01 1 9707-9904 ● ●
379 HOSE; FLEX
(A) L=520 		1-09363-657-0 01 1 9905- ● ●
379 HOSE; FLEX
(B) L=390 		1-09363-629-0 01 1 9707-9904 ●
379 HOSE; FLEX
(B) L=360 		1-09363-658-0 01 1 9905- ●
379 HOSE; FLEX
ELECTRONIC GOV RED3(KG5) CAB UP +50MM<W60> (A) L=560 		1-09363-689-0 01 1 9707-9904 ●
381 NUT; FLEX TUBE
EURO2 SPECIFICATION<THN> M12 		9-09840-280-0 02 1 9610-9706 ●
381 NUT; FLEX TUBE
ELECTRONIC GOV RED3(KG5) M12 		9-09840-280-0 02 1 9707-9904 ● ●
381 NUT; FLEX TUBE
M12 		9-09840-280-0 02 1 9707-9904 ●
381 NUT; FLEX TUBE
M12 		9-09840-280-0 02 1 9905- ● ●
381 NUT; FLEX TUBE
M12 		9-09840-280-0 02 1 9905- ●
382 WASHER; LK,FLEX HOSE
EURO2 SPECIFICATION<THN> ID=12.2 		9-09150-512-0 02 1 9610-9706 ●
382 WASHER; LK,FLEX HOSE
ELECTRONIC GOV RED3(KG5) ID=12.2 		9-09150-512-0 02 1 9707-9904 ● ●
382 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 02 1 9707-9904 ●
382 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 02 1 9905- ● ●
382 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 02 1 9905- ●
459 BOLT; CLIP FIX
EURO2 SPECIFICATION<THN> M8X25 FLANGE 		0-28680-825-0 03 1 9610-9904 ●
459 BOLT; CLIP FIX
M8X20 FLANGE 		0-28680-820-0 01 1 9707-9904 ●
459 BOLT; CLIP FIX
M8X20 FLANGE 		0-28680-820-0 01 1 9905- ● ●
472 NUT
EURO2 SPECIFICATION<THN> (B) M8 FLANGE 		0-91150-108-0 03 1 9610-9904 ●
472 NUT
(A) M6 FLANGE 		0-91150-106-0 01 1 9707-9904 ●
472 NUT
(A) M6 FLANGE 		0-91150-106-0 01 1 9905- ●
472 NUT
(B) M8 FLANGE 		0-91150-108-0 02 1 9707-9904 ●
472 NUT
(B) M8 FLANGE 		0-91150-108-0 02 1 9905- ●
472 NUT
(D) M8 FLANGE 		0-91150-108-0 01 1 9707-9904 ●
472 NUT
(D) M8 FLANGE 		0-91150-108-0 01 1 9905- ● ●
472 NUT
(C) M8 		9-09110-408-0 01 1 9707-9904 ●
472 NUT
(C) M8 		9-09110-408-0 01 1 9905- ●
577 PIPE; AIR,UNION TO FLEX HOSE
EURO2 SPECIFICATION<THN> L=708 SERVICED BY L=800 		1-47428-812-0 01 1 9610-9706 ●
577 PIPE; AIR,UNION TO FLEX HOSE
ELECTRONIC GOV RED3(KG5) L=708 SERVICED BY L=800 		1-47428-812-0 01 1 9707-9904 ● ●
577 PIPE; AIR,UNION TO FLEX HOSE
CAB UP +110MM<TGG> L=766 SERVICED BY L=800 		1-47428-812-0 01 1 9905- ● ●
577 PIPE; AIR,UNION TO FLEX HOSE
EXC. CAB UP +110MM<TGG> 		1-49121-789-0 01 1 9905- ●

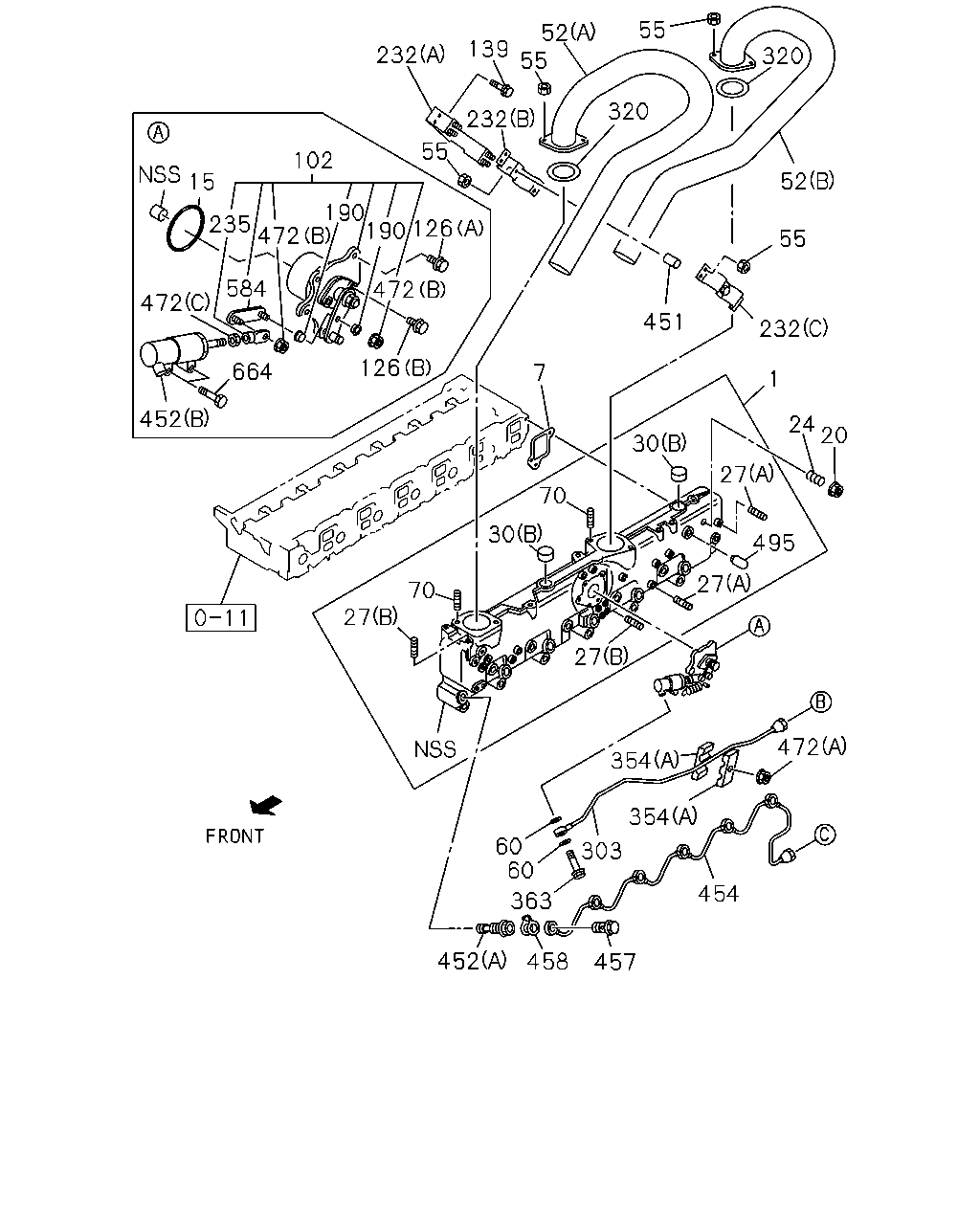

çizim 6202
55 52 55 139 232 320 320 232 55 102 15 52 190 235 190 126 472 55 584 472 472 451 232 126 664 7 1 452 24 20 30 27 70 27 30 495 27 70 27 472 354 354 60 60 303 454 363 452 458 457
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 MANIFOLD; INL
EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> 		1-14110-547-3 01 1 9603-9904 ●
1 MANIFOLD; INL 1-14110-547-3 01 1 9905- ●
1 MANIFOLD; INL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>, EURO2 SPECIFICATION<THN> 		1-14110-548-3 01 1 9603-9904 ●
1 MANIFOLD; INL 1-14110-548-3 01 1 9905- ●
1 MANIFOLD; INL
EURO2 SPECIFICATION<THN> 		1-14110-551-1 01 1 9610-9706 ●
1 MANIFOLD; INL
EURO2 SPECIFICATION<THN> 		1-14110-551-3 01 1 9707-9904 ●
1 MANIFOLD; INL 1-14110-551-3 01 1 9707-9904 ●
1 MANIFOLD; INL
ELECTRONIC GOV RED3(KG5) 		1-14110-551-3 01 1 9905- ●
1 MANIFOLD; INL 1-14110-551-3 01 1 9905- ●
1 MANIFOLD; INL
RLD GOVERNOR(SD7) 		1-14110-579-1 01 1 9905- ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14115-063-1 06 1 9603-9706 ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14115-063-1 06 1 9707-9904 ● ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14115-063-1 06 1 9905- ● ● ● ●
15 GASKET; VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-406-0 01 1 9603-9706 ●
15 GASKET; VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-406-0 01 1 9707-9904 ● ●
15 GASKET; VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-406-0 01 1 9905- ● ● ● ●
20 NUT; INL MANIF
M10 FLANGE 		0-91150-110-0 12 1 9603-9706 ●
20 NUT; INL MANIF
M10 FLANGE 		0-91150-110-0 12 1 9707-9904 ● ●
20 NUT; INL MANIF
M10 FLANGE 		0-91150-110-0 12 1 9905- ● ● ● ●
24 SPRING; INL MANIF 1-09580-156-0 12 1 9603-9706 ●
24 SPRING; INL MANIF 1-09580-156-0 12 1 9707-9904 ● ●
24 SPRING; INL MANIF 1-09580-156-0 12 1 9905- ● ● ● ●
27 STUD; INL MANIF
(A) M6X30 L=38 		9-04110-630-0 08 1 9603-9706 ●
27 STUD; INL MANIF
(A) M6X30 L=38 		9-04110-630-0 08 1 9707-9904 ● ●
27 STUD; INL MANIF
(A) M6X30 L=38 		9-04110-630-0 08 1 9905- ● ● ● ●
27 STUD; INL MANIF
(B) M8X16 L=28 		9-04110-816-0 06 1 9603-9706 ●
27 STUD; INL MANIF
(B) M8X16 L=28 		9-04110-816-0 06 1 9707-9904 ● ●
27 STUD; INL MANIF
(B) M8X16 L=28 		9-04110-816-0 06 1 9905- ● ● ● ●
30 CUP; SEALING,INL MANIF
(B) OD=30 		8-94241-638-0 02 1 9603-9706 ●
30 CUP; SEALING,INL MANIF
(B) OD=30 		8-94241-638-0 02 1 9707-9904 ● ●
30 CUP; SEALING,INL MANIF
(B) OD=30 		8-94241-638-0 02 1 9905- ● ● ● ●
30 CUP; SEALING,INL MANIF
(A) OD=20 		9-11129-128-0 01 1 9603-9706 ●
30 CUP; SEALING,INL MANIF
(A) OD=20 		9-11129-128-0 01 1 9707-9904 ● ●
30 CUP; SEALING,INL MANIF
(A) OD=20 		9-11129-128-0 01 1 9905- ● ● ● ●
52 PIPE; INL
(B) 		1-14112-522-1 01 1 9603-9706 ●
52 PIPE; INL
(B) 		1-14112-522-1 01 1 9707-9904 ● ●
52 PIPE; INL
(B) 		1-14112-522-1 01 1 9905- ● ● ● ●
52 PIPE; INL
(A) 		1-14112-635-0 01 1 9603-9706 ●
52 PIPE; INL
(A) 		1-14112-635-0 01 1 9707-9904 ● ●
52 PIPE; INL
(A) 		1-14112-635-0 01 1 9905- ● ● ● ●
55 NUT; INL PIPE
M10 FLANGE 		0-91150-110-0 09 1 9603-9706 ●
55 NUT; INL PIPE
M10 FLANGE 		0-91150-110-0 09 1 9707-9904 ● ●
55 NUT; INL PIPE
M10 FLANGE 		0-91150-110-0 09 1 9905- ● ● ● ●
60 GASKET; INL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 02 1 9707-9904 ●
60 GASKET; INL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 02 1 9905- ●
70 STUD; WATER PIPE
M10X20 L=35 		9-04411-020-0 07 1 9603-9706 ●
70 STUD; WATER PIPE
M10X20 L=35 		9-04411-020-0 07 1 9707-9904 ● ●
70 STUD; WATER PIPE
M10X20 L=35 		9-04411-020-0 07 1 9905- ● ● ● ●
102 VALVE ASM; INDUCTION CONT 1-14310-221-1 01 1 9707-9904 ●
102 VALVE ASM; INDUCTION CONT 1-14310-221-1 01 1 9905- ●
126 BOLT; COVER
(A) M10X20 FLANGE 		0-28181-020-0 03 1 9603-9706 ●
126 BOLT; COVER
(A) M10X20 FLANGE 		0-28181-020-0 03 1 9707-9904 ● ●
126 BOLT; COVER
(A) M10X20 FLANGE 		0-28181-020-0 03 1 9905- ● ● ● ●
126 BOLT; COVER
(B) M8X16 FLANGE 		0-28080-816-0 02 1 9707-9904 ●
126 BOLT; COVER
(B) M8X16 FLANGE 		0-28080-816-0 02 1 9905- ●
139 BOLT; BRKT FIX
M10X20 FLANGE 		0-28181-020-0 05 1 9603-9706 ●
139 BOLT; BRKT FIX
M10X20 FLANGE 		0-28181-020-0 05 1 9707-9904 ● ●
139 BOLT; BRKT FIX
M10X20 FLANGE 		0-28181-020-0 05 1 9905- ● ● ● ●
190 COLLAR; INLET MANIFOLD 1-22199-138-0 02 1 9707-9904 ●
190 COLLAR; INLET MANIFOLD 1-22199-138-0 02 1 9905- ●
232 BRACKET; INJ PIPE
(A) 		1-14119-377-0 01 1 9603-9706 ●
232 BRACKET; INJ PIPE
(A) 		1-14119-377-0 01 1 9707-9904 ● ●
232 BRACKET; INJ PIPE
(A) 		1-14119-377-0 01 1 9905- ● ● ● ●
232 BRACKET; INJ PIPE
(B) 		1-14119-378-1 01 1 9603-9706 ●
232 BRACKET; INJ PIPE
(B) 		1-14119-378-1 01 1 9707-9904 ● ●
232 BRACKET; INJ PIPE
(B) 		1-14119-378-1 01 1 9905- ● ● ● ●
232 BRACKET; INJ PIPE
(C) 		1-14119-379-1 01 1 9603-9706 ●
232 BRACKET; INJ PIPE
(C) 		1-14119-379-1 01 1 9707-9904 ● ●
232 BRACKET; INJ PIPE
(C) 		1-14119-379-1 01 1 9905- ● ● ● ●
235 JOINT; INL MANIF 1-22199-137-0 01 1 9707-9904 ●
235 JOINT; INL MANIF 1-22199-137-0 01 1 9905- ●
303 PIPE; AIR 1-19192-803-0 01 1 9707-9904 ●
303 PIPE; AIR 1-19192-803-1 01 1 9905- ●
320 GASKET; PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=79.6 		1-09623-421-0 02 1 9603-9706 ●
320 GASKET; PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=79.6 		1-09623-421-0 02 1 9707-9904 ● ●
320 GASKET; PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=79.6 		1-09623-421-0 02 1 9905- ● ● ● ●
354 CLIP; AIR PIPE
EURO2 SPECIFICATION<THN> (A) ID=6 H=20 L=20 		1-09700-603-0 01 1 9610-9904 ●
354 CLIP; AIR PIPE
(C) ID=6 H=20 L=20 		1-09700-603-0 01 1 9905- ● ●
354 CLIP; AIR PIPE
EURO2 SPECIFICATION<THN> (B) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 9610-9706 ●
354 CLIP; AIR PIPE
ELECTRONIC GOV RED3(KG5) (B) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 9707-9904 ● ●
354 CLIP; AIR PIPE
(B) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 9905- ● ●
354 CLIP; AIR PIPE
EURO2 SPECIFICATION<THN> (C) ID=7 L=20 		9-09524-635-0 01 1 9610-9904 ●
354 CLIP; AIR PIPE
(A) 		1-09701-132-0 02 1 9707-9904 ●
354 CLIP; AIR PIPE
(A) 		1-09701-132-1 02 1 9905- ●
363 BOLT; EYE
M10X21 FLANGE 		8-94396-711-0 01 1 9707-9904 ●
363 BOLT; EYE
M10X21 FLANGE 		8-94396-711-0 01 1 9905- ●
451 TUBE; DIST,BRKT 1-21529-002-0 01 1 9603-9706 ●
451 TUBE; DIST,BRKT 1-21529-002-0 01 1 9707-9904 ● ●
451 TUBE; DIST,BRKT 1-21529-002-0 01 1 9905- ● ● ● ●
452 CYLINDER ASM; AIR
EURO2 SPECIFICATION<THN> (A) 		1-14370-013-0 06 1 9610-9706 ●
452 CYLINDER ASM; AIR
EURO2 SPECIFICATION<THN> (A) 		1-14370-013-0 06 1 9707-9904 ●
452 CYLINDER ASM; AIR
(A) 		1-14370-013-0 06 1 9707-9904 ●
452 CYLINDER ASM; AIR
(A) 		1-14370-013-0 06 1 9905- ● ●
452 CYLINDER ASM; AIR
(B) 		1-22190-579-0 01 1 9707-9904 ●
452 CYLINDER ASM; AIR
(B) 		1-22190-579-1 01 1 9905- ●
454 PIPE; AIR,IVES
EURO2 SPECIFICATION<THN> 		1-19192-590-0 01 1 9610-9706 ●
454 PIPE; AIR,IVES
EURO2 SPECIFICATION<THN> 		1-19192-590-1 01 1 9707-9904 ●
454 PIPE; AIR,IVES 1-19192-590-1 01 1 9707-9904 ●
454 PIPE; AIR,IVES 1-19192-590-1 01 1 9905- ● ●
457 BOLT; EYE,AIR PIPE,IVES
EURO2 SPECIFICATION<THN> M8X18 EYE-BOLT 		1-09675-037-1 06 1 9610-9706 ●
457 BOLT; EYE,AIR PIPE,IVES
EURO2 SPECIFICATION<THN> M8X18 EYE-BOLT 		1-09675-037-1 06 1 9707-9904 ●
457 BOLT; EYE,AIR PIPE,IVES
M8X18 EYE-BOLT 		1-09675-037-1 06 1 9707-9904 ●
457 BOLT; EYE,AIR PIPE,IVES
M8X18 EYE-BOLT 		1-09675-037-1 06 1 9905- ● ●
458 GASKET; AIR PIPE,VSS
EURO2 SPECIFICATION<THN> ID=8.6 		8-94395-214-0 06 1 9610-9706 ●
458 GASKET; AIR PIPE,VSS
EURO2 SPECIFICATION<THN> ID=8.6 		8-94395-214-0 06 1 9707-9904 ●
458 GASKET; AIR PIPE,VSS
ID=8.6 		8-94395-214-0 06 1 9707-9904 ●
458 GASKET; AIR PIPE,VSS
ID=8.6 		8-94395-214-0 06 1 9905- ● ●
472 NUT
EURO2 SPECIFICATION<THN> (B) M8 FLANGE 		0-91150-108-0 03 1 9610-9904 ●
472 NUT
(A) M6 FLANGE 		0-91150-106-0 01 1 9707-9904 ●
472 NUT
(A) M6 FLANGE 		0-91150-106-0 01 1 9905- ●
472 NUT
(B) M8 FLANGE 		0-91150-108-0 02 1 9707-9904 ●
472 NUT
(B) M8 FLANGE 		0-91150-108-0 02 1 9905- ●
472 NUT
(D) M8 FLANGE 		0-91150-108-0 01 1 9707-9904 ●
472 NUT
(D) M8 FLANGE 		0-91150-108-0 01 1 9905- ● ●
472 NUT
(C) M8 		9-09110-408-0 01 1 9707-9904 ●
472 NUT
(C) M8 		9-09110-408-0 01 1 9905- ●
495 PIPE; BOOST SENSOR
EURO2 SPECIFICATION<THN> 		1-09669-073-0 01 1 9610-9706 ●
495 PIPE; BOOST SENSOR
EURO2 SPECIFICATION<THN> 		1-09669-073-0 01 1 9707-9904 ●
495 PIPE; BOOST SENSOR 1-09669-073-0 01 1 9707-9904 ●
495 PIPE; BOOST SENSOR
ELECTRONIC GOV RED3(KG5) 		1-09669-073-0 01 1 9905- ●
495 PIPE; BOOST SENSOR 1-09669-073-0 01 1 9905- ●
584 LINK 1-22199-153-0 01 1 9707-9904 ●
584 LINK 1-22199-153-0 01 1 9905- ●
664 BOLT; AIR CYL
M8X35 FLANGE 		0-28080-835-0 02 1 9707-9904 ●
664 BOLT; AIR CYL
M8X35 FLANGE 		0-28080-835-0 02 1 9905- ●

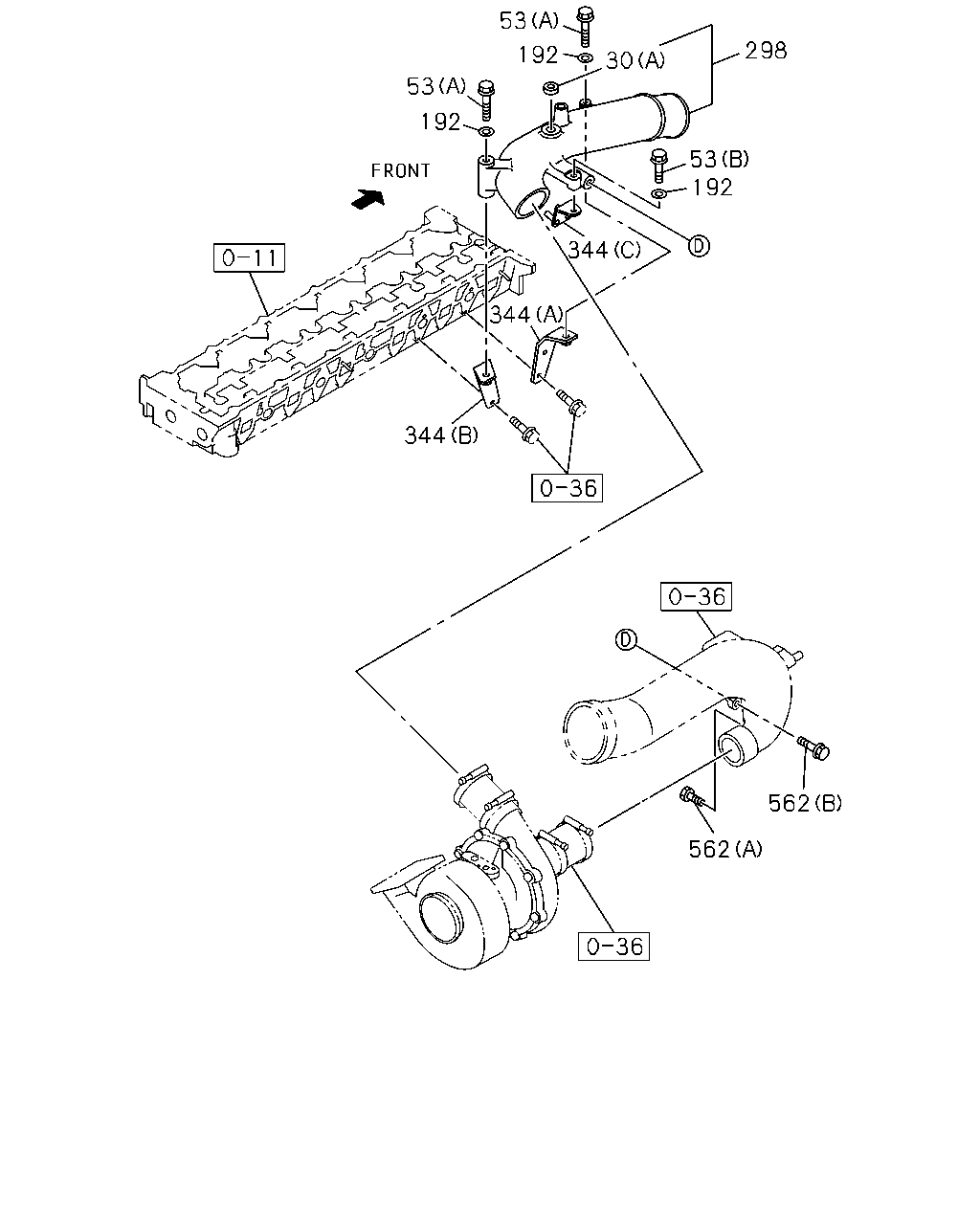

çizim 40003
53 298 192 30 53 192 53 192 344 344 344 562 562
BalonParca AdiParca NoAdetTipApplied Date A B C D E
30 CUP; SEALING,INL MANIF
(B) OD=30 		8-94241-638-0 02 1 9603-9706 ●
30 CUP; SEALING,INL MANIF
(B) OD=30 		8-94241-638-0 02 1 9707-9904 ● ●
30 CUP; SEALING,INL MANIF
(B) OD=30 		8-94241-638-0 02 1 9905- ● ● ● ●
30 CUP; SEALING,INL MANIF
(A) OD=20 		9-11129-128-0 01 1 9603-9706 ●
30 CUP; SEALING,INL MANIF
(A) OD=20 		9-11129-128-0 01 1 9707-9904 ● ●
30 CUP; SEALING,INL MANIF
(A) OD=20 		9-11129-128-0 01 1 9905- ● ● ● ●
53 BOLT; INL PIPE
(A) M10X100 FLANGE 		0-28181-000-0 02 1 9603-9706 ●
53 BOLT; INL PIPE
(A) M10X100 FLANGE 		0-28181-000-0 02 1 9707-9904 ● ●
53 BOLT; INL PIPE
(A) M10X100 FLANGE 		0-28181-000-0 02 1 9905- ● ● ● ●
53 BOLT; INL PIPE
(B) M10X40 FLANGE 		0-28181-040-0 01 1 9603-9706 ●
53 BOLT; INL PIPE
(B) M10X40 FLANGE 		0-28181-040-0 01 1 9707-9904 ● ●
53 BOLT; INL PIPE
(B) M10X40 FLANGE 		0-28181-040-0 01 1 9905- ● ● ● ●
192 WASHER; PL,INL PIPE
ID=10.5 OD=22 		9-09160-610-0 03 1 9902-9904 ● ●
192 WASHER; PL,INL PIPE
ID=10.5 OD=22 		9-09160-610-0 03 1 9905- ● ● ● ●
298 PIPE; INL,TURBOCHARGER TO INL COVER 1-14112-485-1 01 1 9603-9706 ●
298 PIPE; INL,TURBOCHARGER TO INL COVER 1-14112-485-2 01 1 9707-9904 ● ●
298 PIPE; INL,TURBOCHARGER TO INL COVER 1-14112-485-2 01 1 9905- ● ● ● ●
344 BRACKET; INL PIPE
(A) 		1-14119-314-0 01 1 9603-9706 ●
344 BRACKET; INL PIPE
(A) 		1-14119-314-0 01 1 9707-9904 ● ●
344 BRACKET; INL PIPE
(A) 		1-14119-314-0 01 1 9905- ● ● ● ●
344 BRACKET; INL PIPE
(B) 		1-14119-324-0 01 1 9603-9706 ●
344 BRACKET; INL PIPE
(B) 		1-14119-324-0 01 1 9707-9904 ● ●
344 BRACKET; INL PIPE
(B) 		1-14119-324-0 01 1 9905- ● ● ● ●
344 BRACKET; INL PIPE
(C) 		1-14119-393-0 01 1 9603-9706 ●
344 BRACKET; INL PIPE
(C) 		1-14119-393-0 01 1 9707-9904 ● ●
344 BRACKET; INL PIPE
(C) 		1-14119-393-0 01 1 9905- ● ● ● ●
562 BOLT; INL DUCT
(A) M10X20 FLANGE 		0-28181-020-0 01 1 9603-9706 ●
562 BOLT; INL DUCT
(A) M10X20 FLANGE 		0-28181-020-0 01 1 9707-9904 ● ●
562 BOLT; INL DUCT
(A) M10X20 FLANGE 		0-28181-020-0 01 1 9905- ● ● ● ●
562 BOLT; INL DUCT
(B) M10X35 FLANGE 		0-28181-035-0 02 1 9603-9706 ●
562 BOLT; INL DUCT
(B) M10X35 FLANGE 		0-28181-035-0 02 1 9707-9904 ● ●
562 BOLT; INL DUCT
(B) M10X35 FLANGE 		0-28181-035-0 02 1 9905- ● ● ● ●

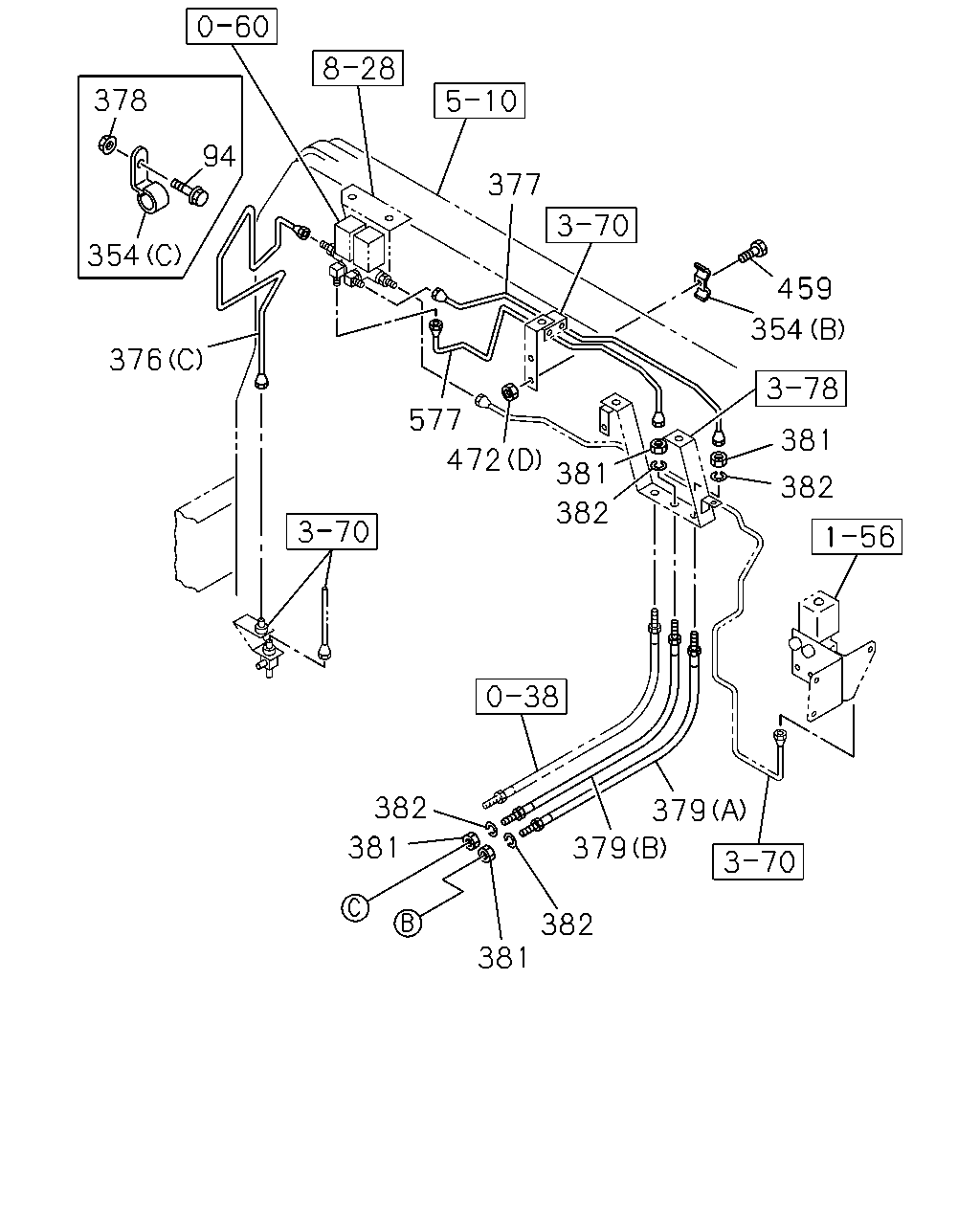

çizim 40243
378 94 377 354 459 354 376 577 381 472 381 382 382 382 379 381 379 382 381
BalonParca AdiParca NoAdetTipApplied Date A B C D E
94 BOLT
M8X20 FLANGE 		0-28680-820-0 01 1 9905- ● ●
354 CLIP; AIR PIPE
EURO2 SPECIFICATION<THN> (A) ID=6 H=20 L=20 		1-09700-603-0 01 1 9610-9904 ●
354 CLIP; AIR PIPE
(C) ID=6 H=20 L=20 		1-09700-603-0 01 1 9905- ● ●
354 CLIP; AIR PIPE
EURO2 SPECIFICATION<THN> (B) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 9610-9706 ●
354 CLIP; AIR PIPE
ELECTRONIC GOV RED3(KG5) (B) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 9707-9904 ● ●
354 CLIP; AIR PIPE
(B) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 9905- ● ●
354 CLIP; AIR PIPE
EURO2 SPECIFICATION<THN> (C) ID=7 L=20 		9-09524-635-0 01 1 9610-9904 ●
354 CLIP; AIR PIPE
(A) 		1-09701-132-0 02 1 9707-9904 ●
354 CLIP; AIR PIPE
(A) 		1-09701-132-1 02 1 9905- ●
376 PIPE ASM; AIR UNION TO MAG VLV
EURO2 SPECIFICATION<THN> (B) 		1-49114-277-0 01 1 9610-9706 ●
376 PIPE ASM; AIR UNION TO MAG VLV
ELECTRONIC GOV RED3(KG5) EXC. CAB UP +50MM<W60> (B) 		1-49114-277-0 01 1 9707-9904 ● ●
376 PIPE ASM; AIR UNION TO MAG VLV
EURO2 SPECIFICATION<THN> (A) 		1-49117-470-0 01 1 9610-9904 ●
376 PIPE ASM; AIR UNION TO MAG VLV
EXC. CAB UP +110MM<TGG> (C) L=620 		1-49121-778-0 01 1 9905- ●
376 PIPE ASM; AIR UNION TO MAG VLV
(A) L=185 		1-49117-855-0 01 1 9707-9904 ●
376 PIPE ASM; AIR UNION TO MAG VLV
CAB UP +110MM<TGG> (C) 		1-49121-779-0 01 1 9905- ● ●
376 PIPE ASM; AIR UNION TO MAG VLV
ELECTRONIC GOV RED3(KG5) CAB UP +50MM<W60> (B) 		1-49116-708-0 01 1 9707-9904 ●
377 PIPE ASM; AIR MAG VLV 1-49114-260-0 01 1 9707-9904 ●
377 PIPE ASM; AIR MAG VLV
L=612 SERVICED BY L=650 		1-47428-810-0 01 1 9905- ●
378 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 9905- ● ●
379 HOSE; FLEX
EURO2 SPECIFICATION<THN> (A) L=520 		0-07030-520-0 01 1 9610-9702 ●
379 HOSE; FLEX
EURO2 SPECIFICATION<THN> (A) L=520 		1-09363-657-0 01 1 9703-9706 ●
379 HOSE; FLEX
ELECTRONIC GOV RED3(KG5) EXC. CAB UP +50MM<W60> (A) L=520 		1-09363-657-0 01 1 9707-9904 ● ●
379 HOSE; FLEX
(A) L=520 		1-09363-657-0 01 1 9905- ● ●
379 HOSE; FLEX
(B) L=390 		1-09363-629-0 01 1 9707-9904 ●
379 HOSE; FLEX
(B) L=360 		1-09363-658-0 01 1 9905- ●
379 HOSE; FLEX
ELECTRONIC GOV RED3(KG5) CAB UP +50MM<W60> (A) L=560 		1-09363-689-0 01 1 9707-9904 ●
381 NUT; FLEX TUBE
EURO2 SPECIFICATION<THN> M12 		9-09840-280-0 02 1 9610-9706 ●
381 NUT; FLEX TUBE
ELECTRONIC GOV RED3(KG5) M12 		9-09840-280-0 02 1 9707-9904 ● ●
381 NUT; FLEX TUBE
M12 		9-09840-280-0 02 1 9707-9904 ●
381 NUT; FLEX TUBE
M12 		9-09840-280-0 02 1 9905- ● ●
381 NUT; FLEX TUBE
M12 		9-09840-280-0 02 1 9905- ●
382 WASHER; LK,FLEX HOSE
EURO2 SPECIFICATION<THN> ID=12.2 		9-09150-512-0 02 1 9610-9706 ●
382 WASHER; LK,FLEX HOSE
ELECTRONIC GOV RED3(KG5) ID=12.2 		9-09150-512-0 02 1 9707-9904 ● ●
382 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 02 1 9707-9904 ●
382 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 02 1 9905- ● ●
382 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 02 1 9905- ●
459 BOLT; CLIP FIX
EURO2 SPECIFICATION<THN> M8X25 FLANGE 		0-28680-825-0 03 1 9610-9904 ●
459 BOLT; CLIP FIX
M8X20 FLANGE 		0-28680-820-0 01 1 9707-9904 ●
459 BOLT; CLIP FIX
M8X20 FLANGE 		0-28680-820-0 01 1 9905- ● ●
472 NUT
EURO2 SPECIFICATION<THN> (B) M8 FLANGE 		0-91150-108-0 03 1 9610-9904 ●
472 NUT
(A) M6 FLANGE 		0-91150-106-0 01 1 9707-9904 ●
472 NUT
(A) M6 FLANGE 		0-91150-106-0 01 1 9905- ●
472 NUT
(B) M8 FLANGE 		0-91150-108-0 02 1 9707-9904 ●
472 NUT
(B) M8 FLANGE 		0-91150-108-0 02 1 9905- ●
472 NUT
(D) M8 FLANGE 		0-91150-108-0 01 1 9707-9904 ●
472 NUT
(D) M8 FLANGE 		0-91150-108-0 01 1 9905- ● ●
472 NUT
(C) M8 		9-09110-408-0 01 1 9707-9904 ●
472 NUT
(C) M8 		9-09110-408-0 01 1 9905- ●
577 PIPE; AIR,UNION TO FLEX HOSE
EURO2 SPECIFICATION<THN> L=708 SERVICED BY L=800 		1-47428-812-0 01 1 9610-9706 ●
577 PIPE; AIR,UNION TO FLEX HOSE
ELECTRONIC GOV RED3(KG5) L=708 SERVICED BY L=800 		1-47428-812-0 01 1 9707-9904 ● ●
577 PIPE; AIR,UNION TO FLEX HOSE
CAB UP +110MM<TGG> L=766 SERVICED BY L=800 		1-47428-812-0 01 1 9905- ● ●
577 PIPE; AIR,UNION TO FLEX HOSE
EXC. CAB UP +110MM<TGG> 		1-49121-789-0 01 1 9905- ●

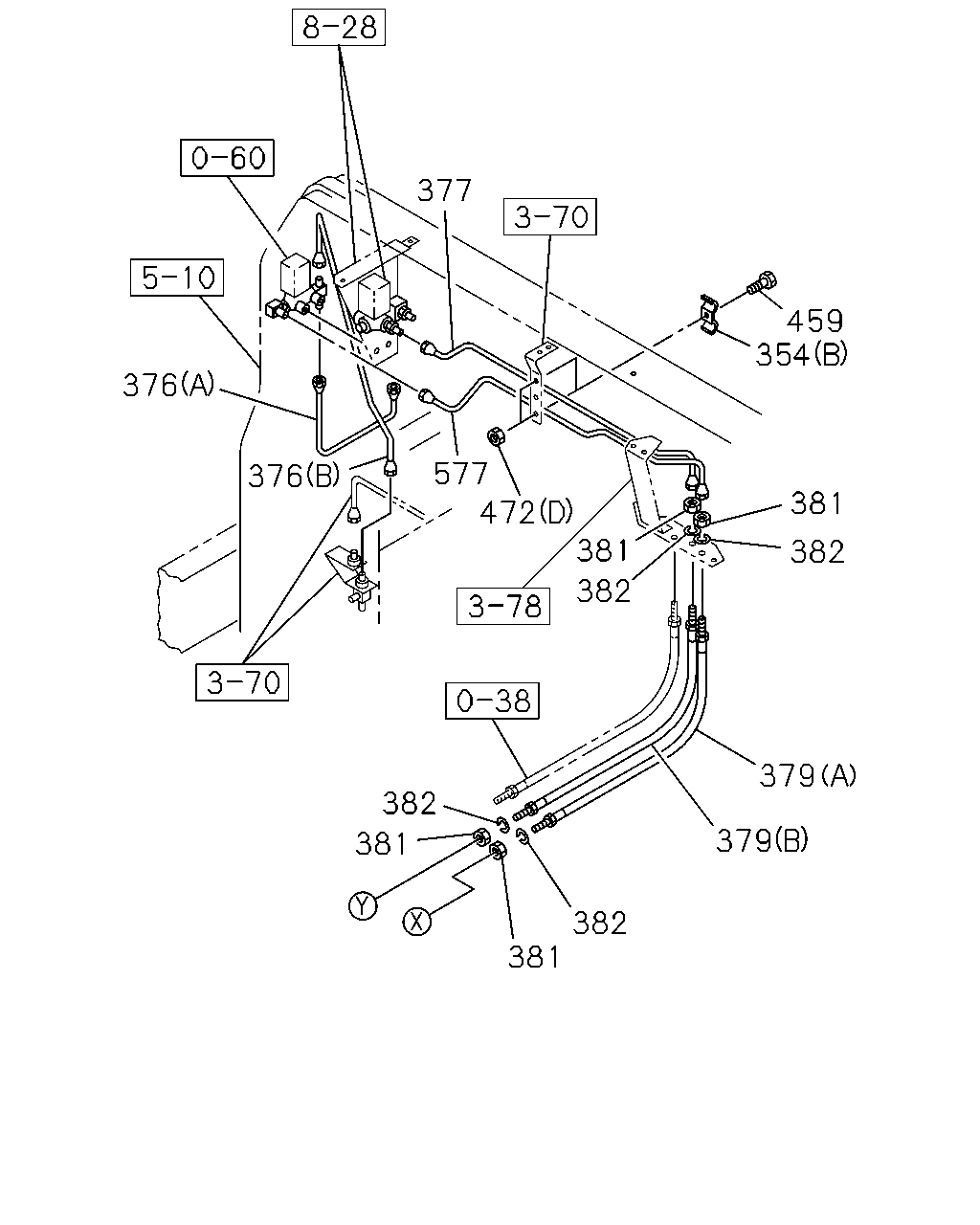

çizim 40732
377 459 354 376 577 376 381 472 381 382 382 379 382 379 381 382 381
BalonParca AdiParca NoAdetTipApplied Date A B C D E
354 CLIP; AIR PIPE
EURO2 SPECIFICATION<THN> (A) ID=6 H=20 L=20 		1-09700-603-0 01 1 9610-9904 ●
354 CLIP; AIR PIPE
(C) ID=6 H=20 L=20 		1-09700-603-0 01 1 9905- ● ●
354 CLIP; AIR PIPE
EURO2 SPECIFICATION<THN> (B) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 9610-9706 ●
354 CLIP; AIR PIPE
ELECTRONIC GOV RED3(KG5) (B) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 9707-9904 ● ●
354 CLIP; AIR PIPE
(B) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 9905- ● ●
354 CLIP; AIR PIPE
EURO2 SPECIFICATION<THN> (C) ID=7 L=20 		9-09524-635-0 01 1 9610-9904 ●
354 CLIP; AIR PIPE
(A) 		1-09701-132-0 02 1 9707-9904 ●
354 CLIP; AIR PIPE
(A) 		1-09701-132-1 02 1 9905- ●
376 PIPE ASM; AIR UNION TO MAG VLV
EURO2 SPECIFICATION<THN> (B) 		1-49114-277-0 01 1 9610-9706 ●
376 PIPE ASM; AIR UNION TO MAG VLV
ELECTRONIC GOV RED3(KG5) EXC. CAB UP +50MM<W60> (B) 		1-49114-277-0 01 1 9707-9904 ● ●
376 PIPE ASM; AIR UNION TO MAG VLV
EURO2 SPECIFICATION<THN> (A) 		1-49117-470-0 01 1 9610-9904 ●
376 PIPE ASM; AIR UNION TO MAG VLV
EXC. CAB UP +110MM<TGG> (C) L=620 		1-49121-778-0 01 1 9905- ●
376 PIPE ASM; AIR UNION TO MAG VLV
(A) L=185 		1-49117-855-0 01 1 9707-9904 ●
376 PIPE ASM; AIR UNION TO MAG VLV
CAB UP +110MM<TGG> (C) 		1-49121-779-0 01 1 9905- ● ●
376 PIPE ASM; AIR UNION TO MAG VLV
ELECTRONIC GOV RED3(KG5) CAB UP +50MM<W60> (B) 		1-49116-708-0 01 1 9707-9904 ●
377 PIPE ASM; AIR MAG VLV 1-49114-260-0 01 1 9707-9904 ●
377 PIPE ASM; AIR MAG VLV
L=612 SERVICED BY L=650 		1-47428-810-0 01 1 9905- ●
379 HOSE; FLEX
EURO2 SPECIFICATION<THN> (A) L=520 		0-07030-520-0 01 1 9610-9702 ●
379 HOSE; FLEX
EURO2 SPECIFICATION<THN> (A) L=520 		1-09363-657-0 01 1 9703-9706 ●
379 HOSE; FLEX
ELECTRONIC GOV RED3(KG5) EXC. CAB UP +50MM<W60> (A) L=520 		1-09363-657-0 01 1 9707-9904 ● ●
379 HOSE; FLEX
(A) L=520 		1-09363-657-0 01 1 9905- ● ●
379 HOSE; FLEX
(B) L=390 		1-09363-629-0 01 1 9707-9904 ●
379 HOSE; FLEX
(B) L=360 		1-09363-658-0 01 1 9905- ●
379 HOSE; FLEX
ELECTRONIC GOV RED3(KG5) CAB UP +50MM<W60> (A) L=560 		1-09363-689-0 01 1 9707-9904 ●
381 NUT; FLEX TUBE
EURO2 SPECIFICATION<THN> M12 		9-09840-280-0 02 1 9610-9706 ●
381 NUT; FLEX TUBE
ELECTRONIC GOV RED3(KG5) M12 		9-09840-280-0 02 1 9707-9904 ● ●
381 NUT; FLEX TUBE
M12 		9-09840-280-0 02 1 9707-9904 ●
381 NUT; FLEX TUBE
M12 		9-09840-280-0 02 1 9905- ● ●
381 NUT; FLEX TUBE
M12 		9-09840-280-0 02 1 9905- ●
382 WASHER; LK,FLEX HOSE
EURO2 SPECIFICATION<THN> ID=12.2 		9-09150-512-0 02 1 9610-9706 ●
382 WASHER; LK,FLEX HOSE
ELECTRONIC GOV RED3(KG5) ID=12.2 		9-09150-512-0 02 1 9707-9904 ● ●
382 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 02 1 9707-9904 ●
382 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 02 1 9905- ● ●
382 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 02 1 9905- ●
459 BOLT; CLIP FIX
EURO2 SPECIFICATION<THN> M8X25 FLANGE 		0-28680-825-0 03 1 9610-9904 ●
459 BOLT; CLIP FIX
M8X20 FLANGE 		0-28680-820-0 01 1 9707-9904 ●
459 BOLT; CLIP FIX
M8X20 FLANGE 		0-28680-820-0 01 1 9905- ● ●
472 NUT
EURO2 SPECIFICATION<THN> (B) M8 FLANGE 		0-91150-108-0 03 1 9610-9904 ●
472 NUT
(A) M6 FLANGE 		0-91150-106-0 01 1 9707-9904 ●
472 NUT
(A) M6 FLANGE 		0-91150-106-0 01 1 9905- ●
472 NUT
(B) M8 FLANGE 		0-91150-108-0 02 1 9707-9904 ●
472 NUT
(B) M8 FLANGE 		0-91150-108-0 02 1 9905- ●
472 NUT
(D) M8 FLANGE 		0-91150-108-0 01 1 9707-9904 ●
472 NUT
(D) M8 FLANGE 		0-91150-108-0 01 1 9905- ● ●
472 NUT
(C) M8 		9-09110-408-0 01 1 9707-9904 ●
472 NUT
(C) M8 		9-09110-408-0 01 1 9905- ●
577 PIPE; AIR,UNION TO FLEX HOSE
EURO2 SPECIFICATION<THN> L=708 SERVICED BY L=800 		1-47428-812-0 01 1 9610-9706 ●
577 PIPE; AIR,UNION TO FLEX HOSE
ELECTRONIC GOV RED3(KG5) L=708 SERVICED BY L=800 		1-47428-812-0 01 1 9707-9904 ● ●
577 PIPE; AIR,UNION TO FLEX HOSE
CAB UP +110MM<TGG> L=766 SERVICED BY L=800 		1-47428-812-0 01 1 9905- ● ●
577 PIPE; AIR,UNION TO FLEX HOSE
EXC. CAB UP +110MM<TGG> 		1-49121-789-0 01 1 9905- ●

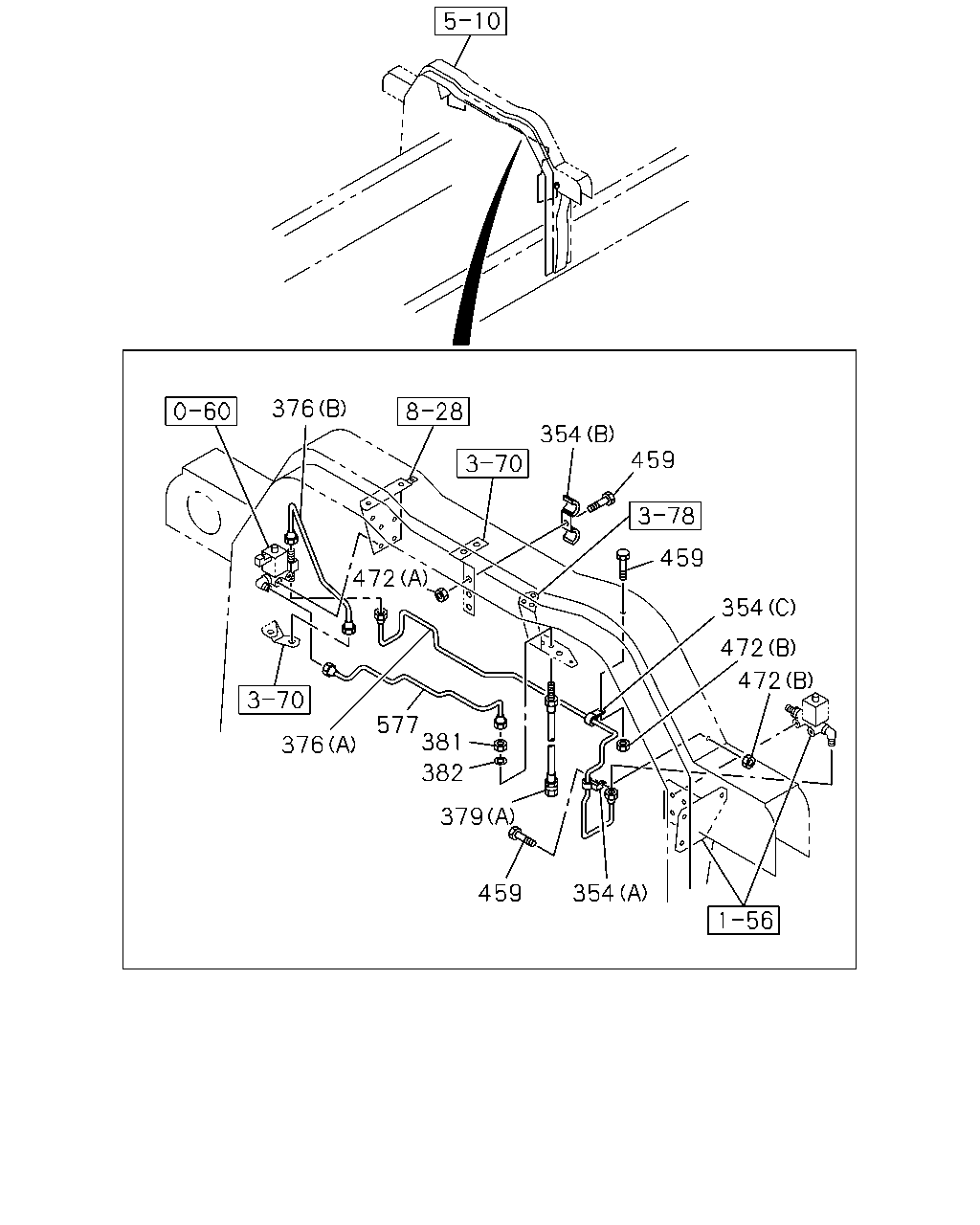

çizim 43607
376 354 459 459 472 354 472 472 577 381 376 382 379 459 354
BalonParca AdiParca NoAdetTipApplied Date A B C D E
354 CLIP; AIR PIPE
EURO2 SPECIFICATION<THN> (A) ID=6 H=20 L=20 		1-09700-603-0 01 1 9610-9904 ●
354 CLIP; AIR PIPE
(C) ID=6 H=20 L=20 		1-09700-603-0 01 1 9905- ● ●
354 CLIP; AIR PIPE
EURO2 SPECIFICATION<THN> (B) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 9610-9706 ●
354 CLIP; AIR PIPE
ELECTRONIC GOV RED3(KG5) (B) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 9707-9904 ● ●
354 CLIP; AIR PIPE
(B) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 9905- ● ●
354 CLIP; AIR PIPE
EURO2 SPECIFICATION<THN> (C) ID=7 L=20 		9-09524-635-0 01 1 9610-9904 ●
354 CLIP; AIR PIPE
(A) 		1-09701-132-0 02 1 9707-9904 ●
354 CLIP; AIR PIPE
(A) 		1-09701-132-1 02 1 9905- ●
376 PIPE ASM; AIR UNION TO MAG VLV
EURO2 SPECIFICATION<THN> (B) 		1-49114-277-0 01 1 9610-9706 ●
376 PIPE ASM; AIR UNION TO MAG VLV
ELECTRONIC GOV RED3(KG5) EXC. CAB UP +50MM<W60> (B) 		1-49114-277-0 01 1 9707-9904 ● ●
376 PIPE ASM; AIR UNION TO MAG VLV
EURO2 SPECIFICATION<THN> (A) 		1-49117-470-0 01 1 9610-9904 ●
376 PIPE ASM; AIR UNION TO MAG VLV
EXC. CAB UP +110MM<TGG> (C) L=620 		1-49121-778-0 01 1 9905- ●
376 PIPE ASM; AIR UNION TO MAG VLV
(A) L=185 		1-49117-855-0 01 1 9707-9904 ●
376 PIPE ASM; AIR UNION TO MAG VLV
CAB UP +110MM<TGG> (C) 		1-49121-779-0 01 1 9905- ● ●
376 PIPE ASM; AIR UNION TO MAG VLV
ELECTRONIC GOV RED3(KG5) CAB UP +50MM<W60> (B) 		1-49116-708-0 01 1 9707-9904 ●
379 HOSE; FLEX
EURO2 SPECIFICATION<THN> (A) L=520 		0-07030-520-0 01 1 9610-9702 ●
379 HOSE; FLEX
EURO2 SPECIFICATION<THN> (A) L=520 		1-09363-657-0 01 1 9703-9706 ●
379 HOSE; FLEX
ELECTRONIC GOV RED3(KG5) EXC. CAB UP +50MM<W60> (A) L=520 		1-09363-657-0 01 1 9707-9904 ● ●
379 HOSE; FLEX
(A) L=520 		1-09363-657-0 01 1 9905- ● ●
379 HOSE; FLEX
(B) L=390 		1-09363-629-0 01 1 9707-9904 ●
379 HOSE; FLEX
(B) L=360 		1-09363-658-0 01 1 9905- ●
379 HOSE; FLEX
ELECTRONIC GOV RED3(KG5) CAB UP +50MM<W60> (A) L=560 		1-09363-689-0 01 1 9707-9904 ●
381 NUT; FLEX TUBE
EURO2 SPECIFICATION<THN> M12 		9-09840-280-0 02 1 9610-9706 ●
381 NUT; FLEX TUBE
ELECTRONIC GOV RED3(KG5) M12 		9-09840-280-0 02 1 9707-9904 ● ●
381 NUT; FLEX TUBE
M12 		9-09840-280-0 02 1 9707-9904 ●
381 NUT; FLEX TUBE
M12 		9-09840-280-0 02 1 9905- ● ●
381 NUT; FLEX TUBE
M12 		9-09840-280-0 02 1 9905- ●
382 WASHER; LK,FLEX HOSE
EURO2 SPECIFICATION<THN> ID=12.2 		9-09150-512-0 02 1 9610-9706 ●
382 WASHER; LK,FLEX HOSE
ELECTRONIC GOV RED3(KG5) ID=12.2 		9-09150-512-0 02 1 9707-9904 ● ●
382 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 02 1 9707-9904 ●
382 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 02 1 9905- ● ●
382 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 02 1 9905- ●
459 BOLT; CLIP FIX
EURO2 SPECIFICATION<THN> M8X25 FLANGE 		0-28680-825-0 03 1 9610-9904 ●
459 BOLT; CLIP FIX
M8X20 FLANGE 		0-28680-820-0 01 1 9707-9904 ●
459 BOLT; CLIP FIX
M8X20 FLANGE 		0-28680-820-0 01 1 9905- ● ●
472 NUT
EURO2 SPECIFICATION<THN> (B) M8 FLANGE 		0-91150-108-0 03 1 9610-9904 ●
472 NUT
(A) M6 FLANGE 		0-91150-106-0 01 1 9707-9904 ●
472 NUT
(A) M6 FLANGE 		0-91150-106-0 01 1 9905- ●
472 NUT
(B) M8 FLANGE 		0-91150-108-0 02 1 9707-9904 ●
472 NUT
(B) M8 FLANGE 		0-91150-108-0 02 1 9905- ●
472 NUT
(D) M8 FLANGE 		0-91150-108-0 01 1 9707-9904 ●
472 NUT
(D) M8 FLANGE 		0-91150-108-0 01 1 9905- ● ●
472 NUT
(C) M8 		9-09110-408-0 01 1 9707-9904 ●
472 NUT
(C) M8 		9-09110-408-0 01 1 9905- ●
577 PIPE; AIR,UNION TO FLEX HOSE
EURO2 SPECIFICATION<THN> L=708 SERVICED BY L=800 		1-47428-812-0 01 1 9610-9706 ●
577 PIPE; AIR,UNION TO FLEX HOSE
ELECTRONIC GOV RED3(KG5) L=708 SERVICED BY L=800 		1-47428-812-0 01 1 9707-9904 ● ●
577 PIPE; AIR,UNION TO FLEX HOSE
CAB UP +110MM<TGG> L=766 SERVICED BY L=800 		1-47428-812-0 01 1 9905- ● ●
577 PIPE; AIR,UNION TO FLEX HOSE
EXC. CAB UP +110MM<TGG> 		1-49121-789-0 01 1 9905- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
