◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50808 - NHR ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#42289) — 40 parça

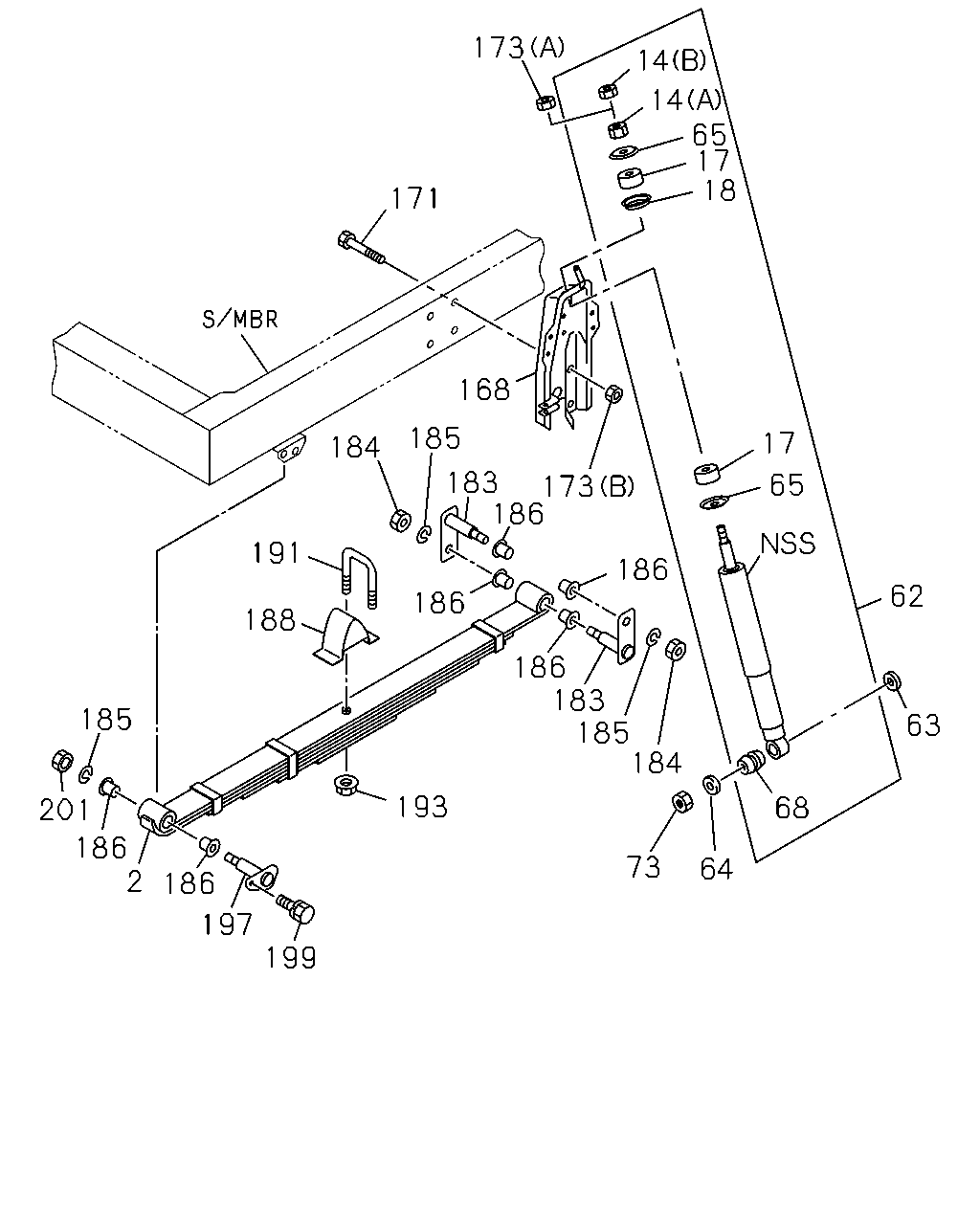

çizim 8426
173 14 14 65 17 18 171 168 185 17 184 183 173 186 65 191 186 62 186 188 186 183 185 184 185 63 193 68 201 186 2 73 64 186 197 199
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. PASSENGER SIDE 5-LEAF 		8-94343-081-1 01 1 9811-0006 ● ● ● ● ● ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. PASSENGER SIDE 5-LEAF 		8-97260-095-0 01 1 0007- ● ● ● ● ● ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. DRIVER SIDE 5-LEAF 		8-94343-082-1 01 1 9811-0006 ● ● ● ● ● ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. DRIVER SIDE 5-LEAF 		8-97260-096-0 01 1 0007- ● ● ● ● ● ●
14 07.389 NUT; S/ABS,UPR
09.011 (A) M10 		9-09110-410-0 02 1 9811-0003 ● ● ● ● ● ●
14 07.389 NUT; S/ABS,UPR
(A) M10 		8-94317-772-0 02 1 0004- ● ● ● ● ● ●
14 07.389 NUT; S/ABS,UPR
06.822 (B) M10 		9-09111-410-0 02 1 9811-0003 ● ● ● ● ● ●
17 07.388 BUSHING; RUBBER,S/ABS
TOKICO 		9-51631-603-0 04 1 9811- ● ● ● ● ● ●
18 07.347 WASHER; CENTERING,S/ABS
ID=13 OD=38 		9-51631-063-0 02 1 9811- ● ● ● ● ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT 8-97107-983-0 02 1 9811-0003 ● ● ● ● ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT 8-97253-599-0 02 1 0004- ● ● ● ● ● ●
63 07.347 WASHER; PL,S/ABS,LWR
07.529 ID=17 OD=32 		9-09164-616-0 02 1 9811- ● ● ● ● ● ●
64 07.347 WASHER; S/ABS,LWR
ID=12.5 		9-51679-022-0 02 1 9811- ● ● ● ● ● ●
65 07.347 WASHER; S/ABS
07.245 ID=10.5 OD=38 		9-51631-062-0 04 1 9811- ● ● ● ● ● ●
68 07.388 BUSHING; S/ABS
07.347 TOKICO 		8-94224-694-0 02 1 9811- ● ● ● ● ● ●
73 07.347 NUT; BRKT,SHOCK
M12 		9-99111-512-0 02 1 9811- ● ● ● ● ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP 8-97045-611-1 01 1 9811- ● ● ● ● ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP 8-97045-610-1 01 1 9811- ● ● ● ● ● ●
171 07.395 BOLT; S/ABS BRKT
03.405 M10X30 FLANGE 		0-28681-030-0 08 1 9811- ● ● ● ● ● ●
173 07.395 NUT; S/ABS
08.917 (B) M10 FLANGE 		0-91150-210-0 08 1 9811- ● ● ● ● ● ●
173 07.395 NUT; S/ABS
06.822 (A) M10 		9-09111-410-0 02 1 9811- ● ● ● ● ● ●
183 07.436 SHACKLE; FRT SUSP 8-94468-235-2 04 1 9811- ● ● ● ● ● ●
184 07.436 NUT; SHACKLE
KD PREPARATORY PACK<6HF> 06.870 M16 		9-99110-416-0 04 1 9811- ● ● ● ● ● ●
184 07.436 NUT; SHACKLE
EXC. KD PREPARATORY PACK<6HF> 07.529 M16 FLANGE 		8-97147-389-0 04 1 9811- ● ● ● ● ● ●
185 07.427 WASHER; LK,PIN
KD PREPARATORY PACK<6HF> 07.172 ID=16.5 		8-97070-925-1 06 1 9811- ● ● ● ● ● ●
186 07.105 BUSHING; SHACKLE
L=38.6 		8-94113-314-2 12 1 9811- ● ● ● ● ● ●
188 07.436 RUBBER; CLAMP,U-BOLT,FRT SPR 8-94150-265-2 02 1 9811- ● ● ● ● ● ●
191 07.417 U-BOLT; FRT SPR
L=85 		8-94249-417-3 04 1 9811-0104 ● ● ● ● ●
191 07.417 U-BOLT; FRT SPR
EXC. FRONT STABILIZER SHAFT<F59> L=85 		8-94249-417-3 04 1 9811-0104 ●
191 07.417 U-BOLT; FRT SPR
L=85 		8-97304-072-0 04 1 0105- ● ● ● ● ●
191 07.417 U-BOLT; FRT SPR
EXC. FRONT STABILIZER SHAFT<F59> L=85 		8-97304-072-0 04 1 0105- ●
191 07.417 U-BOLT; FRT SPR
FRONT STABILIZER SHAFT<F59> FRONT L=95 		8-94127-916-3 02 1 9811-0104 ●
191 07.417 U-BOLT; FRT SPR
FRONT STABILIZER SHAFT<F59> REAR L=85 		8-97304-072-0 02 1 0105- ●
191 07.417 U-BOLT; FRT SPR
FRONT STABILIZER SHAFT<F59> REAR L=85 		8-94249-417-3 02 1 9811-0104 ●
191 07.417 U-BOLT; FRT SPR
FRONT STABILIZER SHAFT<F59> FRONT L=95 		8-97304-073-0 02 1 0105- ●
193 07.417 NUT; U BOLT
M14 FLANGE 		8-94137-483-0 08 1 9811- ● ● ● ● ● ●
197 07.427 PIN; FRT SPR,FRT 8-94117-900-1 02 1 9811- ● ● ● ● ● ●
199 07.427 BOLT
03.405 M10X25 FLANGE 		0-28681-025-0 02 1 9811- ● ● ● ● ● ●
201 07.427 NUT; PIN LK
KD PREPARATORY PACK<6HF> 06.870 M16 		9-99110-416-0 02 1 9811- ● ● ● ● ● ●
201 07.427 NUT; PIN LK
EXC. KD PREPARATORY PACK<6HF> 07.529 M16 FLANGE 		8-97147-389-0 02 1 9811- ● ● ● ● ● ●
