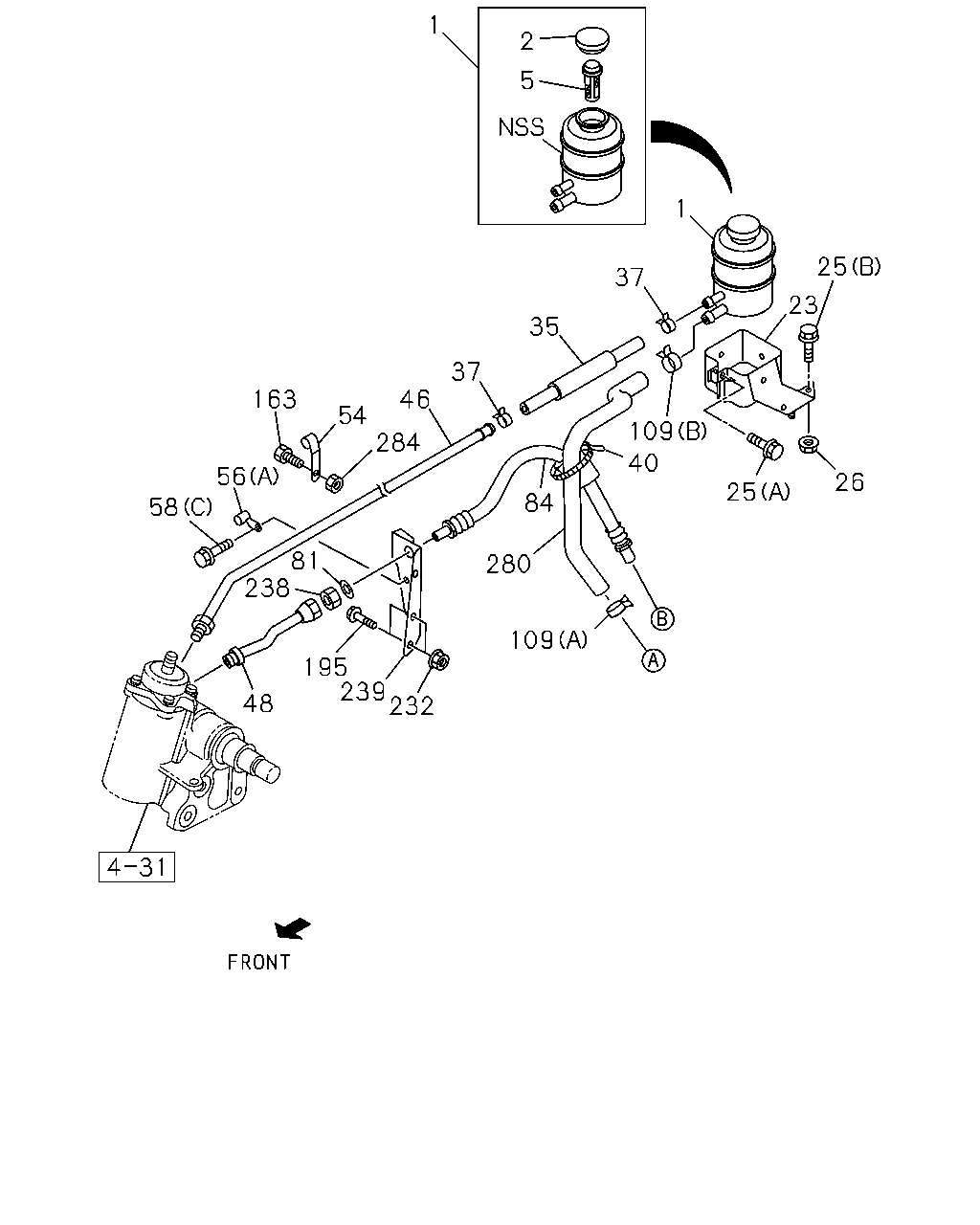

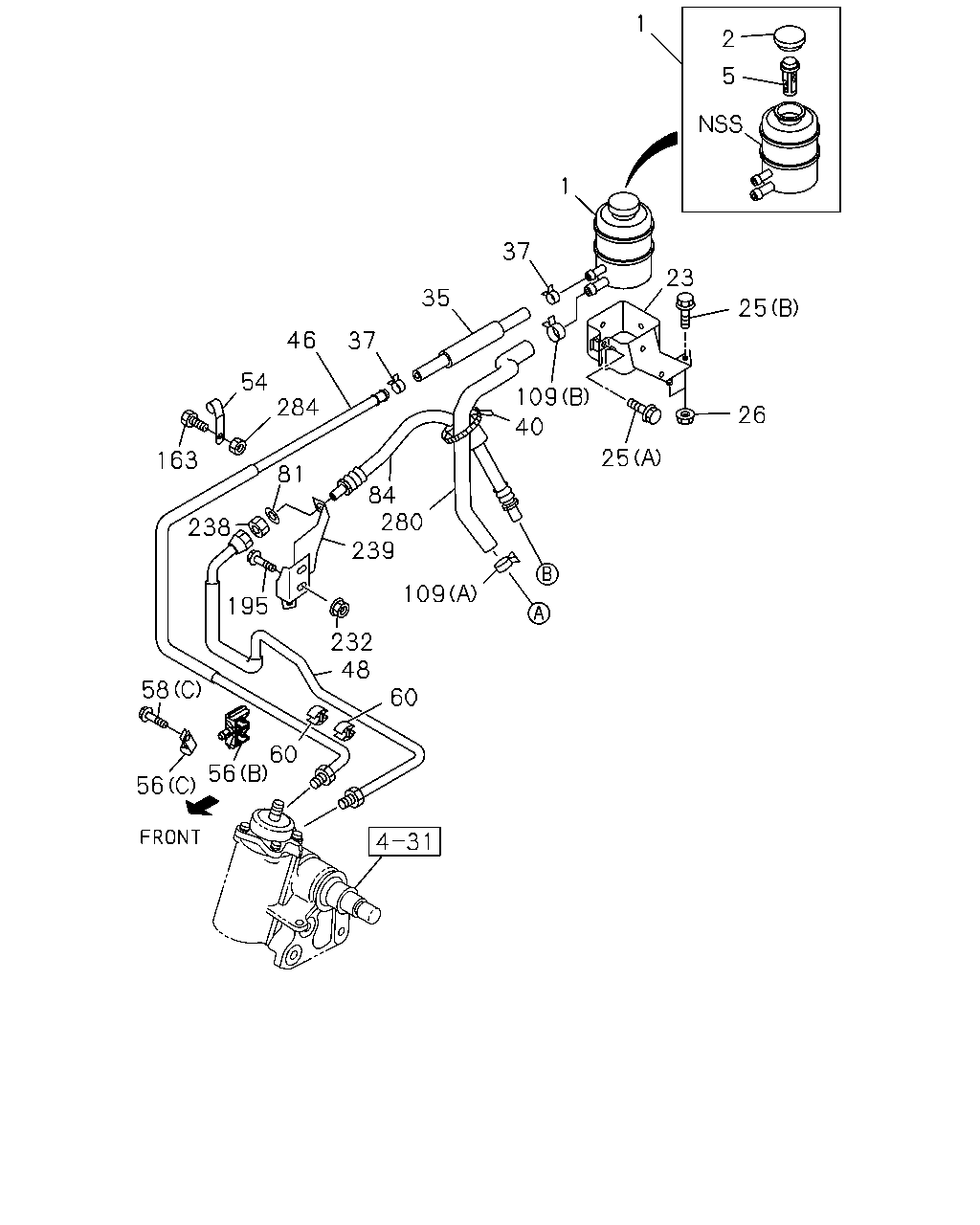

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#42285) — 138 parça

1 2 5 1 37 23 35 25 46 37 54 284 109 26 40 25 163 81 84 280 239 238 109 195 232 48 58 60 60 56 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	06.635 TANK ASM; OIL,P/S POWER STEERING<N40>	8-97107-987-0	01	1	9811-	●	●	●	●	●	●
2	06.672 CAP; OIL TANK,P/S POWER STEERING<N40> 06.635	8-94146-153-2	01	1	9811-	●	●	●	●	●	●
5	06.600 STRAINER; OIL TANK,P/S POWER STEERING<N40>	8-97094-732-0	01	1	9811-	●	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S POWER STEERING<N40>	8-97066-500-3	01	1	9811-	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT POWER STEERING<N40> 00.785 (A) M6X20 FLANGE	0-28480-620-0	01	1	9811-	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT POWER STEERING<N40> 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	9811-	●	●	●	●	●	●
26	06.635 NUT; OIL TANK TO BRKT POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-	●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK POWER STEERING<N40>	8-97081-444-3	01	1	9811-	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S POWER STEERING<N40> 04.930 ID=16	8-94238-568-0	02	1	9811-	●	●	●	●	●	●
40	06.672 CLIP; BAND POWER STEERING<N40> 02.559 L=250	5-09707-030-1	01	1	9811-	●	●	●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40>	8-97205-632-0	01	1	9811-0101	●	●			●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40>	8-97262-186-0	01	1	0102-	●	●			●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40> CHARGE AIR COOLER<6PL>	8-97211-311-0	01	1	0005-			●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40>	8-97192-791-0	01	1	9811-0004			●	●		●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40> EXC. CHARGE AIR COOLER<6PL>	8-97192-791-0	01	1	0005-			●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40>	8-97192-791-0	01	1	0005-				●		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40>	8-97205-630-0	01	1	9811-0101	●	●			●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40>	8-97261-623-0	01	1	0102-	●	●			●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40> CHARGE AIR COOLER<6PL>	8-97211-310-0	01	1	0005-			●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40>	8-97192-785-0	01	1	9811-0004			●	●		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40> EXC. CHARGE AIR COOLER<6PL>	8-97192-785-0	01	1	0005-			●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40>	8-97192-785-0	01	1	0005-				●		●
54	06.672 CLIP; OIL PIPE POWER STEERING<N40> ID=11 L=40	8-94259-342-0	01	1	9811-	●	●	●	●	●	●
56	06.672 CLIP; OIL PIPE POWER STEERING<N40> (A) ID=11 L=40	8-94123-171-1	01	1	9811-	●	●			●
56	06.672 CLIP; OIL PIPE POWER STEERING<N40> 04.930 (B) ID=10X2 H=37.5	8-97018-546-0	01	1	9811-			●	●		●
56	06.672 CLIP; OIL PIPE POWER STEERING<N40> 03.302 (C) ID=11 L=16	9-09525-022-0	01	1	9811-			●	●		●
58	06.672 BOLT; CLIP POWER STEERING<N40> 04.595 (B) M8X20 FLANGE	0-28480-820-0	01	1	9811-9812	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 00.034 (B) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	9901-	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 04.439 (C) M6X16 FLANGE	0-28680-616-0	01	1	9811-	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 08.080 (A) M6X16	8-94238-894-0	01	1	9811-9811	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	01	1	9812-9812	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 08.080 (A) M6X16	8-94238-894-0	01	1	9901-9903	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 00.206 (A) M6X20	8-94279-112-0	01	1	9904-	●	●	●	●	●	●
60	06.672 CLAMP; PIPE,RETURN POWER STEERING<N40> ID=10X2 H=22	8-94252-455-2	02	1	9811-			●	●		●
81	06.672 WASHER; LK,FLEX HOSE POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	02	1	9811-	●	●	●	●	●	●
84	06.670 HOSE; FLEX,P/S POWER STEERING<N40>	8-97047-717-4	01	1	9811-	●	●			●
84	06.670 HOSE; FLEX,P/S POWER STEERING<N40>	8-97078-368-4	01	1	9811-			●	●		●
109	06.672 CLIP; RUBBER HOSE POWER STEERING<N40> (A) ID=21	8-94242-034-0	01	1	9811-	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE POWER STEERING<N40> 08.846 (B) ID=22	8-94382-401-0	01	1	9811-	●	●	●	●	●	●
163	06.671 BOLT; OIL PIPE POWER STEERING<N40> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9811-	●	●	●	●	●	●
195	06.635 BOLT; BRKT POWER STEERING<N40> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9811-	●	●			●
195	06.635 BOLT; BRKT POWER STEERING<N40> 03.162 M10X35 FLANGE	0-28681-035-0	02	1	9811-			●	●		●
232	06.672 NUT; BRKT POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-	●	●			●
232	06.672 NUT; BRKT POWER STEERING<N40> 04.785 M10 FLANGE	0-91150-110-0	02	1	9811-			●	●		●
238	06.670 NUT; FLEX HOSE POWER STEERING<N40> 06.897 M16	8-94370-339-0	01	1	9811-	●	●	●	●	●	●
239	06.606 BRACKET; FLEX HOSE POWER STEERING<N40>	8-97089-879-0	01	1	9811-	●	●			●
239	06.606 BRACKET; FLEX HOSE POWER STEERING<N40>	8-97092-085-1	01	1	9811-			●	●		●
280	06.672 HOSE; P/S OIL PUMP,INL POWER STEERING<N40>	8-97062-797-1	01	1	9811-0004	●	●	●	●	●	●
280	06.672 HOSE; P/S OIL PUMP,INL POWER STEERING<N40>	8-97062-797-1	01	1	0005-	●	●		●	●	●
280	06.672 HOSE; P/S OIL PUMP,INL POWER STEERING<N40> EXC. CHARGE AIR COOLER<6PL>	8-97062-797-1	01	1	0005-			●
280	06.672 HOSE; P/S OIL PUMP,INL POWER STEERING<N40> CHARGE AIR COOLER<6PL>	8-97205-635-0	01	1	0005-			●
284	06.670 NUT; PIPE POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-	●	●	●	●	●	●

77 77 79 81 82 88 58 102 89 87 58 58 57 344 57 262 262 271 271

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
57	06.672 BRACKET; POWER STRG PIPE POWER STEERING<N40>	8-97101-943-0	01	1	9811-0111	●	●	●	●	●	●
57	06.672 BRACKET; POWER STRG PIPE POWER STEERING<N40>	8-97312-558-1	01	1	0112-	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 04.595 (B) M8X20 FLANGE	0-28480-820-0	01	1	9811-9812	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 00.034 (B) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	9901-	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 04.439 (C) M6X16 FLANGE	0-28680-616-0	01	1	9811-	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 08.080 (A) M6X16	8-94238-894-0	01	1	9811-9811	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	01	1	9812-9812	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 08.080 (A) M6X16	8-94238-894-0	01	1	9901-9903	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 00.206 (A) M6X20	8-94279-112-0	01	1	9904-	●	●	●	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE POWER STEERING<N40> (A)	8-97074-053-0	01	1	9811-9811	●	●	●	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE POWER STEERING<N40> (A)	8-97208-424-0	01	1	9812-	●	●	●	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JB1 ENG(RLF) POWER STEERING<N40> (B)	8-97075-615-0	01	1	9811-	●	●	●	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JG2 ENG(RJC) POWER STEERING<N40> (B)	8-97073-947-0	01	1	9811-0105	●	●			●
77	06.672 BRACKET; POWER STEERING HOSE 4JG2 ENG(RJC) POWER STEERING<N40> (B)	8-97073-947-0	01	1	0106-					●
79	06.672 BOLT; BRKT POWER STEERING<N40> 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9811-	●	●	●	●	●	●
81	06.672 WASHER; LK,FLEX HOSE POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	02	1	9811-	●	●	●	●	●	●
82	06.672 NUT; FLEX HOSE,P/S POWER STEERING<N40> 06.897 M16	8-94370-339-0	01	1	9811-	●	●	●	●	●	●
87	06.672 BOLT; POWER STRG PIPE POWER STEERING<N40> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9811-	●	●	●	●	●	●
88	06.673 RING; OIL PIPE POWER STEERING<N40> 06.609 ID=11.0	9-09561-111-0	01	1	9811-	●	●	●	●	●	●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H POWER STEERING<N40>	8-97148-571-0	01	1	9811-9811	●	●	●	●	●	●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H POWER STEERING<N40>	8-97214-442-0	01	1	9812-9903	●	●	●	●	●	●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H POWER STEERING<N40>	8-97227-155-0	01	1	9904-0111	●	●	●	●	●	●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H POWER STEERING<N40>	8-97312-556-0	01	1	0112-	●	●	●	●	●	●
102	06.671 PIPE; SUCTION,P/S POWER STEERING<N40>	8-97136-516-0	01	1	9811-9811	●	●	●	●	●	●
102	06.671 PIPE; SUCTION,P/S POWER STEERING<N40>	8-97214-446-0	01	1	9812-9812	●	●	●	●	●	●
102	06.671 PIPE; SUCTION,P/S POWER STEERING<N40>	8-97223-147-0	01	1	9901-9904	●	●	●	●	●	●
102	06.671 PIPE; SUCTION,P/S POWER STEERING<N40>	8-97226-682-0	01	1	9905-0111	●	●	●	●	●	●
102	06.671 PIPE; SUCTION,P/S POWER STEERING<N40>	8-97312-557-1	01	1	0112-	●	●	●	●	●	●
262	06.672 CLIP; P/S PIPE POWER STEERING<N40>	8-94154-657-1	01	1	9811-9811	●	●	●	●	●	●
262	06.672 CLIP; P/S PIPE POWER STEERING<N40>	8-97214-447-1	01	1	9812-0111	●	●	●	●	●	●
262	06.672 CLIP; P/S PIPE POWER STEERING<N40>	8-97300-961-0	01	1	0112-	●	●	●	●	●	●
271	06.672 BOLT; P/S OIL PIPE FIX POWER STEERING<N40> 06.525 M8X30	8-94247-692-0	01	1	9811-9812	●	●	●	●	●	●
271	06.672 BOLT; P/S OIL PIPE FIX POWER STEERING<N40> 00.780 M8X30 W/LK WASHER	0-50040-830-0	01	1	9901-0111	●	●	●	●	●	●
271	06.672 BOLT; P/S OIL PIPE FIX POWER STEERING<N40> 03.704 M8X40 FLANGE	0-28680-840-0	01	1	0112-	●	●	●	●	●	●
344	04.681 PIECE; DISTANCE POWER STEERING<N40>	8-97214-563-0	01	1	9812-0111	●	●	●	●	●	●

1 2 5 1 25 37 23 35 37 163 46 54 284 109 40 56 58 26 25 84 81 238 280 195 239 232 48 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	06.635 TANK ASM; OIL,P/S POWER STEERING<N40>	8-97107-987-0	01	1	9811-	●	●	●	●	●	●
2	06.672 CAP; OIL TANK,P/S POWER STEERING<N40> 06.635	8-94146-153-2	01	1	9811-	●	●	●	●	●	●
5	06.600 STRAINER; OIL TANK,P/S POWER STEERING<N40>	8-97094-732-0	01	1	9811-	●	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S POWER STEERING<N40>	8-97066-500-3	01	1	9811-	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT POWER STEERING<N40> 00.785 (A) M6X20 FLANGE	0-28480-620-0	01	1	9811-	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT POWER STEERING<N40> 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	9811-	●	●	●	●	●	●
26	06.635 NUT; OIL TANK TO BRKT POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-	●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK POWER STEERING<N40>	8-97081-444-3	01	1	9811-	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S POWER STEERING<N40> 04.930 ID=16	8-94238-568-0	02	1	9811-	●	●	●	●	●	●
40	06.672 CLIP; BAND POWER STEERING<N40> 02.559 L=250	5-09707-030-1	01	1	9811-	●	●	●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40>	8-97205-632-0	01	1	9811-0101	●	●			●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40>	8-97262-186-0	01	1	0102-	●	●			●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40> CHARGE AIR COOLER<6PL>	8-97211-311-0	01	1	0005-			●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40>	8-97192-791-0	01	1	9811-0004			●	●		●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40> EXC. CHARGE AIR COOLER<6PL>	8-97192-791-0	01	1	0005-			●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40>	8-97192-791-0	01	1	0005-				●		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40>	8-97205-630-0	01	1	9811-0101	●	●			●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40>	8-97261-623-0	01	1	0102-	●	●			●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40> CHARGE AIR COOLER<6PL>	8-97211-310-0	01	1	0005-			●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40>	8-97192-785-0	01	1	9811-0004			●	●		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40> EXC. CHARGE AIR COOLER<6PL>	8-97192-785-0	01	1	0005-			●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40>	8-97192-785-0	01	1	0005-				●		●
54	06.672 CLIP; OIL PIPE POWER STEERING<N40> ID=11 L=40	8-94259-342-0	01	1	9811-	●	●	●	●	●	●
56	06.672 CLIP; OIL PIPE POWER STEERING<N40> (A) ID=11 L=40	8-94123-171-1	01	1	9811-	●	●			●
56	06.672 CLIP; OIL PIPE POWER STEERING<N40> 04.930 (B) ID=10X2 H=37.5	8-97018-546-0	01	1	9811-			●	●		●
56	06.672 CLIP; OIL PIPE POWER STEERING<N40> 03.302 (C) ID=11 L=16	9-09525-022-0	01	1	9811-			●	●		●
58	06.672 BOLT; CLIP POWER STEERING<N40> 04.595 (B) M8X20 FLANGE	0-28480-820-0	01	1	9811-9812	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 00.034 (B) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	9901-	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 04.439 (C) M6X16 FLANGE	0-28680-616-0	01	1	9811-	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 08.080 (A) M6X16	8-94238-894-0	01	1	9811-9811	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	01	1	9812-9812	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 08.080 (A) M6X16	8-94238-894-0	01	1	9901-9903	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 00.206 (A) M6X20	8-94279-112-0	01	1	9904-	●	●	●	●	●	●
81	06.672 WASHER; LK,FLEX HOSE POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	02	1	9811-	●	●	●	●	●	●
84	06.670 HOSE; FLEX,P/S POWER STEERING<N40>	8-97047-717-4	01	1	9811-	●	●			●
84	06.670 HOSE; FLEX,P/S POWER STEERING<N40>	8-97078-368-4	01	1	9811-			●	●		●
109	06.672 CLIP; RUBBER HOSE POWER STEERING<N40> (A) ID=21	8-94242-034-0	01	1	9811-	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE POWER STEERING<N40> 08.846 (B) ID=22	8-94382-401-0	01	1	9811-	●	●	●	●	●	●
163	06.671 BOLT; OIL PIPE POWER STEERING<N40> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9811-	●	●	●	●	●	●
195	06.635 BOLT; BRKT POWER STEERING<N40> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9811-	●	●			●
195	06.635 BOLT; BRKT POWER STEERING<N40> 03.162 M10X35 FLANGE	0-28681-035-0	02	1	9811-			●	●		●
232	06.672 NUT; BRKT POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-	●	●			●
232	06.672 NUT; BRKT POWER STEERING<N40> 04.785 M10 FLANGE	0-91150-110-0	02	1	9811-			●	●		●
238	06.670 NUT; FLEX HOSE POWER STEERING<N40> 06.897 M16	8-94370-339-0	01	1	9811-	●	●	●	●	●	●
239	06.606 BRACKET; FLEX HOSE POWER STEERING<N40>	8-97089-879-0	01	1	9811-	●	●			●
239	06.606 BRACKET; FLEX HOSE POWER STEERING<N40>	8-97092-085-1	01	1	9811-			●	●		●
280	06.672 HOSE; P/S OIL PUMP,INL POWER STEERING<N40>	8-97062-797-1	01	1	9811-0004	●	●	●	●	●	●
280	06.672 HOSE; P/S OIL PUMP,INL POWER STEERING<N40>	8-97062-797-1	01	1	0005-	●	●		●	●	●
280	06.672 HOSE; P/S OIL PUMP,INL POWER STEERING<N40> EXC. CHARGE AIR COOLER<6PL>	8-97062-797-1	01	1	0005-			●
280	06.672 HOSE; P/S OIL PUMP,INL POWER STEERING<N40> CHARGE AIR COOLER<6PL>	8-97205-635-0	01	1	0005-			●
284	06.670 NUT; PIPE POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-	●	●	●	●	●	●
