◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50808 - NHR ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-30 - STEERING WHEEL AND COWL ▶
4-30 — STEERING WHEEL AND COWL (#42282) — 44 parça

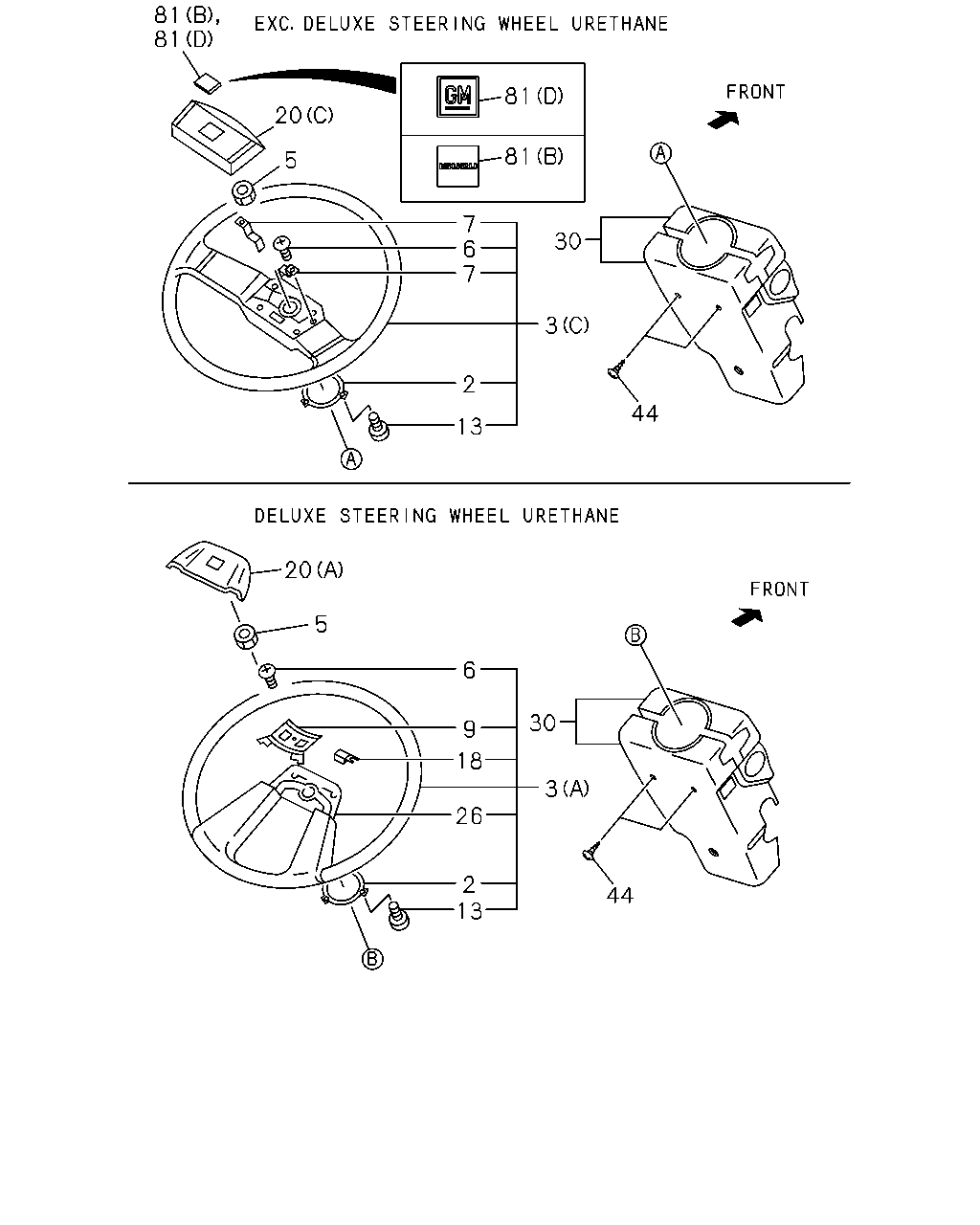

çizim 46559
81 81 81 20 81 5 7 6 7 30 3 2 44 13 20 5 6 30 9 18 3 26 2 13 44
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 06.514 RING; HORN CONTACT
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> 		8-94437-938-0 01 1 9811- ● ● ● ● ● ●
2 06.514 RING; HORN CONTACT
EXC. DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40> 02.819 		8-94150-223-0 01 1 9811- ● ● ● ● ● ●
3 06.513 WHEEL; STRG
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> (A) DARK GRAY 		1-44110-163-0 01 1 9811- ● ● ● ● ● ●
3 06.513 WHEEL; STRG
EXC. DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40> (C) DARK GRAY 		8-97158-727-0 01 1 9811- ● ● ● ● ● ●
3 06.513 WHEEL; STRG
POWER STEERING<N40> (B) DARK GRAY 		8-97098-531-1 01 1 9811- ● ● ● ● ● ●
5 06.515 NUT; STRG WHEEL TO SHAFT
06.172 M14 		9-99111-414-0 01 1 9811- ● ● ● ● ● ●
6 02.820 SCREW; HORN SPR CONTACT
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> 06.514 		9-93090-308-0 02 1 9811- ● ● ● ● ● ●
6 02.820 SCREW; HORN SPR CONTACT
EXC. DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40> 		8-94458-316-0 02 1 9811- ● ● ● ● ● ●
7 02.819 SPRING; HORN CONTACT
EXC. DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40> 		8-94150-222-0 02 1 9811- ● ● ● ● ● ●
9 02.819 PLATE; HORN CONTACT
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> 		8-94437-939-0 01 1 9811- ● ● ● ● ● ●
9 02.819 PLATE; HORN CONTACT
POWER STEERING<N40> 		8-97076-688-1 01 1 9811- ● ● ● ● ● ●
13 06.514 SCREW; CONTACT RING
EXC. POWER STEERING<N40> M3X10 TAPPING 		9-07076-310-0 03 1 9811- ● ● ● ● ● ●
18 06.508 CONDENSER ASM; STEERING WHEEL
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> 		8-94462-321-0 01 1 9811- ● ● ● ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> (A) DARK GRAY 		8-97154-485-0 01 1 9811- ● ● ● ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
EXC. DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40> (C) DARK GRAY 		8-97158-724-0 01 1 9811- ● ● ● ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
POWER STEERING<N40> (B) DARK GRAY 		8-97098-526-0 01 1 9811- ● ● ● ● ● ●
26 06.514 COVER; STRG WHEEL,LWR
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> 		1-44110-160-0 01 1 9811- ● ● ● ● ● ●
26 06.514 COVER; STRG WHEEL,LWR
POWER STEERING<N40> DARK GRAY 		8-97098-534-1 01 1 9811- ● ● ● ● ● ●
30 06.518 COWL; STEERING
TILT STEERING<N33> DARK GRAY 		8-97857-532-8 01 1 9811- ● ● ● ● ● ●
30 06.518 COWL; STEERING
EXC. TILT STEERING<N33> DARK GRAY 		8-97868-358-7 01 1 9811- ● ● ● ● ● ●
44 06.514 SCREW; STRG COWL
M5X16 W/LK&PL WASHER 		8-94279-400-0 02 1 9811- ● ● ● ● ● ●
81 02.820 EMBLEM; STRG WHEEL
EXC. MARK VEHICLE NAME<EK7>,DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40> (B) DARK GRAY 		8-97158-725-0 01 1 9811- ● ● ● ● ● ●
81 02.820 EMBLEM; STRG WHEEL
POWER STEERING<N40> EXC. MARK VEHICLE NAME<EK7> (A) DARK GRAY 		8-97098-527-0 01 1 9811- ● ● ● ● ● ●
81 02.820 EMBLEM; STRG WHEEL
MARK VEHICLE NAME<EK7> EXC. DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40> (D) DARK GRAY 		8-97158-726-0 01 1 9811- ●
81 02.820 EMBLEM; STRG WHEEL
MARK VEHICLE NAME<EK7> POWER STEERING<N40> (C) DARK GRAY 		8-97098-659-0 01 1 9811- ●

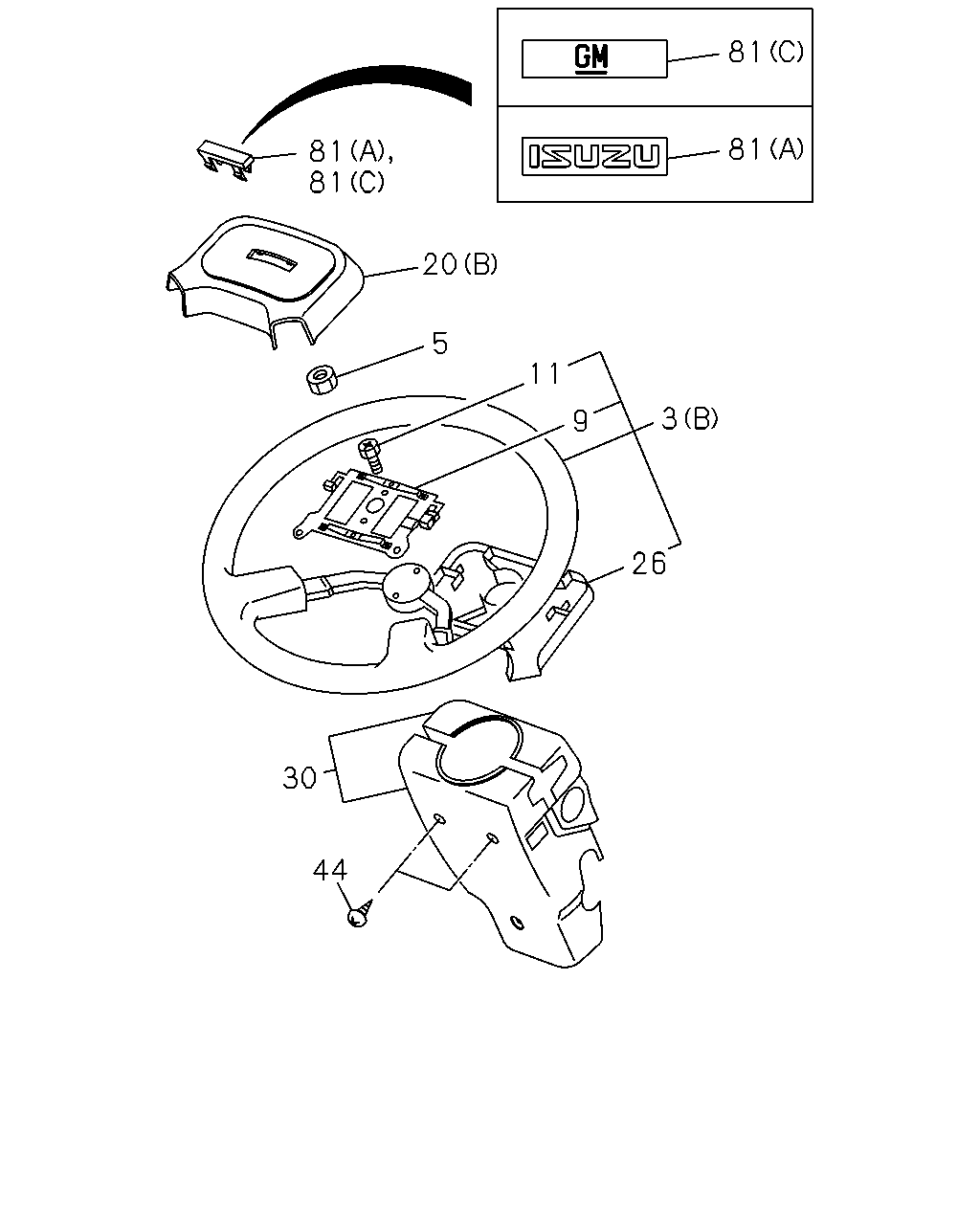

çizim 47593
81 81 81 81 20 5 11 3 9 26 30 44
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 06.513 WHEEL; STRG
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> (A) DARK GRAY 		1-44110-163-0 01 1 9811- ● ● ● ● ● ●
3 06.513 WHEEL; STRG
EXC. DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40> (C) DARK GRAY 		8-97158-727-0 01 1 9811- ● ● ● ● ● ●
3 06.513 WHEEL; STRG
POWER STEERING<N40> (B) DARK GRAY 		8-97098-531-1 01 1 9811- ● ● ● ● ● ●
5 06.515 NUT; STRG WHEEL TO SHAFT
06.172 M14 		9-99111-414-0 01 1 9811- ● ● ● ● ● ●
9 02.819 PLATE; HORN CONTACT
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> 		8-94437-939-0 01 1 9811- ● ● ● ● ● ●
9 02.819 PLATE; HORN CONTACT
POWER STEERING<N40> 		8-97076-688-1 01 1 9811- ● ● ● ● ● ●
11 06.514 SCREW; PLATE TO BUTTON
POWER STEERING<N40> 		8-97076-690-1 02 1 9811- ● ● ● ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> (A) DARK GRAY 		8-97154-485-0 01 1 9811- ● ● ● ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
EXC. DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40> (C) DARK GRAY 		8-97158-724-0 01 1 9811- ● ● ● ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
POWER STEERING<N40> (B) DARK GRAY 		8-97098-526-0 01 1 9811- ● ● ● ● ● ●
26 06.514 COVER; STRG WHEEL,LWR
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> 		1-44110-160-0 01 1 9811- ● ● ● ● ● ●
26 06.514 COVER; STRG WHEEL,LWR
POWER STEERING<N40> DARK GRAY 		8-97098-534-1 01 1 9811- ● ● ● ● ● ●
30 06.518 COWL; STEERING
TILT STEERING<N33> DARK GRAY 		8-97857-532-8 01 1 9811- ● ● ● ● ● ●
30 06.518 COWL; STEERING
EXC. TILT STEERING<N33> DARK GRAY 		8-97868-358-7 01 1 9811- ● ● ● ● ● ●
44 06.514 SCREW; STRG COWL
M5X16 W/LK&PL WASHER 		8-94279-400-0 02 1 9811- ● ● ● ● ● ●
81 02.820 EMBLEM; STRG WHEEL
EXC. MARK VEHICLE NAME<EK7>,DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40> (B) DARK GRAY 		8-97158-725-0 01 1 9811- ● ● ● ● ● ●
81 02.820 EMBLEM; STRG WHEEL
POWER STEERING<N40> EXC. MARK VEHICLE NAME<EK7> (A) DARK GRAY 		8-97098-527-0 01 1 9811- ● ● ● ● ● ●
81 02.820 EMBLEM; STRG WHEEL
MARK VEHICLE NAME<EK7> EXC. DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40> (D) DARK GRAY 		8-97158-726-0 01 1 9811- ●
81 02.820 EMBLEM; STRG WHEEL
MARK VEHICLE NAME<EK7> POWER STEERING<N40> (C) DARK GRAY 		8-97098-659-0 01 1 9811- ●
