4-25 — REAR FINAL DRIVE (#42281) — 72 parça

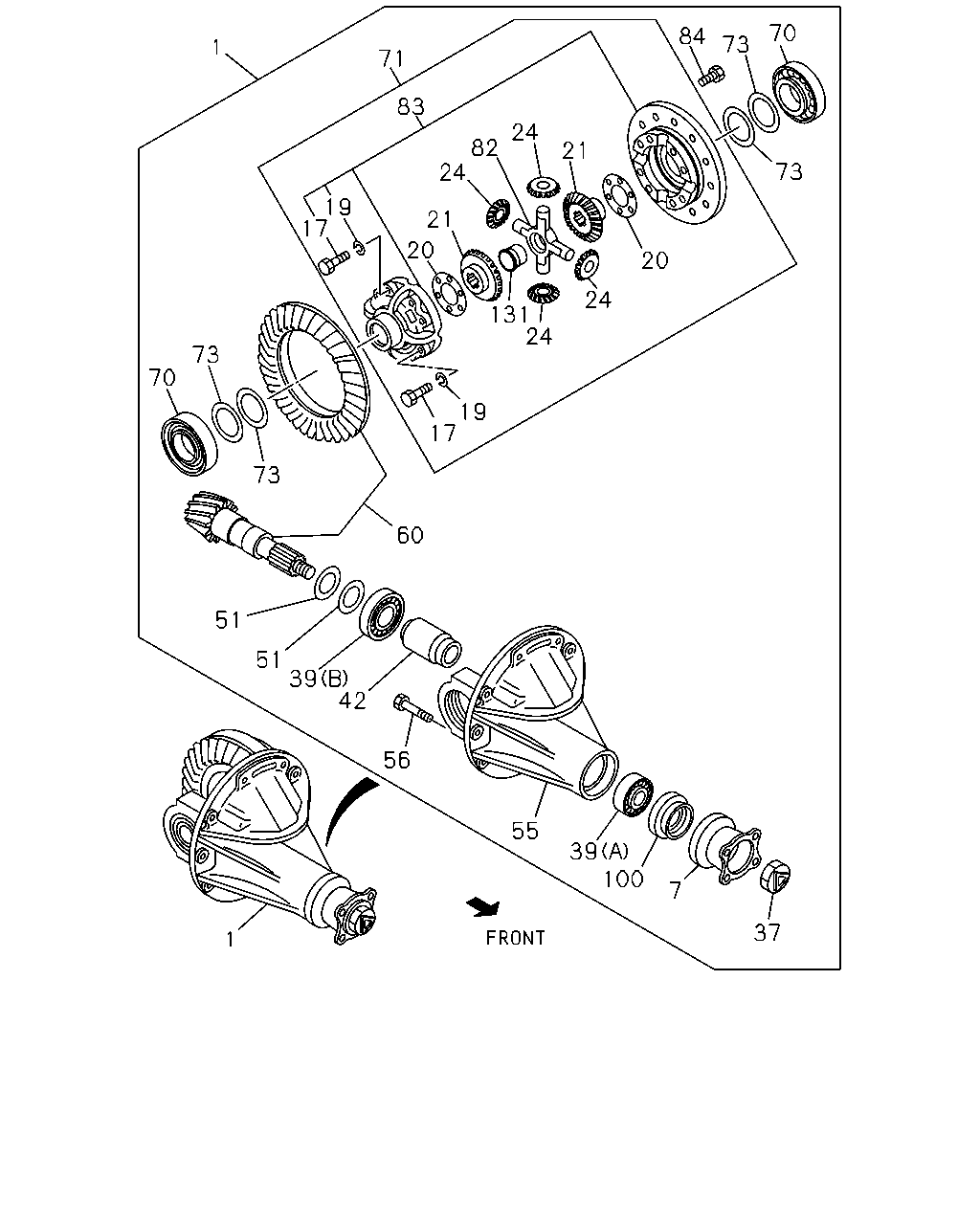

çizim 9282
70 84 73 71 83 24 82 24 21 73 19 17 21 20 20 24 131 24 73 70 19 17 73 60 51 51 39 42 56 55 39 100 7 37 1 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 05.505 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 41/9(HC6) 41/9 		8-97035-402-0 01 1 9811-0105 ● ●
1 05.505 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 39/8(RV9) 39/8 		8-97035-409-0 01 1 9811- ● ● ● ●
1 05.505 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 41/8(RU1) 41/8 		8-97080-672-0 01 1 9811- ● ● ● ●
1 05.505 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 39/7(GV1) 39/7 		8-97035-405-0 01 1 9811-0105 ●
1 05.505 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 41/10(GT5) 41/10 		8-97080-667-0 01 1 9811- ● ●
1 05.505 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 43/11(GNA) 43/11 		8-97035-400-0 01 1 9811- ● ●
7 05.545 FLANGE; FINAL 8-97075-216-3 01 1 9811- ● ● ● ● ● ●
17 05.510 BOLT; DIFF CAGE SETTING
M12X58 		5-09020-007-1 08 1 9811-0108 ● ● ● ● ● ●
17 05.510 BOLT; DIFF CAGE SETTING
05.650 M12X58 		8-97314-497-0 08 1 0109- ● ● ● ● ● ●
19 05.510 WASHER; LK,DIFF CAGE SETTING
06.515 ID=12.2 		9-09150-612-0 08 1 9811- ● ● ● ● ● ●
20 05.543 WASHER; THRUST,SIDE GEAR
T=1.00 		9-41562-602-0 02 1 9811- ● ● ● ● ● ●
21 05.528 GEAR; SIDE,DIFF
Z=18 		9-41561-047-1 02 1 9811-9911 ● ● ● ● ● ●
21 05.528 GEAR; SIDE,DIFF
Z=18 		8-97226-764-0 02 1 9912- ● ● ● ● ● ●
24 05.526 GEAR; PINION,DIFF
Z=10 		9-41551-029-1 04 1 9811-9911 ● ● ● ● ● ●
24 05.526 GEAR; PINION,DIFF
Z=10 		8-97226-762-0 04 1 9912- ● ● ● ● ● ●
37 05.595 NUT; DRIVING PINION
M24 FLANGE 		8-94376-261-1 01 1 9811- ● ● ● ● ● ●
39 05.484 BEARING; FINAL PINION
(A) NSK 		9-00093-078-0 01 1 9811- ● ● ● ● ● ●
39 05.484 BEARING; FINAL PINION
05.447 (B) JTEKT 		9-00093-079-0 01 1 9811- ● ● ● ● ● ●
42 05.453 COLLAR; DIST,COLLAPSIBLE
L=53.35 		9-41219-634-1 01 1 9811- ● ● ● ● ● ●
51 05.586 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.12 		9-41219-608-0 01 1 9811- ● ● ● ● ● ●
51 05.586 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.16 		9-41219-610-0 01 1 9811- ● ● ● ● ● ●
51 05.586 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.20 		9-41219-612-0 01 1 9811- ● ● ● ● ● ●
51 05.586 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.24 		9-41219-614-0 01 1 9811- ● ● ● ● ● ●
51 05.586 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.28 		9-41219-616-0 01 1 9811- ● ● ● ● ● ●
51 05.586 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.32 		9-41219-618-0 01 1 9811- ● ● ● ● ● ●
51 05.586 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.36 		9-41219-620-0 01 1 9811- ● ● ● ● ● ●
51 05.586 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.40 		9-41219-622-0 01 1 9811- ● ● ● ● ● ●
51 05.586 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.44 		9-41219-624-0 01 1 9811- ● ● ● ● ● ●
51 05.586 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.48 		9-41219-626-0 01 1 9811- ● ● ● ● ● ●
51 05.586 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.52 		9-41219-628-0 01 1 9811- ● ● ● ● ● ●
51 05.586 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.56 		9-41219-630-0 01 1 9811- ● ● ● ● ● ●
55 05.505 CARRIER; DIFF 8-94376-227-3 01 1 9811- ● ● ● ●
55 05.505 CARRIER; DIFF
FINAL GEAR RATIO 41/10(GT5) 		8-94376-227-3 01 1 9811- ● ●
55 05.505 CARRIER; DIFF
FINAL GEAR RATIO 43/11(GNA) 		8-97078-154-2 01 1 9811- ● ●
56 05.506 BOLT; BRG CAP
05.387 M14X80 		8-94365-377-2 04 1 9811- ● ● ● ● ● ●
60 05.529 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 41/9(HC6) 41/9 		8-97035-430-0 01 1 9811-0105 ● ●
60 05.529 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 39/8(RV9) 39/8 		8-97035-431-0 01 1 9811- ● ● ● ●
60 05.529 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 41/8(RU1) 41/8 		8-97076-962-0 01 1 9811- ● ● ● ●
60 05.529 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 39/7(GV1) 39/7 		8-97035-433-0 01 1 9811-0105 ●
60 05.529 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 41/10(GT5) 41/10 		8-97080-669-0 01 1 9811- ● ●
60 05.529 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 43/11(GNA) 43/11 		8-97035-428-0 01 1 9811- ● ●
70 05.536 BEARING; DIFF CAGE
NSK 		9-00032-211-0 02 1 9811- ● ● ● ● ● ●
71 05.510 CAGE ASM; DIFF,FINAL DRIVE
FINAL GEAR RATIO 41/8(RU1),FINAL GEARRATIO 39/8(RV9) 		5-41500-030-0 01 1 9811-9911 ● ●
71 05.510 CAGE ASM; DIFF,FINAL DRIVE 5-41500-030-0 01 1 9811-9911 ● ●
71 05.510 CAGE ASM; DIFF,FINAL DRIVE
FINAL GEAR RATIO 41/8(RU1),FINAL GEARRATIO 39/8(RV9) 		8-97228-310-0 01 1 9912-0105 ● ●
71 05.510 CAGE ASM; DIFF,FINAL DRIVE 8-97228-310-0 01 1 9912-0105 ● ●
71 05.510 CAGE ASM; DIFF,FINAL DRIVE 8-97228-310-0 01 1 0106- ● ● ● ●
71 05.510 CAGE ASM; DIFF,FINAL DRIVE
FINAL GEAR RATIO 41/9(HC6) 		8-94127-639-0 01 1 9811-9911 ● ●
71 05.510 CAGE ASM; DIFF,FINAL DRIVE
FINAL GEAR RATIO 41/9(HC6) 		8-97228-312-0 01 1 9912-0105 ● ●
71 05.510 CAGE ASM; DIFF,FINAL DRIVE 5-41500-037-0 01 1 9811-9911 ● ●
71 05.510 CAGE ASM; DIFF,FINAL DRIVE 8-97228-311-0 01 1 9912- ● ●
73 05.537 SHIM; DIFF SIDE BRG
T=0.50 		9-41519-009-0 AR 1 9811- ● ● ● ● ● ●
73 05.537 SHIM; DIFF SIDE BRG
T=0.25 		9-41519-010-0 AR 1 9811- ● ● ● ● ● ●
73 05.537 SHIM; DIFF SIDE BRG
T=0.30 		9-41519-601-0 AR 1 9811- ● ● ● ● ● ●
73 05.537 SHIM; DIFF SIDE BRG
T=0.35 		9-41519-602-0 AR 1 9811- ● ● ● ● ● ●
82 05.517 SPIDER; DIFF PINION 5-41521-006-0 01 1 9811- ● ● ● ●
82 05.517 SPIDER; DIFF PINION 9-41521-611-0 01 1 9811- ● ●
83 05.510 CAGE ASM; DIFF
FINAL GEAR RATIO 41/8(RU1),FINAL GEARRATIO 39/8(RV9) 		9-41510-610-0 01 1 9811-0105 ● ●
83 05.510 CAGE ASM; DIFF 9-41510-610-0 01 1 9811-0105 ● ●
83 05.510 CAGE ASM; DIFF 9-41510-610-0 01 1 0106- ● ● ● ●
83 05.510 CAGE ASM; DIFF
FINAL GEAR RATIO 41/9(HC6) 		5-41510-012-0 01 1 9811-0105 ● ●
83 05.510 CAGE ASM; DIFF 5-41510-012-0 01 1 9811-0105 ● ●
83 05.510 CAGE ASM; DIFF 5-41510-012-0 01 1 0106- ● ●
84 05.531 BOLT; FINAL DRIVE GEAR
FINAL GEAR RATIO 41/8(RU1),FINAL GEARRATIO 39/8(RV9) M12X25 		9-09606-505-2 12 1 9811-0105 ● ●
84 05.531 BOLT; FINAL DRIVE GEAR
M12X25 		9-09606-505-2 12 1 9811-0105 ● ●
84 05.531 BOLT; FINAL DRIVE GEAR
M12X25 		9-09606-505-2 12 1 0106- ● ● ● ●
84 05.531 BOLT; FINAL DRIVE GEAR
FINAL GEAR RATIO 41/9(HC6) M12X22 		9-09600-066-3 12 1 9811-0105 ● ●
84 05.531 BOLT; FINAL DRIVE GEAR
M12X22 		9-09600-066-3 12 1 9811-0105 ● ●
84 05.531 BOLT; FINAL DRIVE GEAR
M12X22 		9-09600-066-3 12 1 0106- ● ●
100 05.469 SEAL; OIL,FINAL PINION
NOK 		8-94408-084-1 01 1 9811- ● ● ● ● ● ●
100 05.469 SEAL; OIL,FINAL PINION
TKK 		8-94408-085-1 01 1 9811- ● ● ● ● ● ●
131 05.510 PIECE; THRUST,DIFF BOX 5-41525-002-0 01 1 9811- ● ● ● ●
