◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50808 - NHR ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-20 - REAR AXLE CASE AND SHAFT ▶
4-20 — REAR AXLE CASE AND SHAFT (#42280) — 96 parça

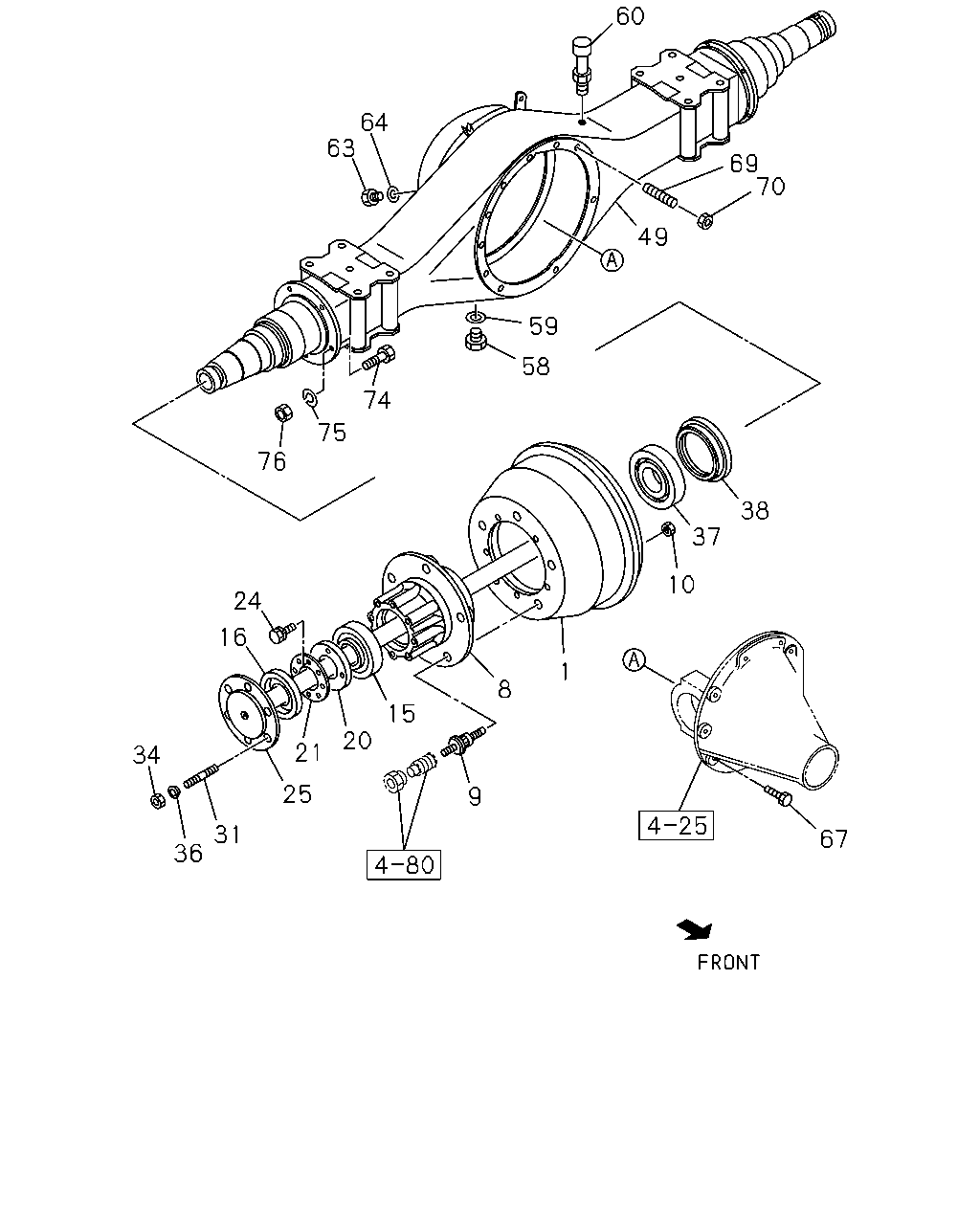

çizim 45487
60 64 63 69 70 49 59 58 74 75 76 38 37 10 24 16 1 8 15 20 21 34 25 9 31 67 36
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 05.809 DRUM; BRK,RR 8-97034-799-2 02 1 9811- ● ● ● ●
1 05.809 DRUM; BRK,RR 5-42315-041-4 02 1 9811- ● ●
8 05.809 HUB; RR AXLE 8-97032-606-3 02 1 9811- ● ●
9 05.812 PIN; WHEEL,RR AXLE
M14X42 LH THREAD 		8-97126-489-0 06 1 9811- ● ● ● ●
9 05.812 PIN; WHEEL,RR AXLE
M14X42 RH THREAD 		8-97126-488-0 06 1 9811- ● ● ● ●
9 05.812 PIN; WHEEL,RR AXLE
M16X35,M16X26 LH THREAD 		8-94365-255-0 06 1 9811- ● ●
9 05.812 PIN; WHEEL,RR AXLE
M16X35,M16X26 RH THREAD 		8-94365-254-0 06 1 9811- ● ●
10 05.813 NUT; WHEEL PIN,RR AXLE
M16 LH THREAD 		8-94161-997-0 06 1 9811- ● ●
10 05.813 NUT; WHEEL PIN,RR AXLE
08.915 M16 		9-99110-516-0 06 1 9811- ● ●
15 05.855 BEARING; HUB OUTER,RR AXLE
NSK 		9-00093-082-0 02 1 9811- ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
ID=50.5 OD=72 		9-09724-022-1 02 1 9811- ● ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
TKK 		8-94336-315-2 02 1 9811- ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
NOK 		8-94367-961-1 02 1 9811- ● ●
20 05.830 NUT; BRG,RR HUB
M52 		8-97137-092-0 02 1 9811- ● ●
21 05.830 WASHER; LK,BRG NUT
ID=52 		9-09853-214-0 02 1 9811- ● ●
24 05.830 BOLT; LK WASHER
00.685 M6X12 W/LK WASHER 		0-50040-612-0 04 1 9811- ● ●
25 05.420 SHAFT; AXLE,RR 8-97083-094-1 02 1 9811- ● ● ● ●
25 05.420 SHAFT; AXLE,RR 8-94341-978-0 02 1 9811- ● ●
31 05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49 		5-09300-066-1 12 1 9811- ● ●
34 05.387 NUT; AXLE SHAFT
M45 		8-94178-278-0 02 1 9811- ● ● ● ●
34 05.387 NUT; AXLE SHAFT
08.917 M10 FLANGE 		0-91150-210-0 12 1 9811- ● ●
36 05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5 		9-09855-207-0 12 1 9811- ● ●
37 05.855 BEARING; HUB INNER,RR AXLE
ID=45 OD=85 		9-00032-209-0 02 1 9811- ● ● ● ●
37 05.855 BEARING; HUB INNER,RR AXLE
NSK 		9-00093-081-0 02 1 9811- ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
05.387 ID=37.5 OD=60 		5-09625-092-0 02 1 9811- ● ● ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
TKK 		8-94336-314-1 02 1 9811- ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
NOK 		8-94367-959-0 02 1 9811- ● ●
49 05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/8(RU1),FINAL GEARRATIO 39/8(RV9) INDONESIA EQUIPMENT(S4S) 		8-97357-375-1 01 1 0211- ●
49 05.387 CASE; RR AXLE 8-97047-980-1 01 1 9811-0210 ● ● ● ●
49 05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/8(RU1),FINAL GEARRATIO 39/8(RV9) EXC. INDONESIA EQUIPMENT(S4S) 		8-97047-980-1 01 1 0211- ●
49 05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/8(RU1),FINAL GEARRATIO 39/8(RV9) 		8-97047-980-1 01 1 0211- ● ● ●
49 05.387 CASE; RR AXLE 8-97032-770-2 01 1 9811- ● ●
58 05.508 PLUG; DRAIN,AXLE CASE
M16X12.5 		8-97109-869-0 01 1 9811- ● ● ● ● ● ●
59 05.400 GASKET; DRAIN PLUG
01.252 ID=16.2 OD=24 		9-09571-416-0 01 1 9811- ● ● ● ● ● ●
60 05.387 BREATHER; RR AXLE CASE
L=30 		8-94416-611-1 01 1 9811- ● ● ● ● ● ●
63 05.400 PLUG; OIL FILLER,AXLE CASE
04.103 M20X10.5 		9-09662-005-0 01 1 9811- ● ● ● ● ● ●
64 05.400 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30 		8-94462-734-0 01 1 9811- ● ● ● ● ● ●
67 05.387 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER 		0-50061-040-0 08 1 9811- ● ● ● ●
67 05.387 BOLT; FINAL DRIVE SETTING
FINAL GEAR RATIO 41/10(GT5) M10X40 W/LK WASHER 		0-50061-040-0 08 1 9811- ● ●
67 05.387 BOLT; FINAL DRIVE SETTING
FINAL GEAR RATIO 43/11(GNA) M10X100 		0-50061-000-0 01 1 9811- ● ●
67 05.387 BOLT; FINAL DRIVE SETTING
FINAL GEAR RATIO 43/11(GNA) M10X40 W/LK WASHER 		0-50061-040-0 07 1 9811- ● ●
69 05.387 STUD; AXLE CASE
M10X40.5 L=52.5 		8-97026-282-0 02 1 9811- ● ● ● ● ● ●
70 05.387 NUT; CARRIER
08.917 M10 FLANGE 		0-91150-210-0 02 1 9811- ● ● ● ● ● ●
74 05.002 BOLT; RR BRK ASM SETTING
M12X32 		5-09000-078-0 08 1 9811- ● ●
75 05.002 WASHER; LK,RR BRK ASM SETTING
06.515 ID=12.2 		9-09150-612-0 08 1 9811- ● ●
76 05.002 NUT; RR BRK ASM SETTING
04.634 M12 		9-99110-512-0 08 1 9811- ● ●

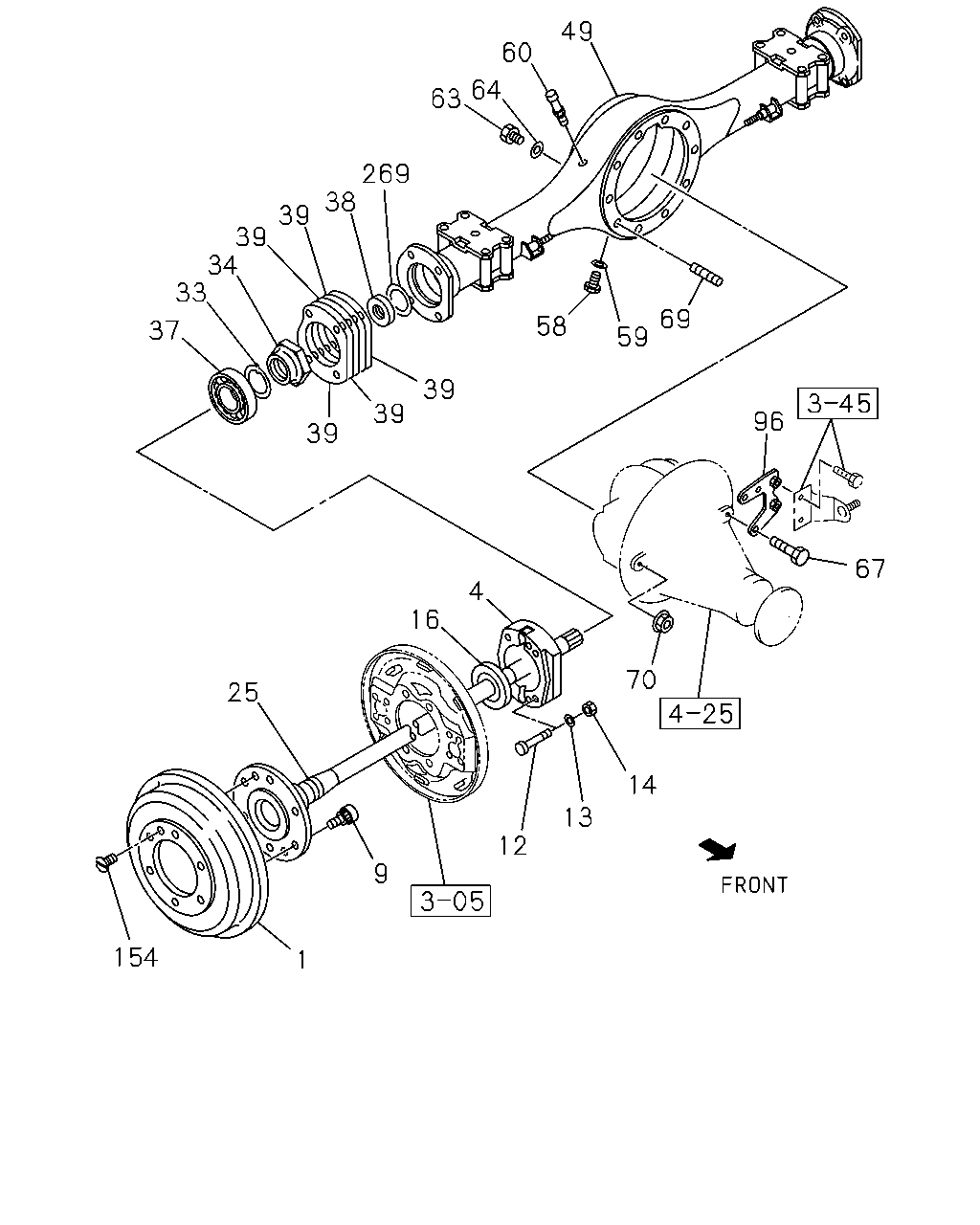

çizim 45526
49 60 64 63 269 38 39 39 34 33 69 58 37 59 39 39 96 39 67 4 16 70 25 14 13 12 9 154 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 05.809 DRUM; BRK,RR 8-97034-799-2 02 1 9811- ● ● ● ●
1 05.809 DRUM; BRK,RR 5-42315-041-4 02 1 9811- ● ●
4 05.816 HOLDER; BRG,AXLE SHAFT 8-94120-081-0 01 1 9811-0110 ● ● ● ●
4 05.816 HOLDER; BRG,AXLE SHAFT 8-94120-080-0 01 1 9811-0110 ● ● ● ●
4 05.816 HOLDER; BRG,AXLE SHAFT 8-97324-241-0 02 1 0111- ● ● ● ●
9 05.812 PIN; WHEEL,RR AXLE
M14X42 LH THREAD 		8-97126-489-0 06 1 9811- ● ● ● ●
9 05.812 PIN; WHEEL,RR AXLE
M14X42 RH THREAD 		8-97126-488-0 06 1 9811- ● ● ● ●
9 05.812 PIN; WHEEL,RR AXLE
M16X35,M16X26 LH THREAD 		8-94365-255-0 06 1 9811- ● ●
9 05.812 PIN; WHEEL,RR AXLE
M16X35,M16X26 RH THREAD 		8-94365-254-0 06 1 9811- ● ●
12 05.816 BOLT; BRG HOLDER TO CASE
M12X72 		8-94477-674-2 04 1 9811- ● ● ● ●
12 05.816 BOLT; BRG HOLDER TO CASE
M12X69 REAMER 		9-42119-603-2 04 1 9811- ● ● ● ●
13 05.816 WASHER; LK,BRG HOLDER TO CASE
04.634 ID=12.2 		9-09150-512-0 08 1 9811- ● ● ● ●
14 05.816 NUT; BRG HOLDER TO CASE
M12 		9-99110-412-0 08 1 9811- ● ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
ID=50.5 OD=72 		9-09724-022-1 02 1 9811- ● ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
TKK 		8-94336-315-2 02 1 9811- ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
NOK 		8-94367-961-1 02 1 9811- ● ●
25 05.420 SHAFT; AXLE,RR 8-97083-094-1 02 1 9811- ● ● ● ●
25 05.420 SHAFT; AXLE,RR 8-94341-978-0 02 1 9811- ● ●
33 05.422 WASHER; AXLE SHAFT 8-97086-472-0 02 1 9811- ● ● ● ●
34 05.387 NUT; AXLE SHAFT
M45 		8-94178-278-0 02 1 9811- ● ● ● ●
34 05.387 NUT; AXLE SHAFT
08.917 M10 FLANGE 		0-91150-210-0 12 1 9811- ● ●
37 05.855 BEARING; HUB INNER,RR AXLE
ID=45 OD=85 		9-00032-209-0 02 1 9811- ● ● ● ●
37 05.855 BEARING; HUB INNER,RR AXLE
NSK 		9-00093-081-0 02 1 9811- ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
05.387 ID=37.5 OD=60 		5-09625-092-0 02 1 9811- ● ● ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
TKK 		8-94336-314-1 02 1 9811- ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
NOK 		8-94367-959-0 02 1 9811- ● ●
39 05.816 SHIM; BRG HOLDER
T=1.000 		9-42119-616-0 AR 1 9811- ● ● ● ●
39 05.816 SHIM; BRG HOLDER
T=0.500 		9-42119-617-0 AR 1 9811- ● ● ● ●
39 05.816 SHIM; BRG HOLDER
T=0.13 		9-42119-618-0 AR 1 9811- ● ● ● ●
39 05.816 SHIM; BRG HOLDER
T=0.076 		9-42119-619-0 AR 1 9811- ● ● ● ●
39 05.816 SHIM; BRG HOLDER
T=0.050 		9-42119-620-0 AR 1 9811- ● ● ● ●
49 05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/8(RU1),FINAL GEARRATIO 39/8(RV9) INDONESIA EQUIPMENT(S4S) 		8-97357-375-1 01 1 0211- ●
49 05.387 CASE; RR AXLE 8-97047-980-1 01 1 9811-0210 ● ● ● ●
49 05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/8(RU1),FINAL GEARRATIO 39/8(RV9) EXC. INDONESIA EQUIPMENT(S4S) 		8-97047-980-1 01 1 0211- ●
49 05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/8(RU1),FINAL GEARRATIO 39/8(RV9) 		8-97047-980-1 01 1 0211- ● ● ●
49 05.387 CASE; RR AXLE 8-97032-770-2 01 1 9811- ● ●
58 05.508 PLUG; DRAIN,AXLE CASE
M16X12.5 		8-97109-869-0 01 1 9811- ● ● ● ● ● ●
59 05.400 GASKET; DRAIN PLUG
01.252 ID=16.2 OD=24 		9-09571-416-0 01 1 9811- ● ● ● ● ● ●
60 05.387 BREATHER; RR AXLE CASE
L=30 		8-94416-611-1 01 1 9811- ● ● ● ● ● ●
63 05.400 PLUG; OIL FILLER,AXLE CASE
04.103 M20X10.5 		9-09662-005-0 01 1 9811- ● ● ● ● ● ●
64 05.400 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30 		8-94462-734-0 01 1 9811- ● ● ● ● ● ●
67 05.387 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER 		0-50061-040-0 08 1 9811- ● ● ● ●
67 05.387 BOLT; FINAL DRIVE SETTING
FINAL GEAR RATIO 41/10(GT5) M10X40 W/LK WASHER 		0-50061-040-0 08 1 9811- ● ●
67 05.387 BOLT; FINAL DRIVE SETTING
FINAL GEAR RATIO 43/11(GNA) M10X100 		0-50061-000-0 01 1 9811- ● ●
67 05.387 BOLT; FINAL DRIVE SETTING
FINAL GEAR RATIO 43/11(GNA) M10X40 W/LK WASHER 		0-50061-040-0 07 1 9811- ● ●
69 05.387 STUD; AXLE CASE
M10X40.5 L=52.5 		8-97026-282-0 02 1 9811- ● ● ● ● ● ●
70 05.387 NUT; CARRIER
08.917 M10 FLANGE 		0-91150-210-0 02 1 9811- ● ● ● ● ● ●
96 04.730 BRACKET; LSPV,AXLE CASE
FINAL GEAR RATIO 41/8(RU1) BRK WHL LK CONT LSPV<6PH> 		8-94368-449-2 01 1 0007- ●
154 04.665 SCREW; SLOTTED
05.812 M6X16 CK-HEAD 		9-03090-616-0 02 1 9811- ● ● ● ●
269 05.387 GASKET; REAR AXLE
05.822 		9-09720-517-0 02 1 9811- ● ● ● ●
